4.3 Vortec Intake Manifold Diagram: Repair and Torque Specs

Navigating the complexities of the GM 90-degree V6 requires more than just mechanical intuition; it demands a precise 4.3 vortec intake manifold diagram to identify critical components and fluid pathways. This engine, a staple in millions of trucks and SUVs, often requires top-end maintenance to address common vacuum leaks or coolant seepage. By utilizing a detailed visual guide, you can confidently locate the fuel spider assembly, sensor ports, and torque sequences necessary for a successful repair. This article provides a comprehensive breakdown of the intake system, installation procedures, and troubleshooting techniques to keep your engine running efficiently. Whether you are a weekend warrior or a professional technician, understanding this specific 4.3 vortec intake manifold diagram is the first step toward a successful engine service.

Understanding the 4.3 Vortec Intake Manifold Components

The 4.3 Vortec intake system is a sophisticated two-piece “clamshell” design consisting of a composite (plastic) upper plenum and an aluminum lower manifold. In a standard 4.3 vortec intake manifold diagram, you will notice a distinct separation between the “dry” upper section, which manages air distribution and fuel housing, and the “wet” lower section, which handles both air intake and coolant flow. The upper plenum houses the Central Sequential Fuel Injection (CSFI) or the updated Multi-port Fuel Injection (MFI) unit, often referred to as the “spider” due to its radiating plastic fuel lines.

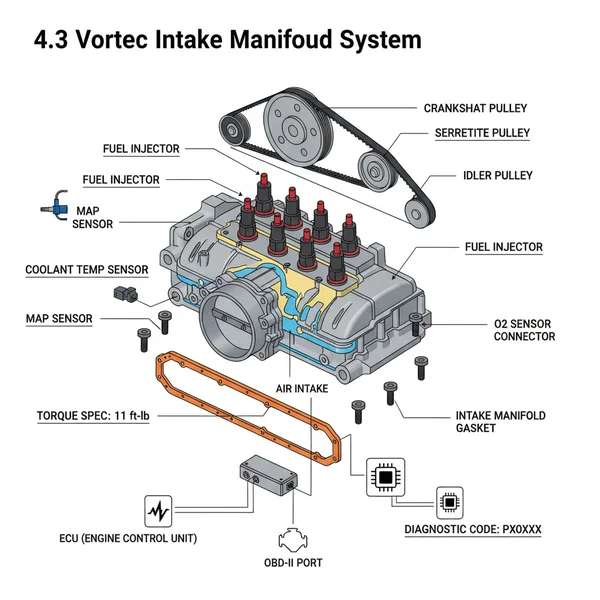

Key components typically featured in the diagram include:

• ✓ Throttle Body Mounting Surface: Located at the front of the upper plenum, this is the primary air entry point.
• ✓ EGR Valve Port: Positioned on the front of the lower manifold to recirculate exhaust gases for emissions control.
• ✓ Coolant Passages: Located at the four corners of the lower manifold where it meets the cylinder heads.
• ✓ MAP and TPS Sensors: Integrated into the upper plenum to provide data to the ECU for air-fuel management.
• ✓ Fuel Pressure Regulator: Situated inside the upper plenum near the rear of the fuel spider.

Variations in the diagram usually depend on the fuel system type. Early models feature the SCPI system with poppet valves that are prone to carbon buildup, while later versions utilize electronic injectors at the end of the spider legs. The lower manifold also contains the mounting point for the distributor, which is driven by the camshaft via the timing chain assembly located behind the engine’s front cover. Understanding these distinctions is vital when ordering replacement gaskets or sensors.

Step-by-Step Guide to Intake Manifold Service

Using a 4.3 vortec intake manifold diagram correctly involves understanding the sequence of disassembly and the precision required during reassembly. Follow these steps to ensure a leak-free installation.

1. Preliminary Disconnection and Safety
Before beginning, disconnect the negative battery cable to prevent any electrical shorts during the process. Use a fuel pressure gauge to relieve the pressure in the lines via the Schrader valve. You must also drain the radiator completely. If you fail to drain the coolant, it will pour directly into the lifter valley when the lower manifold is lifted, necessitating an immediate oil change and potential engine flushing.

2. Accessory and Bracket Removal
The accessory belt must be removed to gain access to the AC compressor and alternator brackets, which often overlap the front of the intake. Use a 1/2-inch drive breaker bar or long wrench on the tensioner pulley to release the accessory belt. Unbolt the power steering and alternator brackets and set them aside. In many cases, you can swing these components out of the way without disconnecting the AC lines or power steering hoses.

3. Upper Plenum and Sensor Disconnection
Disconnect the electrical connectors for the Manifold Absolute Pressure (MAP) sensor, Throttle Position Sensor (TPS), and Idle Air Control (IAC) valve. These signals are critical for the ECU to manage engine timing and fuel trim. Remove the fuel lines using a specialized quick-disconnect tool. Unscrew the plastic nuts or bolts holding the upper plenum. When lifting the plenum, be careful not to snag the delicate spider injector lines, as they can become brittle over time.

4. Lower Intake Manifold Removal
The lower manifold is secured by eight vertical bolts. Before removing them, you must mark the position of the distributor rotor and the housing relative to the engine block. Since the distributor is synced with the camshaft and timing chain, improper installation will cause a P1345 diagnostic code. Once the distributor is out, remove the eight bolts and carefully pry the manifold upward.

5. Surface Preparation
This is the most critical step for success. Use a plastic scraper or a dedicated gasket remover to clean the cylinder head mating surfaces. Avoid metal scrapers or abrasive “whiz wheels,” as these can gouge the aluminum heads or manifold, creating permanent leak paths. Ensure the “China walls”—the front and rear flat blocks of the engine valley—are completely free of old RTV silicone and oil residue.

6. Gasket Installation and RTV Application
Place the new gaskets onto the cylinder heads, ensuring the locator pins are properly seated. Apply a 1/4-inch bead of high-quality RTV silicone (specifically designed for oil resistance) across the front and rear China walls. Extend the bead slightly onto the gaskets at all four corners. This area is the most common failure point for coolant flow issues on the 4.3 Vortec.

7. Torque Sequence and Final Assembly
Lower the manifold straight down onto the RTV beads without sliding it. Following the 4.3 vortec intake manifold diagram torque sequence is mandatory. Tighten the bolts in three distinct passes: first to 2 lb-ft, then to 9 lb-ft, and finally to a final torque spec of 11 lb-ft. Over-tightening will crush the plastic carrier of the gasket, leading to an immediate failure.

Common Issues & Troubleshooting

The intake system is a frequent source of “check engine light” warnings. If your OBD-II scanner reveals diagnostic code P0171 or P0174 (lean bank 1 or 2), the upper plenum gasket or the throttle body gasket may be leaking. A 4.3 vortec intake manifold diagram helps you pinpoint where to perform a smoke test or spray a small amount of intake cleaner to look for changes in idle speed, indicating a vacuum leak.

Another common issue is the “strawberry milkshake” appearance in the oil or “low coolant” warnings. This indicates a failure of the lower intake manifold gaskets, allowing coolant flow to mix with the engine oil. If you experience a hard start or a strong smell of gasoline, the fuel pressure regulator inside the upper plenum may be leaking. Use the diagram to locate the regulator and check for “washed” or unusually clean areas inside the manifold, which signify a fuel leak.

Tips & Best Practices for Maintenance

To ensure a long-lasting repair, always upgrade the gaskets. The original factory gaskets utilized a plastic carrier that eventually becomes brittle and cracks due to heat cycles. Professional technicians recommend using “Problem Solver” style gaskets that feature an aluminum carrier and fluorocarbon rubber seals. These are far more resistant to the thermal expansion and contraction cycles of the 4.3 engine.

Additionally, always replace the intake manifold bolts if they show signs of corrosion. The bolts on the 4.3 Vortec are prone to rusting near the coolant ports, which can lead to inaccurate torque readings. Applying a small amount of thread sealer to the bolt threads is also a best practice to prevent coolant from wicking up the threads over time. Finally, after the repair is complete, clear all codes using an OBD-II tool and perform a “CASE relearn” if the distributor was significantly moved, ensuring the ECU is perfectly synced with the crankshaft position. By strictly following the 4.3 vortec intake manifold diagram and these best practices, you can restore your engine’s performance and prevent future failures.
