ZT1 Cub Cadet Drive Belt Tension Spring Diagram Guide
The zt1 cub cadet drive belt tension spring diagram reveals the specific layout of the tensioning mechanism. It shows how the spring component connects the idler arm to the mower frame, ensuring the drive system maintains constant pressure. This configuration prevents belt slippage during high-torque maneuvers and heavy grass cutting.
📌 Key Takeaways
- Visualizing the spring-to-idler arm connection points
- Identifying the heavy-duty extension spring as the primary tensioner
- Always disengaging the mower deck and removing keys before service
- Utilizing a spring puller tool to manage the high-tension load safely
- Consulting the diagram when belt slippage or loss of power occurs
When maintaining a high-performance zero-turn mower like the ZT1 series, understanding the mechanical assembly of the transmission system is vital for long-term reliability. A zt1 cub cadet drive belt tension spring diagram serves as the definitive roadmap for owners and technicians attempting to troubleshoot slipping belts, loss of ground speed, or unusual vibrations within the drivetrain. This comprehensive guide provides a deep dive into the drive belt tensioning system, offering a detailed overview of how the spring interacts with the idler arm and pulleys to maintain consistent power delivery from the engine to the hydraulic transmissions. By following this technical schematic and breakdown, you will learn how to identify critical components, execute safe replacements, and ensure your machine operates at peak efficiency.
The ZT1 Cub Cadet utilizes two distinct belt systems: the deck belt, which drives the blades, and the drive belt, which powers the hydrostatic transmissions. This guide focuses specifically on the drive belt tension spring, located beneath the engine and seat area, which is essential for the mower’s movement.

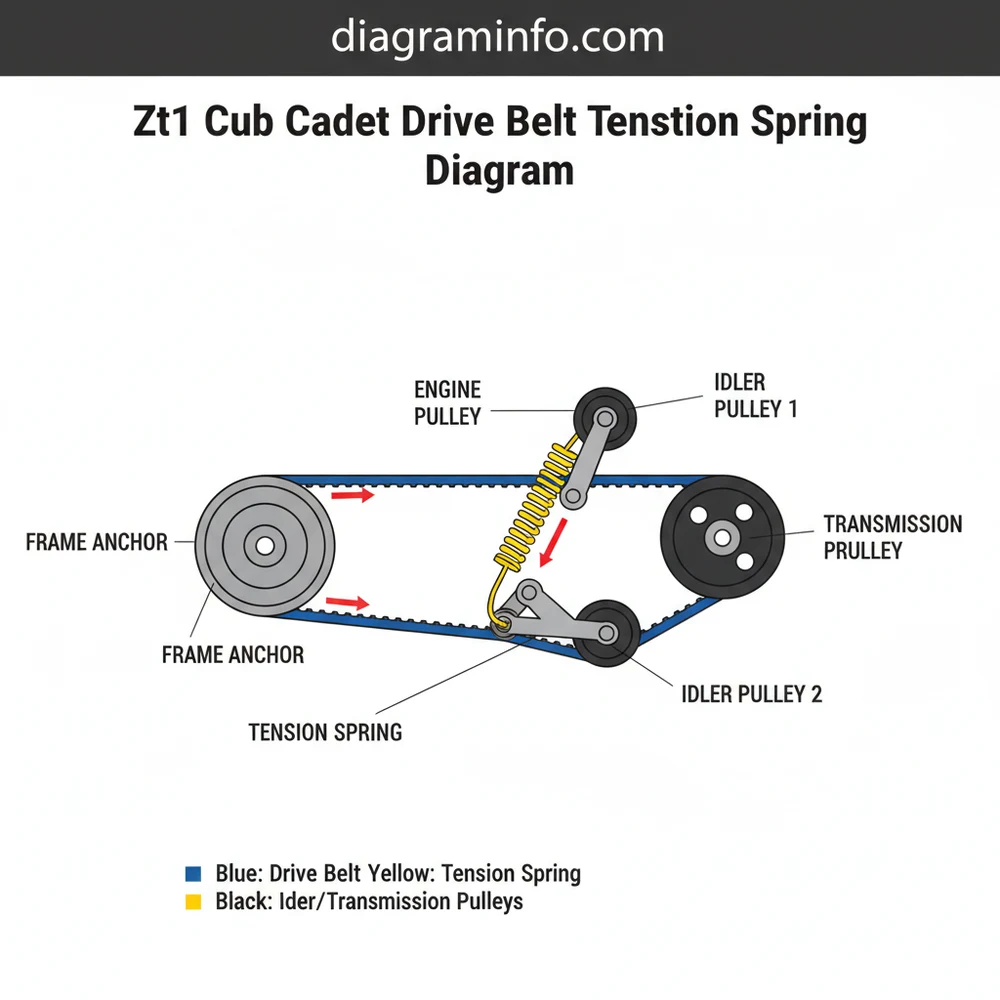

Decoding the ZT1 Cub Cadet Drive Belt Tension Spring Diagram
The drive system of a ZT1 mower is a complex configuration designed to transfer rotational energy from the vertical-shaft engine to the two independent Hydro-Gear transaxles. The zt1 cub cadet drive belt tension spring diagram illustrates a system under constant tension, meaning that unlike the deck belt—which is engaged and disengaged via a PTO clutch—the drive belt is under pressure as soon as the engine is running.
In a standard layout, the diagram identifies several key elements:
- ✓ Engine Drive Pulley: Located at the base of the crankshaft, this is the power source for the entire system.
- ✓ Transmission Pulleys: Two pulleys located on top of the left and right hydrostatic units.
- ✓ Tensioning Idler Arm: A pivoting bracket that houses the idler pulley.
- ✓ Drive Tension Spring: The heavy-duty extension spring that pulls the idler arm against the belt.
The visual structure of the schematic shows the spring hooked into a specific anchor point on the mower’s frame on one end, and a hole on the idler arm on the other. This configuration creates a “live” tensioning system that can accommodate the slight stretching of the belt over time or the momentary shocks that occur when switching from forward to reverse. Most blueprints for the ZT1 will show the belt routing in a “Y” or “T” shape, with the tensioner usually positioned on the return side of the belt to prevent slack from accumulating where it could cause the belt to jump off the pulleys.
Component Analysis and System Configuration
To effectively use a blueprint for repairs, you must understand the individual component roles within the layout. The drive belt tension spring is typically a high-tensile steel extension spring. Its primary function is to apply a specific amount of force (measured in pounds of pull) to the idler pulley. If this spring loses its temper or snaps, the belt will immediately go slack, and the mower will lose all drive capability.
The idler arm serves as the pivot point for the system. It is usually mounted with a heavy-duty bolt and a set of bushings or a bearing. Over time, the pivot point can become clogged with grass clippings and debris, which prevents the spring from moving the arm freely. This is why the schematic often shows a “pivot point” that requires periodic lubrication.
The belt itself is a specialized V-belt, designed to handle the high heat generated near the engine and the constant friction of the pulleys. When looking at the overview of the drive system, you will notice that the belt must pass through several “belt keepers.” These are small metal pins or tabs positioned very close to the pulleys. Their job is to keep the belt from flying off the pulley if it momentarily slacks or if the mower is operated on rough terrain.
Never attempt to service the drive belt or tension spring while the engine is running. The drive belt is under constant tension and spins at high speeds. Always remove the ignition key and disconnect the spark plug wire before reaching into the chassis.
Step-by-Step Installation and Interpretation Guide
Following a zt1 cub cadet drive belt tension spring diagram requires a methodical approach. The drive belt is tucked deep within the frame, making visibility a challenge. Use these steps to interpret the diagram and perform a replacement or adjustment.
Step 1: Accessing the Drive System
To see the system as it appears in the blueprint, you must first remove the floor plate of the mower. On most ZT1 models, this involves removing a few bolts or simply lifting the plate if it is a tool-less design. Additionally, you may need to lower the mower deck to its lowest setting or remove it entirely to gain better access to the engine pulley and the idler arm assembly located toward the rear.
Step 2: Locating the Tensioner
Identify the idler arm based on its shape in the schematic. It is a long metal bar with a pulley attached to one end. Locate the tension spring. It will be stretched tight between the arm and a fixed point on the mower frame. If the spring is broken, look for the remaining hook ends in these two locations.
Step 3: Releasing Tension Safely
This is the most critical part of the process. Because the spring is under high tension, you cannot simply pull it off with your hands. Use a “spring puller tool” or a heavy-duty piece of brake wire. Hook the tool into the end of the spring and pull it toward the rear of the mower to unhook it from the idler arm.
Step 4: Inspecting the Pulleys and Pivot
With the tension removed, the idler arm should move freely. Check the idler pulley bearing by spinning it; it should be silent and smooth. If it feels “crunchy” or wobbles, it must be replaced. Refer to your component list to ensure you have the correct diameter replacement pulley, as using the wrong size will alter the tension required from the spring.
Step 5: Routing the Belt
If you are replacing the belt along with the spring, follow the routing indicated in the zt1 cub cadet drive belt tension spring diagram precisely. The belt must go around the engine pulley, then inside the idler pulley, and finally around both transmission pulleys. Ensure the belt is inside all belt keepers.
Step 6: Reinstalling the Spring
Hook the fixed end of the new spring into the frame anchor point first. Then, using your puller tool, stretch the spring until you can hook the opposite end into the hole on the idler arm. Double-check the schematic to ensure you are using the correct hole, as some arms have multiple holes for different mower configurations.
Step 7: Testing the System
Before replacing the floor plate, manually rotate the engine pulley (with the spark plug disconnected) to ensure the belt tracks properly and the tensioner moves slightly to take up the slack. Ensure there is no rubbing against the frame or other non-moving parts.
If you don’t have a professional spring puller tool, you can use a sturdy length of paracord. Loop the cord through the hook of the spring, wrap the other end around a screwdriver handle to create a T-grip, and use your body weight to pull the spring into place.
Troubleshooting Common Drive System Issues
Even with a perfect zt1 cub cadet drive belt tension spring diagram, mechanical issues can arise. Understanding how to troubleshoot these problems will save time and prevent unnecessary parts replacement.
1. The Mower Won’t Move or Lacks Power:
This is usually a sign that the tension spring has snapped or become significantly stretched. Without the spring’s force, the idler pulley cannot press the belt against the drive pulleys with enough friction to turn the transmissions. If the spring appears intact, check for oil or grease on the belt, which can cause slipping even under proper tension.
2. Squealing Noises During Operation:
A high-pitched squeal often indicates a seized idler pulley bearing. The belt is sliding over a pulley that isn’t turning, creating immense heat. Use your diagram to locate the idler and check its rotation. Another cause could be a worn belt that has become too thin to be effectively gripped by the pulleys.
3. Excessive Vibration:
If the mower shakes when moving, the drive belt may have a “flat spot” from being stalled against a spinning engine pulley, or the tension spring may be vibrating due to a lost dampening component. Inspect the spring for any signs of “oscillation damage” or wear at the hook points.
4. Belt Frequently Jumps Off:
This is often caused by a bent idler arm or a worn pivot bushing. If the arm doesn’t sit level, the pulley will be at an angle, “throwing” the belt off the track. Refer to the system layout to ensure the arm is perfectly parallel to the ground.
Maintenance Tips and Best Practices
To avoid having to reference your zt1 cub cadet drive belt tension spring diagram for emergency repairs, follow these proactive maintenance steps.
Regular Cleaning:
The area around the drive belt and tensioner is a magnet for debris. Dried grass and twigs can wedge themselves between the spring coils, preventing it from retracting fully. Use compressed air or a leaf blower to clean out the chassis after every few mows.
Annual Inspection:
Once a year, perform a “stress test” on the tension spring. If the coils show gaps when the spring is in its “relaxed” state (unhooked), the metal has reached its elastic limit and should be replaced. A fresh spring ensures that your transmissions receive the full torque of the engine without parasitic loss from belt slip.
Quality Over Cost:
When replacing components found in the blueprint, always opt for OEM (Original Equipment Manufacturer) parts. Aftermarket springs may have different tension ratings, and generic belts often lack the Kevlar reinforcement needed to survive the heat of a zero-turn engine compartment.
Lubrication:
The pivot point of the tensioner arm is often overlooked. A small drop of dry graphite lubricant or a high-quality grease (if the model has a zerk fitting) will ensure the arm reacts instantly to changes in belt load, protecting both the belt and the transmissions from sudden shocks.
Conclusion
Mastering the zt1 cub cadet drive belt tension spring diagram is an essential skill for any owner committed to the DIY maintenance of their Ultima series mower. By understanding the mechanical structure and configuration of the tensioning system, you can move beyond guesswork and perform precision repairs that extend the life of your machine. Whether you are replacing a snapped spring, installing a new drive belt, or simply performing an annual system overview, the information provided here ensures you can navigate the complexities of the ZT1’s drivetrain with confidence. Remember that consistent tension is the key to smooth hydrostatic performance; keep your spring strong, your pulleys aligned, and your belt clean to enjoy the full power of your Cub Cadet for years to come.
Frequently Asked Questions
Where is the drive belt tension spring located?
The drive belt tension spring is located underneath the mower frame, typically near the rear engine pulley. It is attached between a fixed point on the chassis and the movable idler pulley arm. You can usually access it by reaching under the rear frame or removing the battery box.
What does the ZT1 drive belt diagram show?
This diagram illustrates the complete drive system structure, including the path of the belt around the engine pulley and hydrostatic transmissions. It specifically highlights the anchor points for the tension spring and the positioning of the idler pulleys required for maintaining proper tension throughout the system.
How many tension springs does the ZT1 drive system have?
The ZT1 drive system typically utilizes one primary heavy-duty extension spring for the drive belt. However, there are separate springs for the mower deck belt system. This specific diagram focuses on the spring responsible for keeping the ground drive belt tight against the transmission pulleys.
What are the symptoms of a bad drive belt tension spring?
Symptoms of a failing spring include a loss of ground speed, the mower struggling to climb hills, or a noticeable squealing sound from the belt. If the spring has stretched or the hook has broken, the drive system will fail to engage properly, leading to significant belt slippage.
Can I replace this spring myself?
Yes, replacing the tension spring is a manageable DIY task for most owners. The process involves releasing the belt tension and using a spring hook tool to detach the old component. Following the layout in the diagram ensures the new spring is seated correctly in its designated anchor points.
What tools do I need for spring replacement?
You will primarily need a heavy-duty spring puller tool or a pair of sturdy needle-nose pliers. A flathead screwdriver can sometimes help lever the spring into place. Ensure you have safety glasses and gloves, as the spring is under significant tension and can snap back during installation.
