Tying a Boat to a Dock Diagram: Step-by-Step Instructions
A tying a boat to a dock diagram illustrates the proper layout of bow, stern, and spring lines to secure a vessel. This configuration prevents the boat from drifting away from or crashing into the dock structure, ensuring stability against tides, wind, and wake by utilizing cleats and fenders correctly.
📌 Key Takeaways
- Visualizes the correct placement of mooring lines for maximum security
- Identifies spring lines as the primary tool for fore and aft stability
- Emphasizes accounting for tidal changes to prevent line snapping
- Illustrates fender placement to protect the hull from dock impact
- Essential for securing any vessel to fixed or floating dock structures
Mastering the art of securing your vessel is a fundamental skill for every mariner, whether you are a weekend enthusiast or a seasoned captain. Understanding a tying a boat to a dock diagram is more than just learning how to pull a rope through a cleat; it is about understanding the physics of tension, the movement of water, and the structural integrity of your docking system. This comprehensive guide provides a detailed blueprint of proper docking configurations, ensuring your boat remains safe from hull damage, wandering, or tide-related stress. By following this visual schematic and technical overview, you will learn the specific layout required for various conditions, the essential components of a secure mooring, and the practical application of marine knots that keep your investment protected in all weather conditions.
A standard docking configuration typically utilizes four primary lines: the bow line, the stern line, and two spring lines. Each serves a unique purpose in restricting different types of vessel movement.
Understanding the Docking System Layout and Components
To effectively use a tying a boat to a dock diagram, one must first understand the structural components that make up the system. The schematic of a docked boat is designed to counteract three-dimensional forces: the rise and fall of the tide (vertical), the surging forward and backward (longitudinal), and the swaying toward or away from the dock (lateral).
The primary components identified in a standard docking overview include the following:
- ✓ Bow Line: This line runs from the front (bow) of the boat to a dock cleat located forward of the vessel. Its primary role is to keep the bow from swinging away from the dock.
- ✓ Stern Line: Connected to the rear (stern) of the boat and secured to a cleat behind the boat, this prevents the back end from drifting into the channel.
- ✓ Forward Spring Line: This line starts at a mid-ship or bow cleat and runs toward the back of the dock. It stops the boat from surging forward.
- ✓ Aft Spring Line: This line starts at a mid-ship or stern cleat and runs toward the front of the dock. It prevents the boat from surging backward.
- ✓ Fenders: These are the “bumpers” placed between the boat’s hull and the dock structure to absorb impact and prevent chafing.
In a visual representation, these lines form a “cross-hatch” pattern. The spring lines are particularly critical because they are much longer than the bow or stern lines, allowing them to handle tidal changes with more flexibility. Without spring lines, a boat is likely to bounce against the dock or put excessive strain on the shorter bow and stern lines during high winds or heavy currents.

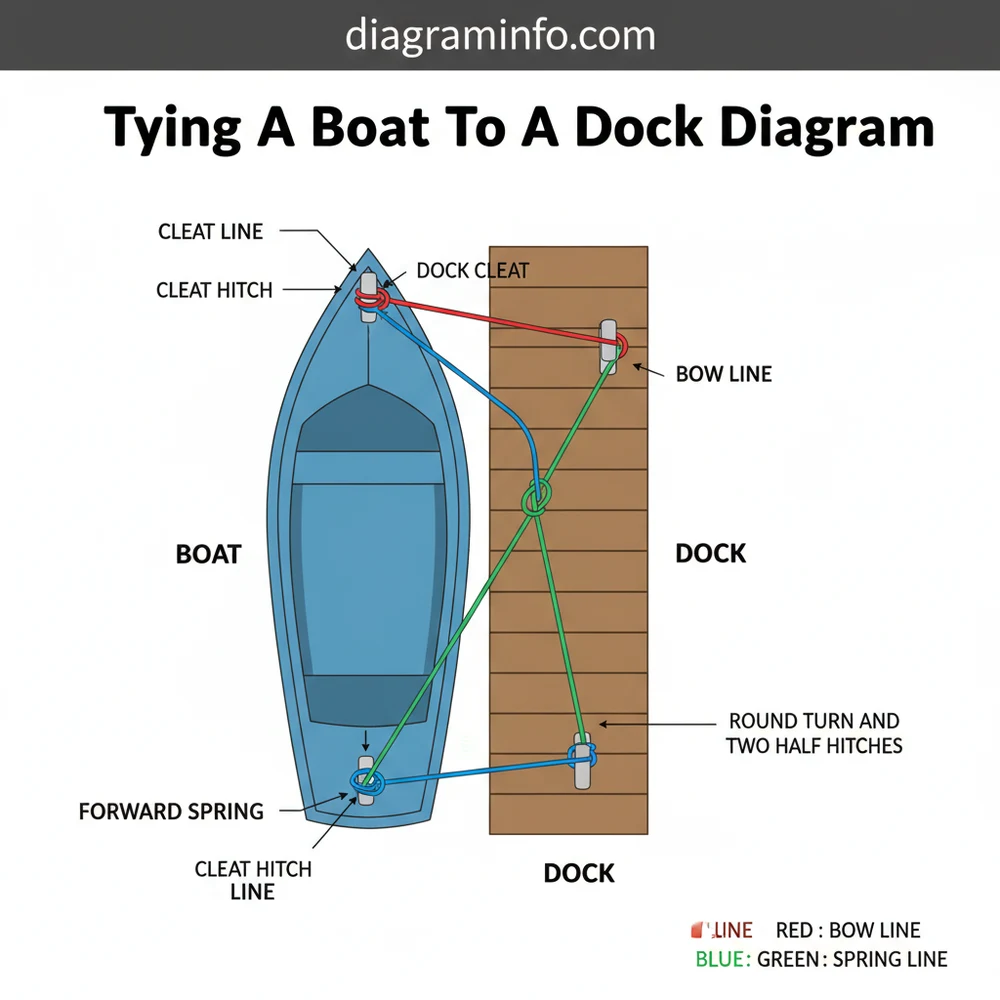

(Visual Description: A top-down schematic showing a boat parallel to a dock. Lines are color-coded: Blue for Bow/Stern lines, Red for Spring lines. Fenders are shown in green at the widest points of the hull. Arrows indicate the direction of tension for each line.)
The configuration of these lines can vary based on the dock type. For example, in a “finger pier” layout, the boat is tucked into a narrow slip where lines may be attached to both the port and starboard sides. In a “side-tie” layout, all lines are on one side of the boat. The diagram provided focuses on the side-tie method, which is the most common configuration for transient docking and fuel docks.
Step-by-Step Guide to Implementing the Docking Blueprint
Interpreting a tying a boat to a dock diagram is only the first half of the task; the second half is the physical execution. Follow these steps to ensure your boat is secured according to professional marine standards.
Step 1: Preparation and Fender Placement
Before you even reach the dock, you must prepare your boat’s layout. Identify the “rub rail” or the widest part of your boat’s beam. Hang at least three fenders at these points. Ensure the fenders are at the correct height to meet the dock’s edge or pilings. If the dock is low, the fenders should sit low; if you are docking against tall pilings, they may need to be positioned higher.
Step 2: Securing the Bow Line
As you approach the dock and bring the boat to a stop, the bow line is usually the first line handled. Attach the line to the bow cleat using a bowline knot or a pre-made eye splice. Toss the line to someone on the dock or step off with it. Secure it to the dock cleat with a “cleat hitch”—a wrap around the base, a figure-eight over the horns, and a final locking hitch. Leave enough slack for the tide but not enough for the bow to hit the dock.
Step 3: Setting the Stern Line
Once the bow is loosely tethered, secure the stern. The stern line is vital for keeping the boat’s propulsion system and rudder away from the dock structure. Like the bow line, it should be angled slightly away from the boat to provide lateral stability.
Step 4: Installing the Aft Spring Line
Now, refer back to the schematic for the spring lines. The aft spring line runs from a point near the middle or front of the boat back toward the stern’s direction on the dock. This is the most important line for stopping forward momentum if the wind is blowing from behind. Tighten this line so that it is snug but has a small amount of “play.”
Step 5: Installing the Forward Spring Line
The forward spring line runs from the middle or back of the boat toward the bow’s direction on the dock. This prevents the boat from moving backward. When both spring lines are set, the boat should be held in a fixed longitudinal position, even if you put the engine in gear.
Step 6: Final Adjustment and Tensioning
Step back and look at the overall system. The boat should be parallel to the dock. Check the tension on all lines. In areas with high tidal ranges (4 feet or more), lines must be longer to allow for the boat to rise and fall. If the lines are too tight during high tide, the boat may be pulled underwater or pull the cleats right out of the dock as the tide goes out.
Always use “Dock Line Snubbers” in high-surge areas. These rubber shock absorbers integrate into your lines to reduce the jarring impact on your boat’s cleats during heavy waves or boat wakes.
Required Materials:
To follow this diagram properly, you will need:
1. Four to six high-quality nylon dock lines (Nylon is preferred for its stretch).
2. Three or more marine-grade fenders.
3. Functional cleats on both the boat and the dock.
4. Chafing gear (sleeves that protect the rope where it rubs against the dock).
Common Issues and Troubleshooting
Even with a perfect tying a boat to a dock diagram, environmental factors can cause complications. One frequent problem is “line chafe.” This occurs when the rope rubs against a sharp dock edge or a rough piling, eventually sawing through the fibers. If your diagram shows a line crossing a sharp corner, you must install a chafe guard.
Another common issue is “docking too tight.” Beginners often think a tight boat is a safe boat. However, a boat needs room to breathe. If the lines are too rigid, the constant tugging from waves can cause “cleat pull-out,” where the hardware is physically ripped from the fiberglass or wood. If you notice your boat is leaning toward the dock or the lines are “singing” (making a high-pitched humming sound), they are too tight.
Never place your hands or feet between the boat and the dock while tying lines. Even a small boat can exert thousands of pounds of pressure with a slight swell, leading to severe crush injuries.
If you find that your boat is constantly “hunting” (moving back and forth) despite having all lines set, check the angle of your spring lines. If the spring lines are too vertical or too short, they won’t provide the necessary leverage to keep the vessel steady. Refer back to the blueprint and ensure the spring lines are at a shallow angle to the dock.
Tips and Best Practices for Secure Mooring
To maintain the integrity of your docking configuration, regular maintenance and the use of quality materials are essential.
Choose the Right Rope Material
Not all ropes are created equal. For docking, three-strand twisted nylon or double-braided nylon is the industry standard. Nylon is chosen because it can stretch up to 15-20% of its length without breaking. This elasticity acts like a shock absorber for your boat. Avoid polypropylene (usually bright yellow) as it degrades quickly in sunlight and has zero stretch, which can snap cleats.
Maintain Your Lines
Salt crystals can build up inside the fibers of your dock lines, making them stiff and brittle. Once a season, soak your lines in a bucket of fresh water with a small amount of fabric softener. This keeps them supple and easy to handle. Additionally, check for “fraying” or “furring” on the lines. If a line has lost 10% of its thickness due to abrasion, replace it immediately.
Consider the Environment
If you are in an area with heavy boat traffic, the “wake” from passing ships will cause your boat to toss violently. In this scenario, increase the number of fenders and ensure your spring lines are doubled up. If you are in a location with extreme tides, use “tide slides” or “piling hoops” which allow the lines to slide up and down a vertical pole, maintaining constant tension regardless of the water level.
Professional Equipment Recommendations
1. Cleat Size: Ensure your boat cleats are large enough to hold two passes of your chosen line thickness.
2. Fender Size: A general rule is 1 inch of fender diameter for every 4-5 feet of boat length.
3. Line Diameter: For boats up to 20 feet, use 3/8″ lines. For 20-30 feet, use 1/2″ lines. For boats over 35 feet, 5/8″ or larger is required.
By internalizing the principles found in a professional tying a boat to a dock diagram, you transform a stressful task into a routine procedure. Proper docking is the hallmark of a disciplined boater. It protects your vessel, respects the property of the marina, and ensures that when you return to your boat, it is exactly where and how you left it. Always remember that the sea is dynamic; your docking layout should be a configuration that respects the power of the water while providing the structural security your vessel requires. With the right layout, quality components, and a firm understanding of the schematic, you can dock with confidence in any harbor.
Frequently Asked Questions
Where is the cleat located on the boat?
Cleats are typically located at the bow, stern, and midship of the vessel’s deck structure. These metal or plastic components provide sturdy anchor points for your mooring lines, allowing you to secure the boat firmly to the dock or another vessel using a standard cleat hitch knot.
What does this tying a boat to a dock diagram show?
This diagram shows the complete layout of a mooring system, highlighting the specific positioning of bow lines, stern lines, and spring lines. It illustrates how these components work together to maintain a stable boat configuration, preventing horizontal and vertical movement while docked at a pier or slip.
How many lines does a standard mooring setup have?
A basic docking configuration typically requires four lines: one bow line, one stern line, and two spring lines. This four-line system ensures the boat remains parallel to the dock and prevents it from surging forward or backward along the dock structure during heavy wind or tidal current changes.
What are the symptoms of a bad docking setup?
Signs of a poor configuration include the boat slamming against the dock, lines being excessively tight at low tide, or the boat drifting too far from the pier. If your lines show signs of fraying or the cleats are pulling away from the deck, immediate adjustment is required.
Can I tie a boat to a dock myself?
Yes, a single person can tie a boat to a dock if they are familiar with the diagram layout and common knots like the cleat hitch. However, having a deckhand assist with throwing lines or positioning fenders makes the process safer, especially in windy or high-current docking conditions.
What tools do I need for tying a boat?
To follow the diagram, you need high-quality nylon mooring lines, boat fenders for hull protection, and secure cleats on both the boat and the dock. Having a boat hook is also helpful for reaching dock cleats or grabbing lines from the water without overreaching the vessel’s edge.
