Proper Kitchen Sink Plumbing Diagram: Step-by-Step Guide
A proper kitchen sink plumbing diagram illustrates the connection between the sink drain assembly, P-trap, and wall drain. It ensures the tailpiece feeds correctly into the trap while connecting a garbage disposal and vent pipe to prevent sewer gas backup and ensure efficient, code-compliant drainage for your home.
📌 Key Takeaways
- Visualizing the correct sequence of the P-trap and drain assembly to prevent leaks
- Identifying the P-trap as the critical component for blocking sewer gases
- Ensuring the vent pipe is properly positioned to allow for smooth drainage
- Using the diagram to verify the height of the wall drain relative to the sink
- Essential for troubleshooting slow drains or installing a new garbage disposal
Navigating the complex maze of pipes beneath your kitchen counter can be a daunting task for any homeowner. Whether you are dealing with a persistent leak, installing a new garbage disposal, or completely remodeling your kitchen, understanding a proper kitchen sink plumbing diagram is the essential first step. A correct diagram does more than just show where pipes go; it illustrates the critical relationship between gravity, water seals, and ventilation that keeps your home hygienic and odor-free. In this comprehensive guide, you will learn how to identify every component under your sink, from the P-trap to the AAV valve, ensuring your DIY project meets standard plumbing codes and functions flawlessly for years to come.
Most modern kitchen sink plumbing utilizes 1-1/2 inch PVC piping. This material is preferred over metal because it is resistant to corrosion, easy to cut, and uses slip joint connections that allow for minor adjustments during installation.
Decoding the Proper Kitchen Sink Plumbing Diagram
When you look at a proper kitchen sink plumbing diagram, you are looking at a system designed to move waste water away while preventing sewer gases from entering your living space. The diagram typically starts at the sink basin and follows the path of the water downward and into the wall. The primary components are the drain assembly, the tailpiece, the P-trap, and the waste arm. Each of these elements must be installed in a specific orientation to maintain the hydraulic integrity of the system.
In a standard setup, the drain assembly (or basket strainer) is the interface between the sink and the plumbing. Below this sits the tailpiece, a straight section of pipe that connects the strainer to the rest of the assembly. If you have a garbage disposal, the disposal unit itself acts as a large tailpiece, with the dishwasher drain line often feeding into a dedicated port on its side. The most recognizable part of the diagram is the P-trap—the U-shaped pipe that holds a small amount of standing water. This water acts as a seal, blocking toxic and foul-smelling gases from traveling up from the sewer lines and through your sink drain.
The diagram also accounts for variations, such as double-bowl sinks. In these configurations, a continuous waste pipe connects the two drains before they enter a single P-trap. Furthermore, the diagram will show the transition to the “vent” portion of the system. In many modern or island kitchen layouts, a traditional vent pipe through the roof isn’t feasible, so the diagram will feature an Air Admittance Valve (AAV valve) or “Studor vent,” which allows air into the system to facilitate drainage without letting gases out.

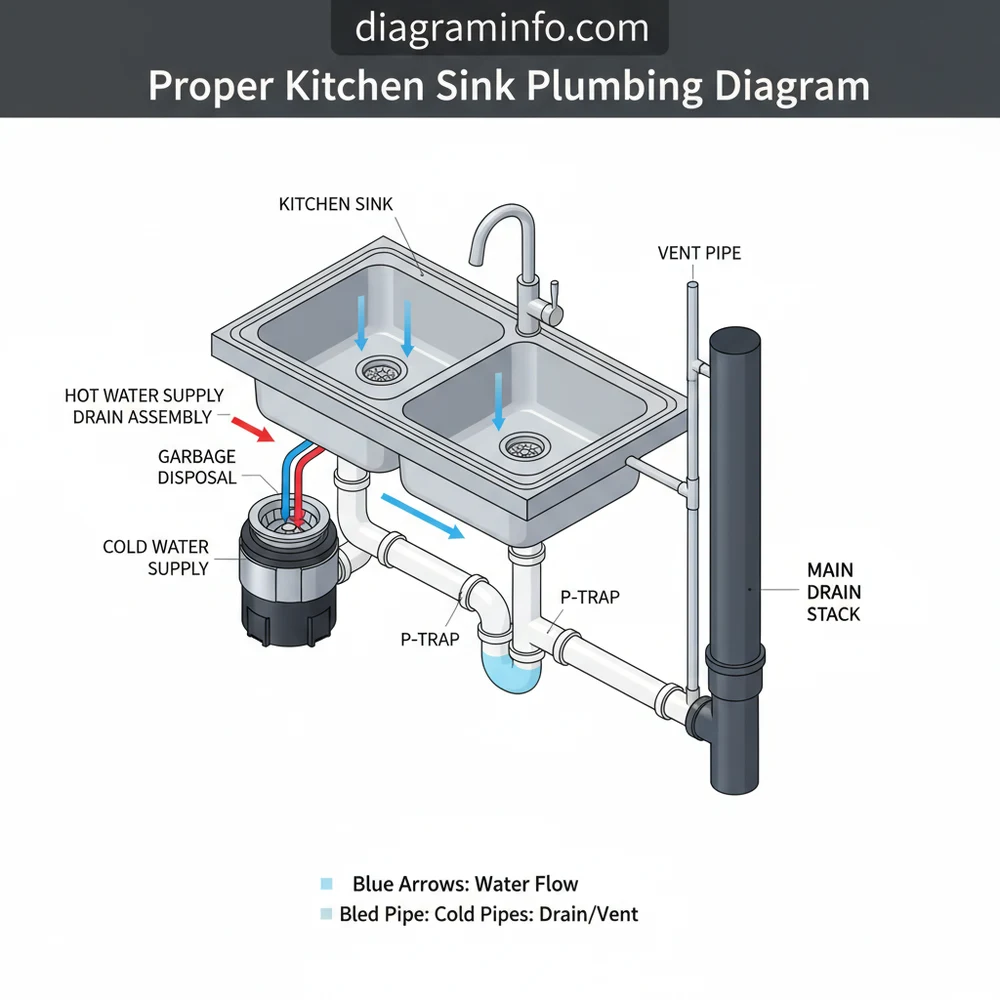

[DIAGRAM_PLACEHOLDER – A detailed schematic showing a double-bowl kitchen sink with a garbage disposal, P-trap assembly, and an AAV valve. Labels include: Basket Strainer, Tailpiece, Slip Joint, P-trap, Waste Arm, and Vent Pipe.]
Step-by-Step Guide to Interpreting and Installing Sink Plumbing
To successfully use a proper kitchen sink plumbing diagram for an installation or repair, you must follow a logical sequence. Plumbing is as much about the order of operations as it is about the tight fit of the joints.
- ✓ Step 1: Install the Basket Strainer or Disposal: Begin at the top. Use plumber’s putty or the manufacturer-provided gaskets to seal the basket strainer to the sink hole. If installing a garbage disposal, mount the flange and lock the unit into place.
- ✓ Step 2: Attach the Tailpiece: For a standard sink, screw the tailpiece onto the bottom of the strainer. If you have a disposal, the discharge tube provided with the unit serves as your connection point.
- ✓ Step 3: Measure and Cut PVC: Using your diagram as a reference, measure the distance from the tailpiece to the wall drain. PVC is easily cut with a hacksaw or a specialized PVC cutter. Always “dry fit” the pieces before finalizing.
- ✓ Step 4: Align the P-Trap: Slide the P-trap onto the tailpiece. The trap consists of a “U” bend and a “J” shaped arm. Ensure the trap is positioned directly below the tailpiece to allow for a vertical drop.
- ✓ Step 5: Connect the Waste Arm: This horizontal pipe connects the P-trap to the sanitary tee in the wall. It must have a slight downward slope (1/4 inch per foot) toward the wall to ensure proper drainage.
- ✓ Step 6: Secure Slip Joints: Slide a slip joint nut and a plastic beveled washer onto the pipe. Insert the pipe into the fitting and tighten the nut. The beveled side of the washer must face the joint to create a seal.
- ✓ Step 7: Install the Venting: If your diagram includes an AAV valve, install it on a vertical riser at least 4 inches above the top of the P-trap. This ensures the valve remains clear of any potential backup.
When tightening slip joints, “hand-tight” is often enough. If you use a wrench, give it only an extra quarter-turn. Over-tightening can crack the plastic nuts or deform the washers, leading to leaks.
Tools and Materials Needed
To follow the proper kitchen sink plumbing diagram effectively, you will need the following inventory: 1-1/2 inch PVC piping, a P-trap kit, slip joint washers and nuts, a hacksaw, plumber’s putty, and channel-lock pliers. If you are making permanent connections to the wall pipe, you will also need PVC primer and solvent cement.
Never omit the P-trap. Some DIYers attempt to run a straight pipe to the wall to save space, but this allows sewer methane—which is both foul-smelling and flammable—to enter your kitchen.
Troubleshooting Common Sink Plumbing Issues
Even with a proper kitchen sink plumbing diagram, issues can arise. Understanding how the components interact allows you to diagnose problems quickly. One of the most common issues is a “slow drain.” This is usually located in the P-trap, where food particles and grease accumulate. Because the P-trap is designed with slip joints, it can be easily removed and cleaned without calling a plumber.
Gurgling sounds are another frequent complaint. This usually indicates a venting problem. If the vent pipe is clogged or if the AAV valve has failed, the draining water creates a vacuum that sucks water out of the P-trap. When the water seal is broken, you will likely notice a “sewer smell.” Replacing the AAV valve or clearing the roof vent typically resolves this. Leaks at the joints are often the result of a misaligned slip joint washer or a worn-out gasket. By referring to the diagram, you can identify which specific joint is failing and replace the 50-cent washer rather than the entire assembly.
If you notice water backing up into the sink when the dishwasher runs, check the connection at the garbage disposal. New disposals have a plastic plug in the dishwasher inlet that must be knocked out with a screwdriver before the dishwasher line is attached. Failing to do this is a classic DIY oversight that a diagram helps prevent.
Best Practices for a Professional Installation
To ensure your plumbing remains maintenance-free, follow these professional best practices. First, prioritize the use of PVC over thin-walled “polypro” (black plastic) or chrome-plated brass. Schedule 40 PVC is much more durable and less prone to stripping threads. When assembling your drain system, always ensure you have the proper slope. Water relies on gravity; if the waste arm is level or sloping upward toward the wall, you will face constant clogs and standing water in your pipes.
Another critical practice is the “vertical drop” rule. The tailpiece should drop straight down into the P-trap. Avoid using flexible “accordion” style pipes. While these are sold at most hardware stores and seem convenient for misaligned pipes, the ridges inside the flexible tubing trap grease and hair, leading to inevitable clogs and odors. A professional installation uses rigid pipe and precise measurements to achieve the same result.
Lastly, consider the layout for future maintenance. Place your P-trap in an accessible location, and don’t crowd the under-sink area with so much storage that the pipes are constantly being bumped. Applying a small amount of pipe joint lubricant to the slip joint washers can also make future disassembly much easier. By following a proper kitchen sink plumbing diagram and adhering to these quality standards, you ensure a safe, efficient, and code-compliant kitchen environment.
If you are installing a sink in an island, the Air Admittance Valve (AAV) is your best friend. It replaces the need for an expensive and complex “loop vent” or a vent pipe through the roof, while still fulfilling all safety requirements.
In conclusion, mastering the proper kitchen sink plumbing diagram is about understanding the flow of water and the necessity of the air-water seal. By identifying each component—the tailpiece, P-trap, and vent—and following a methodical installation process, you can tackle kitchen plumbing with confidence. Remember to prioritize rigid PVC, maintain a proper slope, and never bypass the trap. With these tips and a clear diagram in hand, your kitchen plumbing will be robust, silent, and leak-free.
Frequently Asked Questions
Where is the P-trap located?
The P-trap is located directly underneath the sink, connecting the vertical tailpiece to the horizontal waste arm that enters the wall. This curved pipe section stays filled with water to create a seal, effectively blocking sewer gases from entering your kitchen through the sink drain.
What does a kitchen sink plumbing diagram show?
This diagram shows the layout of the drain assembly, including how the garbage disposal, tailpiece, and P-trap connect to the main waste line. It helps you visualize the flow of water and ensures every component is installed in the correct sequence to prevent leaks or drainage issues.
How many connections does a garbage disposal have?
A standard garbage disposal has three main connections: the large mounting flange at the sink top, the discharge outlet connecting to the P-trap or waste tee, and a small inlet for the dishwasher drain hose. Some units also feature an electrical connection at the bottom housing for power.
What are the symptoms of a bad drain assembly?
Common symptoms of a failing drain assembly or P-trap include persistent puddles under the cabinet, slow drainage, or foul odors rising from the sink. If you notice gurgling sounds, it often indicates a blockage or a problem with the vent pipe not allowing enough air into the system.
Can I install kitchen sink plumbing myself?
Most homeowners can successfully install or replace kitchen sink plumbing using a clear diagram and basic tools. It is a straightforward DIY project involving slip-joint connections that don’t require soldering. However, if you are moving the vent pipe or main stack, consulting a professional plumber is highly recommended.
What tools do I need for sink plumbing?
To complete this plumbing task, you will need a set of channel-lock pliers or a pipe wrench, a hacksaw for cutting PVC pipe, and plumber’s putty or silicone sealant for the drain flange. A bucket is also essential for catching residual water when disconnecting the existing P-trap.
