Plumbing Diagram for House on Slab: Step-by-Step Guide
A plumbing diagram for house on slab illustrates the network of drain-waste-vent pipes installed beneath the concrete foundation. It details how horizontal lines connect to the main sewer, the precise placement of every P-trap for fixtures, and the vertical vent pipe routes that ensure proper drainage pressure throughout the home.
📌 Key Takeaways
- Provides a roadmap for the DWV system before the concrete pour
- The vent pipe is the most critical component for preventing vacuum locks
- All sub-slab horizontal pipes must maintain a consistent downward slope
- Use the diagram to coordinate the rough-in locations for all fixtures
- Essential for troubleshooting underground leaks or slab leaks later on
When you are building or remodeling a home on a concrete foundation, understanding the plumbing diagram for house on slab becomes a critical survival skill for your project. Unlike traditional homes with crawlspaces or basements where pipes are easily accessible hanging from floor joists, slab-on-grade plumbing is permanently encased in or buried beneath several inches of reinforced concrete. This lack of accessibility means that every measurement must be precise and every connection must be perfectly sealed before the pour begins. This article will guide you through the complexities of sub-slab plumbing, illustrating how the drain, waste, and vent systems interact to ensure a functional, leak-free environment for years to come. You will learn how to identify key components, interpret the flow of water and air, and understand the specific requirements that modern building codes demand for slab-based residential structures.
Plumbing on a slab is a “one-shot” installation. Once the concrete is poured, moving a drain line even a few inches requires heavy-duty jackhammering. Always double-check your rough-in measurements against your final cabinet and fixture layouts.
Understanding the Underground Infrastructure
The plumbing system for a slab home is divided into two main categories: the supply lines and the Drain-Waste-Vent (DWV) system. In many modern slab constructions, the supply lines (carrying fresh water) are run through the ceiling or walls using PEX piping to avoid burying them where they can’t be repaired. However, the DWV system—the network of pipes that carries gray water and sewage away—must always go beneath the slab to maintain the necessary gravitational slope.
The foundation of this system is the main sewer line, usually a 4-inch PVC pipe that runs from the municipal sewer connection or septic tank under the house footprint. Branch lines then “tee” off from this main line to reach specific locations like the kitchen, bathrooms, and laundry room. Because these pipes are buried in gravel or sand beneath the concrete, they must be Schedule 40 PVC, which provides the wall thickness necessary to withstand the weight of the slab and any shifting soil.
Main Diagram Components and Description
A comprehensive plumbing diagram for house on slab visualizes the layout from a “plan view” (looking down) and often includes “isometrics” (3D-style views) to show the vertical rise of vent pipes. The diagram typically uses specific color-coding to differentiate between waste lines (solid black or green) and vent lines (dashed lines).
Key elements you will find in the diagram include:
- ✓ The Main Trunk: The primary horizontal drain line that exits the house.
- ✓ Branch Drains: Smaller pipes (usually 2 or 3 inches) that connect fixtures to the main trunk.
- ✓ The Vent Stack: A vertical pipe that extends through the roof to equalize pressure and allow sewer gases to escape.
- ✓ Cleanouts: Access points required by code, usually located where the line exits the house and at major bends.
In a kitchen-specific diagram, you will see a detailed drain assembly. This includes the tailpiece connecting to the sink strainer, the P-trap which holds a water seal to block odors, and the connection for a garbage disposal. In many slab homes where the kitchen is on an island, the diagram will feature an AAV valve (Air Admittance Valve), also known as a Studor vent, which allows for proper venting without needing to run a pipe through the ceiling.

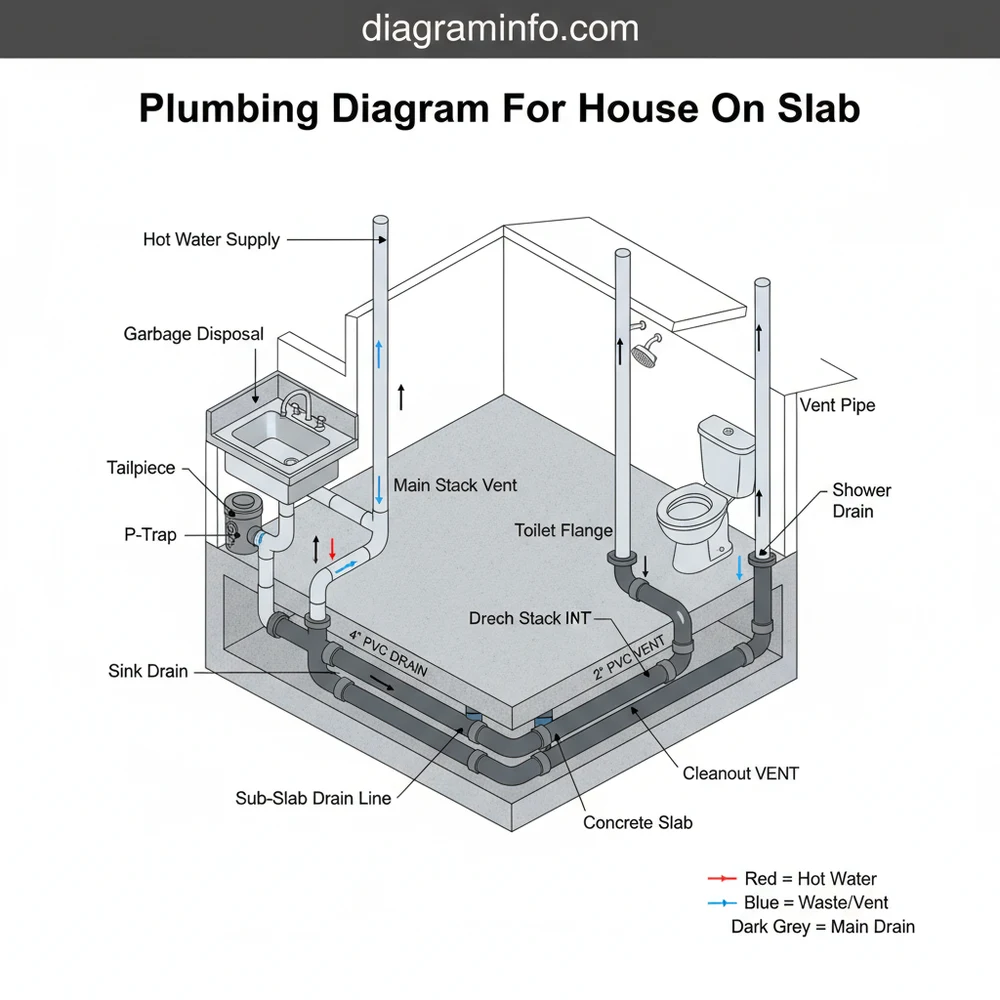

[DIAGRAM_PLACEHOLDER: A schematic drawing showing a top-down view of a house foundation. Solid blue lines represent water supply, solid black lines represent drain pipes under the slab, and dashed red lines represent vent pipes rising into the walls. Labels identify the P-trap under a sink, the AAV valve in a kitchen island, and the main 4-inch sewer exit.]
How to Read and Interpret the Slab Plumbing Diagram
Interpreting a plumbing diagram for house on slab requires understanding how to translate 2D lines into 3D space. The diagram isn’t just a map of where pipes go; it is a blueprint for the “rough-in” phase of construction.
1. Locate the Main Exit Point: Start by finding where the sewer line leaves the building envelope. This is your “zero point” for calculating slope. Every pipe upstream must be higher than this point to ensure water flows via gravity.
2. Identify the Wet Wall: In your diagram, notice where several pipes cluster together. This is the “wet wall,” usually a thicker 2×6 wall that houses the main vent pipe and the vertical drops from toilets and sinks.
3. Trace the Drainage Path: Follow the line from a fixture like a shower. You will see it move toward a P-trap, then horizontally through a branch line, and finally into the main trunk.
4. Spot the Venting Connections: Look for the dashed lines branching off near the P-traps. These represent the vent pipes. On a slab, these must rise vertically into the wall framing before they can turn horizontally to join the main stack.
5. Check the Pipe Diameters: Diagrams will label pipes (e.g., 4″ PVC for toilets, 2″ for showers). Ensuring you use the correct diameter is vital for maintaining flow velocity and preventing clogs.
6. Verify the “Rough-In” Dimensions: The diagram should provide distances from the edge of the slab or the center of studs. For example, a toilet drain must be exactly 12 inches from the finished wall.
When laying out pipes before the pour, use a transit level or a high-quality laser level. On a slab, you need a minimum slope of 1/4 inch per foot for pipes 2 inches or smaller. Too much slope is just as bad as too little, as the water may outrun the solids, leading to clogs.
Deep Dive: The Kitchen Sink Assembly on a Slab
The kitchen is often the most complex area of a slab plumbing diagram because of the multiple components involved. The drain assembly starts at the sink’s bottom. A tailpiece extends downward into the P-trap. If a garbage disposal is installed, it connects to the tailpiece via a specialized discharge tube.
Because the sink is often far from a main exterior wall in modern open-concept slab homes, the use of a slip joint is common for easy adjustment. However, the most critical part is the transition from the P-trap to the wall. This is where the waste arm enters the wall and meets a sanitary tee. One side goes down into the slab; the other side goes up to become the vent pipe.
If your kitchen sink is in an island, you cannot run a vent pipe up through the roof without a post in the way. This is where the AAV valve comes into play. The plumbing diagram will show the waste line coming up through the slab, hitting a tee, and the AAV valve sitting at least 4 inches above the P-trap’s weir. This mechanical vent opens to let air in when water drains, then seals shut to prevent sewer gas from entering the kitchen.
Never bury a slip joint connection or an AAV valve inside a wall or under a slab. These are mechanical connections and must remain accessible under the sink cabinet for future maintenance or replacement.
Common Issues and Troubleshooting
Plumbing on a slab presents unique troubleshooting challenges. The most frequent issue is a “slab leak,” which can occur in the supply lines if they were run under the concrete. Signs include a warm spot on the floor, an unusually high water bill, or the sound of running water when all faucets are off.
When it comes to the drainage side, clogs are the primary enemy. Since you cannot easily cut into the pipes, you must rely on the cleanouts specified in your plumbing diagram. If a sink is draining slowly and gurgling, it often indicates a venting issue rather than a simple clog. This means air isn’t entering the system correctly, perhaps because the vent pipe on the roof is blocked by debris or a bird’s nest.
How the diagram helps:
– It tells you exactly where the main cleanout is located.
– It identifies if you have an AAV valve that might have failed (they have a limited lifespan).
– It shows the path of the pipes, helping a plumber use a camera or “snake” to find the exact location of a blockage.
If you notice cracks in your foundation along with sewage backups, this is a sign of a structural shift that may have snapped a PVC pipe. In this scenario, professional help is mandatory, as it may involve “tunneling” under the slab or using trenchless pipe repair technologies.
Best Practices for a Long-Lasting Slab System
To ensure your slab plumbing lasts for decades, you must focus on material quality and installation precision.
First, always use Schedule 40 PVC for all DWV components. While some builders use thinner “thin-wall” pipe for venting, the standard practice for slab work is to use the heavy-duty stuff everywhere. It resists the chemical reactions from the concrete and the pressure of the soil.
Second, protect your pipes during the pour. Pipes should be wrapped in foam “sleeves” where they exit the concrete. This allows the pipe to expand and contract slightly without rubbing against the abrasive concrete, which can lead to pinhole leaks over time.
Third, perform a “static test” before the concrete trucks arrive. This involves plugging all outlets and filling the entire system with water up to the highest vent. Let it sit for 24 hours. If the water level drops, you have a leak that must be fixed immediately. It is much cheaper to fix a leak in a trench than under five inches of cured concrete.
Take high-resolution photos of your pipe layout with a tape measure visible before the concrete is poured. If you ever need to drill into the slab for a future renovation, these photos will be more valuable than the original diagram.
Material Recommendations and Maintenance
For the best results, stick to reputable brands for your drain assembly and P-trap components. Avoid the cheapest “kit” options; instead, look for thick-walled PVC P-traps with high-quality slip joint washers. Silicon-based washers typically provide a better seal than the hard plastic ones found in bargain bins.
Maintenance for a slab-based house involves being mindful of what goes down the drain. Since you lack easy access to pipes, avoid using caustic chemical drain cleaners, which can generate heat and potentially damage the PVC or the seals over time. Instead, use enzymatic cleaners that break down organic matter without damaging the pipes.
Regularly check your AAV valves if your diagram indicates their presence. These valves have a rubber diaphragm that can dry out or get stuck. A simple screw-off, screw-on replacement every 5 to 10 years is cheap insurance against sewer odors in your home.
The Final Word on Slab Plumbing
Designing and implementing a plumbing diagram for house on slab is a high-stakes task that rewards patience and precision. By understanding the relationship between the tailpiece, P-trap, and the vent pipe, and by ensuring your main trunk maintains the correct gravitational slope, you create a foundation for a healthy home. Whether you are installing a garbage disposal or routing a new vent stack, always refer back to your schematic to ensure that every turn and tee is logically placed for maximum flow efficiency. With the right materials—like Schedule 40 PVC—and rigorous pre-pour testing, your slab plumbing will provide reliable service for the life of the building.
Frequently Asked Questions
Where is the P-trap located in a slab house?
In a slab-on-grade house, the P-trap for showers and tubs is installed beneath the slab inside a recessed ‘trap box’ before the concrete is poured. For sinks, the P-trap is located above the slab within the cabinet, connecting the sink tailpiece to the wall-mounted drain assembly.
What does a slab plumbing diagram show?
This plumbing diagram for house on slab shows the layout of all DWV pipes buried in the gravel base. It identifies the location of the main sewer line, individual drain assembly points for each room, the garbage disposal connection, and the paths where every vent pipe exits through the roof.
How many connections does a kitchen drain assembly have?
A standard kitchen drain assembly typically features four primary connections. These include the sink strainer to the tailpiece, the discharge tube from the garbage disposal, the P-trap union, and the final connection to the wall drain. Each connection requires a gasket or putty to maintain a watertight seal.
What are the symptoms of a bad sub-slab pipe?
Common symptoms include slow-moving drains throughout the house, sewer smells originating from floor drains, or cracks appearing in the slab due to soil erosion. These issues often indicate a failure in the underground drain assembly or a disconnected vent pipe that is preventing proper airflow in the system.
Can I install slab plumbing myself?
While DIY enthusiasts can easily replace an above-ground tailpiece or garbage disposal, sub-slab plumbing is highly technical. It requires precise grading for gravity flow and strict adherence to local building codes. Most homeowners should have their sub-slab work inspected by a professional before pouring the concrete foundation.
What tools do I need for slab plumbing installation?
To install plumbing for a slab foundation, you need a laser level for checking slopes, PVC cutters, primer, and cement. For the above-slab finish work, you will need a basin wrench for the sink tailpiece, channel locks for the P-trap, and a screwdriver for the garbage disposal mounting.
