Oil Pressure Relief Valve Diagram: Function and Layout
An oil pressure relief valve diagram illustrates the internal structure and configuration of this safety component. It shows how the spring-loaded plunger reacts to pressure changes within the lubrication system. When pressure exceeds the set limit, the valve opens to bypass excess oil, preventing damage to the engine block and filters.
📌 Key Takeaways
- Visualizes the mechanical bypass mechanism for engine protection
- Identifies the tension spring and plunger as critical parts
- Illustrates the threshold at which the valve diverts oil
- Helps diagnose high or low pressure within the lubrication system
- Essential for engine rebuilding and part replacement reference
Understanding the internal mechanics of an internal combustion engine is essential for any DIY mechanic or automotive enthusiast. One of the most critical yet often overlooked components is the oil pressure relief valve, which acts as a fail-safe for your engine’s lubrication system. In this comprehensive guide, we provide a detailed oil pressure relief valve diagram and a full breakdown of its functionality. By the end of this article, you will understand how the system regulates pressure, where the components are located, and how to use a diagram to troubleshoot potential engine failures. Having the correct diagram is the first step in ensuring your engine maintains the perfect balance of lubrication without over-pressurizing its seals.
Understanding the Oil Pressure Relief Valve Diagram Layout
The oil pressure relief valve diagram illustrates a relatively simple but highly precise mechanical assembly. At its core, the system consists of a housing, a calibrated spring, and a moveable plunger or check ball. To understand the layout, you must look at how these parts are oriented within the oil pump or the engine block. The diagram shows the oil entry port where high-pressure oil from the pump enters the valve chamber. Directly opposing this flow is the plunger, which is held in place by the tension of the relief spring.
In a standard system configuration, the diagram reveals a bypass port or return line. Under normal operating conditions, the spring tension is greater than the oil pressure, keeping the plunger seated and the bypass port closed. However, as engine RPM increases and the oil pump spins faster, the pressure rises. When this pressure exceeds the spring’s “cracking pressure,” the plunger is forced back, compressing the spring and uncovering the bypass port. This allows excess oil to flow back into the oil pan or the suction side of the pump, effectively capping the maximum pressure within the system.
Common variations in these diagrams depend on the engine design. In many modern overhead cam engines, the valve is integrated directly into the oil pump housing. In older or high-performance configurations, you might see a diagram depicting an external relief valve located near the oil filter housing. Regardless of the specific layout, the functional elements remain the same: a spring-loaded gatekeeper that protects your gaskets, seals, and oil filter from being blown out by excessive hydraulic force.
The “cracking pressure” is the specific PSI at which the valve begins to open. Most passenger vehicles are designed to trigger the relief valve between 45 and 75 PSI, though this varies significantly between diesel and gasoline engines.

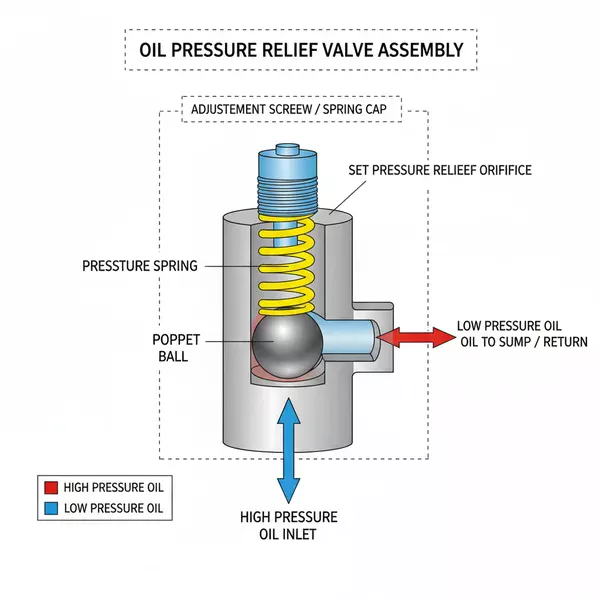

[DIAGRAM_PLACEHOLDER: A detailed cross-sectional view of an oil pressure relief valve. Labels include: 1. Main Oil Gallery, 2. Relief Plunger/Ball, 3. Calibrated Compression Spring, 4. Adjustment Screw/Retaining Cap, 5. Bypass/Return Port to Oil Pan. Arrows indicate oil flow direction and spring compression path.]
Step-by-Step: How to Use an Oil Pressure Relief Valve Diagram for Servicing
Interpreting an oil pressure relief valve diagram is the primary step in diagnosing lubrication issues. Whether you are dealing with a “low oil pressure” warning light or a “high pressure” condition that is leaking oil from the filter, the following steps will guide you through the process of utilizing the diagram for inspection and repair.
Step 1: Locate the Valve on the Engine Block
Using your vehicle-specific diagram, identify the physical location of the valve. It is typically found on the side of the oil pump or near the oil filter mounting boss. In some V-shaped engines, it may be located within the engine valley. The diagram will show you which bolts or retaining clips need to be removed to access the internal components.
Step 2: Prepare Your Workspace and Tools
Before opening the system, ensure you have the necessary tools ready. You will typically need a socket set, a torque wrench, a clean lint-free rag, and potentially a specialized pressure testing gauge. Always perform this work on a cool engine to avoid burns from hot oil.
Step 3: Disassemble the Retaining Mechanism
Referencing the diagram’s structure, remove the retaining cap or bolt. Be extremely careful, as the spring inside is under tension. If you unscrew the cap too quickly, the spring and plunger could fly out, leading to lost parts or injury.
Step 4: Inspect the Plunger and Spring
Once the components are removed, compare them to the visual layout in the diagram. Check the plunger for scoring, scratches, or “gumming” caused by old oil. The plunger should be perfectly smooth. Next, examine the spring. Compare its free length to the specifications provided in your service manual. A spring that has lost its tension (shorter than spec) will cause low oil pressure because it allows the valve to open too early.
Step 5: Clean the Valve Bore
The diagram shows the housing or bore where the plunger sits. Use a clean rag and some brake cleaner to wipe out any sludge or metal shavings from this area. Even a microscopic piece of debris can cause the plunger to stick in the “open” or “closed” position.
Step 6: Reassemble According to the Component Layout
Follow the diagram in reverse order for reassembly. Ensure the plunger goes in first, followed by the spring, and finally the retaining cap. Make sure the plunger moves freely within the bore before final tightening.
Step 7: Perform a Final Torque and Leak Test
Use a torque wrench to tighten the retaining cap to the manufacturer’s specification. Start the engine and monitor the oil pressure gauge. Check for leaks around the area you serviced.
Never attempt to “shim” the spring with washers to increase oil pressure unless you are building a dedicated race engine with professional guidance. Excessive oil pressure can lead to catastrophic failure of the oil filter or internal engine seals.
Troubleshooting Common Issues Using Your Diagram
When your engine’s oil pressure behaves erratically, the oil pressure relief valve diagram serves as a roadmap for troubleshooting. There are two primary failure modes: the valve sticking open or the valve sticking closed.
- ✓ Valve Stuck Open: This usually results in very low oil pressure, especially at idle. The diagram shows that if the plunger doesn’t return to its seat, oil constantly bypasses the engine’s galleries. This is often caused by debris or a broken spring.
- ✓ Valve Stuck Closed: This is a dangerous condition where oil pressure continues to climb as RPM increases. You might notice the oil filter “ballooning” or leaking. The diagram helps you identify the bypass port that is likely blocked.
- ✓ Erratic Pressure Fluctuations: If the pressure needle bounces rapidly, the plunger may be “hunting” or sticking intermittently. Cleaning the bore as shown in the layout usually resolves this.
If you see metal shavings during your inspection of the valve, this is a sign of internal engine wear. The relief valve is often the first place where metallic debris collects. If cleaning the valve does not restore steady pressure, it is time to seek professional help, as the issue likely lies deeper within the oil pump or the main bearings.
Best Practices for Maintaining Oil Pressure Stability
Maintaining the health of the components shown in your oil pressure relief valve diagram requires proactive care. Because the valve relies on a precise mechanical fit and spring tension, the quality of your oil and the frequency of your maintenance are paramount.
Always use the oil viscosity recommended by the manufacturer. Using oil that is too thick can cause the relief valve to work harder and stay open longer, while oil that is too thin may not build enough pressure to operate the valve correctly at low speeds.
One of the best ways to ensure the longevity of the relief valve is to use high-quality synthetic oils. Synthetic oils contain detergents that prevent the buildup of “varnish” on the plunger. Varnish is a thin, sticky layer of oxidized oil that can cause the plunger to drag within its bore, leading to the sticking issues mentioned earlier. Additionally, high-quality oil filters are essential. A cheap filter can sometimes collapse internally, sending debris straight into the relief valve.
If you are performing a high-mileage engine refresh, it is cost-effective to replace the relief valve spring and plunger entirely. These parts are relatively inexpensive compared to the cost of an engine rebuild. When purchasing replacements, ensure the part numbers match your specific engine configuration to maintain the correct factory pressure settings. Regular monitoring of your dashboard’s oil pressure gauge (if equipped) or installing an aftermarket mechanical gauge can provide early warning signs before a minor valve issue becomes a major engine catastrophe. By understanding the oil pressure relief valve diagram and following these maintenance tips, you ensure your engine stays lubricated and protected for years to come.
Frequently Asked Questions
What is an oil pressure relief valve diagram?
An oil pressure relief valve diagram is a visual representation showing the internal structure and layout of the valve within an engine. It illustrates how various parts interact to regulate pressure. This diagram is crucial for mechanics and engineers to understand the bypass system and ensure the lubrication circuit remains stable.
How do you read an oil pressure relief valve diagram?
To read an oil pressure relief valve diagram, follow the arrows representing oil flow into the valve body. Identify the tension spring and plunger components. The diagram usually shows a closed position for normal operation and an open position that demonstrates how excess oil is diverted back to the sump.
What are the parts of an oil pressure relief valve?
The primary components shown in the diagram include the valve body, a calibrated tension spring, and a moveable plunger or ball. It also highlights the inlet from the oil pump and the outlet bypass. This specific configuration ensures that the lubrication system never exceeds its safe maximum pressure threshold.
Why is the tension spring important?
The tension spring is a critical component because its resistance determines the exact pressure at which the valve opens. If the spring is too weak or too stiff, the entire lubrication system could fail. The diagram helps visualize how this part maintains the balance between flow and pressure.
What is the difference between a relief valve and a bypass valve?
While often used interchangeably, a relief valve limits total system pressure by bypassing oil to the pan, whereas a bypass valve usually routes oil around a clogged filter. The diagram clarifies this specific configuration by showing where the diverted oil flows within the overall engine lubrication system layout.
How do I use an oil pressure relief valve diagram?
Use the diagram as a reference guide during engine troubleshooting or assembly. By comparing the diagram’s layout to the physical component, you can identify signs of wear, stuck plungers, or broken springs. It provides a blueprint for correctly positioning parts to ensure the lubrication system operates effectively.
