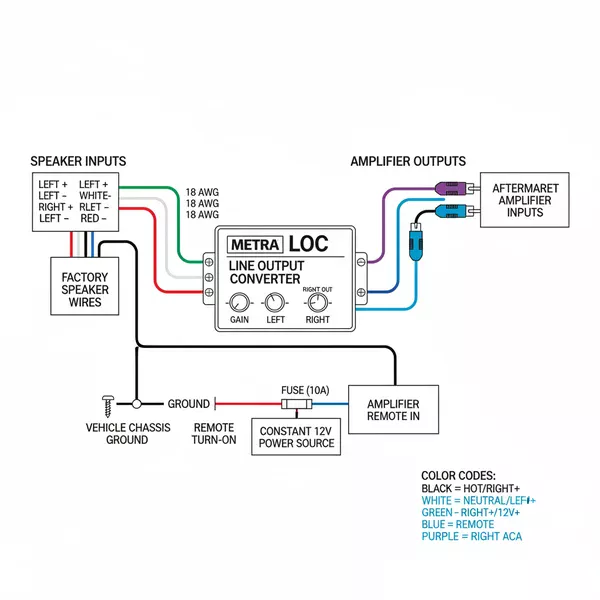

A Metra line output converter wiring diagram illustrates how to bridge factory speaker leads to RCA inputs for an amplifier. It identifies the hot wire and neutral wire for signal input and emphasizes connecting the ground wire to a chassis point to ensure a clean, noise-free audio signal transition.
📌 Key Takeaways
- Converts high-level speaker signals to low-level RCA outputs
- Requires precise identification of speaker wire polarity
- A solid chassis ground is essential to prevent audio noise
- Used primarily when adding amplifiers to factory head units
- Adjustable gain pots help match signal levels to the amplifier
If you are looking to upgrade your vehicle’s factory sound system without replacing the original head unit, understanding a metra line output converter wiring diagram is your first step toward success. Integrating an aftermarket amplifier into a stock radio requires a bridge between high-level speaker signals and low-level RCA inputs. A Metra line output converter (LOC) serves as this essential translator, ensuring your new equipment receives a clean, manageable signal. This guide provides a comprehensive breakdown of the wiring architecture, installation procedures, and electrical principles necessary to achieve professional-grade audio quality in your vehicle.
Understanding the Metra Line Output Converter Wiring Diagram Components
A metra line output converter wiring diagram is more than just a map of colors; it is a schematic representing the transition from high-voltage speaker outputs to low-voltage pre-amp signals. The diagram typically displays two primary sides: the input side, which taps into your car’s factory speaker wires, and the output side, which features RCA jacks for your amplifier. Unlike a standard home electrical circuit that might utilize a traveler wire for multi-way switching, the LOC focuses on signal attenuation.
The input side of the diagram generally consists of four or eight wires, depending on whether the unit is a two-channel or four-channel converter. Following standard EIA (Electronics Industries Association) color coding, the wires are usually paired. For instance, a solid white wire represents the front left positive signal, while a white wire with a black stripe represents the front left negative. This mirroring continues with gray (front right), green (rear left), and purple (rear right).
On the physical unit, you will also notice adjustment pots or dials. These are used to match the gain of the factory head unit to the input sensitivity of your amplifier. While a household electrical outlet might have a brass screw to secure a hot wire, an LOC uses these potentiometers to fine-tune the signal voltage. Understanding this layout is crucial because miswiring the positive and negative leads can result in “out-of-phase” audio, where speakers cancel each other out, leading to a thin, hollow sound with no bass response.
Most Metra line output converters are “passive,” meaning they do not require a 12V power source to operate. However, if you are using an “active” LOC, the wiring diagram will also include a red power wire and a blue remote turn-on output to trigger your amplifier.
Step-by-Step Guide to Interpreting and Installing the Diagram
Reading a metra line output converter wiring diagram requires a basic grasp of electrical circuits. While you aren’t dealing with a common terminal or a neutral wire in the traditional AC sense, the DC audio signals follow a similar logic of polarity and continuity. Before beginning, ensure you have a wire stripper, high-quality electrical tape or heat shrink tubing, and a digital multimeter to verify your connections.
- ✓ Step 1: Disconnect the vehicle battery to prevent short circuits.
- ✓ Step 2: Access the rear of your factory head unit or the factory amplifier.
- ✓ Step 3: Identify the left and right speaker wire pairs using your vehicle-specific wiring harness guide.
- ✓ Step 4: Connect the LOC’s input wires to the corresponding factory speaker wires.
- ✓ Step 5: Secure the ground wire to a clean, unpainted metal surface on the chassis.
- ✓ Step 6: Plug your RCA cables into the LOC and run them to your aftermarket amplifier.
- ✓ Step 7: Reconnect the battery and calibrate the gain settings.
When identifying wires, it is helpful to think of the “hot wire” in this context as the positive speaker lead carrying the fluctuating AC audio signal. The negative lead serves as the return path. Although automotive wiring uses a chassis ground rather than a neutral wire, the principle of completing a circuit remains the same. Use a proper wire gauge—typically 18 AWG for signal wires—to ensure that the voltage drop is minimized and the signal integrity is maintained over the length of the wire run.
Never tap into factory wires without verifying them with a multimeter. Using a test light on modern vehicle data wires (CAN-bus) can cause expensive damage to the vehicle’s computer systems.
In complex installations where you might be used to seeing a brass screw on a switch or a common terminal in a junction box, remember that car audio relies on secure crimp or solder connections. If your Metra LOC includes a ground wire, it is often used to eliminate “alternator whine.” This ground should not be tied into the factory radio ground but rather to the same ground point used by your amplifier if possible, to prevent ground loops.
Troubleshooting Common LOC Wiring Issues
Even with a perfect metra line output converter wiring diagram, issues can arise. One of the most frequent problems is low volume or distorted sound. This often happens if the input signal voltage is too high for the LOC to handle or if the gain settings on the converter are turned up too high, causing the signal to “clip.” Clipping sounds like harsh distortion and can eventually damage your speakers and amplifier.
Another common issue is engine noise or a high-pitched whine that fluctuates with the engine’s RPM. This is usually caused by a ground loop. If your LOC has a dedicated ground wire, ensure it is connected to a solid chassis point. In some cases, you may need to experiment with disconnecting or connecting this ground to see which configuration produces the quietest signal. Unlike a household traveler wire that has a specific job in a switch leg, the ground in an LOC is often a “drain” for interference.
If you find that your amplifier is not turning on, and you are using an active LOC, check the remote turn-on wire. This wire should show roughly 12 volts when the radio is on. If the voltage is too low, the amplifier’s internal relay won’t trigger. Ensure you are using the correct gauge for your power and ground leads to prevent a voltage drop that could cause the LOC or amplifier to shut down prematurely.
Pro Tips and Best Practices for Implementation
To get the most out of your metra line output converter wiring diagram, focus on the quality of your connections. While many DIYers use “T-taps,” these can become loose over time due to vehicle vibrations. For a permanent solution, the “military splice” or a soldered connection covered with heat shrink is highly recommended. This ensures that the low-voltage signal isn’t interrupted by a poor contact point.
Always set your head unit volume to about 75% when adjusting the LOC gains. This provides a “clean” ceiling for the signal before the factory radio starts to introduce its own internal distortion.
When routing your wires, keep the RCA cables on the opposite side of the vehicle from the main power wire. If the signal wires (RCA) run parallel to a high-current power wire, they can pick up electromagnetic interference, much like how a traveler wire in a home circuit can occasionally cause phantom voltage in nearby lines. By separating the signal and power paths, you ensure the highest possible signal-to-noise ratio.
Finally, always choose a Metra LOC that matches your system’s power output. If you have a premium factory system with an external amplifier, the voltage coming out of the factory amp may be too high for a standard LOC. In these cases, you need a “high-voltage” capable converter. Referencing your metra line output converter wiring diagram and the product specifications will tell you the maximum input wattage the device can safely handle.
By following these guidelines and carefully adhering to the metra line output converter wiring diagram, you can transform a basic factory setup into a high-fidelity powerhouse. Precision in your wiring, attention to grounding, and proper gain staging are the hallmarks of a successful car audio integration project. Whether you are identifying the equivalent of a hot wire in a signal path or ensuring your ground is secure, the principles of safety and signal integrity remain your best tools for a professional result.
Frequently Asked Questions
What is a Metra line output converter diagram?
A Metra line output converter diagram is a visual schematic that shows how to connect a converter to your vehicle’s factory stereo system. It identifies which wires tap into speaker outputs and where to connect power and ground, allowing you to add aftermarket amplifiers to a stock head unit.
How do you read a Metra line output converter diagram?
Reading the diagram involves matching the color-coded wires on the Metra unit to the corresponding factory speaker wires. The diagram will show the hot wire and neutral wire for each channel, as well as the chassis ground wire, ensuring that the audio signal remains in phase for optimal sound.
What are the parts of a line output converter?
The main parts include the input wire harness, which carries the high-level speaker signal, the internal transformer or active circuit, and the RCA output jacks. Some units also feature gain adjustment screws, a remote turn-on lead, and a ground wire to minimize interference from the vehicle’s electrical system.
Why is the ground wire important?
The ground wire is critical because it provides a reference point for the electrical circuit. Without a solid connection to a common terminal or chassis ground, your system may experience ground loops. This leads to unwanted noise like alternator whine, which can significantly degrade the audio quality of your system.
What is the difference between high-level and low-level signals?
High-level signals are amplified signals intended to drive speakers directly, while low-level signals are unamplified, cleaner signals meant for an amplifier’s input. The Metra converter acts as the bridge, taking the hot wire signal from the factory radio and stepping it down to a safe level for RCA cables.
How do I use a Metra wiring diagram?
Use the diagram to identify the specific color codes for your vehicle’s speaker outputs. Carefully strip the factory insulation, tap the converter’s input wires into the correct lines, and secure the ground. Following the diagram prevents wiring errors that could damage your amplifier or result in poor sound.
