John Deere X300 Parts Diagram: Identify & Replace Parts
A John Deere X300 parts diagram provides a visual breakdown of the mower’s internal structure and system configuration. It allows owners to identify every specific component, from the mower deck to the engine assembly. Using this layout helps in ordering accurate replacement parts and performing precise maintenance to ensure long-term tractor reliability.
📌 Key Takeaways
- Visualize the complex assembly of the X300 tractor
- Identify specific part numbers for the mower deck and engine
- Always disconnect the spark plug before inspecting mechanical parts
- Use the diagram to cross-reference parts with official dealer catalogs
- Refer to the diagram when performing annual servicing or belt replacements
Maintaining a lawn tractor as sophisticated as the John Deere X300 requires more than just basic mechanical intuition; it necessitates a precise roadmap for every nut, bolt, and belt. Whether you are performing a routine seasonal tune-up or tackling a complex transmission repair, utilizing a comprehensive john deere x300 parts diagram is the most effective way to ensure accuracy. These schematics provide a visual breakdown of the machine’s internal architecture, allowing owners to identify specific part numbers and understand how individual components interact within a larger system. In this article, you will learn how to navigate these technical layouts, interpret complex assembly sequences, and use these diagrams to keep your mower running at peak efficiency for years to come.
Understanding the X300 System Configuration
The John Deere X300 is a modular machine, and its parts diagrams are typically divided into several primary functional groups. Understanding this high-level structure is the first step in mastering your tractor’s maintenance. The main diagram categories usually include the engine and fuel system, the electrical layout, the steering and front axle assembly, the power train or transaxle, and the mower deck. Each of these sections uses a specific layout to show how components are layered. For instance, the engine diagram won’t just show the motor as a single block; it will explode the view to show the air filter housing, the carburetor assembly, and the cooling fins as separate but connected entities.
The visual breakdown in these diagrams utilizes a numbering system that corresponds to a parts list. Most diagrams use leader lines—thin lines pointing from a number to a specific part—to indicate exactly where a component sits in the assembly. This is particularly important for the X300 because this model has seen various minor iterations over its production life. A parts diagram will often feature color-coded areas or shaded regions to differentiate between the main frame and removable attachments. Some diagrams also use dashed lines to represent hidden components that sit underneath a primary part, such as a bushing hidden inside a spindle housing.
Always locate your tractor’s Product Identification Number (PIN) or serial number before consulting a diagram. John Deere often updates part specifications mid-production, and the serial number ensures you are looking at the correct configuration for your specific unit.
graph TD
A[John Deere X300 Main Chassis] --> B[Engine & Fuel System]
A --> C[Electrical System]
A --> D[Power Train/Transaxle]
A --> E[Steering & Front Axle]
A --> F[Mower Deck Assembly]
B --> B1[Air Intake/Filter]
B --> B2[Fuel Pump & Lines]
B --> B3[Exhaust/Muffler]
C --> C1[Battery & Wiring Harness]
C --> C2[Ignition & PTO Switch]
D --> D1[Drive Belt & Pulleys]
D --> D2[K46 Transmission]
F --> F1[Spindles & Blades]
F --> F2[Deck Belt Layout]
F --> F3[Lift Linkage]
How to Read and Interpret the John Deere X300 Parts Diagram
Interpreting a technical schematic can feel overwhelming at first, but following a systematic approach makes the process manageable even for beginners. The goal is to move from a general system view down to the specific component you need to service or replace.
Step 1: Identify the Sub-Assembly
Before diving into the fine details, determine which major system requires attention. If your mower blades aren’t engaging, you should head straight to the “Mower Deck” or “Power Take-Off (PTO)” section of the john deere x300 parts diagram. If the tractor won’t move forward, the “Drive Power Train” or “Transaxle” diagram is your starting point. Isolating the system prevents you from getting lost in irrelevant data.
Step 2: Locate the Reference Number

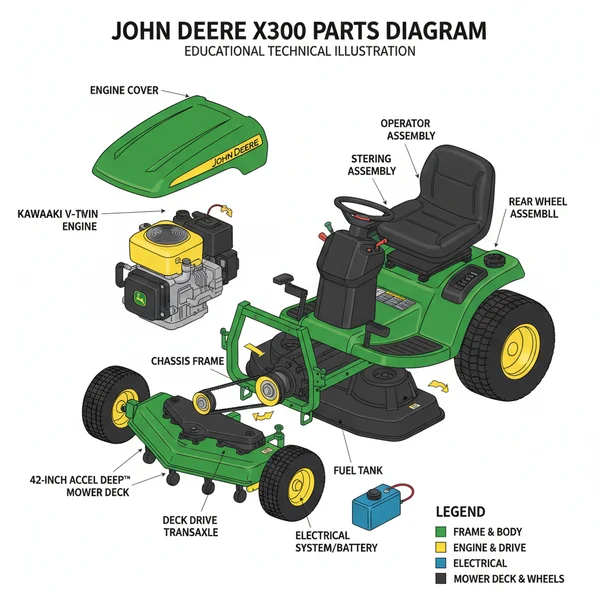

Once you have the correct diagram open, scan the visual “exploded view.” Find the physical part on the drawing that matches what you see on your tractor. Each part will have a small number next to it. It is important to look at the orientation of the part in the drawing; for example, if you are looking for a belt tensioner spring, the diagram will show exactly which hole in the bracket the spring hooks into.
Step 3: Cross-Reference with the Parts List
The number on the diagram is a “Reference Number,” not the actual “Part Number.” You must look at the table accompanying the diagram to find the corresponding manufacturer part number (often starting with letters like AM or M). This list will also tell you the quantity of that part used in that specific assembly, which is helpful if you are replacing multiple bolts or washers of the same size.
Step 4: Analyze Hardware Stacking
One of the most valuable aspects of the X300 diagram is the “stacking order.” When you take a spindle or a pulley apart, it is easy to forget whether the washer goes above or below the spacer. The diagram shows the exact vertical or horizontal sequence of hardware. Always read the diagram from the outside in to understand how the fasteners secure the main components.
Step 5: Verify Specifications and Measurements
Technical diagrams often include notes about torque specifications or dimensions for common hardware. If you see a note like “M8 x 20,” this tells you the metric size and length of the bolt. This information is crucial if you have lost a fastener and need to find a temporary replacement or ensure you are using the correct grade of hardware for a high-stress area like the mower deck.
Step 6: Prepare Your Tools and Workspace
Before beginning the physical work based on the diagram, gather the necessary tools. For the X300, you will typically need:
- ✓ SAE and Metric socket sets (10mm, 13mm, and 1/2-inch are common)
- ✓ Needle-nose pliers for cotter pins and springs
- ✓ Torque wrench for blade bolts and engine components
- ✓ Belt tension release tool or a sturdy pry bar
Always disconnect the spark plug wire and the battery’s negative terminal before performing any work identified in the parts diagram. This prevents accidental engine ignition while you are working near moving parts like the mower blades or drive belts.
Common Issues and Troubleshooting with the X300
Owners of the John Deere X300 often encounter a few recurring issues where the parts diagram becomes an essential troubleshooting partner. One of the most common problems is deck belt slippage or frequent belt breakage. By consulting the mower deck layout, you can identify if a tensioner pulley is misaligned or if a specific guide arm is bent. The diagram shows the exact path the belt must take; if your physical belt path doesn’t match the schematic, you’ve found your problem.
Another frequent issue involves the steering system becoming “loose” or unresponsive. The steering configuration diagram helps you locate the sector gear and pinion. Often, a small bushing or a shim (indicated in the diagram) has worn down, creating play in the steering wheel. Without the diagram, it would be difficult to know that a tiny washer is missing from the assembly.
If you notice your tractor losing power on hills, the transaxle diagram can help you identify the cooling fan and drive pulley. Debris often builds up on top of the transmission, and the diagram will show you how to remove the protective shields to access and clean the cooling fins, potentially saving you from a costly transaxle replacement.
Pro Tips and Maintenance Best Practices
To get the most out of your John Deere X300, you should treat the parts diagram as a living document. Here are some professional strategies for maintaining your equipment:
Print out the specific diagrams for the mower deck and the engine oil system. Laminate them and hang them in your garage. Having these visuals readily available without needing to pull up a phone or computer while your hands are greasy will save you significant time.
Maintenance recommendations for the X300 include checking the air filter and pre-cleaner every 25 hours of use. Use the engine component diagram to ensure the filter cover is seated correctly, as an improper seal can allow dust to bypass the filter and damage the cylinders. For the mower deck, use the layout to identify the grease zerks on the spindles. Many owners miss one or two lubrication points because they are tucked away behind the belt guards; the diagram reveals every hidden maintenance point.
When it comes to cost-saving, the john deere x300 parts diagram allows you to identify individual small parts rather than buying entire assemblies. For example, if a wheel bearing fails, the diagram will provide the part number for just the bearing, preventing you from having to purchase a whole new wheel and tire assembly from a dealer.
Finally, always prioritize high-quality components. While aftermarket parts are available, the X300 is engineered with specific tolerances. Using the exact part numbers found in the official diagram ensures that belts have the correct friction coefficient and filters have the proper micron rating for your Kawasaki engine. Keeping a digital archive of these diagrams, organized by system, will ensure that you are always prepared for whatever maintenance your John Deere X300 requires. By combining the visual data from the diagram with consistent preventive care, you can maximize the lifespan and resale value of your tractor.
Step-by-Step Guide to Understanding the John Deere X300 Parts Diagram: Identify & Replace Parts
Identify – Start by identifying the specific system or assembly on the tractor that requires maintenance or part replacement.
Locate – Find the corresponding section on the parts diagram to see the exploded view of the components.
Understand – Examine the diagram to understand how each component fits into the overall mechanical structure and sequence.
Connect – Cross-reference the diagram’s reference numbers with the official part list for your specific machine configuration.
Verify – Verify that the replacement part matches the technical specifications and layout shown in the official documentation.
Complete – Finish the repair or service by following the assembly order illustrated in the diagram to ensure proper function.
Frequently Asked Questions
What is John Deere X300 parts diagram?
The John Deere X300 parts diagram is an exploded view of the lawn tractor’s internal structure. It visualizes how every individual component fits within the overall system. This specialized layout is essential for identifying part numbers, understanding assembly sequences, and ensuring you purchase the correct components for repairs or maintenance.
How do you read John Deere X300 parts diagram?
To read the diagram, look for the exploded view showing separated parts connected by dotted lines. Each component is assigned a reference number that corresponds to a master list. By following the visual layout, you can see how parts interact within the tractor’s configuration to perform specific mechanical functions.
What are the parts of John Deere X300?
The John Deere X300 consists of several major systems including the engine, transmission, steering assembly, and mower deck. Specific parts range from drive belts and pulleys to blades and spindle housings. Each component works together within the tractor’s structure to provide efficient grass cutting and reliable mobile operation.
Why is the mower deck component important?
The mower deck is a critical component because it houses the cutting system and determines the quality of the cut. Understanding its internal configuration via a diagram allows you to properly route belts and align blades. Keeping this system in good repair ensures the tractor operates safely and efficiently.
What is the difference between the X300 and X300R?
The primary difference lies in the rear discharge configuration. While both share a similar engine structure, the X300R features a specialized layout for rear collection, whereas the standard X300 typically uses side discharge. Their respective parts diagrams reflect these differences in the mower deck and collection chute components.
How do I use John Deere X300 parts diagram?
Use the diagram by first identifying the specific area of the tractor requiring attention. Locate the corresponding section of the layout to find the part’s reference number. Once identified, use that number to find the official part ID, ensuring a perfect match for any necessary replacement or repair.
