Ford F250 Front End Parts Diagram: Maintenance Guide
A Ford F250 front end parts diagram illustrates the complex suspension and steering system, detailing every component from ball joints to tie rods. This layout helps owners visualize the structure of the heavy-duty configuration, making it easier to diagnose wobbles, identify worn parts, and perform precise repairs or upgrades.
📌 Key Takeaways
- Visualizing the relationship between steering and suspension components.
- Identifying critical ball joints, tie rod ends, and the track bar.
- Always torque fasteners to factory specifications for heavy-duty safety.
- Use the diagram to source exact replacement part numbers for your specific trim.
- Essential for diagnosing ‘Death Wobble’ or uneven tire wear issues.
Maintaining a heavy-duty truck requires a clear understanding of its underlying architecture, especially when dealing with steering and suspension. For many owners, a ford f250 front end parts diagram is the most essential resource for diagnosing vibrations, steering play, or uneven tire wear. This comprehensive guide provides a detailed look at the front-end assembly, explaining how each component fits into the overall system. By the end of this article, you will be able to identify every major part, understand their specific functions, and use technical layouts to perform your own inspections and repairs with confidence.
The front-end assembly of a heavy-duty truck is designed to handle immense loads and off-road stress. While 2WD models often feature a Twin I-Beam configuration, 4WD models typically utilize a solid axle or Monobeam structure. Always ensure your diagram matches your specific drivetrain.
Understanding the Ford F250 Front End Parts Diagram

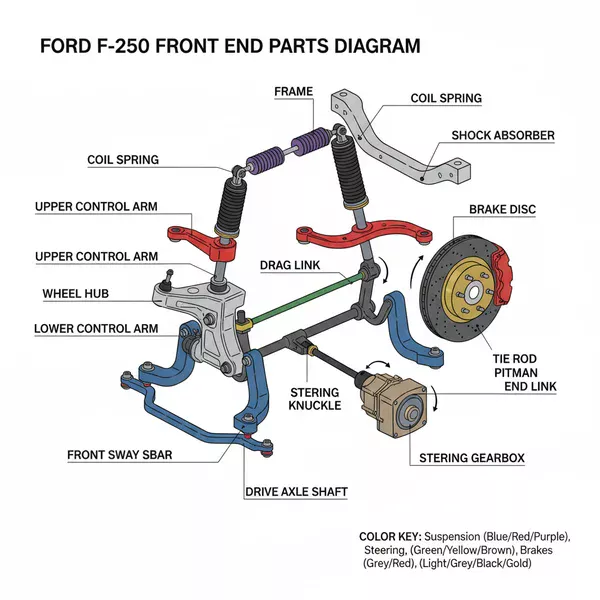

When looking at a technical diagram for this vehicle, the first thing you will notice is the complex network of bars, joints, and linkages. The primary structure is divided into two main categories: the steering linkage and the suspension system. These two systems work in tandem to provide directional control and impact absorption.
The steering linkage starts at the steering gear box. From here, the Pitman arm acts as the primary lever, converting the rotational force of the steering wheel into lateral movement. This movement is then transferred to the drag link, which spans across the front of the vehicle to the passenger-side steering knuckle. Connecting the two wheels is the tie rod assembly, which ensures that both tires turn at the same angle simultaneously.
In terms of the suspension layout, the track bar is one of the most visible components in a 4WD configuration. It runs diagonally from the frame to the axle, preventing the axle from shifting side-to-side during travel. Supporting the weight of the engine and cabin are the coil springs, which sit atop the axle and are damped by heavy-duty shock absorbers. The radius arms extend backward from the axle to the frame, controlling the forward and backward movement of the wheels.
The front-end components are under extreme tension, particularly the coil springs and the track bar. Never attempt to loosen these components without properly supporting the frame on high-capacity jack stands and using a floor jack to manage the axle weight.
Key Components and Labels
- ✓ Tie Rod Ends: These threaded joints connect the steering linkage to the knuckles. They are the most common wear items.
- ✓ Ball Joints (Upper and Lower): These allow the steering knuckle to pivot smoothly while supporting the vertical load of the vehicle.
- ✓ Steering Damper: Essentially a horizontal shock absorber that reduces “bump steer” and steering wheel vibration.
- ✓ Axle Pivot Bushings: Found on 2WD models, these allow the Twin I-Beams to flex without excessive metal-on-metal friction.
- ✓ Drag Link: The primary connection between the steering gear and the tie rod assembly.
How to Use the Diagram for Installation and Repair
Interpreting a ford f250 front end parts diagram requires a systematic approach. The diagram is more than a picture; it is a map of torque sequences and component relationships. Follow these steps to use the diagram effectively during your next maintenance session.
Step 1: Verify the Configuration
Before turning a wrench, identify whether your vehicle is a 4×4 or a 4×2. The 4×4 models use a solid axle with a track bar, while 4×2 models usually feature the Twin I-Beam setup. Ensure your diagram matches your VIN or specific sub-model to avoid purchasing incorrect parts.
Step 2: Locate Connection Points
Use the diagram to identify where different parts interface. For example, look for where the drag link meets the Pitman arm. These connection points are often secured by castle nuts and cotter pins. The diagram will show the orientation of these fasteners, which is crucial for reassembly.
Step 3: Tools and Materials Gathering
Based on the component list found in the diagram, gather your tools. For a front-end overhaul, you will typically need:
- ✓ Heavy-duty torque wrench (capable of 150+ ft-lbs)
- ✓ Pitman arm puller or tie rod separator
- ✓ Pickle fork (for stubborn joints)
- ✓ High-pressure grease gun
- ✓ Penetrating oil (WD-40 or PB Blaster)
Step 4: Conduct a Dry Park Test
With the diagram in hand, have an assistant sit in the truck and move the steering wheel back and forth rapidly while the vehicle is on the ground. Use the diagram to identify each part as you watch for “slop” or excessive movement in the joints. This visual inspection, combined with the diagram’s layout, helps pinpoint exactly which ball joint or tie rod has failed.
Step 5: Follow the Disassembly Sequence
Always start from the outside and work your way in. For example, disconnect the tie rod ends from the knuckles before attempting to remove the drag link. The diagram acts as a reference for how the system should look when fully assembled, helping you keep track of which side of a bracket a washer or spacer belongs on.
Step 6: Apply Correct Torque Specifications
The most common mistake in front-end repair is over-tightening or under-tightening bolts. A technical diagram or the accompanying service manual will provide specific torque values. For instance, the track bar bolt on these trucks often requires significant torque—sometimes exceeding 400 ft-lbs in newer versions. Failure to reach these specs can lead to the dreaded “death wobble.”
When replacing tie rod ends, count the number of full rotations it takes to unscrew the old part. Thread the new part in the same number of turns. While this doesn’t replace a professional alignment, it will keep your steering close enough to safely drive the truck to an alignment shop.
Common Issues and Troubleshooting
The front-end system of a heavy-duty truck is susceptible to specific failures due to the weight it carries. The most frequent issue reported is the “Death Wobble”—a violent shaking of the front axle after hitting a bump at highway speeds. Using your ford f250 front end parts diagram, you can systematically check the track bar bushings and the steering damper, which are the primary culprits for this phenomenon.
Another common sign of trouble is uneven tire wear. If the inside edge of your tires is wearing faster than the rest, the diagram can help you locate the ball joints and camber adjustment sleeves. A clunking sound when turning usually indicates that the U-joints in the axle or the radius arm bushings have reached the end of their service life. If you notice fluid leaking near the front wheels on a 4WD model, use the diagram to identify the axle seals and hub assembly, which may require replacement.
Tips and Best Practices for Front End Maintenance
To maximize the lifespan of your front-end configuration, regular maintenance is non-negotiable. Unlike many modern cars, heavy-duty trucks often feature greaseable fittings (Zerk fittings). Referencing your diagram, locate every grease point on the tie rod ends, ball joints, and U-joints.
- ✓ Lubricate Frequently: Apply fresh grease every time you change your oil. This flushes out contaminants and moisture.
- ✓ Choose Quality Parts: For a truck this heavy, avoid the cheapest “white box” parts. Opt for OEM components or reputable aftermarket brands like Moog or Mevotech that offer “Problem Solver” designs with improved durability.
- ✓ Inspect Bushings: Look for cracked or dry-rotted rubber in the radius arms and track bar. Upgrading to polyurethane bushings can provide a firmer steering feel but may increase road noise.
- ✓ Alignment is Key: Any time you replace a component shown on the steering linkage diagram, you must get a professional four-wheel alignment.
In conclusion, having a ford f250 front end parts diagram at your disposal is the best way to ensure your truck remains safe and reliable. By understanding the relationship between the steering and suspension components, you can save thousands of dollars in labor costs and prevent small issues from turning into major mechanical failures. Whether you are performing a simple grease job or a full steering rebuild, this visual and technical knowledge is the foundation of high-quality truck maintenance.
Step-by-Step Guide to Understanding the Ford F250 Front End Parts Diagram: Maintenance Guide
Identify the specific model year and drivetrain configuration of your Ford F250 to ensure diagram accuracy.
Locate the steering linkage components, including the drag link, pitman arm, and tie rods on the diagram.
Understand how the track bar secures the front axle to the vehicle frame structure for lateral stability.
Connect the visual representation of the ball joints to their physical location on the steering knuckles.
Verify that the layout matches your vehicle’s actual suspension system setup, checking for any aftermarket modifications.
Complete the inspection by checking each component for play, torn boots, or damaged seals based on the diagram map.
Frequently Asked Questions
What is Ford F250 front end parts diagram?
This diagram is a visual schematic representing the intricate suspension and steering system of the truck. It maps out every individual component and its specific layout, allowing mechanics and DIYers to understand how parts like the drag link, pitman arm, and track bar integrate within the heavy-duty structure.
How do you read Ford F250 front end parts diagram?
Begin by identifying the orientation of the vehicle, typically shown from a top-down or front-facing perspective. Look for numbered callouts that correspond to a parts list. Follow the lines connecting each component to understand the system configuration and how forces transfer through the steering and suspension assembly.
What are the parts of Ford F250 front end?
The front end consists of several vital parts including upper and lower ball joints, inner and outer tie rod ends, the track bar, drag link, and steering stabilizer. It also includes the coil springs, shock absorbers, and radius arms, which collectively form the suspension structure and steering system.
Why is the steering stabilizer important?
The steering stabilizer is a critical component in the Ford F250 front end configuration because it acts as a shock absorber for the steering system. It dampens side-to-side movement and vibrations, preventing the dreaded death wobble and ensuring the layout remains stable during high-speed travel or off-road use.
What is the difference between a 2WD and 4WD front end?
The primary difference lies in the drive system structure. A 4WD F250 utilizes a solid front axle with a differential and axle shafts, whereas a 2WD version often uses a Twin I-Beam configuration. The 4WD layout is more complex, featuring additional components like u-joints and a front driveshaft.
How do I use Ford F250 front end parts diagram?
Use the diagram to pinpoint the exact location of malfunctioning parts when diagnosing noises or handling issues. It serves as a blueprint for disassembly and reassembly, ensuring every component is returned to its correct position within the system configuration while helping you order the correct replacement parts.
