Diagram How to Jump Fuel Pump Relay on Chevy Truck: Bypass Guide

When your Chevy truck refuses to start, but the engine cranks over vigorously, you are likely facing a fuel delivery issue. One of the most effective ways to diagnose a failing fuel pump or a faulty control circuit is to use a diagram how to jump fuel pump relay on chevy truck. This process allows you to bypass the complex electronics of the vehicle and send power directly to the fuel pump. By understanding the schematic of your under-hood fuse block, you can quickly determine if your pump is dead or if the problem lies within your wiring or computer system. This guide provides the technical breakdown and safety procedures necessary to perform this bypass correctly, helping you save on towing fees and expensive shop diagnostics.

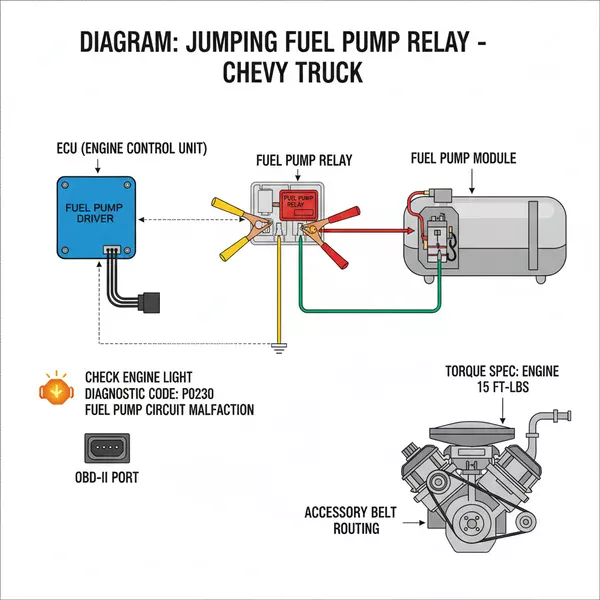

The fuel pump relay in a Chevy truck is essentially a heavy-duty electromagnetic switch. In the diagram below, you will see a typical 4-pin or 5-pin configuration used in most GM trucks. The diagram illustrates two distinct circuits: the control circuit and the load circuit. The control circuit consists of Pin 85 and Pin 86. When the ignition is turned, the ECU (Engine Control Unit) sends a small current through these pins, creating a magnetic field that closes the internal switch. The load circuit consists of Pin 30 and Pin 87. Pin 30 is always connected to battery positive power via a high-amperage fuse. When the switch closes, Pin 30 connects to Pin 87, which sends 12 volts directly to the fuel pump at the rear of the truck.

Most modern Chevy trucks use a standardized ISO relay layout found in the Power Distribution Center (the large black box near the driver-side fender). While the exact position of the relay may change depending on the engine size or trim level, the pin numbers (30, 85, 86, 87) remain consistent across the board. If your truck has a 5-pin relay, there may be an additional Pin 87a in the center; for the purpose of jumping the fuel pump, this pin is typically ignored as it is “normally closed” and does not feed the pump during operation.

Performing a fuel pump relay jump requires a methodical approach to avoid damaging the ECU or causing an electrical spark near the battery. Follow these steps carefully to interpret the diagram and test your system.

• ✓ Step 1: Preparation and Safety. Ensure the truck is in Park with the emergency brake engaged. Since you will be working with live electrical circuits, remove any loose jewelry. Locate the under-hood fuse box and remove the plastic cover.
• ✓ Step 2: Identify the Relay. Use the map printed on the underside of the fuse box cover to find the “Fuel Pump Relay.” Gently rock the relay back and forth while pulling upward to remove it from its socket.
• ✓ Step 3: Inspect the Socket. Look into the relay socket. You will see five slots (even if the relay only has four pins). Use a multimeter or a 12V test light to confirm that Pin 30 has constant battery power. If there is no power at Pin 30, your problem is a blown fuse or a fusible link, not the pump or relay.
• ✓ Step 4: Create a Jumper Wire. Take a short piece of 14-gauge insulated copper wire and strip both ends. It is highly recommended to use a jumper wire with an inline 20-amp fuse to protect the truck’s electrical system from a short circuit.
• ✓ Step 5: Jump Pin 30 to Pin 87. Insert one end of your jumper wire into the slot for Pin 30 and the other end into the slot for Pin 87. You should immediately hear the fuel pump hum or gurgle from the rear of the truck near the fuel tank.
• ✓ Step 6: Attempt to Start. With the jumper wire firmly in place, get into the cab and attempt to start the engine. If the truck starts and runs perfectly, you have confirmed that the fuel pump is healthy, and the issue lies in the relay itself or the control signal from the ECU.
• ✓ Step 7: Check the Control Signal. If the pump runs with the jumper but the truck won’t start with the relay, use your multimeter on the Pin 85 and 86 slots. Have an assistant turn the key to the “ON” position. You should see 12V for approximately 2 seconds as the ECU primes the system.

To perform this task properly, you will need a basic automotive tool kit. This includes a digital multimeter, a pair of needle-nose pliers for relay removal, and a dedicated fused jumper lead. If you do not have a fused jumper, a simple paperclip can work in an emergency, but use extreme caution as it can get very hot very quickly if the fuel pump is shorted internally.

When troubleshooting a Chevy truck, jumping the relay often reveals more than just a dead pump. If you jump the relay and the pump still does not run, the issue could be a broken ground wire on the frame or a corroded connector at the fuel tank. Many Chevy owners encounter a diagnostic code such as P0230 (Fuel Pump Primary Circuit) or P0627, which indicates an electrical malfunction that the OBD-II system has detected. Use a scanner to check for these codes if the check engine light is illuminated.

Another common issue is “intermittent no-start.” This is often caused by burnt contact points inside the relay. If you see discoloration or a burnt smell on the bottom of the relay, replace it immediately. In some cases, the issue isn’t the fuel system at all. If jumping the pump provides fuel pressure but the truck still won’t fire, you may need to investigate the timing chain or the accessory belt components if they have failed and caused secondary damage, though these are rarer than electrical fuel issues. Additionally, check for proper coolant flow if the truck overheated prior to the stall, as some ECU programs will shut down fuel delivery to protect the engine from thermal damage.

For long-term reliability, maintenance is key. When you eventually replace the fuel pump or relay, ensure that all electrical connections are clean. Use dielectric grease on the relay pins to prevent moisture intrusion and corrosion, which is a common problem in trucks driven in salt-heavy regions. If you have to remove the fuel tank to replace the pump, pay attention to the torque spec for the tank straps and mounting bolts to ensure everything is secured safely.

When purchasing replacement parts, avoid the cheapest “no-name” relays found online. Quality OEM or high-grade aftermarket components are essential for the fuel system, as they are designed to handle the heat and vibration of an engine bay. Regularly checking your OBD-II system for pending diagnostic codes can also give you an early warning before a component fails completely. By mastering the diagram how to jump fuel pump relay on chevy truck, you gain a vital skill in automotive diagnostics that allows you to separate mechanical failures from electrical ghosts, ensuring your truck stays on the road and out of the repair shop. Always remember that a systematic approach—testing power, then the relay, then the pump—is the fastest way to a successful repair.
