Chevy Dual Tank Selector Valve Diagram: Wiring & Plumbing
A Chevy dual tank selector valve diagram illustrates the electrical and mechanical configuration used to switch fuel flow between two tanks. It shows how the dash switch triggers the motorized valve component to redirect supply and return lines, ensuring the fuel gauge accurately reflects the selected tank’s level.
📌 Key Takeaways
- Identifies the routing of fuel lines between the front and rear tanks
- Pinpoints the six-port valve as the central system component
- Highlights the importance of correct electrical grounding for switching
- Use it to diagnose fuel delivery failures or gauge inaccuracies
- Refer to this diagram when replacing old or leaking selector valves
If you own a classic Chevrolet or GMC truck, particularly the C/K series, you are likely familiar with the complexity of the dual-reservoir fuel system. Navigating the fuel delivery path can be incredibly frustrating without a clear visual aid. Understanding a chevy dual tank selector valve diagram is essential for diagnosing why your truck might be starving for fuel, cross-filling tanks, or showing incorrect fuel levels on your dashboard. This guide provides a detailed breakdown of the internal and external architecture of the selector valve, ensuring you have the technical knowledge required to maintain, repair, or replace this critical component. By studying the layout and configuration of the system, you can effectively bypass the guesswork and ensure your engine receives a consistent fuel supply from both the primary and secondary tanks.
Understanding the Chevy Dual Tank Selector Valve Structure
The chevy dual tank selector valve diagram reveals a sophisticated piece of engineering designed to manage both fuel delivery and return flows. In most fuel-injected Chevy models, the valve is a six-port component. The structure is divided into two primary sections: the supply side and the return side. The supply side draws fuel from either the left or right tank and sends it toward the engine, while the return side takes unused fuel from the engine and directs it back to the specific tank currently in use.
The layout of these ports is usually organized in a specific configuration to prevent cross-contamination of fuel between the reservoirs. On the diagram, you will typically see two ports labeled for “Tank A” (often the driver-side or main tank) and two ports for “Tank B” (the passenger-side or auxiliary tank). The remaining two ports are dedicated to the engine’s supply and return lines. Internally, the valve contains a motorized actuator or a solenoid that slides a piston back and forth to open and close these paths.
A key element of the system is the electrical connector, which usually features a five or six-pin configuration. This electrical component is responsible for two main functions: flipping the mechanical valve and switching the sending unit signal so your fuel gauge reflects the level of the tank you are currently drawing from. If the internal configuration fails, you might find that while the fuel is switching correctly, your gauge remains stuck on the previous tank, or vice versa.
Most Chevy trucks from the late 1980s through the 1990s use a 6-port motorized valve. Earlier carbureted models may use a simpler 3-port or 4-port solenoid-style valve which does not feature a return line system.

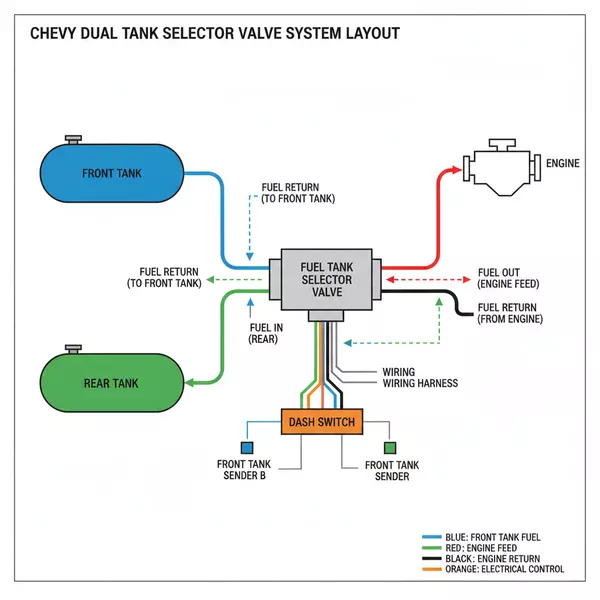

[DIAGRAM_PLACEHOLDER: A technical schematic showing a 6-port Chevy fuel selector valve. The diagram includes labels for ‘Tank 1 Supply/Return’, ‘Tank 2 Supply/Return’, and ‘Engine Supply/Return’. A central solenoid/motor is shown with a 6-pin electrical harness connector.]
How to Interpret and Use the Chevy Dual Tank Selector Valve Diagram
Reading a technical diagram requires a systematic approach to ensure you don’t cross your lines, which could lead to high-pressure leaks or engine stalls. Follow these steps to interpret the chevy dual tank selector valve diagram and apply it to your vehicle:
- ✓ Identify the Port Layout: Look at the physical valve and compare it to the diagram. Most 6-port valves have the engine ports on one side and the tank ports on the opposite or adjacent sides.
- ✓ Trace the Supply Lines: On the diagram, find the lines labeled for “Supply.” These are usually the larger diameter hoses (typically 3/8 inch). Ensure the line from the primary tank matches the “Main Supply” port on the valve.
- ✓ Trace the Return Lines: Identify the “Return” lines on the diagram, which are generally smaller (typically 5/16 inch). These must be matched perfectly; if you swap a supply and return line, the vehicle will not run.
- ✓ Map the Electrical Pinout: Examine the wire colors in your truck’s harness. The diagram will show which pin corresponds to the dash switch and which pins send the signal to the fuel gauge.
- ✓ Confirm Orientation: Ensure the valve is mounted in the correct direction. Most diagrams indicate an arrow or a “Top” marking to ensure the internal gravity-fed or motorized components function without binding.
Before working on the selector valve, always depressurize the fuel system by removing the fuel pump relay and cranking the engine until it stalls. Gasoline is highly flammable; work in a well-ventilated area with a fire extinguisher nearby.
To perform an installation or diagnosis using the diagram, you will need several specific tools. A set of fuel line disconnect tools is mandatory for modern quick-connect fittings. You should also have a digital multimeter to verify that the electrical signal from the dash switch is reaching the valve’s motor. If you are replacing an older valve, keep a set of line wrenches handy to avoid rounding off the nuts on flare-style fittings.
Common Issues and Troubleshooting with the Diagram
The chevy dual tank selector valve is a common failure point due to its exposure to the elements under the chassis. One of the most frequent problems is “cross-filling,” where fuel from one tank is pumped into the other. This usually happens when the internal seal on the return side of the valve fails or gets stuck in a mid-way position. By referring to the diagram, you can identify which return port is likely leaking and test it by disconnecting the return line and checking for flow when that tank is not selected.
Another frequent issue is electrical failure within the solenoid. If you flip the switch on your dash and nothing happens—no sound of a motor and no change in the fuel gauge—the diagram helps you pinpoint where to test for power. You can use the pinout layout to check for 12V at the harness. If power is present but the valve doesn’t move, the internal component is seized.
If your fuel gauge suddenly jumps to “3 o’clock” (past full) when you switch tanks, it usually indicates a broken ground wire or a failed contact inside the selector valve. Use your diagram to locate the ground pin and check for continuity to the frame.
Warning signs of a failing valve include the engine sputtering for several seconds after switching tanks, a strong smell of gasoline near the frame rail, or one tank seemingly “growing” fuel while the other empties. If you encounter these symptoms, use the system layout to inspect all six hose connections for cracks or dry rot, as air entering the system can mimic valve failure.
Maintenance and Best Practices for Long-Term Reliability
To avoid having to frequently consult a chevy dual tank selector valve diagram for repairs, proactive maintenance is key. One of the best ways to keep the valve healthy is to use it regularly. Many owners stick to one tank and leave the other empty, which allows the internal seals of the valve to dry out and the unused fuel pump to seize. It is recommended to switch between tanks at least once every two weeks to keep the motorized parts lubricated and the fuel fresh.
When replacing parts, always prioritize high-quality components. While generic universal valves are cheaper, they often lack the correct electrical impedance for the Chevy fuel gauge system, leading to inaccurate readings. Look for AC Delco or reputable OE-spec replacements that match the exact configuration shown in your truck’s original system diagram.
- ✓ Keep it Clean: Periodically spray the exterior of the valve and its electrical connector with a non-corrosive cleaner to prevent road salt and mud from eating through the casing.
- ✓ Inspect Hoses: The rubber lines connecting the tanks to the valve are prone to cracking. Inspect these annually during your oil change.
- ✓ Dielectric Grease: Apply a small amount of dielectric grease to the electrical plug to prevent moisture intrusion and corrosion of the pins.
- ✓ Fuel Stabilizer: If you rarely use the second tank, add a fuel stabilizer to prevent the gasoline from turning into varnish, which can clog the delicate ports of the selector valve.
In conclusion, mastering the chevy dual tank selector valve diagram is the most effective way to maintain the dual-tank system of your vehicle. Whether you are dealing with a complex 6-port fuel injection layout or a simpler carbureted system, knowing how the components interact allows for faster troubleshooting and more reliable repairs. By following the step-by-step interpretation guide and adhering to maintenance best practices, you can ensure that your Chevy truck remains a dependable workhorse for years to come. Professional-grade results are achievable for any DIY enthusiast as long as they respect the technical specifications and safety requirements of the fuel system.
Step-by-Step Guide to Understanding the Chevy Dual Tank Selector Valve Diagram: Wiring & Plumbing
Identify the central valve component and its six distinct port locations.
Locate the electrical harness pins to understand the wiring configuration.
Understand how the dash switch sends signals to the motorized valve system.
Connect the supply and return lines from the front tank to ports.
Verify that the rear tank lines follow the specified structural layout.
Complete the installation by testing the switch and checking the fuel gauge.
Frequently Asked Questions
What is a Chevy dual tank selector valve diagram?
This diagram provides a visual representation of the fuel delivery system layout on trucks with two tanks. It maps out the electrical wiring and plumbing structure, showing how the valve switches between the primary and secondary fuel reservoirs to maintain proper engine fuel pressure and volume.
How do you read a Chevy dual tank selector valve diagram?
Start by identifying the color-coded electrical wires connecting the dash switch to the valve. Follow the fuel lines from both tanks into the central valve component. The diagram indicates which ports are for supply and return, allowing you to trace the fluid path to the engine.
What are the parts of a Chevy dual tank selector valve?
The system includes the motorized six-port valve, an interior toggle switch, and a specific wiring harness. Within the structure, you will find internal solenoids or motors, fuel line connectors for supply and return, and terminal pins that transmit signals to the fuel gauge and pump.
Why is the ground wire important?
The ground wire is a critical part of the system configuration because the selector valve relies on a completed circuit to actuate. Without a solid ground, the valve may fail to switch tanks, or the fuel gauge might provide erratic readings, causing confusion about fuel levels.
What is the difference between 3-port and 6-port valves?
A 3-port valve configuration only manages the fuel supply line, typically used in older carbureted systems. A 6-port valve handles both supply and return lines for fuel-injected engines. Understanding this difference in the layout is vital for ensuring you have the correct replacement parts for your truck.
How do I use a Chevy dual tank selector valve diagram?
Use the diagram as a diagnostic map to test for power at the valve terminals with a multimeter. It helps you verify that fuel lines are connected to the correct ports, preventing cross-contamination between tanks and ensuring the engine pulls fuel from the intended source.
