Chevy Dual Tank Selector Valve Diagram: Wiring & Hose Layout
A Chevy dual tank selector valve diagram illustrates the routing of fuel lines and electrical wiring between the front and rear tanks and the engine. It identifies the internal solenoid component that switches fuel flow and sender signals, ensuring the gauge reflects the active tank’s level within the system configuration.
📌 Key Takeaways
- Visualizing fuel flow between multiple tanks and the engine
- Identifying the 6-port or 3-port valve unit correctly
- Ensure electrical grounds are clean and secure for operation
- Use the layout to trace leaks or fuel starvation issues
- Essential for performing repairs or fuel tank replacements
Maintaining a classic or heavy-duty Chevrolet truck often involves mastering the complexities of the fuel delivery system, particularly when dealing with auxiliary storage. If you are currently troubleshooting a fuel delivery issue or performing a full restoration, having a clear chevy dual tank selector valve diagram is an essential roadmap for success. This diagram serves as the primary reference for understanding how fuel travels from two independent reservoirs to a single engine intake while managing return lines and electrical signals. In this comprehensive guide, you will learn how to identify every port on the valve, map the electrical pinouts for the dash switch, and understand the internal mechanical structure that allows your vehicle to switch tanks seamlessly. Whether you are a weekend DIY enthusiast or an experienced mechanic, the following breakdown provides the technical clarity needed to master this specific fuel system configuration.
Understanding the Chevy Dual Tank Selector Valve Diagram Components
The core of the chevy dual tank selector valve diagram is the six-port motorized valve, which is the standard configuration for most fuel-injected and return-style carbureted systems. To read the diagram effectively, you must first understand the physical layout and the specific role of each component within the system. The diagram typically illustrates the valve as a central hub where multiple fuel lines converge, accompanied by an electrical harness connector that dictates the valve’s orientation.
The structure of the valve is divided into two primary functional sections: the supply side and the return side. In a standard 6-port configuration, the diagram will show three ports on one side and three on the other. On the supply side, one port connects to the “Main” or “Rear” tank, another to the “Auxiliary” or “Saddle” tank, and the third serves as the outlet to the engine’s fuel rail or carburetor. The return side mirrors this layout, ensuring that unused fuel is directed back to the specific tank currently in use, preventing one tank from overfilling while the other is depleted.
Most Chevy selector valves are “Normally Closed” to one tank. When the electrical solenoid receives a signal from the dash switch, an internal motor or plunger shifts the internal seals to open the alternate path. This is why a failure in the electrical system usually results in the truck being stuck on a single tank regardless of switch position.
The electrical portion of the diagram is equally critical. It typically features a five or six-pin connector. These pins represent the power supply, the ground, and the communication lines to the fuel sending units in both tanks. The layout ensures that when you toggle the switch on your dashboard, the valve physically moves to the correct fuel line while simultaneously changing the resistance signal sent to your fuel gauge. This dual functionality is why a faulty valve often causes both fuel starvation and an inaccurate or “pinned” fuel gauge reading.

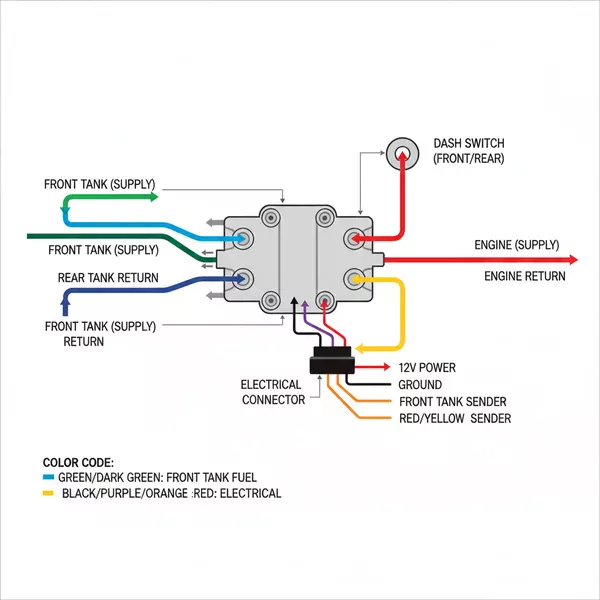

[DIAGRAM_PLACEHOLDER: A technical illustration showing a 6-port Chevy fuel selector valve. The top three ports are labeled ‘Supply to Engine’, ‘Supply from Tank A’, and ‘Supply from Tank B’. The bottom three ports are labeled ‘Return from Engine’, ‘Return to Tank A’, and ‘Return to Tank B’. An electrical connector on the side shows five pins labeled A through E, representing Ground, Tank 1 Sender, Tank 2 Sender, Gauge Output, and Motor Power.]
Step-by-Step Guide to Reading and Installing the System
Interpreting a chevy dual tank selector valve diagram requires a methodical approach. Because fuel lines can look identical under a layer of road grime, following these steps ensures you don’t cross-contaminate your supply and return lines, which could lead to vapor lock or engine stalling. Before beginning any work, ensure you are in a well-ventilated area and have relieved the fuel system pressure.
- ✓ Step 1: Identify the Supply vs. Return Lines – Use the diagram to locate the larger diameter ports, which are almost always the supply lines. The smaller diameter ports are for the fuel return system. Use colored tape to mark the lines coming from each tank before disconnecting them from the old valve.
- ✓ Step 2: Map the Electrical Connector – Inspect the wiring harness. The diagram will specify which pin receives the 12V pulse to switch the motor. Use a multimeter to verify that you are getting power to the correct pin when the dash switch is toggled.
- ✓ Step 3: Mount the Valve Securely – The selector valve must be mounted to the frame rail exactly as shown in the layout. Ensure the mounting bracket provides a solid ground if the specific model requires frame-grounding for the internal motor.
- ✓ Step 4: Connect the Tank Feed Lines – Connect the supply line from your primary tank (usually the driver’s side or rear) to the port labeled ‘Tank 1’ or ‘Main’ on your diagram. Repeat for the auxiliary tank line.
- ✓ Step 5: Route the Engine Output – Connect the central supply port to the fuel line leading toward the engine’s fuel filter and pump. Double-check the diagram to ensure this is the ‘Common’ port.
- ✓ Step 6: Finalize Return Path and Electrical – Attach the return lines and click the electrical harness into place. Ensure the locking tab on the connector is fully engaged to prevent vibration-induced failure.
Never attempt to “bypass” the return lines by capping them off. If the engine returns fuel to a tank that is already full because the valve didn’t switch the return path, fuel can spray out of the filler neck or cause the tank to pressurize dangerously. Always follow the full 6-port diagram for EFI applications.
The tools required for this job are relatively standard but essential for a leak-free installation. You will need a set of flare nut wrenches (line wrenches) to prevent rounding off the fuel line fittings. For newer models with plastic lines, a set of quick-disconnect tools is mandatory. Additionally, a digital multimeter is necessary for testing the electrical signals outlined in the system configuration to ensure the dash switch is communicating with the valve.
Troubleshooting Common Selector Valve Issues
Even with a perfect chevy dual tank selector valve diagram, mechanical components can fail over time due to debris in the fuel or electrical corrosion. One of the most common issues is “crossover flow,” where fuel is pulled from one tank but returned to the other. This usually indicates that the internal seals of the valve have deteriorated or are jammed by sediment, preventing the return side from switching even if the supply side has. Referring to the diagram helps you identify which specific port’s internal seal is likely failing based on which tank is overflowing.
Another frequent problem is the fuel gauge failing to update when the tank is switched. In the diagram, you will notice that the fuel level sender wires for both tanks pass through the selector valve before going to the dashboard. If the valve’s internal electrical contacts are corroded, the circuit is broken, and the gauge will either drop to empty or peg past full. If you encounter this, use your diagram to locate the sender input pins and test the ohms coming from each tank’s sending unit. If the signal enters the valve but doesn’t exit, the valve itself is the culprit.
If your truck has been sitting for a long time, the old fuel can turn into a varnish that “glues” the selector valve shut. Before replacing a valve that won’t switch, try gently tapping the valve body with a screwdriver handle while someone toggles the switch. This can sometimes vibrate the internal motor enough to break the varnish seal.
Maintenance and Best Practices for Long-Term Reliability
To ensure your dual tank system remains reliable for years to come, a few proactive maintenance habits are recommended. First, always prioritize fuel quality. Because the selector valve has very tight internal tolerances, even small amounts of rust from an old tank can jam the mechanism. Installing small, inexpensive in-line pre-filters between each tank and the selector valve is a cost-saving measure that protects the much more expensive valve from debris.
When it comes to component selection, the quality of the replacement valve is paramount. While generic aftermarket valves are available, they often lack the robust internal seals found in original equipment manufacturer (OEM) or high-grade equivalent parts. Using the correct chevy dual tank selector valve diagram to verify the pinout of a new valve is vital, as some aftermarket designs may have different electrical configurations that require a harness adapter.
Regular usage is also a form of maintenance. It is a best practice to switch between your tanks at least once every two weeks. This keeps the internal seals lubricated and ensures the motorized actuator does not seize from lack of movement. If you find that one tank is rarely used, consider adding a fuel stabilizer to that tank to prevent the fuel from degrading and creating the sticky deposits that cause valve failure.
Finally, always inspect the ground wire. Looking at the system layout, you will see that the valve relies on a clean electrical ground to function. Since these valves are mounted on the frame, they are exposed to moisture, salt, and road grime. Periodically cleaning the ground terminal and applying a small amount of dielectric grease can prevent 90% of the electrical “ghost” issues that plague these dual-tank Chevy trucks. By following the diagram and maintaining these components, you ensure that your truck remains as versatile and dependable as the day it left the factory.
In summary, mastering the chevy dual tank selector valve diagram is the key to a functional and safe fuel system. By understanding the relationship between the supply ports, return paths, and electrical switching, you can effectively diagnose issues and perform professional-grade repairs. Keep your connections clean, your fuel filtered, and always refer back to the technical layout before making changes to your fuel system’s configuration.
Frequently Asked Questions
What is Chevy dual tank selector valve diagram?
A Chevy dual tank selector valve diagram is a visual schematic showing the complex layout of fuel supply and return lines. It details how the motorized valve connects to the fuel tanks and engine, providing a clear map of the fuel delivery system’s internal structure and electrical switch connections.
How do you read Chevy dual tank selector valve diagram?
To read this diagram, start by locating the fuel tanks and trace the lines to the central selector valve component. Follow the color-coded wiring to the dash switch and fuel gauge. Identifying the supply versus return ports within the system configuration is critical for correct hose installation.
What are the parts of Chevy dual tank selector valve?
The primary parts include the valve body, internal solenoid or motor, electrical connector pins, and multiple ports for supply and return lines. This specific structure allows the vehicle to toggle between two fuel sources while simultaneously switching the fuel level sender signal to the dashboard gauge assembly.
Why is the selector valve component important?
The selector valve is the central component that manages fuel distribution. Without a functioning valve, the engine cannot draw fuel from the secondary tank, or the fuel gauge might provide inaccurate readings. Understanding its layout helps prevent cross-filling where fuel returns to the wrong tank accidentally.
What is the difference between 3-port and 6-port valves?
A 3-port valve configuration is typically used in older carbureted systems without return lines, managing only the supply. A 6-port valve is found in fuel-injected systems, handling supply and return lines for both tanks. The diagram distinguishes these structures to ensure you use the correct replacement part.
How do I use Chevy dual tank selector valve diagram?
Use the diagram to verify that each fuel hose is connected to the correct port during a repair. It helps diagnose electrical failures by showing which wires trigger the solenoid. By following the system layout, you can systematically test each tank’s delivery and the switching mechanism’s functionality.
