Chain Link Fence Installation Diagram: Step-by-Step Guide
A chain link fence installation diagram outlines the proper layout, starting with terminal post placement. It details the structural configuration of line posts, top rails, and fabric. By following the system’s component placement and tensioning steps, you ensure a level, secure, and durable barrier for your property.
📌 Key Takeaways
- Visualizing the sequence of post placement and tensioning is critical for stability
- Terminal posts (corner, end, and gate) are the most important components to identify
- Always check for underground utilities before digging any post holes
- Use a string line between terminal posts for perfect line post alignment
- Refer to the diagram during the planning, digging, and tensioning phases
Setting up a boundary for your property requires more than just raw materials; it necessitates a clear visual roadmap to ensure structural integrity and longevity. A comprehensive chain link fence installation diagram serves as your primary blueprint, translating a complex assembly of metal and tension into a functional, secure barrier. Whether you are aiming to secure a backyard for pets, define property lines, or enhance home security, understanding the specific system configuration is the first step toward a professional-grade result. This guide will decode the schematic elements of a fencing system, providing you with the technical overview and step-by-step instructions needed to execute a flawless installation from the first post hole to the final tension wire.
Main Diagram Overview and System Structure
Understanding a chain link fence installation diagram requires familiarity with the “skeleton” of the system. The schematic typically breaks the fence down into two main categories: the framework and the fabric. The framework consists of the posts and rails, while the fabric refers to the diamond-mesh wire itself.
In a standard residential layout, the diagram will highlight three types of posts: terminal posts (which include end, corner, and gate posts), and line posts. Terminal posts are typically larger in diameter (usually 2-3/8 inches) because they bear the brunt of the tension. Line posts are smaller (usually 1-5/8 inches) and serve to support the weight of the mesh and the top rail between the terminal points.
The diagram also illustrates the critical hardware components that hold the system together. This includes tension bands, which secure the mesh to the terminal posts; brace bands, which hold the rail ends in place; and eye tops, which sit atop line posts to allow the top rail to slide through. The visual blueprint will show a continuous top rail running the entire length of the fence, providing lateral stability. At the bottom, a tension wire is often depicted, which prevents the mesh from being lifted or pushed out. By studying the configuration of these parts, you can visualize how the lateral force of the stretched wire is distributed across the vertical posts and horizontal rails.

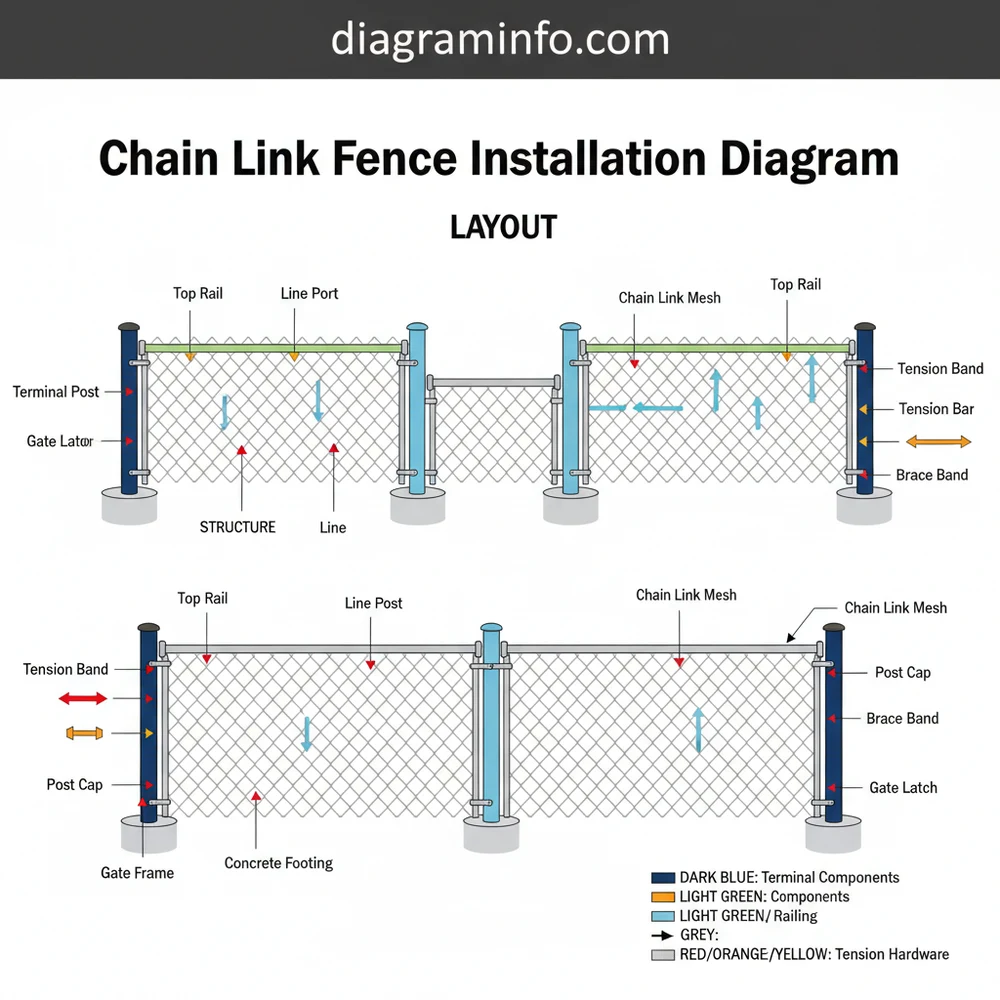

[DIAGRAM_PLACEHOLDER: A detailed schematic showing a cross-section of a chain link fence. Labels include: A. Terminal Post, B. Line Post, C. Top Rail, D. Tension Bar, E. Tension Band, F. Brace Band, G. Rail End Cap, H. Eye Top, I. Mesh Fabric, J. Concrete Footing.]
In most residential applications, the standard spacing for line posts is no more than 10 feet apart. If your diagram indicates a longer span, the structural integrity of the top rail may be compromised under heavy wind or snow loads.
Required Materials and Tools List
Before diving into the installation guide, you must gather the specific components identified in your blueprint. Having the right tools on hand will significantly reduce the estimated time for completion, which typically ranges from 12 to 20 hours for a standard 100-foot fence.
- ✓ Posts: Terminal posts (end/corner) and line posts.
- ✓ Top Rails: Usually 21-foot lengths with swedged ends for interlocking.
- ✓ Fabric (Mesh): Galvanized or vinyl-coated steel wire.
- ✓ Hardware: Tension bands, brace bands, tension bars, rail ends, and eye tops.
- ✓ Tools: Post hole digger (or auger), fence stretcher (come-along), hack saw, pliers, and a level.
- ✓ Setting Materials: Quikrete or standard bag mix concrete and gravel for drainage.
Step-by-Step Chain Link Fence Installation Guide
Following a chain link fence installation diagram requires a methodical approach. Do not skip the planning phase, as errors in post placement are difficult to correct once the concrete has cured.
Step 1: Layout and String Lines
The first step is to define your property lines and mark the locations of your terminal posts. Drive stakes into the ground at every corner, end, and gate location. Stretch a tight mason’s string between these stakes. This string line represents the outside face of the fence. According to the layout schematic, all posts will be set slightly inside this line to ensure the entire structure remains on your property.
Step 2: Digging Terminal Post Holes
Terminal posts are the anchors of your system. Use a post hole digger to create holes that are roughly 8 inches wide and 30 inches deep. A good rule of thumb is that one-third of the post length should be underground. In colder climates, ensure the hole reaches below the frost line to prevent “heaving” during winter months.
Always call your local utility “miss utility” or 811 line before digging. Accidentally hitting an underground gas or power line can be fatal and results in massive repair fines.
Step 3: Setting Terminal Posts
Place the terminal posts in the center of the holes. Fill the holes with concrete, using a level to ensure the posts are perfectly vertical (plumb). Leave the concrete approximately 2 to 3 inches below ground level to allow for soil and grass cover later. Allow the concrete to cure for at least 24 to 48 hours before applying any tension to the posts.
Step 4: Measuring and Setting Line Posts
Once the terminal posts are set, measure the distance between them to determine line post placement. Refer to your diagram to ensure spacing does not exceed 10 feet. Mark the locations, dig holes (typically 6 inches wide and 24 inches deep), and set the line posts. Unlike terminal posts, line posts should be set at a height that allows the eye top and top rail to sit perfectly level with the height of your mesh fabric.
Step 5: Attaching Hardware and Rails
Slide the hardware onto the terminal posts. For a standard 4-foot fence, you will typically use three tension bands and one brace band per terminal post. Slide the eye tops onto the line posts, ensuring the “loops” face outward. Attach the rail end caps to the brace bands on the terminal posts. Slide the top rails through the eye tops and lock them into the rail end caps. If you have multiple rail sections, slide the swedged ends together for a continuous run.
Install tension bands with the flat side facing the outside of the fence. This ensures the tension bar sits flush against the post, providing a cleaner look and a more secure hold on the mesh.
Step 6: Hanging and Stretching the Fabric
Unroll the chain link mesh on the ground along the outside of the fence line. Stand the mesh up against the framework. Slide a tension bar through the first row of diamonds in the mesh and bolt it to the tension bands on the first terminal post. Use a fence stretcher (come-along) attached to the opposite terminal post to pull the mesh tight. The fabric is sufficiently tight when you can only squeeze the diamonds about 1/4 inch with your hand.
Step 7: Final Securing and Tie Wires
With the fabric under tension, slide a tension bar into the end and secure it to the final terminal post. Use aluminum tie wires to secure the mesh to the top rail every 24 inches and to the line posts every 12 inches. This prevents the fence from sagging or rattling in the wind.
Common Issues & Troubleshooting
Even with a detailed chain link fence installation diagram, DIYers often encounter hurdles. One frequent problem is “sagging fabric.” This usually occurs because the tension wasn’t high enough during installation or the tension bands weren’t tightened sufficiently. If you notice sagging, you may need to unbolt one end, use the fence stretcher again, and remove a “knuckle” of mesh to shorten the fabric.
Another common issue is posts leaning over time. This is almost always caused by insufficient concrete or shallow post holes. If a post is leaning, the only permanent fix is to dig out the old concrete and reset the post deeper. The diagram helps solve these issues by showing the exact relationship between the post depth and the height of the fence; always refer back to the recommended depth specifications if the structure feels unstable.
Tips & Best Practices for a Long-Lasting System
To ensure your fencing system survives the elements, consider the following pro-level recommendations:
- ✓ Choose the Right Gauge: For residential use, 11 or 11.5-gauge wire is standard. For high-security or commercial needs, 9-gauge wire is significantly thicker and more difficult to cut.
- ✓ Address Slopes: If your yard isn’t level, you have two choices: “bias” the fence (stretch it at an angle to follow the ground) or “step” the fence (keep the top rails level and create stair-steps). Your blueprint should indicate which method fits your terrain better.
- ✓ Maintenance: Periodically check the tension bands and rail ends for rust. While galvanized steel is weather-resistant, a coat of silver zinc-rich paint on any scratched areas will prevent corrosion from spreading.
- ✓ Gate Clearance: Always leave at least 2 inches of clearance between the bottom of your gate and the ground to account for snow or debris buildup.
Buying your materials in bulk from a fencing wholesaler is often 20-30% cheaper than buying individual components from a big-box home improvement store. Ask for “contractor bundles” for the hardware components.
Successful fencing projects rely on precision and preparation. By utilizing a chain link fence installation diagram to guide your measurements and component placement, you transform a pile of steel into a durable asset for your home. Remember that the strength of the fence lies in the tension of the fabric and the stability of the terminal posts. If you take the time to set your anchors deep and pull your mesh tight, your fence will remain straight and secure for decades to come. Whether you are following a simple residential layout or a complex commercial blueprint, these principles of structure and configuration remain the golden standard for fencing excellence.
