5vz fe toyota 3.4 vacuum hose diagram: Routing Guide
The 5VZ-FE Toyota 3.4 vacuum hose diagram illustrates the intricate layout of hoses connecting the intake manifold, air box, and EVAP system. This visual structure helps identify each component, such as the fuel pressure regulator and power steering idle up valve, ensuring the vacuum system configuration maintains optimal engine performance and emissions.
📌 Key Takeaways
- Main purpose of this diagram is to ensure emissions compliance and engine stability
- The intake manifold vacuum ports are the most important components to identify first
- Always use high-temperature rated silicone or rubber hoses to prevent premature failure
- Label or photograph your existing layout before disconnecting any vacuum lines
- Use this diagram during engine swaps, rough idle diagnosis, or EVAP system repairs
Navigating the engine bay of the legendary Toyota 3.4-liter V6 can be a daunting task, especially when faced with the intricate “spider web” of lines connecting various sensors and actuators. Whether you are performing a routine tune-up, replacing a cracked hose, or troubleshooting a mysterious rough idle, having a clear and accurate 5vz fe toyota 3.4 vacuum hose diagram is essential for success. This guide provides a comprehensive breakdown of the vacuum system layout, explaining how each component interacts to maintain engine efficiency and emission standards. By the end of this article, you will understand the routing configuration, the specific functions of various vacuum-controlled systems, and how to identify potential leaks that could compromise your vehicle’s performance.
The 5VZ-FE engine was utilized in several iconic Toyota models, including the Tacoma, 4Runner, and T100. While the core vacuum system remains consistent across these platforms, minor variations exist depending on whether the vehicle is equipped with an EGR (Exhaust Gas Recirculation) system or different emissions specifications for certain regions.
Understanding the 5VZ-FE Vacuum System Layout
The vacuum system of the 5VZ-FE 3.4L engine is designed to manage engine load sensing, emissions control, and idle stability. The primary vacuum source is the intake manifold plenum, which features several ports of varying diameters. A comprehensive 5vz fe toyota 3.4 vacuum hose diagram typically highlights five major circuits. First is the Fuel Pressure Regulator (FPR) circuit, which connects directly to the rear of the intake plenum to ensure fuel pressure scales with manifold vacuum. Second is the Evaporative Emission (EVAP) system, which includes the charcoal canister, the Vacuum Switching Valve (VSV), and the vapor pressure sensor. This system is crucial for preventing fuel vapors from escaping into the atmosphere.
Another critical component is the Power Steering (PS) Air Injection system. This unique Toyota feature uses two vacuum hoses connected to a valve on the power steering pump; when you turn the wheel at low speeds, the valve opens to allow more air into the intake, bumping up the idle to prevent the engine from stalling under the load of the pump. Furthermore, models equipped with an EGR system will feature a modulator and a VSV that control the flow of exhaust gases back into the combustion chamber to reduce nitrogen oxide emissions. The diagram also illustrates the routing for the Positive Crankcase Ventilation (PCV) system, which draws blow-by gases from the valve cover back into the intake to be burned.

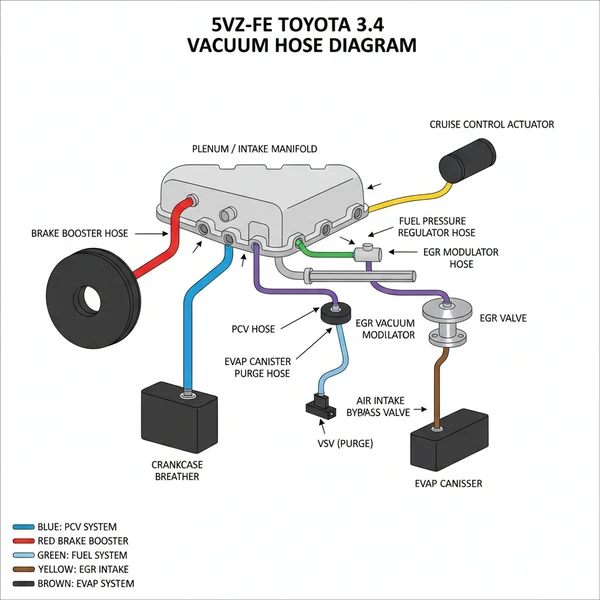

[DIAGRAM_PLACEHOLDER – A central intake plenum with color-coded lines: Red for Fuel Pressure, Blue for EVAP/Canister, Green for Power Steering Idle-Up, and Yellow for EGR/Modulator components.]
Visualizing these components requires an understanding of their physical location. Most VSVs are mounted either on the driver-side fender well or directly on the top of the engine intake runners. The charcoal canister is usually located in the engine bay on older models or near the fuel tank on later versions. When referencing your 5vz fe toyota 3.4 vacuum hose diagram, you will notice that the hoses are often 3mm, 4mm, or 6mm in diameter. Using the correct size is vital to ensuring a tight, leak-free seal on the plastic barbs of the sensors.
Step-by-Step Guide to Interpreting and Installing Vacuum Hoses
Interpreting a complex engine diagram takes patience and a systematic approach. If you are replacing old, brittle hoses or trying to reassemble an engine after a head gasket job, follow these steps to ensure every line is in its proper place.
1. Locate the Under-Hood Emission Label
Before diving into online diagrams, check the underside of your vehicle’s hood. Toyota provides a factory-stamped vacuum routing diagram that is specific to your exact VIN and emission group. Use this as your primary source of truth, as it accounts for regional differences like California Emissions versus Federal standards.
2. Identify the Main Vacuum Ports on the Plenum
Start at the intake manifold plenum. There are typically three or four large ports on the top and rear. One large port goes to the brake booster, while smaller ports feed the Fuel Pressure Regulator and the EVAP VSV. Use your diagram to match the port location to the specific component it serves.
3. Trace the Fuel Pressure Regulator (FPR) Line
The FPR is located at the rear of the fuel rail. It requires a direct vacuum signal to operate correctly. Trace the line from the FPR to the specific port on the back of the intake plenum. If this hose is disconnected or leaking, your engine may run rich or experience long cranking times.
4. Route the Power Steering Idle-Up Hoses
Find the two small hoses coming off the power steering pump. These route up to the intake manifold area. One hose connects to a filtered air source (usually before the throttle body), and the other connects to the vacuum plenum (after the throttle body). This allows a bypass of air when the steering pump is under load.
5. Connect the EVAP and Charcoal Canister Lines
This is often the most complex part of the 5vz fe toyota 3.4 vacuum hose diagram. You must trace the line from the charcoal canister to the VSV (Vacuum Switching Valve). From the VSV, another line connects to the throttle body or plenum. Ensure the “Gas Filter” (a small plastic disc-shaped component) is installed in the correct orientation if your model includes one.
6. Inspect the PCV Valve and Breather Hoses
The PCV valve is located on the passenger side valve cover. A thick reinforced hose connects it to the center of the intake plenum. On the driver side, a breather hose connects the valve cover to the air intake tube. These are technically part of the vacuum system as they rely on manifold pressure to function.
7. Final Verification and Leak Test
Once all hoses are routed according to the diagram, double-check every connection. Ensure that no hoses are kinked or touching hot exhaust components. Start the engine and listen for a “hissing” sound, which indicates a leak. You can also use a small amount of soapy water or a dedicated vacuum leak detector spray around the connections to check for bubbles or changes in engine RPM.
Never attempt to route vacuum hoses while the engine is hot. The 5VZ-FE retains heat for a long time, and the plastic barbs on the VSVs become extremely brittle with age. Applying pressure to a stuck hose on a hot sensor can easily snap the connector, requiring an expensive replacement of the entire valve.
Common Issues and Troubleshooting with the 5VZ-FE Vacuum System
A malfunctioning vacuum system is a frequent culprit behind Check Engine Lights (CEL) and poor drivability. One of the most common issues is the P0171 (System Too Lean) code. This often points to a vacuum leak where unmetered air is entering the engine, causing the computer to struggle with the air-fuel ratio. By referencing your 5vz fe toyota 3.4 vacuum hose diagram, you can methodically check each connection point for cracks or loose fits.
Another frequent problem involves the EVAP system, specifically codes P0440, P0441, or P0446. These codes indicate a malfunction in the vapor recovery system. Often, the cause is a cracked hose near the charcoal canister or a failing VSV. If you notice a faint smell of gasoline near the engine or if the car struggles to start immediately after refueling, the vacuum lines associated with the purge valve are the first place to look. Additionally, a disconnected power steering idle-up hose can cause the RPMs to dip dangerously low or cause the engine to stall when parking or turning at low speeds.
Tips and Best Practices for Vacuum System Maintenance
Maintaining the vacuum system is a low-cost way to ensure the longevity of your Toyota 3.4L engine. Over years of heat cycles, the factory rubber hoses become hard and lose their ability to seal.
- ✓ Upgrade to Silicone: When replacing hoses, consider using high-quality silicone vacuum lines. Silicone handles engine heat much better than standard rubber and will not become brittle over time.
- ✓ One at a Time: To avoid confusion, replace hoses one by one. Do not pull all the hoses off at once, even if you have a diagram, as it is easy to swap ports on the VSVs.
- ✓ Use Proper Clamps: While many vacuum lines are press-fit, high-pressure or critical lines (like those for the brake booster) should always use the factory spring clamps to prevent them from blowing off under a backfire.
- ✓ Label Your Sensors: Use masking tape and a marker to label the VSVs (e.g., “EVAP Purge,” “EGR Control”) to make future troubleshooting faster.
If a hose is stuck on a plastic barb, do not pull it straight off. Instead, use a utility knife to gently slit the end of the hose lengthwise. This allows the hose to expand so you can peel it off without putting stress on the fragile plastic sensor housing.
Investing time in understanding your 5vz fe toyota 3.4 vacuum hose diagram pays dividends in fuel economy and engine smoothness. By keeping the vacuum system airtight and correctly routed, you ensure that the ECU receives accurate data, the emissions systems function as designed, and your Toyota continues to live up to its reputation for legendary reliability. Regular inspections of these small but vital components are the hallmark of a well-maintained vehicle.
Frequently Asked Questions
What is 5vz fe toyota 3.4 vacuum hose diagram?
This diagram is a visual map showing the specific layout of vacuum lines for the Toyota 3.4L V6 engine. It illustrates how air moves through the system to control engine components like the EGR valve, fuel pressure regulator, and charcoal canister, ensuring the overall structure functions within factory specifications.
How do you read 5vz fe toyota 3.4 vacuum hose diagram?
To read the diagram, start by locating the main intake manifold as the central component. Follow the lines extending from the vacuum ports to their corresponding destinations. Use the configuration legend to identify line thicknesses or colors, which represent different parts of the overall vacuum system structure and routing.
What are the parts of 5vz fe toyota 3.4 vacuum hose?
The parts include the intake manifold ports, vacuum switching valves (VSV), the fuel pressure regulator, the charcoal canister for EVAP control, and various rubber or silicone hoses. Each component plays a vital role in the system configuration, managing everything from idle speed to fuel tank pressure regulation.
Why is the charcoal canister important?
The charcoal canister is a critical component that stores fuel vapors before they are purged into the engine. Its specific layout within the vacuum system ensures that emissions are controlled and fuel economy is maximized. A failure in this structure often leads to check engine lights or failed emissions tests.
What is the difference between vacuum lines and coolant hoses?
Vacuum lines transport air pressure to control engine sensors and actuators, while coolant hoses circulate fluid to manage temperature. In the 5VZ-FE layout, vacuum lines are significantly smaller in diameter. Confusing these in the system configuration can cause severe engine damage or immediate stalling during operation.
How do I use 5vz fe toyota 3.4 vacuum hose diagram?
Use the diagram as a reference guide during maintenance or repair. Match the physical hoses in your engine bay to the illustrated structure in the diagram. This ensures every component is connected to the correct port, which is essential for maintaining the intended vacuum system configuration and performance.
