5.3 Vortec Intake Manifold Diagram: Repair & Parts Guide
A 5.3 Vortec intake manifold diagram identifies the layout of the composite plenum, gaskets, and sensors. It is essential for locating vacuum leaks that trigger a check engine light or diagnostic code. This visual guide ensures parts are installed to the correct torque spec, allowing the ECU to manage air-fuel ratios properly.
📌 Key Takeaways
- Visualizes air distribution and sensor housing layouts
- Identifies knock sensor and MAP sensor locations
- Ensures an airtight seal to prevent lean fuel conditions
- Illustrates the critical bolt tightening sequence
- Simplifies vacuum line and fuel rail reassembly
When you are performing maintenance or repairs on one of General Motors’ most iconic powerplants, having a detailed 5.3 vortec intake manifold diagram is an absolute necessity. Whether you are dealing with a vacuum leak, replacing old gaskets, or performing a knock sensor service, understanding the layout of the air delivery system is the key to a successful DIY project. This guide provides a comprehensive breakdown of the intake manifold assembly, including sensor locations, bolt patterns, and vacuum routing. By following this technical overview, you will learn how to identify every component, interpret the diagnostic codes associated with the system, and execute a professional-grade installation that ensures peak engine performance.
Understanding the 5.3 Vortec Intake Manifold Components
The 5.3 Vortec intake manifold, typically found on the Gen III and Gen IV small-block engines, is a composite nylon structure designed to maximize airflow while minimizing weight. Unlike older cast-iron manifolds, this unit is a “dry” manifold, meaning it primarily manages air and fuel rather than internal coolant flow, although a coolant crossover tube (steam vent) often sits just beneath it. The diagram for this component highlights several critical areas: the upper plenum, the individual intake runners, the fuel rail mounting points, and the sensor ports.
At the front of the diagram, you will find the throttle body mounting flange. This is where the air enters the system, regulated by either a mechanical cable or an electronic throttle control motor. Behind the throttle body, the manifold expands into a large plenum. This reservoir of air ensures that each cylinder has an equal supply of oxygen for combustion. Along the sides of the manifold, the diagram identifies the fuel rail assembly. The fuel injectors are seated directly into the manifold ports, aimed specifically at the intake valves of the cylinder heads.
On the rear of the 5.3 vortec intake manifold diagram, you will notice the Map (Manifold Absolute Pressure) sensor and the PCV (Positive Crankcase Ventilation) port. These components are vital for the engine management system to calculate the correct air-fuel ratio. The diagram also illustrates the specific location of the eight manifold bolts, which are arranged in a specific staggered pattern to ensure even pressure against the cylinder head intake ports. Understanding this layout is essential because the composite material can warp or crack if the mounting hardware is not handled according to the visual guide.

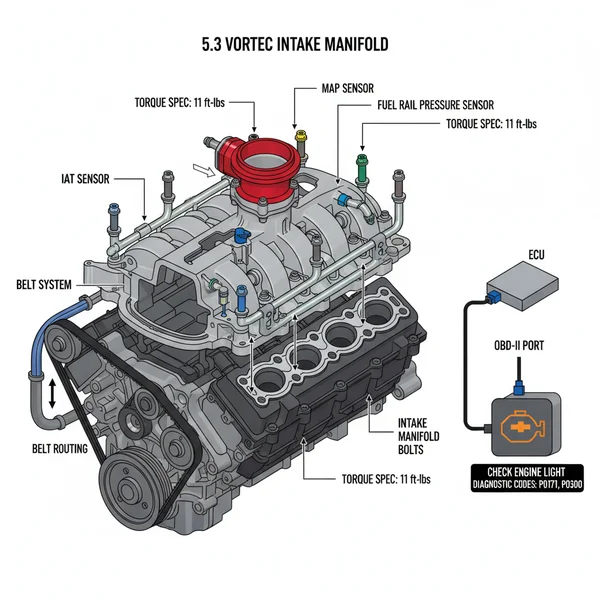

[DIAGRAM_PLACEHOLDER: A detailed technical illustration of a 5.3 Vortec plastic intake manifold. Labels include: 1. Throttle Body Flange, 2. Fuel Rail Mounting Bosses, 3. MAP Sensor Port, 4. PCV Vacuum Port, 5. Intake Runner, 6. Gasket Seat, 7. EVAP Solenoid Mounting, 8. Knock Sensor Valley Cover (below).]
Step-by-Step Guide to Using the Diagram for Installation
Interpreting a 5.3 vortec intake manifold diagram requires a systematic approach. If you are removing the manifold for a repair, follow these steps to ensure you do not damage the sensitive plastic housing or the electrical connectors.
Before starting, always bleed the fuel system pressure via the Schrader valve on the fuel rail. This prevents gasoline from spraying when you disconnect the fuel lines from the manifold assembly.
- ✓ Clear the Path: Begin by removing the decorative plastic engine cover and the air intake ducting. You may need to rotate the accessory belt tensioner to remove the belt if you need extra clearance near the alternator, though this is not always necessary for the intake alone.
- ✓ Disconnect Electronics: Refer to your diagram to locate the electrical connectors for the MAP sensor, the throttle body, and the eight fuel injectors. Disconnecting these allows you to move the main wiring harness out of the way. These signals are sent directly to the ECU to manage engine timing and fuel.
- ✓ Uncouple Vacuum and Fuel Lines: Locate the PCV hose and the EVAP canister purge solenoid. Disconnect these carefully, as the plastic fittings can become brittle over time. Remove the fuel feed line using a quick-disconnect tool.
- ✓ Loosen Mounting Bolts: Using a 10mm socket, loosen the eight bolts holding the manifold to the heads. Following the diagram’s reverse torque sequence (starting from the outside and working in) can help prevent the manifold from binding.
- ✓ Clean and Inspect: Once the manifold is removed, use a clean shop rag to plug the intake ports in the cylinder heads. This prevents debris from falling toward the timing chain or into the combustion chamber. Clean the mounting surfaces thoroughly with brake cleaner.
- ✓ Final Torquing: Set the new gaskets into the manifold grooves. Lower the manifold onto the engine. You must follow the exact torque spec provided in the diagram: the first pass is usually 44 pound-inches, and the final pass is 89 pound-inches, following a crisscross pattern from the center outward.
Never use an impact wrench on intake manifold bolts. The plastic manifold is easily crushed or cracked, and the threads in the aluminum cylinder heads can be stripped with very little force.
Common Issues and Troubleshooting with the 5.3 Vortec
One of the most frequent reasons owners search for a 5.3 vortec intake manifold diagram is to diagnose a stubborn check engine light. The OBD-II system often triggers a diagnostic code such as P0171 or P0174, indicating a “lean” condition. This usually means that unmetered air is entering the engine, bypassing the mass airflow sensor.
The diagram helps you identify the three most common leak points: the intake manifold gaskets, the MAP sensor seal, and the PCV hose. Over time, the orange silicone gaskets on the bottom of the manifold flatten out and lose their ability to seal, especially in cold weather. This leads to a rough idle that often disappears once the engine warms up and the plastic expands.
Another hidden issue identified via the diagram is the knock sensor failure. On Gen III 5.3 engines, the knock sensors are located in “wells” underneath the intake manifold. If the seals on the manifold are failing, water can seep into these wells, corroding the sensors and causing a check engine light. The diagram allows you to visualize the path water takes and helps you understand why replacing the intake gaskets is mandatory whenever you service the knock sensors.
Pro Tips and Maintenance Recommendations
To get the most out of your 5.3 Vortec engine, maintenance should go beyond just following the 5.3 vortec intake manifold diagram during a repair. Here are several best practices to ensure longevity and performance:
While the manifold is removed, always replace the knock sensor wiring harness. These wires become brittle from heat cycles and are prone to breaking during the removal process. It is a low-cost insurance policy against having to pull the manifold a second time.
When selecting replacement parts, always opt for high-quality, carrier-style gaskets. Cheap, flimsy gaskets often fail within a year. Additionally, take the time to inspect the coolant flow through the steam crossover tubes located at the front of the heads. If these tubes are clogged, the cylinder heads can develop hot spots, leading to premature gasket failure or even warping.
If you are looking to save costs, cleaning your throttle body while it is removed from the manifold can improve throttle response and idle stability. Use a dedicated throttle body cleaner and a soft brush to remove carbon buildup around the butterfly valve. Finally, ensure the ECU has a chance to “relearn” the idle parameters after you have reassembled the system. This can be done by letting the truck idle for ten minutes after the first start-up following the repair.
By utilizing a high-quality 5.3 vortec intake manifold diagram and adhering to the specific torque spec and sequence, you can ensure your engine remains vacuum-leak free and efficient for hundreds of thousands of miles. Understanding how air, fuel, and electrical signals interface within this manifold is the foundation of master-level maintenance for any GM truck or SUV owner.
Frequently Asked Questions
What is 5.3 Vortec intake manifold diagram?
It is a visual schematic showing the assembly of the intake components on a GM 5.3L engine. The diagram details vacuum ports, fuel rail mounts, and sensor locations, which are essential for identifying air leaks or electrical faults that communicate error data directly to the vehicle’s ECU.
How do you read 5.3 Vortec intake manifold diagram?
Begin by identifying the main manifold body and its orientation relative to the engine block. Look for numbered callouts labeling specific hardware, vacuum lines, and sensor connectors. Pay close attention to the numerical sequence provided to ensure you follow the manufacturer’s tightening patterns for a proper gasket seal.
What are the parts of 5.3 Vortec intake manifold?
The primary parts include the composite manifold shell, intake gaskets, fuel rails, and injectors. Electronic components like the MAP sensor and knock sensors are also mapped out, as these frequently trigger a diagnostic code via the OBD-II system when they fail or experience wiring harness damage from heat.
Why is the torque spec important?
Applying the correct torque spec ensures the manifold compresses the gaskets evenly against the cylinder heads. Over-tightening can crack the plastic manifold, while under-tightening leads to vacuum leaks. These leaks disrupt air-fuel ratios, causing the ECU to trigger a check engine light for lean bank conditions.
What is the difference between early and late 5.3 manifolds?
Early versions typically feature a return-style fuel system and specific ports for cable-driven throttle bodies. Later models utilize electronic throttle control and different MAP sensor mounting styles. Always use an OBD-II scanner to verify your engine type before purchasing parts based on the manifold diagram layout.
How do I use 5.3 Vortec intake manifold diagram?
Use the diagram to locate hidden bolts and sensor plugs during engine teardown or reassembly. It helps verify that all vacuum lines are routed correctly to prevent rough idling. By following the visual layout, you can efficiently troubleshoot sensor errors and ensure every component meets factory installation standards.
