3 Port Boost Solenoid Diagram: Installation & Wiring
A 3 port boost solenoid diagram illustrates the plumbing between the turbocharger, wastegate, and intake. By controlling the air pressure sent to the wastegate actuator, this component regulates boost levels. Understanding the port configuration is essential for accurate boost mapping and preventing overboost scenarios in a forced induction system.
📌 Key Takeaways
- Illustrates the routing between turbo, wastegate, and air source
- Port 1 is typically the pressure source from the compressor
- Ensure all vacuum lines are secure to prevent boost spikes
- Cross-reference the diagram with your specific ECU pinout
- Use this when upgrading from a factory 2-port or manual controller
Understanding a 3 port boost solenoid diagram is essential for any automotive enthusiast looking to gain precise control over their vehicle’s turbocharger output. Whether you are upgrading from a factory two-port system or building a high-performance setup from scratch, a correct wiring and plumbing layout ensures consistent boost levels and protects your engine from overboost scenarios. This guide provides a detailed visual breakdown of the solenoid’s structure and configuration, explaining how each component interacts within the system. You will learn the specific routing for various wastegate types and how to interpret common diagrams for successful installation. By the end of this article, you will have a comprehensive understanding of how the 3 port boost solenoid diagram facilitates superior boost management.

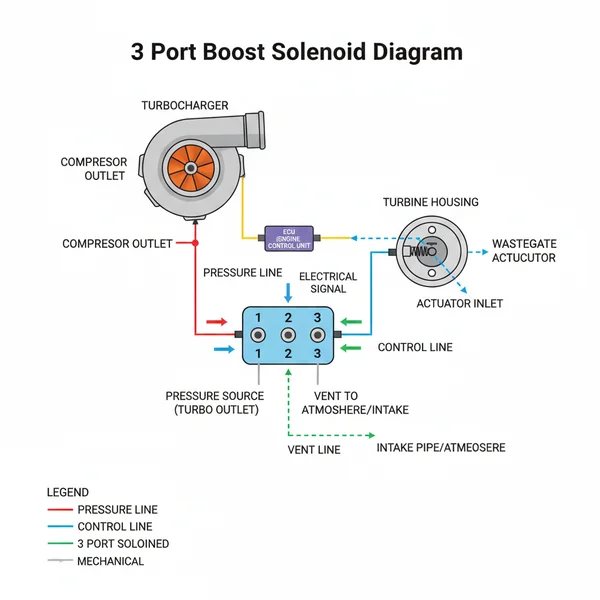

Breaking Down the 3 Port Boost Solenoid Diagram
The 3 port boost solenoid diagram is a technical illustration that outlines the pneumatic and electrical connections required for electronic boost control. Unlike the standard two-port solenoids found on many stock vehicles, the three-port variant allows for “interrupt” style boost control. This means the solenoid can physically block the pressure signal from reaching the wastegate, allowing the turbocharger to build boost much faster and hold higher pressures than the wastegate spring would naturally allow.
In a standard diagram, you will identify three primary ports, usually labeled 1, 2, and 3. The internal structure of the solenoid consists of an electromagnetic coil and a plunger. When the Engine Control Unit (ECU) sends a Pulse Width Modulation (PWM) signal, the plunger moves, redirecting the airflow between these ports.
PORT 1: (Source) <---- [Turbo Compressor Housing]
|
[ 3-PORT SOLENOID BODY ]
/ \
PORT 2: (Output) PORT 3: (Vent)
| |
[Wastegate Actuator] [Intake Pipe or Atmosphere]
Electrical: (2-Wire Connector) —-> [ECU Boost Control Pin]
Most 3-port solenoids are “Normally Closed” between Port 1 and Port 2. This means without power, the boost pressure flows directly to the wastegate, acting as a safety mechanical override to prevent engine damage if the electronics fail.
The visual layout typically uses color-coded lines to represent vacuum hoses. Red or solid lines often indicate the high-pressure source coming from the turbocharger’s compressor housing. Blue or dashed lines usually represent the controlled output leading to the wastegate actuator. A third line represents the exhaust or “bleed” port, which is either vented to the atmosphere (common in racing) or recirculated back into the air intake (common in street-legal setups to minimize noise and maintain metered air consistency).
Step-by-Step Installation and Configuration Guide
To correctly implement the 3 port boost solenoid diagram into your vehicle’s engine bay, you must follow a methodical approach. The goal is to ensure that the air pressure transitions smoothly between the source and the actuator based on the ECU’s commands.
Incorrect plumbing of a 3-port solenoid can lead to uncontrolled boost levels. Always start with a very low duty cycle in your tuning software to ensure the system is reacting as expected before attempting high-load runs.
Required Tools and Materials:
- ✓ High-temperature silicone vacuum hose (usually 4mm or 6mm)
- ✓ Nylon zip ties or small hose clamps
- ✓ Wire strippers and heat-shrink tubing
- ✓ Mounting bracket and stainless steel hardware
Installation Steps:
1. Identify the Ports: Locate the numbers stamped on the solenoid body. On most common MAC-style valves, Port 1 is the inlet (source), Port 2 is the outlet (to wastegate), and Port 3 is the exhaust (vent). Verify this against your specific manufacturer’s 3 port boost solenoid diagram, as some brands vary their internal configuration.
2. Mount the Solenoid: Secure the solenoid to the vehicle chassis using a bracket. Choose a location that is relatively cool and away from the direct heat of the exhaust manifold or turbocharger turbine housing. However, keep it close enough to the wastegate to minimize the length of the vacuum lines, which reduces “boost spiking” caused by signal delay.
3. Connect the Boost Source: Run a vacuum hose from the turbocharger compressor housing (or the “hot side” intercooler pipe) to Port 1. This provides the high-pressure signal that the solenoid will manipulate.
4. Plumb the Wastegate: Connect a hose from Port 2 to the nipple on the wastegate actuator. If you are using an external wastegate, this typically connects to the bottom port. The top port of an external wastegate is usually left vented to the atmosphere in a simple 3-port setup.
5. Setup the Vent Port: Attach a small filter to Port 3 or run a hose back to the intake pipe after the Air Flow Meter (MAF) but before the turbo inlet. Vents to the atmosphere are simpler but can create a clicking sound that some drivers find annoying.
6. Electrical Wiring: Connect the two wires from the solenoid to your ECU’s boost control circuit. In most cases, these solenoids are not polarity sensitive, meaning it doesn’t matter which wire goes to the 12V switched power source and which goes to the ECU’s ground-side PWM output. Use heat-shrink tubing to protect the connections from moisture and vibration.
7. Verify Plumbing Logic: Before starting the engine, double-check your layout against the diagram. Blow through Port 1; air should come out of Port 2 when the solenoid is unpowered (if it is a “normally open to wastegate” design). This confirms that in the event of a power failure, the boost will be limited to the wastegate spring pressure.
8. Software Configuration: Access your ECU tuning software and change the boost control frequency. Most 3-port solenoids operate best between 20Hz and 31Hz. Ensure the duty cycle tables are set to zero initially for a safe first start.
Common Issues & Troubleshooting
Even with a perfect 3 port boost solenoid diagram, issues can arise during or after installation. One of the most frequent problems is “Boost Creep” or “Boost Spikes.” This often happens if the vacuum lines are too long or if the diameter of the hose is too small, causing a delay in the pressure signal reaching the wastegate.
If your vehicle is not making more than wastegate spring pressure despite increasing the duty cycle in the software, check for a reversed plumbing configuration. If Port 1 and Port 3 are swapped, the pressure will vent out the back of the solenoid instead of reaching the actuator. Another common sign of failure is a “stuck” solenoid, which can happen if oil vapor from the intake system enters the valve and gums up the internal plunger.
Periodically spray a small amount of electronic cleaner or light penetrating oil into the ports of the solenoid to keep the internal plunger moving freely, especially in vehicles with high blow-by.
The diagram helps solve these issues by providing a baseline for visual inspection. If the physical layout doesn’t match the diagram, the system cannot function. If you notice erratic boost behavior, check for cracked vacuum lines or loose zip ties that may be allowing air to leak under high pressure.
Tips & Best Practices for System Longevity
To get the most out of your 3 port boost solenoid setup, quality components and maintenance are key. Always use high-quality silicone or reinforced rubber hoses. Standard vacuum lines found in auto parts stores are often not rated for the high temperatures and pressures found in a turbocharged engine bay and can collapse or burst over time.
Recommendations for Success:
- ✓ Use Sintered Mufflers: If venting Port 3 to the atmosphere, install a small sintered bronze muffler. This prevents dust and debris from being sucked into the solenoid during the “off” cycle.
- ✓ Shorten Hose Lengths: Keep the hoses between the solenoid and the wastegate as short as possible to improve the response time and resolution of your boost control.
- ✓ Heat Shielding: If the solenoid must be mounted near the turbo, use a heat reflective sleeve over the wiring and hoses to prevent melting.
- ✓ Electrical Fusing: Ensure the 12V power source for the solenoid is fused. This protects your ECU’s expensive internal drivers if the solenoid coil shorts out.
When choosing a component, look for reputable brands like MAC, Cobb, or Grimmspeed. While generic solenoids are available, the internal tolerances and coil longevity of name-brand units are significantly better, providing more stable boost control over years of use. For those on a budget, sourcing a factory solenoid from a vehicle that uses a 3-port system stock can be a reliable cost-saving measure.
Properly implementing a 3 port boost solenoid diagram is the cornerstone of a reliable and high-performing forced induction system. By understanding the port configuration and following a disciplined installation process, you can achieve faster spool-up times and rock-solid boost stability. Always prioritize safety by cross-referencing your physical layout with the technical diagrams and starting with conservative tuning parameters. With the right hardware and a clear understanding of the system structure, your vehicle will be better equipped to handle the demands of increased performance.
Frequently Asked Questions
What is a 3 port boost solenoid diagram?
A 3 port boost solenoid diagram is a visual representation showing how the solenoid connects to the turbocharger system. It details the routing of vacuum lines between the boost source, the wastegate actuator, and the atmosphere. This layout is crucial for ensuring the electronic boost controller can manage pressure accurately.
How do you read a 3 port boost solenoid diagram?
To read the diagram, follow the lines representing vacuum hoses from the three numbered ports. Identify which port connects to the turbo compressor housing (pressure source), which goes to the wastegate port, and which vents to the intake or atmosphere. The configuration determines how boost is bled off.
What are the parts of a 3 port boost solenoid?
The primary component consists of the solenoid body with three distinct ports, an electromagnetic coil, and a two-wire electrical connector. Inside the structure, a plunger moves to redirect airflow. These parts work together within the boost control system to modulate the pressure signal reaching the wastegate actuator effectively.
Why is the port configuration important?
The port configuration is vital because plumbing the lines incorrectly can lead to uncontrolled boost or a complete lack of boost. Proper layout ensures the solenoid can either block pressure or bleed it away from the wastegate, allowing the ECU to maintain the specific target boost levels required.
What is the difference between 3 port and 4 port solenoids?
A 3 port solenoid typically manages a single-port wastegate by bleeding off pressure. In contrast, a 4 port system offers more complex control for dual-port wastegates, allowing for a wider range of boost pressures. The 3 port version is the standard configuration for most street and track applications.
How do I use a 3 port boost solenoid diagram?
Use the diagram as a reference during the installation process to ensure every vacuum line is attached to the correct fitting. Start by identifying the source of boost pressure on the diagram and then mirror that physical layout on your vehicle to ensure the system operates safely.
