Yamaha Tilt and Trim Parts Diagram: Component Mapping
A Yamaha tilt and trim parts diagram illustrates the internal structure of the outboard’s hydraulic system. It shows the layout of the electric motor, manifold, valves, and cylinders. By visualizing the component configuration, boaters can identify specific parts needed for maintenance, repairs, or fluid level checks efficiently.
📌 Key Takeaways
- Main purpose of this diagram is visualizing the hydraulic system architecture
- Most important components to identify are the trim motor and manual release valve
- Always use the tilt support lever for safety before servicing hydraulic parts
- Match the diagram layout to your specific engine serial number for accuracy
- Use this diagram during seal replacements or hydraulic fluid refills
When you are maintaining or repairing a Yamaha outboard motor, having a precise yamaha tilt and trim parts diagram is essential for ensuring your vessel operates at peak performance. This hydraulic system is the backbone of your boat’s handling, allowing you to adjust the engine’s angle for optimal speed, fuel efficiency, and shallow-water navigation. Navigating the complex layout of valves, seals, and motors can be daunting without a visual reference. This guide provides a detailed breakdown of the system’s internal structure, helping you identify every critical component and understand its role within the larger configuration. By mastering the layout of these parts, you can perform routine maintenance or complex repairs with confidence, saving time and preventing costly errors.
Understanding the Yamaha Tilt and Trim Parts Diagram

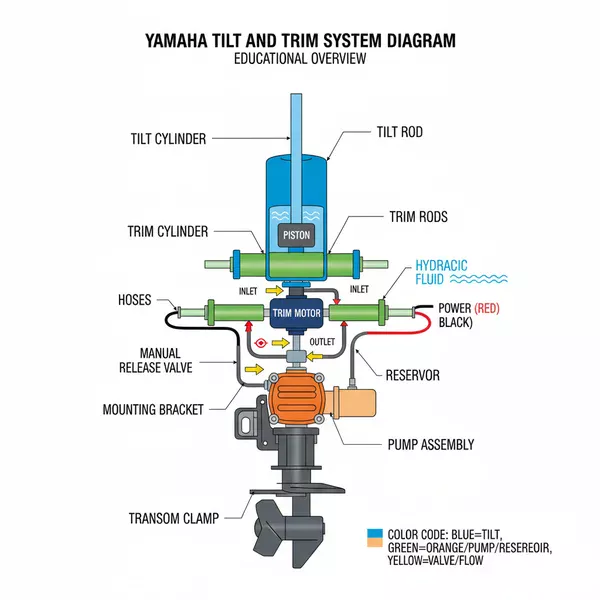

A standard yamaha tilt and trim parts diagram serves as a technical blueprint for the intricate hydraulic configuration that lifts and lowers the engine. At the heart of the system is the electric tilt/trim motor, which sits atop the hydraulic manifold. This motor drives a gear pump that pressurizes the hydraulic fluid stored in the reservoir. In most mid-to-high horsepower Yamaha outboards, the layout features a three-cylinder system: one large center tilt cylinder and two smaller outer trim cylinders. This specific structure allows for both the high-torque movement needed to lift the engine out of the water and the precision adjustments required while the boat is on a plane.
The diagram typically uses a numerical labeling system to identify specific hardware like O-rings, check valves, and manual release screws. Color-coding in advanced diagrams often distinguishes between the high-pressure lines and the return-to-reservoir paths. Variations exist across the Yamaha lineup; smaller engines may utilize a single-ram integrated system where the tilt and trim functions are combined into one cylinder. Regardless of the specific model, the diagram will highlight the relationship between the electrical relay, the hydraulic pump, and the mechanical rams. Understanding this layout is the first step in diagnosing leaks or mechanical failures.
graph TD
A[Electric Motor] --> B[Hydraulic Pump]
B --> C[Manifold Block]
C --> D[Reservoir Tank]
C --> E[Manual Release Valve]
C --> F[Main Tilt Cylinder]
C --> G[Left Trim Ram]
C --> H[Right Trim Ram]
F --> I[Upper Pivot Pin]
G --> J[Thrust Pads]
H --> J
D --> K[Fill Plug]
Yamaha tilt and trim units are often categorized as either ‘Show-style’ or ‘Early-style.’ Ensure your diagram matches the specific generation of your outboard, as seal kits and motor brushes are rarely interchangeable between these two configurations.
How to Read and Use the System Diagram
Interpreting a yamaha tilt and trim parts diagram requires a systematic approach. It is not just a picture; it is an assembly guide that dictates the order in which components must be removed or installed. To effectively use these diagrams, follow these steps:
- ✓ 1. Locate the primary identification plate on your engine bracket to confirm the exact model and year.
- ✓ 2. Match the exploded view in the diagram to the physical orientation of the unit on your transom.
- ✓ 3. Identify the ‘Line of Assembly’—dashed lines that show where internal valves and springs fit into the manifold.
- ✓ 4. Cross-reference the part numbers to ensure you are selecting the correct O-ring or wiper seal for your specific configuration.
- ✓ 5. Use the diagram to identify the location of the manual release screw for emergency lowering.
When performing a repair, such as a seal replacement, the diagram is your most valuable tool. Start by thoroughly cleaning the unit to prevent debris from entering the hydraulic system. You will typically need a set of metric wrenches, a pin wrench for the cylinder caps, and a specialized funnel for the hydraulic fluid.
Always engage the tilt lock lever or use a mechanical support block before working on the hydraulic system. If a seal fails while you are working, the engine can drop instantly, posing a severe crush risk.
To begin the interpretation and disassembly process:
1. Identify the Tilt Cap (the top of the main cylinder). The diagram will show a specific seal sequence including a wiper seal, a backup ring, and an O-ring.
2. Use the diagram to locate the reservoir fill plug. It is crucial to know the fluid capacity listed in the specifications to avoid over-pressurizing the system.
3. Trace the wiring from the motor to the relay. The diagram should show a green and blue wire configuration; blue is for “up” (sky) and green is for “down” (grass).
4. When reassembling, follow the numerical order of the hardware. The diagram often indicates where specific thread-locking compounds or marine-grade grease should be applied.
5. Bleed the system. Once the parts are reinstalled according to the layout, cycle the motor up and down five times with the reservoir cap slightly loosened to purge any trapped air.
Common Issues and Troubleshooting
The yamaha tilt and trim parts diagram is an indispensable diagnostic tool when the system begins to fail. One of the most frequent problems is the motor running without the engine moving. By looking at the manifold section of the diagram, you can identify the check valves. If a piece of debris is lodged in a valve, the fluid will bypass the cylinders and return to the reservoir.
Another common issue is “creep,” where the engine slowly lowers itself while the boat is sitting. The diagram helps you locate the internal piston seals on the tilt ram. If these seals are worn, fluid leaks from the high-pressure side to the low-pressure side of the piston. Using the diagram, you can pinpoint exactly which O-ring (often labeled as a ‘Piston Ring’ or ‘O-Ring, Piston’) needs to be replaced.
If the motor clicks but won’t run, use the diagram to find the ground wire connection on the motor housing. Corrosion at this single point is responsible for over 50% of electrical tilt/trim failures.
Corrosion is the third major enemy. The diagram shows the location of the sacrificial anodes on the bracket. If these are missing or depleted, the aluminum housing of the tilt/trim unit will begin to pit, leading to fluid leaks that are difficult to seal even with new parts.
Best Practices and Maintenance Tips
To maximize the lifespan of your hydraulic system, consistent maintenance is required. The yamaha tilt and trim parts diagram should be used as a checklist for your annual inspection. First, always keep the trim rams extended and grease the tips where they contact the engine bracket. The diagram identifies these as ‘thrust pads’ or ‘trim ram caps.’ Using a high-quality marine-grade water-resistant grease prevents the annoying squeaking sound and reduces wear on the rams.
Second, monitor the fluid level and quality. The hydraulic fluid should be a clear, amber, or light red color. If the fluid looks milky, water has bypassed the seals. Refer to your diagram to identify the wiper seals on the rams, as these are likely the entry point for the water. Replacing these seals early can save the expensive electric motor from water damage.
- ✓ Always use genuine Yamaha Power Trim and Tilt Fluid or a high-quality Dexron III equivalent.
- ✓ Rinse the entire assembly with fresh water after every use in salt water to prevent salt crystallization around the seals.
- ✓ Inspect the hydraulic hoses (if your model has external ones) for cracks or bulging.
- ✓ Check the manual release valve once a season to ensure it isn’t seized; apply a small amount of anti-seize to the threads.
In conclusion, a comprehensive yamaha tilt and trim parts diagram is more than just a list of components; it is the key to maintaining your outboard’s maneuverability and longevity. By understanding the system structure and following the configuration layouts provided in official diagrams, you ensure that every part, from the smallest O-ring to the primary tilt cylinder, functions in harmony. Whether you are troubleshooting a slow lift or performing a full system overhaul, keep your diagram handy to ensure a professional-grade result. Proper attention to this system today prevents mechanical failure in the middle of the water tomorrow.
Step-by-Step Guide to Understanding the Yamaha Tilt And Trim Parts Diagram: Component Mapping
Identify – Start with identifying your specific Yamaha outboard model and serial number to find the matching parts diagram.
Locate – Locate the electric trim motor and the hydraulic reservoir on the schematic to understand the power source.
Understand – Understand how the fluid flows through the manifold by tracing the lines from the pump to the cylinders.
Connect – Connect the numbered components on the diagram to the corresponding part names in the manufacturer’s official parts list.
Verify – Verify the configuration of seals and O-rings within the cylinders to ensure you have all necessary rebuild components.
Complete – Complete the repair by following the diagram’s layout to reassemble the hydraulic system in the correct mechanical sequence.
Frequently Asked Questions
What is a Yamaha tilt and trim parts diagram?
A Yamaha tilt and trim parts diagram is a visual schematic detailing the configuration of the outboard’s hydraulic lift system. It identifies every component, from the electric motor to the reservoir and cylinders, helping users understand the mechanical structure necessary for raising or lowering the engine safely.
How do you read a Yamaha tilt and trim parts diagram?
To read the diagram, begin by identifying the main hydraulic manifold. Follow the layout of lines connecting the reservoir to the tilt and trim cylinders. Each component is usually numbered, corresponding to a parts list that provides specific names and part numbers for accurate identification and ordering.
What are the parts of a Yamaha tilt and trim system?
The system typically consists of an electric trim motor, a hydraulic pump, a fluid reservoir, tilt and trim cylinders, and various O-rings and seals. This complex configuration works together to provide the necessary force to adjust the engine’s angle, optimizing boat performance and fuel efficiency on water.
Why is the manual release valve important?
The manual release valve is a critical component within the hydraulic structure. It allows the user to bypass the electric motor and manually raise or lower the outboard in case of electrical failure. Knowing its location on the diagram is essential for emergency situations or specific maintenance tasks.
What is the difference between single and triple ram configurations?
A single-ram configuration uses one large cylinder for both tilting and trimming, often found on smaller engines. A triple-ram system uses two small trim rams for fine adjustments and one large tilt ram for high lifting. The diagram layout will differ significantly depending on the engine’s horsepower.
How do I use a Yamaha tilt and trim parts diagram?
Use the diagram to pinpoint the exact location of failing seals or valves. By understanding the system layout, you can systematically disassemble components without damaging the internal structure. It serves as a blueprint for ordering replacement parts and ensures all components are reassembled in the correct order.
