Wiring a Light Switch and Outlet Together Diagram Guide
To wire a light switch and outlet together, connect the incoming hot wire to the common terminal or bridge the two devices with a jumper. The neutral wire must connect to the silver screw on the outlet for a continuous circuit, while the ground wire attaches to the green safety screws on both.
📌 Key Takeaways
- Illustrates how to share a power source between a switch and a receptacle
- The hot wire is the most critical component to identify for safety
- Always turn off the circuit breaker before beginning any electrical work
- Use pigtails to connect multiple wires to a single terminal safely
- Ideal for adding a convenience outlet to an existing light circuit
When embarking on a home improvement project involving electrical components, having a clear and accurate wiring a light switch and outlet together diagram is the difference between a successful installation and a dangerous electrical hazard. Many DIY enthusiasts find themselves needing to add a receptacle for power in a location where only a light switch exists, or they may be installing a space-saving combination device that houses both functions in a single gang box. This guide provides a comprehensive breakdown of the necessary connections, ensuring you understand exactly where each hot wire, neutral wire, and ground wire should be placed. By the end of this article, you will have a professional-level understanding of terminal identification, wire color coding, and the specific sequence required to safely provide both illumination and power from a single electrical box.
Detailed Breakdown of the Wiring Diagram and Components
To successfully interpret a wiring a light switch and outlet together diagram, you must first understand the anatomy of the devices involved. There are two primary ways this configuration is handled: using a combination switch/receptacle device (where both are on one yoke) or wiring a separate switch and a separate outlet side-by-side in a two-gang box. The diagram represents the flow of electricity from the source (the “Line”) to the device and subsequently to the load (the light fixture).
The most critical component in a combination device is the common terminal. In many standard diagrams, you will notice a metal “break-away” tab connecting two brass screws on one side of the device. This tab allows a single hot wire to provide power to both the switch and the outlet simultaneously. If the tab remains intact, you only need one incoming power lead to the common terminal. If you wish to have the outlet controlled by the switch (so the outlet only has power when the light is on), the wiring sequence changes significantly, often requiring the removal of this tab or a specific “load-side” connection.
On almost all modern electrical devices, the screw colors are standardized. Brass screws are intended for the hot wire (black or red), silver screws are for the neutral wire (white), and green screws are for the ground wire (bare copper or green). Always verify the voltage requirements of your circuit before beginning.

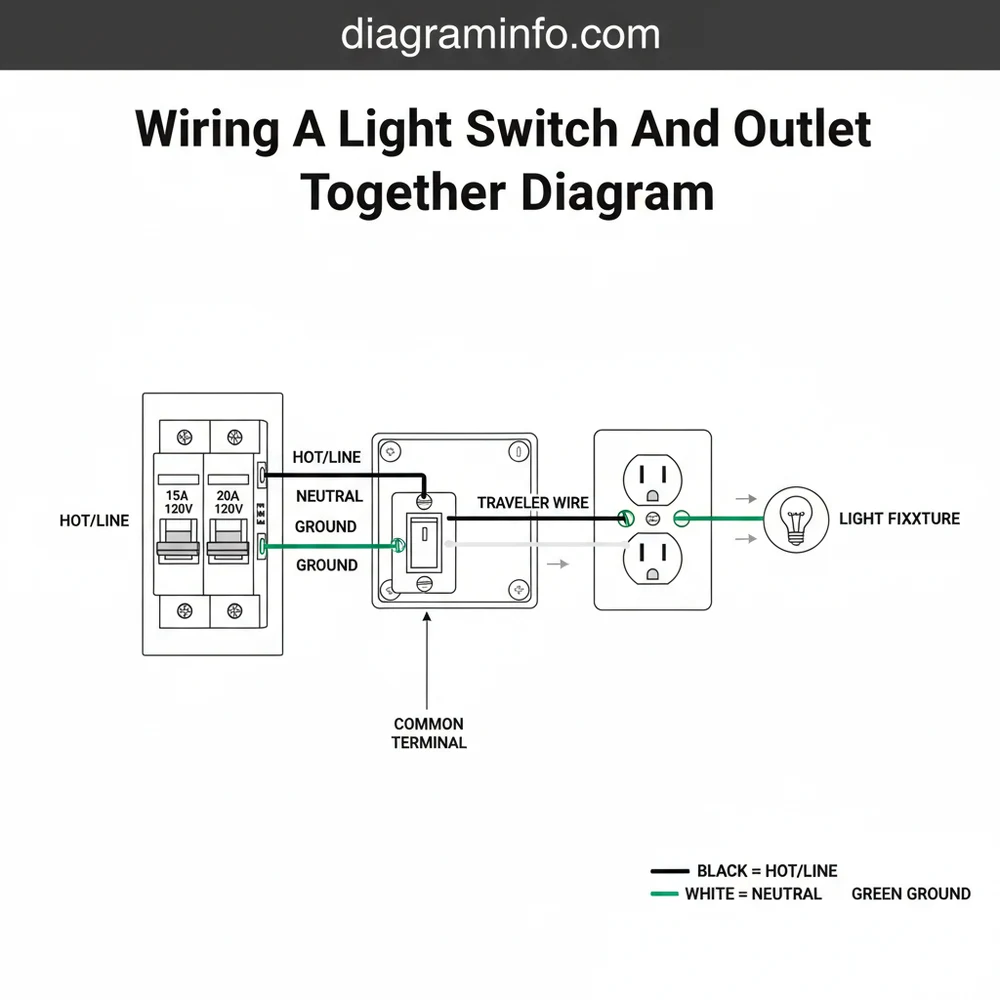

[DIAGRAM_PLACEHOLDER: A detailed wiring schematic showing a 120V circuit entering a junction box. The black “Hot” wire connects to the common brass terminal of a combo switch/outlet. The white “Neutral” wire connects to the silver terminal of the outlet and continues to the light fixture. The bare “Ground” wire connects to the green hex screw. A red or black “Switch Leg” wire connects from the remaining brass screw of the switch to the light fixture.]
The visual layout of the diagram also highlights the “neutral bridge.” Unlike a standard single-pole switch, which usually does not require a neutral wire (except for certain smart switches), an outlet must always have a neutral wire to complete the circuit. Therefore, the diagram will show the white neutral wire from the power source connecting directly to the silver terminal on the outlet side of the device. From there, the neutral often continues through the box to the light fixture. If your existing switch box does not have a neutral wire (common in older “switch loop” wiring), you cannot easily add an outlet without pulling new wire from a junction box that contains a neutral.
Step-by-Step Installation and Wiring Guide
Reading the diagram is only half the battle; executing the physical connections requires precision and adherence to safety protocols. Before you touch any wires, you must ensure the power is completely disconnected at the main circuit breaker. Use a non-contact voltage tester to verify that no current is flowing into the box.
Never assume a wire is “dead” because the light is off. Always use a voltage tester to confirm the circuit is de-energized. Working on live wires can result in severe shock or death.
Step 1: Preparation and Tool Gathering
Ensure you have the correct gauge of wire for your circuit. Most residential lighting and outlet circuits use 14-gauge wire (for 15-amp breakers) or 12-gauge wire (for 20-amp breakers). You will need wire strippers, a Phillips and flat-head screwdriver, needle-nose pliers, and electrical tape. Ensure the combination device you purchased matches the amperage of your circuit.
Step 2: Identifying the Wires in the Box
Open the electrical box and identify the conductors. You should see:
- ✓ The Line Wire (Hot): Usually black, this brings power from the breaker.
- ✓ The Neutral Wire: Usually white, this returns the current to the panel.
- ✓ The Load Wire (Switch Leg): This goes from the switch to the light fixture.
- ✓ The Ground Wire: Bare copper or green, used for safety.
Step 3: Connecting the Neutral Wires
In a combination setup, the outlet requires a neutral to function. Take the white neutral wire from the power source and the white neutral wire leading to the light fixture. Connect them together with a pigtail (a short 6-inch piece of white wire). Secure the three wires with a wire nut. The free end of the pigtail will then connect to the silver brass screw on the outlet side of the device. This ensures the outlet has a constant path back to the panel, regardless of the switch position.
Step 4: Connecting the Hot Line to the Common Terminal
Locate the “Line” side of the switch/outlet combo. This is typically the side with the brass screws and the connecting tab. Connect the incoming black hot wire to one of these brass screws. If the tab is intact, power will flow to both the switch and the outlet. If you are wiring a 3-way system, you might encounter a traveler wire, but for a standard single-pole combo, you only need the main hot lead here. Use your pliers to create a “U” shaped loop in the wire, hook it clockwise around the screw, and tighten firmly.
Step 5: Wiring the Switch Leg (Load)
The remaining brass screw (usually on the opposite side or top of the device) is for the switch leg. Connect the black (or sometimes red) wire that leads directly to the light fixture to this terminal. When the switch is flipped to the “on” position, the internal mechanism closes the gap, allowing voltage to flow from the common terminal to this switch leg and up to the light.
Step 6: Grounding the Device
Safety is paramount. Take all the bare copper ground wires in the box, bundle them with a wire nut, and use a pigtail to connect them to the green ground screw on the device. If you are using a metal box, the box itself must also be grounded.
Always wrap your wire loops clockwise around the terminal screws. As you tighten the screw, the rotation will pull the wire tighter into the connection rather than pushing it out.
Step 7: Final Assembly and Testing
Gently fold the wires into the back of the box, ensuring no bare hot wires are touching the sides of the box or the ground wires. Screw the device into the box, attach the cover plate, and restore power at the breaker. Use an outlet tester to ensure the receptacle is wired with the correct polarity and that the switch operates the light correctly.
Common Issues & Troubleshooting
Even with a perfect wiring a light switch and outlet together diagram, issues can arise during the installation process. One of the most frequent problems is a “swapped polarity” error, which occurs when the hot and neutral wires are reversed on the outlet terminals. This can be dangerous for electronics and increase the risk of electric shock. If your outlet tester indicates “Reverse Polarity,” double-check that the white wire is on the silver screw and the black wire is on the brass screw.
Another common issue is the switch controlling the outlet when it wasn’t intended to. This usually happens because the user removed the break-away tab or wired the outlet to the “load” side of the switch rather than the “line” side. If you want the outlet to stay on all the time, ensure the incoming hot wire is connected to the common terminal and the tab is present.
If the light works but the outlet does not, the problem is almost always a loose neutral wire connection. Since the light fixture and the outlet often share a neutral path in these diagrams, a break in the white wire pigtail will kill power to the receptacle while potentially allowing the light to function if its neutral path is independent.
If you notice the outlet or switch feels warm to the touch, or if the light flickers when you plug something into the outlet, turn off the breaker immediately. This indicates a high-resistance connection or an overloaded circuit gauge.
Tips & Best Practices for Electrical Success
To ensure a professional and long-lasting installation, follow these best practices that go beyond the basic wiring a light switch and outlet together diagram. First, always consider the “Box Fill” capacity. Adding a combination device and extra pigtails takes up significant volume. If the box is too crowded, it can cause wires to pinch or overheat. If necessary, replace a small plastic box with a “deep” version or a double-gang box.
When it comes to wire gauge, remember that 12-gauge wire is thicker and harder to work with but is required for 20-amp circuits. Never use 14-gauge wire on a circuit protected by a 20-amp breaker, as the wire could melt before the breaker trips. Conversely, using 12-gauge wire on a 15-amp circuit is perfectly safe, though slightly more difficult to fold into the box.
- ✓ Use Quality Components: Buy “Spec-Grade” or “Commercial-Grade” combo devices. They have stronger internal contacts and better screw terminals than the cheapest residential options.
- ✓ Avoid Back-Stabbing: Many devices have small holes in the back where you can push wires in. Professionals avoid these because they rely on a small spring that can fail over time. Always use the side screw terminals for a secure, mechanical connection.
- ✓ Electrical Tape Wrap: After securing your wires to the terminals, wrap a layer of high-quality electrical tape around the perimeter of the device to cover the exposed screw heads. This provides an extra layer of protection against accidental shorts when pushing the device into the box.
Maintenance is rarely required for these devices, but it is wise to check the outlet for “plug retention” every few years. If a cord feels loose when plugged in, the internal metal leaves have worn out, and the device should be replaced. Replacing a device is easy once you have mastered the wiring a light switch and outlet together diagram.
Finally, if you encounter a situation where there are multiple traveler wires or an unconventional wire color (like blue or yellow), you may be looking at a 3-way switch setup or a commercial conduit system. In these cases, the standard combo diagram may not apply directly. If the wiring in your wall does not match the diagram, or if you feel any uncertainty, consulting a licensed electrician is the best course of action to ensure your home remains safe and up to code.
By following this guide and carefully studying the wiring a light switch and outlet together diagram, you can confidently add functionality to any room in your house. Whether you are adding a nightlight, a vacuum plug-in, or simply consolidating switches, understanding the relationship between the hot wire, neutral wire, and common terminal is the key to electrical mastery. Always work slowly, check your connections twice, and prioritize safety above all else.
Frequently Asked Questions
Where is the ground wire located?
The ground wire is typically a bare copper or green-jacketed wire found inside the electrical box. It must be securely attached to the green grounding screw on both the switch and the outlet to ensure a safe path for electricity in the event of a fault or short circuit.
What does this wiring diagram show?
This wiring a light switch and outlet together diagram illustrates how to provide constant power to a receptacle while allowing a switch to control a light fixture. It maps the path of the hot wire, neutral wire, and ground wire between the power source, the devices, and the load.
How many connections does a switch-outlet combo have?
A standard combo device usually has four main terminals: two for the switch and two for the outlet. You will typically connect the hot wire to a common terminal, a neutral wire to the silver screw, and the ground wire to the green screw for proper and safe operation.
What are the symptoms of a bad connection?
Symptoms of a poor connection include flickering lights, a non-functional outlet, or visible sparks when using the switch. These issues often stem from a loose neutral wire or a poorly secured hot wire. Excessive heat coming from the wall plate is also a sign of high electrical resistance.
Can I install this switch and outlet combo myself?
Yes, a DIYer can install this if they follow a wiring a light switch and outlet together diagram carefully. However, you must turn off the circuit breaker first. If you encounter a complex setup involving a traveler wire or unknown voltages, consulting a professional electrician is highly recommended.
What tools do I need for this task?
You will need a non-contact voltage tester, a Phillips and flat-head screwdriver, and wire strippers. Needle-nose pliers are essential for looping the hot wire and neutral wire around terminal screws. A wire nut or WAGO connector is also helpful for making secure pigtail connections inside the box.
