Trailer Wiring Diagram 5 Pin: Complete Installation Guide
A 5-pin trailer wiring diagram illustrates the connections for ground, tail lights, left/right turn signals, and a fifth blue wire for reverse brake lockout. This configuration is essential for trailers with hydraulic surge brakes, allowing you to back up without the trailer brakes engaging automatically when the vehicle reverses.
📌 Key Takeaways
- The fifth pin is specifically used for the reverse light or brake lockout circuit.
- A secure ground wire is essential to prevent intermittent light flickering.
- The blue wire is the hot wire for the reverse solenoid on surge brakes.
- 5-pin connectors are backwards compatible with 4-pin vehicle plugs using an adapter.
- Use this diagram when towing boat trailers or trailers with hydraulic brakes.
When you are preparing to tow a boat or a utility trailer equipped with surge brakes, understanding the specifics of a trailer wiring diagram 5 pin configuration is essential for both safety and legal compliance. While a standard 4-pin connector handles basic lighting functions, the addition of a fifth wire provides a critical signal to the trailer’s braking system, particularly during reverse maneuvers. This guide provides a comprehensive overview of how to interpret a 5-pin harness, ensuring your vehicle and trailer communicate effectively. You will learn the specific color codes, the function of each terminal, and the step-by-step process for a secure installation.
Understanding the 5-Pin Trailer Wiring Diagram
The 5-pin trailer connector is an evolution of the flat 4-pin design, commonly found on boat trailers that utilize hydraulic surge brakes. The diagram for this setup consists of five distinct circuits, each designated by a specific color. Unlike residential wiring where you might look for a neutral wire to complete a circuit back to a panel, trailer systems use the vehicle’s chassis as a common ground.
The visual layout of a 5-pin flat connector typically features one male pin and four female sockets on the vehicle side, or vice versa. The key components of the diagram include:
- ✓ White (Ground Wire): This is the most important connection. It must be secured to a clean, unpainted metal surface on the trailer frame to act as the common terminal for all other lights.
- ✓ Brown (Tail/Running Lights): This wire distributes power to the side markers and rear tail lights whenever the vehicle’s headlights are active.
- ✓ Yellow (Left Turn/Brake): This dual-function wire manages the flashing signal for left turns and a steady high-intensity beam for braking.
- ✓ Green (Right Turn/Brake): Similar to the yellow wire, this handles the right-side signaling and braking functions.
- ✓ Blue (Reverse/Auxiliary): The defining feature of the 5-pin system. This wire connects to the vehicle’s backup light circuit. When you shift into reverse, it sends a signal to a solenoid on the trailer’s surge brake coupler, preventing the brakes from locking up while you back up.
In some heavy-duty 5-way round connectors, you may find a brass screw used to secure the wires inside the plug housing. Each screw corresponds to a specific pin, and maintaining the correct order is vital to prevent crossing a hot wire with a signal wire, which could lead to blown fuses or damaged solenoids.
While a 5-pin trailer wiring diagram is standard, always verify your vehicle’s towing capacity and the specific requirements of your trailer’s braking system. The blue wire is technically a “reverse lockout” signal, not a power source for electric brakes, which usually require a 7-way plug.

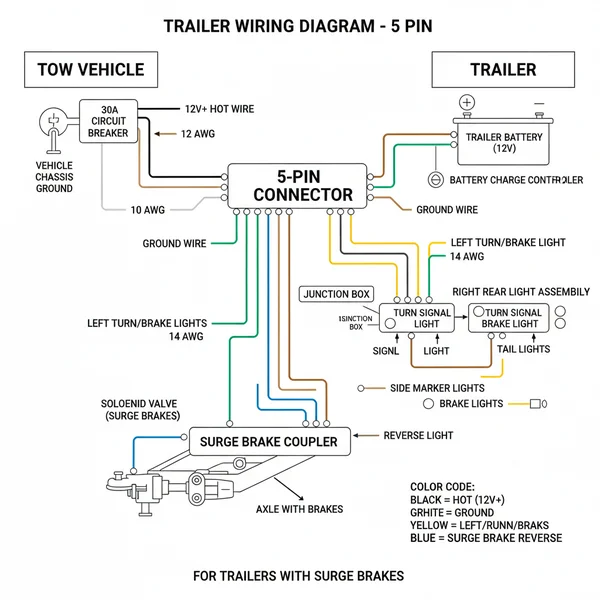

[DIAGRAM_PLACEHOLDER: A 5-pin flat connector diagram showing the White (Ground), Brown (Tail), Yellow (Left Turn), Green (Right Turn), and Blue (Reverse) wires aligned in order, with the vehicle-side and trailer-side orientations labeled.]
Step-by-Step Installation and Wiring Guide
Setting up your trailer with a 5-pin connector requires precision and the right materials. Follow these steps to ensure a professional-grade installation that will withstand the elements and provide consistent voltage to your lights and brakes.
1. Gather Your Tools and Materials
Before starting, ensure you have a 5-pin wiring kit, wire strippers, a crimping tool, heat-shrink tubing, and a multimeter. Check the wire gauge; usually, 16-gauge is sufficient for signal wires, but 14-gauge is preferred for the ground wire to ensure it can handle the return current of all circuits simultaneously.
2. Prepare the Vehicle Connection
Locate the vehicle’s trailer wiring harness. If your vehicle has a factory 4-pin plug, you can often use an adapter that breaks out the fifth blue wire. You will need to tap this blue “traveler wire” into the vehicle’s reverse light wire. Use a circuit tester to identify which wire in the tail light assembly becomes a hot wire only when the vehicle is in reverse gear.
3. Secure the Common Ground
The white ground wire is the foundation of the system. Clean a small patch of the trailer frame down to the bare metal. Attach the wire using a ring terminal and a self-tapping screw. If the ground is weak, the lights may flicker or dim when the brakes are applied. In the context of DC trailer wiring, this serves the same purpose as a neutral wire in an AC system by providing the return path to the battery.
4. Route the Traveling Signal Wires
Run the yellow, green, and brown wires along the trailer frame toward the rear lights. Use plastic wire ties or clips every 18 inches to prevent the wires from sagging or snagging on road debris. Ensure the “traveler wire” path is protected from heat sources like the exhaust pipe.
Never leave wires dangling. If a wire rubs against the frame, the insulation will eventually wear through, causing a short circuit. This can drain your vehicle battery or cause the trailer lights to fail at night.
5. Connect the Reverse Lockout
Connect the blue wire from the 5-pin plug to the solenoid located on the trailer’s brake actuator. This solenoid is what “locks out” the hydraulic pressure when the vehicle moves backward. Without this connection, boat trailers with surge brakes are often impossible to back up an incline, as the weight of the trailer pushes against the hitch and engages the brakes.
6. Final Terminal Connections
If your plug uses a screw-type terminal, strip about 1/4 inch of insulation, twist the strands tightly, and wrap them clockwise around the brass screw before tightening. This ensures the wire stays put under vibration. For flat-style molded plugs, ensure the splice connections are sealed with heat-shrink tubing to prevent corrosion from road salt or water.
7. Test the Voltage
Using a multimeter or a 5-way circuit tester, verify the output at the vehicle plug. Have an assistant cycle through the left turn, right turn, running lights, and reverse. Each pin should show roughly 12 to 14 volts when active.
Common Issues & Troubleshooting
Even with a perfect trailer wiring diagram 5 pin setup, environmental factors can cause issues. The most frequent problem is a “floating ground,” where the lights work sporadically or dim when multiple functions are used at once. This usually indicates the white ground wire has lost its connection to the frame due to rust.
Another common issue is the “reverse lock” failing to engage. If you find your trailer brakes locking up while backing up, check the blue wire. Use a voltmeter to ensure that the blue terminal is receiving power only when the vehicle is in reverse. If there is no voltage, check the fuse in the vehicle’s tow package fuse box.
Lastly, cross-wiring the yellow and green wires is a frequent mistake. If you signal left but the right trailer light flashes, you simply need to swap these two signal wires at the connector. Keeping the diagram handy during the initial wiring prevents these headaches.
Tips & Best Practices for Longevity
To keep your 5-pin system functioning for years, maintenance is key. Boat trailers are particularly susceptible to corrosion because they are frequently submerged in water.
Apply a liberal amount of dielectric grease to the pins and sockets of your 5-pin connector. This non-conductive grease blocks moisture and prevents the green oxidation that eventually destroys electrical contacts.
When choosing components, opt for tinned copper wire rather than standard automotive wire if you tow in saltwater environments. Tinned wire resists the “wicking” effect where salt water travels up the wire under the insulation, rotting it from the inside out. Additionally, ensure your wire gauge is appropriate for the length of the trailer; longer trailers (over 20 feet) benefit from thicker 14-gauge wire to minimize voltage drop over the long distance.
Always carry a spare 5-pin to 4-pin adapter in your glove box. While your trailer might need the 5th pin for reverse, you might occasionally need to tow a friend’s trailer that only uses a 4-pin connection. Most 5-pin vehicle sockets are designed to accept a 4-pin trailer plug, but having an adapter ensures a snug, weather-resistant fit.
By following the trailer wiring diagram 5 pin specifications and taking the time to secure your ground and signal connections properly, you ensure a safer towing experience. Proper wiring doesn’t just keep you legal; it protects your vehicle’s electronics and ensures your trailer’s braking system performs exactly when you need it most.
