Trailer Air Brake System Diagram: Simplified Troubleshooting
A trailer air brake system diagram illustrates the pneumatic connections between the tractor and trailer. It maps out air lines, valves, and chambers while integrating electrical components like the RV blade connector for turn signals and running lights. Understanding this layout ensures proper communication between the brake controller and braking mechanisms.
📌 Key Takeaways
- Visualizes the pneumatic and electrical flow for trailer safety
- Identify the relay valves and gladhands first for air flow
- Never ignore moisture in the air lines to prevent freezing
- Check the auxiliary power pin for constant accessory voltage
- Use during inspections or when replacing leaking air lines
Understanding the complexity of a trailer air brake system diagram is essential for anyone involved in heavy-duty towing, fleet maintenance, or DIY trailer restoration. When you are out on the road, the pneumatic pressure flowing through your lines is the only thing standing between a controlled stop and a dangerous runaway situation. This comprehensive guide provides a clear visual and technical breakdown of how air pressure translates into stopping power. By the end of this article, you will be able to identify every major component, from the glad hands to the brake chambers, ensuring your trailer remains safe, compliant, and ready for the haul.
Breaking Down the Trailer Air Brake System Diagram
A comprehensive trailer air brake system diagram serves as a blueprint for the pneumatic logic that governs heavy-duty braking. Unlike smaller trailers that utilize an electric brake system and a traditional brake controller, air brake systems rely on pressurized air stored in tanks. The diagram typically illustrates two primary lines: the Emergency (Supply) line and the Service (Control) line. These are color-coded for safety and clarity—red for the emergency line and blue for the service line.
The diagram identifies the “Glad Hands” as the primary connection point between the tractor and the trailer. From here, the red line feeds air into the trailer’s air reservoirs (tanks) via a one-way check valve, ensuring that if the trailer uncouples, the air remains trapped to trigger the emergency brakes. The blue line remains inactive until the driver presses the brake pedal, at which point it sends a signal to the relay valve. The relay valve acts as the “brain” of the trailer, drawing high-pressure air directly from the tanks to the brake chambers to provide immediate stopping force.

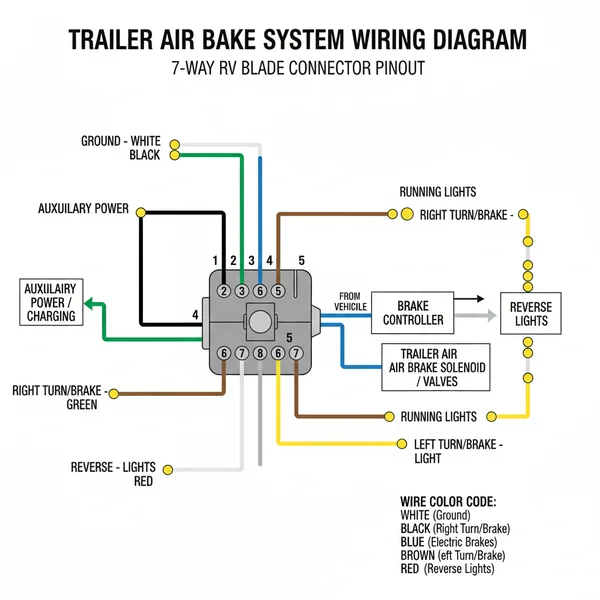

In modern configurations, the diagram also incorporates the electrical interface. While the air lines handle the mechanical braking, a 7-way cable (often using an RV blade or round-pin style connection) manages the running lights, turn signal indicators, and auxiliary power. This integration ensures that the trailer’s visual signals synchronize perfectly with the pneumatic braking actions.
In a standard air brake setup, the “Emergency Line” serves two purposes: it fills the air tanks and keeps the spring brakes released. If pressure in this line drops below a certain threshold (usually 60 PSI), the springs will automatically engage the brakes.
How to Interpret and Use the System Diagram
Reading a trailer air brake system diagram requires a systematic approach to ensure no component is overlooked. Whether you are installing a new system or diagnosing a fault, follow these steps to navigate the pneumatic and electrical landscape of your trailer.
Step 1: Identify the Connection Interface
Start at the front of the trailer where the glad hands and the electrical connector are located. On the diagram, locate the red (supply) and blue (control) inputs. Also, identify the 7-way plug, which may be an RV blade or a heavy-duty round-pin connector. This plug is responsible for the ground pin connection and distributing power to the running lights and turn signal circuits.
Step 2: Trace the Supply (Emergency) Circuit
Follow the red line from the glad hand to the trailer’s air tank. You will notice it passes through a protection valve. This line’s job is to keep the reservoir filled. In your physical inspection, ensure there are no kinks in this line, as a restriction here will prevent the air tanks from reaching the necessary operating pressure.
Step 3: Map the Service (Control) Circuit
Trace the blue line from the glad hand to the relay valve. Unlike the supply line, this path does not go to the tank; it goes straight to the control port of the relay valve. This is a “signal” line. When you apply the brakes in the cab, air travels down this line to tell the relay valve how much pressure to release from the tank into the brake chambers.
Step 4: Analyze the Relay Valve and Reservoirs
The diagram will show the air tank connected directly to the relay valve. The relay valve is designed to shorten the time it takes for brakes to apply by placing the air source (the tank) as close to the wheels as possible. This prevents the “lag” that would occur if air had to travel all the way from the tractor’s engine to the trailer’s rear axles.
Step 5: Inspect the Brake Chambers and Slack Adjusters
At the end of the pneumatic lines on the diagram, you will find the brake chambers. These are often “bolt-on” components that convert air pressure into mechanical movement. The air pushes a diaphragm, which moves a pushrod connected to the slack adjuster. The slack adjuster then turns the S-cam to press the brake shoes against the drum.
Step 6: Integrate the Electrical Signals
While the air stops the trailer, the electrical system communicates your intentions to other drivers. Locate the wiring for the turn signal and running lights on the diagram. Ensure the auxiliary power line is correctly mapped if your trailer uses internal lights or specialized equipment. Note that the ground pin is the most critical part of this circuit; without a solid ground, your lights will flicker or fail completely.
Never attempt to disassemble a spring brake chamber. These units contain a high-tension coil spring that can cause fatal injuries if released accidentally. Always use a caging bolt to “cage” the brakes before performing maintenance.
Troubleshooting Common Air Brake Issues
Even with a perfect trailer air brake system diagram, real-world wear and tear can cause system failures. Use the diagram as a diagnostic tool to isolate where the problem lies.
- ✓ Slow Pressure Build-Up: If the tanks take too long to fill, check the red supply line for leaks or a clogged filter at the glad hand.
- ✓ Brakes Dragging: This often indicates that the slack adjusters are out of adjustment or the S-cam is binding. Refer to the diagram to locate the mechanical linkage and lubricate appropriately.
- ✓ Air Leaks at the Relay Valve: If air is escaping from the exhaust port of the relay valve when the brakes are NOT applied, the internal seals of the valve or a brake chamber diaphragm may be ruptured.
- ✓ Electrical Failures: If the turn signal or running lights aren’t working but the brakes are functioning, the issue is likely in the 7-way flat connector or RV blade plug. Clean the pins and check the ground pin for corrosion.
One of the most common issues is moisture in the lines. If the air tanks are not drained regularly, water can settle in the relay valve, causing it to freeze in winter or rust in summer. If your trailer air brakes feel “sluggish” or “sticky,” moisture contamination is the likely culprit.
Maintenance Tips and Best Practices
Maintaining a trailer air brake system is significantly different from maintaining an electric brake setup found on smaller RVs. While an electric brake system uses a brake controller to modulate voltage, the air system requires physical maintenance of valves and seals.
Perform a “tug test” every time you hitch up. Set the trailer brakes, release the tractor brakes, and gently try to pull forward. This confirms the emergency side of the air brake system is holding the trailer securely.
To keep your system in top condition, follow these best practices:
1. Drain Air Tanks Daily: Every trailer air tank has a drain valve (petcock). Open these daily to expel accumulated water and oil. This protects the relay valves and prevents internal corrosion.
2. Inspect Glad Hand Seals: The rubber seals in the glad hands are the most common source of air leaks. They are inexpensive to replace and should be swapped out at the first sign of cracking or flattening.
3. Monitor Slack Adjusters: If your trailer has manual slack adjusters, check them regularly to ensure the pushrod travel is within DOT specifications (usually under 2 inches). Automatic slack adjusters also require periodic inspection to ensure they are ratcheting correctly.
4. Keep the Electrical Plug Clean: Use dielectric grease on your RV blade or 7-way connector. This prevents oxidation on the ground pin and auxiliary power contacts, ensuring your running lights and turn signal remain bright and visible.
5. Quality Components Matter: When replacing parts, choose OEM-grade valves and chambers. A cheap relay valve can have slower response times, which affects the overall safety of the vehicle’s stopping distance.
By integrating the knowledge from a trailer air brake system diagram with consistent maintenance habits, you ensure the longevity of your equipment. Whether you are dealing with the pneumatic pressure of the air lines or the electrical signals of the turn signal and running lights, a thorough understanding of the system is your best tool for the road ahead. Always remember that a well-maintained air brake system doesn’t just protect your cargo—it protects every driver on the road around you.
Step-by-Step Guide to Understanding the Trailer Air Brake System Diagram: Simplified Troubleshooting
Identify the main air supply and service lines originating from the tractor’s gladhand connections to establish the primary pneumatic flow.
Locate the air reservoirs and relay valves that store and distribute pressure to the individual wheel end brake chambers.
Understand how the RV blade connector distributes electricity to the running lights, turn signals, and auxiliary power circuits for full functionality.
Connect the brake controller signals to the appropriate valves to ensure the pneumatic system responds accurately to the driver’s braking commands.
Verify that the emergency braking feature activates automatically if the supply line is disconnected or loses significant pressure during operation.
Complete the inspection by testing the turn signal and running lights to ensure the electrical and pneumatic systems are fully integrated.
