Stanadyne Injection Pump Parts Diagram: System Layout

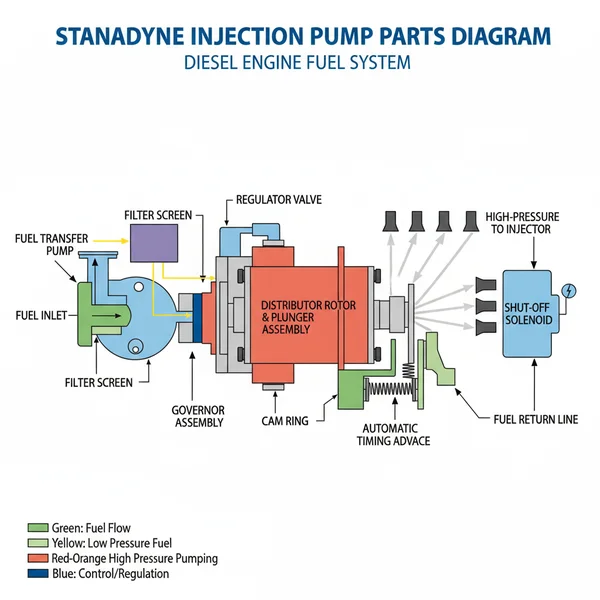

A Stanadyne injection pump parts diagram illustrates the internal configuration of the rotary fuel system. It identifies key components like the transfer pump, plungers, and governor, showing how they interact to deliver pressurized fuel. This visual layout is essential for identifying specific part numbers during disassembly or when troubleshooting performance issues.
📌 Key Takeaways
- Visualizing the internal component layout for precise fuel metering.
- Identifying the head and rotor as the most critical central system parts.
- Ensure all O-rings and seals are accounted for to prevent leaks.
- Use the diagram to cross-reference OEM part numbers before ordering.
- Refer to this structure when performing a complete pump rebuild or timing adjustment.
Navigating the internal mechanics of a diesel engine requires a high degree of precision, especially when dealing with the high-pressure fuel delivery system. If you are a DIY enthusiast or a professional mechanic working on a heavy-duty engine, having a clear stanadyne injection pump parts diagram is essential for successful maintenance, repair, or a complete overhaul. This document serves as a visual blueprint, detailing every internal component from the drive shaft to the metering valve. By understanding the specific layout and configuration of these parts, you can accurately diagnose fuel delivery issues and ensure your engine runs at peak efficiency. In this comprehensive guide, you will learn how to interpret these diagrams, identify key components, and follow a systematic approach to fuel pump servicing.
Understanding the Pump Layout and System Configuration
The internal structure of a Stanadyne (formerly Roosa Master) rotary injection pump is a marvel of mechanical engineering. Unlike inline pumps, the rotary configuration uses a single pumping element to distribute fuel to all cylinders. When you look at a parts diagram, the first thing you will notice is the compact, cylindrical housing. This housing contains the entire high-pressure system, governor mechanism, and transfer pump.
The primary layout is typically divided into several functional zones. At the input side, you have the drive shaft and the governor weights. Moving toward the center, you encounter the cam ring and the rotor assembly, which houses the plungers. The rear of the pump usually contains the transfer pump and the pressure regulator. A standard diagram will use numerical callouts to label each component, often providing a cross-reference table for specific part numbers based on the pump’s model code (such as the ubiquitous DB2 or DE series).
Visualizing these components is easier when you categorize them by their role in the system. For instance, the “Head and Rotor” is the heart of the unit, responsible for pressurizing the fuel. The “Governor” manages the engine speed by adjusting the metering valve, and the “Advance Mechanism” controls the timing based on engine RPM and load. Some diagrams use color-coding to differentiate between low-pressure suction areas (usually blue or green) and high-pressure delivery zones (usually red or orange), which helps in understanding the hydraulic flow within the pump.
Stanadyne pumps are sensitive to fuel quality. The internal components are lubricated by the diesel fuel itself, meaning any water or debris can cause immediate wear to the precision-machined rotor and head assembly.
How to Interpret and Use a Stanadyne Injection Pump Parts Diagram
Reading a complex technical diagram can be daunting if you do not have a systematic approach. To effectively use a stanadyne injection pump parts diagram for a rebuild or part replacement, follow these structured steps:
1. Identify the Pump Model: Before looking at a diagram, locate the nameplate on the side of your pump. It will usually have a model number like DB2829 or similar. Diagrams are model-specific; using the wrong one can lead to purchasing incorrect seals or internal springs.
2. Orient the Diagram: Align the diagram with the physical pump on your workbench. Locate the drive shaft (input side) and the high-pressure outlets (output side). This establishes a spatial reference point so you can distinguish between the front and rear sections of the pump.
3. Trace the Fuel Flow: Start at the inlet strainer and follow the path through the transfer pump, into the metering valve, and finally into the high-pressure rotor. Understanding this flow helps you identify which seals or valves might be responsible for specific performance issues.
4. Isolate the Sub-Assemblies: Stanadyne pumps are comprised of several sub-systems. Use the diagram to isolate the governor group, the advance group, and the hydraulic head. Each group has its own set of springs, shims, and gaskets that must be handled with care.
5. Check for Superseded Parts: Modern diagrams often include notes about updated components. For example, older “flex rings” in the governor basket were prone to failure and have been replaced by updated EBT (Elastic Buffer Tank) designs or solid weights.
6. Use the Bill of Materials: Every professional diagram includes a legend. Cross-reference the numbers on the drawing with the part names. Pay close attention to the “Quantity” column to ensure you have all the necessary O-rings or washers before starting the reassembly.
Internal pump components are machined to tolerances measured in microns. Never use abrasive tools or harsh chemicals on the rotor or plungers, as even a microscopic scratch can lead to internal pressure loss and engine failure.
To perform a successful inspection or part replacement, you will need a specific set of tools:
- ✓ Bristle-free cleaning cloths and filtered solvent
- ✓ Micrometer and feeler gauges for checking clearances
- ✓ Specialized Stanadyne spline wrenches for the head bolts
- ✓ A clean, dust-free workbench (ideally a “clean room” environment)
- ✓ High-quality assembly lube or clean diesel fuel for lubrication
Common Issues and Troubleshooting with Diagram Assistance
Even the most robust fuel system will eventually encounter wear and tear. A parts diagram is your best friend when troubleshooting common Stanadyne issues. One of the most frequent problems is the degradation of the governor flex ring. On a diagram, this is the circular component within the governor basket. When it fails, it turns into “coffee grounds” that clog the return line and the housing pressure regulator.
Another common issue is a leak at the throttle shaft or the advance piston covers. By consulting the diagram, you can identify the exact size and type of O-ring required for these specific locations. If the engine is experiencing a “hard start” when hot, the diagram points you toward the hydraulic head and rotor. Excessive wear between these two components allows fuel to bypass the high-pressure chambers when the fuel is thin (hot), indicating that the head and rotor assembly may need replacement.
If your engine stalls or loses power, check the return line connector. It contains a small glass ball check valve (visible on the diagram near the top of the housing). If this is clogged with debris, housing pressure will build up and stall the engine.
Maintenance Tips and Component Best Practices
To extend the life of your injection pump and avoid the need for a total rebuild, follow these maintenance best practices. First and foremost, never compromise on fuel filtration. The precision of the components shown in your stanadyne injection pump parts diagram requires fuel that is free of particulates larger than 2-5 microns. Changing your fuel filters at the recommended intervals is the single most effective way to protect the pump.
When it comes to replacement parts, there is a significant debate between OEM (Original Equipment Manufacturer) and aftermarket components. While aftermarket seal kits are often sufficient, critical moving parts like the plungers, cam rings, and delivery valves should ideally be sourced from Stanadyne-certified distributors. These parts are designed to withstand specific thermal and mechanical stresses that generic alternatives might not meet.
- ✓ Fuel Additives: Use a high-quality lubricity additive, especially if you are using Ultra-Low Sulfur Diesel (ULSD), which has less natural lubrication.
- ✓ Water Separation: Regularly drain your water separator. Water is the primary enemy of the transfer pump blades and the rotor assembly.
- ✓ Storage: If an engine is going to sit for more than six months, use a fuel stabilizer or run the engine on a bio-free diesel to prevent internal gumming and corrosion.
- ✓ Visual Inspections: Periodically check the exterior of the pump for “weeping” fuel. Small leaks often indicate that a seal is beginning to fail, and addressing it early can prevent a more costly repair later.
In summary, a stanadyne injection pump parts diagram is more than just a piece of paper; it is a critical tool for anyone serious about diesel engine maintenance. By understanding the intricate layout of the system and the specific function of each component, you can transition from guesswork to precision diagnostics. Whether you are replacing a simple O-ring or performing a full configuration check on the governor, having the right diagram ensures that your work is accurate, safe, and professional. Keep your workspace clean, use the correct tools, and always refer back to your visual guide to keep your diesel engine roaring for years to come.
Step-by-Step Guide to Understanding the Stanadyne Injection Pump Parts Diagram: System Layout
Identify – Start with identifying the specific model series of your Stanadyne pump located on the nameplate.
Locate – Locate the main drive shaft and housing on the diagram to orient your perspective.
Understand – Understand how the fuel flows from the transfer pump into the central rotor assembly.
Verify – Verify the orientation of the metering valve and governor weights within the internal layout.
Match – Match the individual seals and O-rings from your repair kit to the diagram’s exploded view.
Complete – Complete the reassembly by following the diagram’s structural sequence to ensure proper mechanical timing.
