Semi Truck Front Suspension Diagram: Identification & Repair

Navigating the mechanical intricacies of heavy-duty vehicles requires precision and a clear visual reference. A comprehensive semi truck front suspension diagram serves as a vital roadmap for mechanics, fleet operators, and owner-operators alike. This guide is designed to demystify the complex web of leaf springs, hangers, shock absorbers, and steering linkages that constitute the front end of a Class 8 truck. By understanding this diagram, you will gain the ability to perform more accurate inspections, identify failing components before they lead to a breakdown, and ensure your vehicle maintains optimal handling and safety. In the following sections, we will break down every critical part, provide a step-by-step guide for interpretation, and offer professional troubleshooting advice.

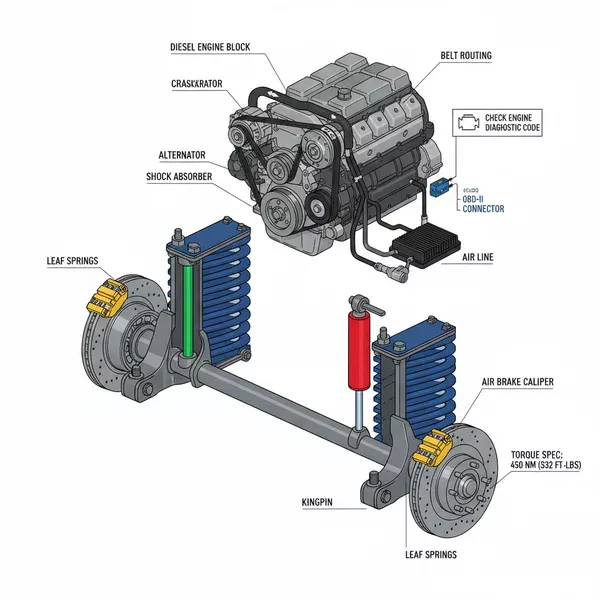

The front suspension of a semi truck is a marvel of engineering, designed to balance the immense weight of the engine with the need for precise steering and driver comfort. When viewing a semi truck front suspension diagram, the primary structure you will identify is the I-beam axle. This solid steel component is the foundation upon which all other parts are mounted. Above the axle sit the leaf spring packs—curved layers of spring steel held together by a center bolt. These springs are connected to the truck’s frame via hangers at the front and shackles at the rear, allowing for the expansion and contraction of the springs as the vehicle moves over uneven terrain.

Another critical element highlighted in the diagram is the kingpin assembly. The kingpin is the pivot point that allows the steering knuckles to turn, essentially acting as the hinge for the front wheels. Surrounding this are the steering components: the drag link, which connects the steering gear box to the knuckle, and the tie rod, which ensures both front wheels turn in unison. Shock absorbers are typically mounted vertically between the axle and the frame to dampen the “rebound” of the leaf springs. In more modern configurations, you may also see air bags (air springs) and height control valves. The diagram also illustrates the placement of various bushings and pins, which are the primary wear points that require regular lubrication. Understanding these labels is essential for applying the correct torque spec during repairs, as over-tightening or under-tightening these heavy-duty fasteners can lead to catastrophic mechanical failure on the road.

Reading and interpreting a semi truck front suspension diagram is a foundational skill for any automotive technician. Follow these steps to use the diagram effectively for maintenance and repair:

1. Orient the Diagram to the Vehicle: Begin by identifying the front of the truck on the schematic. Locate the frame rails and the radiator support area. This helps you determine the left (driver) and right (passenger) sides, which is crucial as many components are side-specific.
2. Identify the Primary Load Bearers: Trace the path of the leaf springs from the front hanger to the rear shackle. Note how the U-bolts secure the spring pack to the axle. This is the most common area for stress fractures and hardware loosening.
3. Locate Steering Interconnects: Follow the mechanical link from the steering gear box down through the pitman arm and drag link. Use the diagram to identify every grease zerk (lubrication point) along this path. Proper lubrication here prevents “stiff” steering.
4. Check for Electronic Integration: Look for sensors such as wheel speed sensors or ride-height sensors. In modern trucks, these sensors communicate with the ECU to manage stability control and ABS. If your dashboard displays a check engine light or a traction control warning, use the diagram to find the sensor’s physical location and wiring harness.
5. Verify Hardware and Fasteners: Every bolt shown on the diagram has a specific torque spec. For example, U-bolts often require a much higher torque than shock absorber mounting bolts. Consult your service manual alongside the diagram to ensure every fastener is tightened to the manufacturer’s standard.
6. Cross-Reference with Engine Components: Observe the proximity of suspension parts to the engine. Ensure that the movement of the suspension does not interfere with the accessory belt or any hoses critical for coolant flow. A sagging suspension can sometimes cause the frame to dip low enough that engine components strike the axle on large bumps.
7. Perform a Visual “Match” Inspection: With the diagram in hand, go under the truck and touch each component. Check for daylight between leaf springs, leaking fluid from the shocks, or “shining” metal on the kingpins, which indicates a lack of grease.
8. Analyze Diagnostic Data: If the truck’s onboard computer has logged a diagnostic code related to the braking or stability system, the suspension diagram will help you determine if the issue is mechanical (a bent rod) or electronic (a damaged sensor wire). Use an OBD-II or J1939-compatible scanner to narrow down the fault area identified on the map.

Even with a high-quality semi truck front suspension diagram, problems can arise due to the sheer volume of stress these systems endure. One of the most common issues is “Death Wobble” or extreme vibration in the steering wheel. By consulting your diagram, you can methodically check the tie rod ends and the drag link for play. If these components are within spec, the kingpins are the next likely culprit. Another frequent symptom is the truck pulling to one side. While this is often an alignment issue, the diagram might reveal a broken center bolt in the leaf spring pack, which allows the axle to shift slightly out of square.

If you encounter a check engine light or an ABS warning, it is often related to the wiring that runs along the suspension arms. Debris from the road can snag these wires, leading to a specific diagnostic code. Use the diagram to trace the wire path and check for frays or breaks. Furthermore, if you notice the engine temperature rising unexpectedly, check the lower area of the suspension; occasionally, a failed suspension component can puncture a radiator hose, disrupting the coolant flow.

• ✓ Uneven Tire Wear: Usually indicates worn kingpins or improper toe-in alignment.
• ✓ Leaking Shocks: Visual oil on the shock body means the internal seals have failed.
• ✓ Clunking Noises: Often caused by worn spring eye bushings or loose U-bolts.

Maintaining the front suspension is about consistency and the use of high-quality parts. Always prioritize OEM (Original Equipment Manufacturer) components or high-quality aftermarket equivalents. While budget parts may look identical on a semi truck front suspension diagram, the metallurgy and rubber density of the bushings are often inferior, leading to premature failure.

Regular maintenance should include a “dry park” test, where one person turns the steering wheel while another watches the linkage for any popping or movement. Don’t forget to inspect the engine’s harmonic balancer and timing chain cover area for oil leaks that could degrade the rubber bushings in your suspension. An oil-soaked bushing will soften and fail much faster than a dry one. Additionally, keep the accessory belt clear of any debris kicked up by the front tires, as a snapped belt can lead to a loss of power steering, making the truck nearly impossible to steer.

Finally, always keep your diagnostic tools ready. Connecting an OBD-II or heavy-duty scanner during every oil change can help you spot pending codes before they trigger a light on the dash. By combining the visual data from a semi truck front suspension diagram with digital diagnostics and regular physical inspections, you ensure your truck remains a safe, efficient tool for your business. Consistent care not only extends the life of your tires but also protects the more expensive components of your drivetrain from unnecessary vibration and stress.
