Podofo Car Stereo Wiring Diagram: Professional Installation Guide
A Podofo car stereo wiring diagram illustrates the specific electrical connections required to power the head unit and output audio. It identifies the hot wire for battery memory, the ground wire for circuit stability, and the signal paths for speakers. Proper mapping ensures that every common terminal is correctly matched to prevent shorts.
📌 Key Takeaways
- Correct identification of the 12V constant and ignition wires prevents battery drain.
- The ground wire must be secured to a clean metal surface for noise-free audio.
- Mismatched speaker polarity can lead to poor bass response and audio distortion.
- Using a wiring harness adapter is recommended over cutting factory wires directly.
- The diagram is essential for troubleshooting non-responsive units or audio clipping.
Installing a new head unit can transform your driving experience, but the process often hinges on understanding a specific podofo car stereo wiring diagram. Whether you are upgrading to a touchscreen Android unit or a standard double-DIN player, knowing exactly where each wire leads is the difference between a successful installation and a blown fuse. This guide provides a comprehensive breakdown of the wiring harnesses used by Podofo, explaining the color-coding standards, power requirements, and speaker configurations. By the end of this article, you will have the confidence to map out your vehicle’s electrical system, identify various wire functions, and complete your stereo installation like a professional technician.
Understanding the layout of a podofo car stereo wiring diagram is your first step toward audio clarity. Most Podofo units utilize the ISO 10487 standard, which divides the connection into two primary blocks: the power connector and the speaker connector. The power block usually contains the hot wire (battery constant) and the ignition wire, while the speaker block handles the four-channel output for your cabin. Unlike household electrical systems that might use a brass screw or a traveler wire for multi-way switching, car stereos rely on a simplified DC circuit. However, the principles of a common terminal and a stable ground wire remain identical.
Podofo stereos typically use a 16-pin harness. The most critical wires are the Yellow (Memory/Constant 12V), Red (Accessory/Ignition), and Black (Ground). If these are misplaced, the unit may not turn on or will lose its settings every time the car restarts.
The diagram typically visualizes the harness from the perspective of the pins. You will see labels for the “Illumination” wire (Orange), which dims the screen when headlights are on, and the “Brake Wire” (Pink), which is a safety feature for video playback. In some advanced models, you may also find wires for Steering Wheel Control (Key 1 and Key 2). While car audio doesn’t use a neutral wire in the traditional AC sense, the ground wire serves as the return path for the electrical current back to the vehicle chassis.

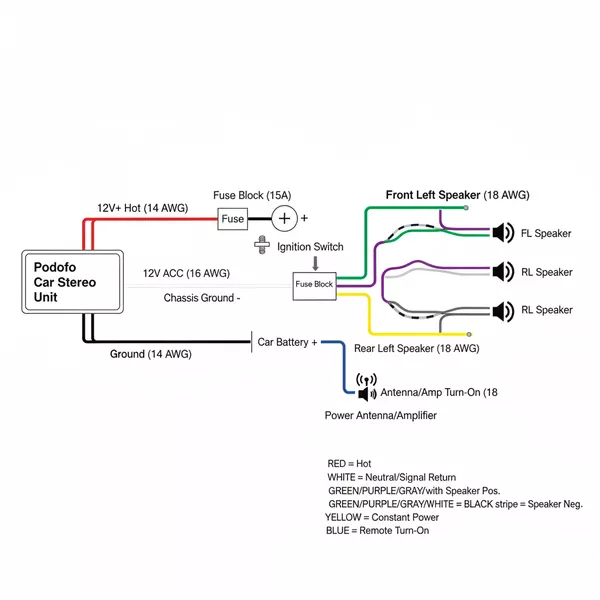

[DIAGRAM_PLACEHOLDER: PODOFO ISO WIRING HARNESS MAPPING]
Visualizing the 16-pin layout showing Power (A) and Speaker (B) blocks with standard color codes.
Reading and interpreting the podofo car stereo wiring diagram requires a methodical approach to ensure every connection is secure and logically placed. Follow these steps to translate the paper diagram into a functioning dashboard.
-
✓ Step 1: Safety First and Battery Disconnection
Before touching any wiring, disconnect the negative terminal of your car battery. This prevents short circuits and protects the sensitive voltage regulators inside your new Podofo head unit. A accidental spark during installation can damage both the stereo and your car’s ECU. -
✓ Step 2: Identifying the Power Wires
Locate the “Power” side of your diagram. The Yellow wire is your constant hot wire; it provides 12V power at all times to maintain memory. The Red wire is the switched power, which only receives voltage when the key is in the accessory or “on” position. In some rare DIY setups, users might confuse these with a common terminal in home wiring, but in a car, they must remain separate to prevent battery drain. -
✓ Step 3: Establishing a Solid Ground
The Black wire on your Podofo diagram is the ground wire. This must be connected to a clean, unpainted metal part of the car’s chassis. Unlike a neutral wire in a house that carries current back to the panel, the car’s frame acts as the ultimate return path. Ensure the connection is tight; a loose ground is the most common cause of “alternator whine” or buzzing in the speakers. -
✓ Step 4: Mapping the Speaker Outputs
Podofo uses standard color pairs for speakers. White (Front Left), Gray (Front Right), Green (Rear Left), and Purple (Rear Right). Each pair has a solid color (Positive) and a color with a black stripe (Negative). It is vital to keep the polarity consistent. If you reverse the positive and negative on one speaker, it will be “out of phase,” resulting in a significant loss of bass response. -
✓ Step 5: Connecting Auxiliary Features
Consult the podofo car stereo wiring diagram for the Blue or Blue/White wire. This is the Remote Turn-on or Power Antenna wire. It sends a low-amp 12V signal to turn on external amplifiers or raise a motorized antenna. Additionally, connect the Pink “Brake” wire to a ground source if you wish to enable video features (check local laws regarding screen safety). -
✓ Step 6: Choosing the Right Wire Gauge
For most standard installations, 18-gauge wire is sufficient for speakers and accessory power. However, for the main Yellow power wire, using a thicker 16-gauge wire can help maintain consistent voltage if you are running a high-power Android head unit with multiple USB accessories.
Never use wire nuts designed for home electrical outlets. In a car, vibrations will cause them to loosen over time. Always use crimp connectors or solder with heat-shrink tubing to ensure a permanent, vibration-resistant connection.
Even with a detailed podofo car stereo wiring diagram, obstacles can arise. One of the most frequent issues is the “Memory Loss” problem, where the radio forgets saved stations every time the car is turned off. This almost always indicates that the Yellow (Constant) and Red (Switched) wires have been swapped. The diagram is your map to fix this: verify that the Yellow wire is receiving 12V voltage even when the key is removed.
Another common issue is a “No Sound” condition despite the unit being powered on. Check the speaker gauge and connections. If a single speaker wire touches the metal chassis (grounding out), many Podofo units will enter a “Protect” mode and mute all audio. Ensure there are no stray copper strands touching the common terminal areas of the harness. If you see smoke or smell burning, disconnect the power immediately; this suggests a hot wire is touching a ground wire directly, creating a dead short.
Use a digital multimeter to test for 12V power before making permanent connections. Checking the voltage at the harness ensures your car’s factory wiring matches the Podofo diagram, as some manufacturers change wire colors between model years.
To ensure a high-quality installation, focus on the integrity of your connections. While home wiring might use a brass screw to secure a traveler wire, automotive environments are much harsher due to heat and movement. Use high-quality T-taps or, preferably, a vehicle-specific wiring harness adapter. This allows you to plug the Podofo harness into the adapter on your workbench, then simply click it into the car’s factory plug, leaving the original wiring intact.
Maintenance for your car stereo involves checking the rear connections if you notice intermittent sound or flickering screens. Over time, the ground wire connection point can oxidize. If this happens, unscrew the ground, sand the metal surface to reveal shiny steel, and reattach. For those looking to save costs, buying a generic ISO harness and pinning it yourself using the podofo car stereo wiring diagram is an option, but for beginners, the pre-made vehicle-specific adapters are worth the small investment. Finally, always ensure your wires are bundled neatly using zip ties or Tessa tape to prevent them from rattling against the plastic dashboard components, which can be a major annoyance during long drives.
In conclusion, successfully navigating a podofo car stereo wiring diagram is a matter of preparation and patience. By understanding the distinction between your hot wire and your ground wire, and ensuring your speaker polarity is correct, you can enjoy a professional-grade audio system without the professional price tag. Always prioritize safety, double-check your voltage readings, and use the correct gauge wire for a reliable, long-lasting installation.
Step-by-Step Guide to Understanding the Podofo Car Stereo Wiring Diagram: Professional Installation Guide
Identify the main power wires including the yellow hot wire for constant 12V and the red ignition wire.
Locate the black ground wire and ensure it is ready to be connected to a secure common terminal on the chassis.
Understand how the speaker wires are paired, typically using solid colors for positive and striped colors for negative signal paths.
Connect the blue or blue/white traveler wire to your external amplifier or power antenna if your vehicle setup requires it.
Verify that all connections are insulated with heat shrink or electrical tape to prevent short circuits against the car’s metal frame.
Complete the installation by plugging the harness into the Podofo unit and testing all functions before reassembling the vehicle dashboard.
