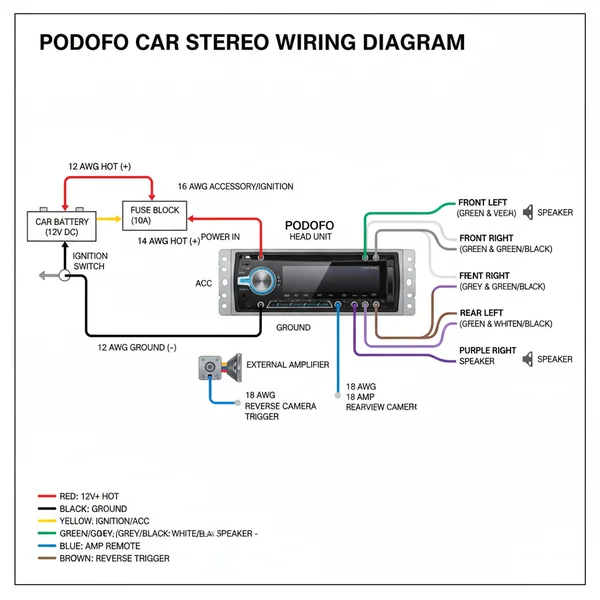

Podofo Car Stereo Wiring Diagram: Installation Guide
A Podofo car stereo wiring diagram identifies wire functions by color: yellow is the hot wire for constant power, red is for ignition, and black is the ground wire. Connecting these to the vehicle’s common terminal ensures proper power distribution and prevents short circuits during your head unit installation.
📌 Key Takeaways
- Identifies color-coded functions for power and speakers
- Must correctly locate the constant 12V hot wire for memory
- Proper grounding to the chassis is essential for noise reduction
- Use a multimeter to verify voltage before final connections
- Apply this diagram when replacing a factory head unit
Upgrading your vehicle’s head unit to a modern touchscreen interface is one of the most rewarding DIY projects you can undertake, yet the process often begins with the daunting task of deciphering a complex harness. Understanding a Podofo car stereo wiring diagram is the essential first step in ensuring your new infotainment system functions correctly without damaging your vehicle’s sensitive electrical components. This guide provides a comprehensive breakdown of the wiring standards used by Podofo, explaining how to map your vehicle’s existing factory wires to the ISO or universal harness provided with your unit. You will learn how to identify power leads, speaker channels, and auxiliary inputs, as well as the safety protocols required to prevent short circuits during the installation process.
The heart of any Podofo car stereo wiring diagram is the primary harness, which typically consists of a 16-pin or 20-pin connector that splits into a rainbow of standardized wires. In most configurations, the diagram is divided into two distinct functional groups: the power/control block and the speaker output block. The power block is crucial for the unit’s operation and memory. It features the “hot wire,” typically colored yellow, which provides constant 12V battery power to maintain your radio presets and clock settings. This is complemented by the red accessory wire, which triggers the unit to power on when the ignition is turned. The black ground wire is the most critical for stability, as it completes the electrical circuit by connecting to the vehicle’s chassis.
Most Podofo units follow the international ISO 10487 standard. However, always verify the pinout on the sticker located on the top or back of the stereo chassis, as slight variations can occur between different model series such as the 7-inch double-din or the 10-inch Android versions.
The speaker block consists of four pairs of wires, each dedicated to a specific corner of the vehicle. These follow a strict color-coding system: White (Front Left), Grey (Front Right), Green (Rear Left), and Purple (Rear Right). Each pair contains a solid-colored wire for the positive terminal and a wire with a black stripe for the negative terminal. While car audio systems operate on a DC system and do not use a “neutral wire” in the traditional residential sense, maintaining correct polarity for each speaker is vital to ensure the sound waves are in phase, preventing a thin or “hollow” audio experience. Understanding the gauge of these wires is also important; most standard harnesses use 18 or 20-gauge wire, which is sufficient for standard power levels but may need upgrading if you are installing high-performance external amplifiers.
Never attempt to wire a car stereo while the vehicle battery is connected. A single accidental contact between a hot wire and the chassis can blow expensive factory fuses or, in worst-case scenarios, damage the vehicle’s ECU.
Reading a Podofo car stereo wiring diagram and translating it into a physical installation requires a systematic approach. Follow these steps to ensure a professional-grade result:
- ✓ Step 1: Preparation and Tool Gathering. Before stripping any insulation, gather a wire stripper, crimping tool, heat shrink tubing, and a digital multimeter. Ensure you have the specific harness adapter for your vehicle’s make and model to avoid cutting the factory plugs.
- ✓ Step 2: Identifying Power and Ground. Use your multimeter to test the voltage of the wires in your dash. The wire that shows 12V even with the key out is your constant “hot wire.” The wire that only shows 12V when the key is turned to ‘ACC’ or ‘ON’ is your switched ignition wire.
- ✓ Step 3: Establishing the Ground Connection. Connect the black ground wire from the Podofo harness to a clean, unpainted metal part of the car’s frame. In home electrical, you might use a brass screw on a common terminal for grounding, but in a vehicle, a solid bolt-to-chassis connection is required to prevent “alternator whine” or buzzing in the speakers.
- ✓ Step 4: Mapping the Speaker Channels. Connect the eight speaker wires (four pairs) from the stereo to the corresponding wires on your vehicle harness adapter. Ensure that the solid color goes to the positive lead and the striped color goes to the negative lead for every channel.
- ✓ Step 5: Wiring Auxiliary Controls. If your Podofo unit supports steering wheel controls or a backup camera, you will see wires labeled ‘Key 1,’ ‘Key 2,’ and ‘Back’ or ‘Reverse.’ The ‘Back’ wire must be tapped into the positive lead of your reverse light so the screen automatically switches to the camera view when you shift into reverse.
- ✓ Step 6: Managing the Blue Remote Wire. The blue (or blue/white) wire is the “Remote Turn-On” lead. This sends a low-voltage signal to an external amplifier or a power antenna to turn them on. If you do not have an external amp, ensure this wire is capped off to prevent it from touching metal and causing a short.
- ✓ Step 7: Insulating and Securing Connections. Use heat shrink tubing or high-quality crimp connectors for every joint. Avoid using simple electrical tape, as the heat inside a car dashboard can cause the adhesive to fail over time, leading to exposed wires.
- ✓ Step 8: Final Testing. Reconnect the battery and turn the ignition to the ‘ACC’ position. Verify that the unit powers on, test the fader and balance settings to ensure each speaker is in the correct position, and check the backup camera functionality before sliding the unit into the dash for final mounting.
While the wiring process is straightforward for those who can follow a Podofo car stereo wiring diagram, several common issues frequently arise during DIY installs. One of the most common complaints is the unit losing its memory every time the car is turned off. This is almost always caused by swapping the red (switched) and yellow (constant) wires. If the yellow wire is connected to a circuit that loses voltage when the key is removed, the stereo cannot retain its settings. Another frequent issue is the “no sound” scenario, which often occurs in vehicles with factory-amplified systems (like Bose or JBL). In these cases, the blue/white remote wire must be connected to the factory amp turn-on lead to “wake up” the external speakers.
If your car uses a “CANBUS” system (common in European and newer domestic vehicles), you may not find a traditional ‘ACC’ wire in the dash. In this situation, you will need a CANBUS decoder box, which reads digital signals from the vehicle to provide the analog 12V signal the Podofo unit needs to turn on.
Troubleshooting should also involve checking the physical integrity of the harness. If the unit flickers or resets when hitting bumps, the ground wire is likely loose. Unlike a traveler wire in a three-way home switch, which carries current between switches, car stereo wiring is subject to constant vibration. If you find that the unit is getting exceptionally hot, check that you haven’t pinched any wires behind the chassis during the final push into the dash. If you encounter smoke or a burning plastic smell, disconnect the power immediately and check for a “hot wire” that might be grounding out against the metal frame of the stereo itself.
For the best long-term results, invest in quality components. When choosing a wire gauge for extensions, always match or slightly exceed the thickness of the factory wire to prevent resistance-based heat buildup. While it may be tempting to use twist-caps or “T-Taps,” these are prone to failure in automotive environments. Soldering your connections and sealing them with marine-grade heat shrink is the gold standard for car audio. Additionally, if your vehicle uses a specific antenna adapter, ensure it is plugged in firmly; Podofo units often have shorter internal tuners, so a solid antenna connection is required for clear FM/AM reception.
Label your wires! Even though the colors are standardized, using a small piece of masking tape to label “Front Left Pos” or “Reverse Trigger” will save you hours of frustration if you ever need to pull the unit back out for troubleshooting or to add a subwoofer later.
In conclusion, successfully navigating a Podofo car stereo wiring diagram is a matter of patience and precision. By identifying your constant 12V voltage sources, ensuring a rock-solid ground wire connection, and meticulously mapping each speaker channel, you can transform your driving experience with modern technology. Remember that while the terminology might occasionally overlap with home electrical—such as discussing wire gauge or a common terminal—the application in a 12V DC vehicle system is unique. Always prioritize safety, double-check your connections against the provided diagram, and don’t hesitate to use a multimeter to verify your vehicle’s wires before making your final crimps. With the right approach, your Podofo installation will provide years of reliable entertainment and connectivity on the road.
Step-by-Step Guide to Understanding the Podofo Car Stereo Wiring Diagram: Installation Guide
Identify the power harness by locating the thickest black, red, and yellow wires which serve as the ground wire and primary power leads.
Locate the speaker wire pairs, usually color-coded with solid colors and matching stripes to differentiate between the positive signal and the neutral wire return.
Understand the role of the traveler wire or accessory leads, such as the blue remote turn-on or the pink reverse trigger for camera activation.
Connect the main harness to the common terminal of your vehicle’s adapter, ensuring all connections are crimped tightly or soldered for maximum conductivity.
Verify that the hot wire has constant power for memory retention and the ignition wire only receives power when the key is turned.
Complete the installation by securing the head unit into the dashboard and testing all audio channels to ensure there is no electrical interference.
