Parts of a Toilet Diagram: Identification & Repair Guide

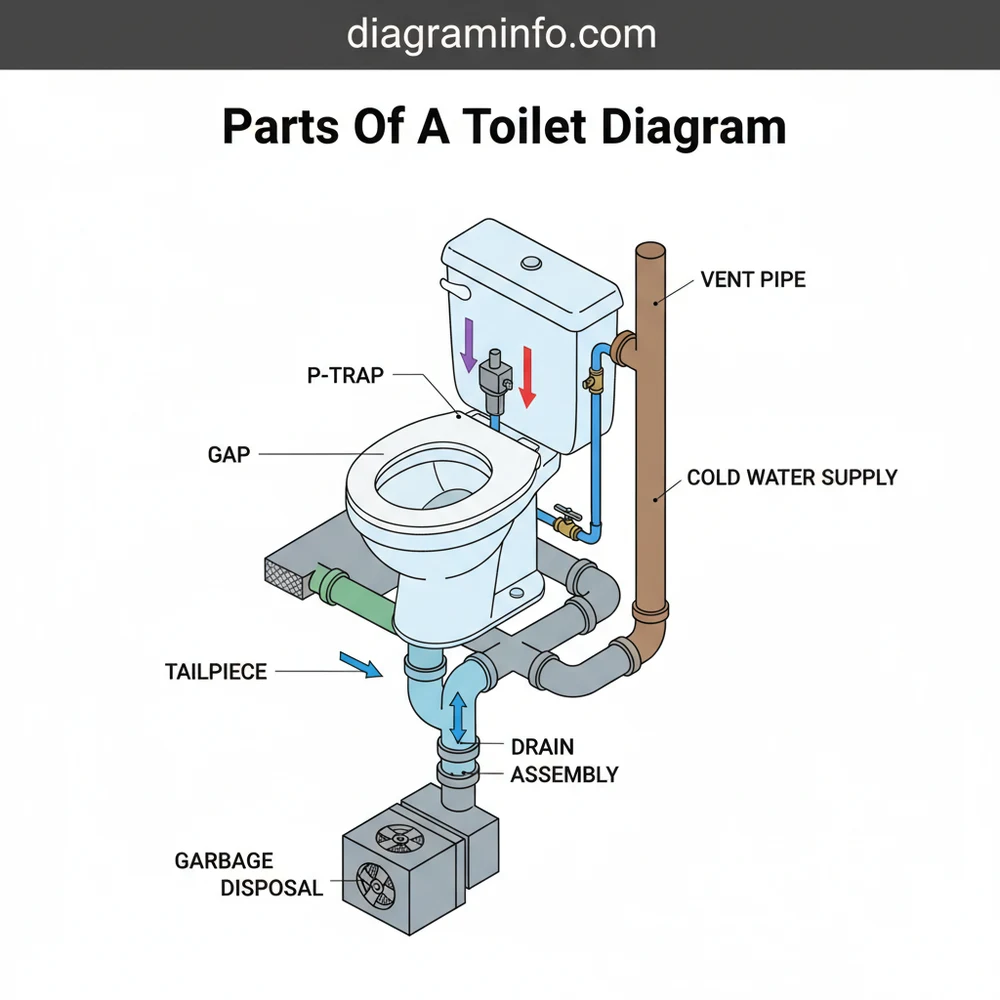

A parts of a toilet diagram illustrates the internal components like the fill valve and flapper, plus external connections including the tailpiece and drain assembly. It shows how waste travels through the built-in P-trap into the vent pipe system, ensuring your plumbing stays clear and sewer odors remain trapped outside.
📌 Key Takeaways
- Visualizes both internal tank mechanisms and external drainage paths
- The P-trap is the most critical component for blocking sewer gases
- Always shut off the water supply before attempting to replace components
- Use the diagram to match the specific model for replacement parts
- Essential for troubleshooting slow flushes, leaks, and constant running
Understanding the inner workings of your home’s plumbing system can save you hundreds of dollars in professional repair costs and prevent minor leaks from turning into major household disasters. This comprehensive guide focuses on the parts of a toilet diagram, providing a detailed map of the components that allow your bathroom fixtures to function seamlessly. Whether you are dealing with a phantom flush, a slow-filling tank, or a full installation project, knowing exactly which component does what is the first step toward success. In the following sections, you will learn to identify every internal and external part, understand how the drainage and venting systems interact, and gain the confidence to troubleshoot issues using technical accuracy and professional-grade insights.
Decoding the Parts of a Toilet Diagram: Anatomy and Components
When you look at a parts of a toilet diagram, you are essentially looking at two separate but integrated systems: the gravity-fed tank and the siphon-action bowl. The tank serves as the engine of the unit, storing water and housing the mechanical triggers that initiate a flush. The bowl is the receptacle designed to move waste into the home’s drainage system using the power of atmospheric pressure and gravity. Understanding these components in isolation helps you pinpoint exactly where a mechanical failure might be occurring.
[DIAGRAM_PLACEHOLDER: A detailed 3D cutaway of a standard gravity-flush toilet. Labels include: Tank, Bowl, Fill Valve, Flush Valve, Flapper, Overflow Tube, Float, Handle, Trip Lever, Wax Ring, Closet Bolts, Supply Line, and Trapway. Color coding: Blue for fresh water, Red for moving mechanical parts, and Grey for structural porcelain.]
The tank assembly is comprised of several moving parts. At the center is the flush valve, a large plastic tube that stands upright. Attached to the bottom of this valve is the flapper, a rubber seal that prevents water from escaping the tank into the bowl until the handle is pressed. The fill valve, often located on the left side of the tank, is responsible for bringing fresh water into the tank after a flush. It uses a float—either a ball or a sliding cylinder—to detect the water level and shut off the flow when the tank is full. Connecting these two is the trip lever and handle, which provide the physical interface for the user.
Below the tank sits the bowl, which is more than just a porcelain vessel. Inside the bowl’s casting is the trapway, an S-shaped curve that holds a permanent pool of water to block sewer gases from entering the home. This trapway functions similarly to a P-trap found under a sink, though it is built directly into the ceramic. The bowl is secured to the floor via the closet flange and closet bolts, with a wax ring sandwiched between the porcelain and the flange to create a gas-tight and water-tight seal. Understanding this structural breakdown is vital for interpreting any plumbing diagram correctly.
Most modern toilets use a 2-inch or 3-inch flush valve. When purchasing replacement parts like a flapper or a flush valve, measuring the diameter of the opening in your tank is essential to ensure compatibility with your specific model.
The Integrated Plumbing Ecosystem: Vents, Drains, and Pipes
While the toilet itself is the focal point, it does not operate in a vacuum. A parts of a toilet diagram often includes the surrounding “rough-in” plumbing that connects the fixture to the rest of the house. This includes the drain assembly and the vent pipe system. The drain assembly typically consists of a 3-inch or 4-inch PVC pipe that carries waste away. Unlike a kitchen sink which might utilize a tailpiece and a slip joint for easy disassembly, a toilet’s drain is usually a permanent, solvent-welded PVC connection below the floor level.
A critical component often overlooked is the vent pipe. Every plumbing fixture requires air to move water efficiently. The vent pipe extends from the drain line up through the roof of the house, allowing atmospheric pressure to push the water down the drain. Without proper venting, the “glugging” sound you might hear is the system gasping for air. In some modern renovations where traditional venting is difficult to install, an AAV valve (Air Admittance Valve) may be used to allow air into the system while preventing sewer gases from escaping.
If you notice your toilet bubbles when you run the sink or if the water level in the bowl fluctuates randomly, your vent pipe may be clogged with debris or bird nests, disrupting the pressure balance.
In a broader household context, the toilet’s drainage connects to the same main stack as other fixtures, such as the kitchen sink. While a kitchen setup involves complex components like a garbage disposal and a P-trap, the toilet relies on its internal trapway and a large-diameter waste line. Understanding these differences prevents confusion when reading a general plumbing diagram that covers multiple areas of the home.
Step-by-Step Guide: How to Interpret and Use the Diagram for Repairs
Reading a diagram is one thing; applying it to a physical repair is another. Follow these steps to use your parts of a toilet diagram for a successful maintenance project or assembly.
- 1. Identify the Symptoms: Before touching any tools, observe the toilet’s behavior. Is the water constantly running? (Check the fill valve and flapper). Is there water on the floor? (Check the supply line, tank bolts, or wax ring).
- 2. Locate the Shut-Off Valve: Use the diagram to find the water supply connection. Turn the oval-shaped handle clockwise to stop the flow of water into the tank.
- 3. Drain the System: Flush the toilet and hold the handle down to remove as much water as possible from the tank. Use a sponge to soak up the remaining moisture.
- 4. Match Parts to the Diagram: If you are replacing a fill valve, identify the lock nut at the bottom of the tank (outside) and the float mechanism inside. Ensure your new PVC or plastic replacement matches the height indicated in your model’s specifications.
- 5. Check the Connections: When reassembling, pay close attention to the slip joint-style washers and gaskets. These provide the seal. Overtightening can crack the porcelain, so hand-tightening plus a quarter turn with a wrench is usually sufficient.
- 6. Test the Siphon: Once parts are replaced, turn the water back on. Observe the refill tube—it should be clipped to the overflow pipe to ensure the bowl refills correctly, maintaining the trap seal.
Never use chemical “drop-in” bleach tablets in your tank. These chemicals degrade the rubber flapper and plastic components shown in your diagram, leading to premature leaks and mechanical failure.
Common Issues and Troubleshooting with the Diagram
One of the most frequent problems users encounter is the “running toilet.” By referring to the parts of a toilet diagram, you can see that this is almost always a failure of the flapper or the fill valve. If the flapper doesn’t seat correctly over the flush valve opening, water leaks into the bowl constantly. If the float on the fill valve is set too high, water will pour into the overflow tube, causing the valve to stay open indefinitely.
Another common issue is a leak at the base. This points directly to the wax ring or the closet bolts. If the toilet wobbles, the seal of the wax ring will eventually break, allowing water to seep into the subfloor. A quick check of the diagram shows that the closet bolts must be tight to keep the porcelain stationary. However, if the floor is uneven, you may need plastic shims to prevent movement that could compromise the drain assembly.
- ✓ Ghost Flushing: Usually caused by a worn flapper that needs replacement.
- ✓ Weak Flush: Often due to a low water level in the tank or a clogged rim jet.
- ✓ Slow Fill: Indicates debris in the fill valve or a partially closed supply valve.
Pro Tips and Maintenance Best Practices
To keep your toilet functioning for years, regular maintenance is required. One pro tip is to periodically inspect the supply line. Modern supply lines are often braided stainless steel, which is much more durable than older rigid plastic or chrome-plated copper lines. If your line is over five years old, consider replacing it as a preventative measure. When doing so, ensure the slip joint nuts are aligned perfectly to avoid cross-threading the plastic threads on the fill valve.

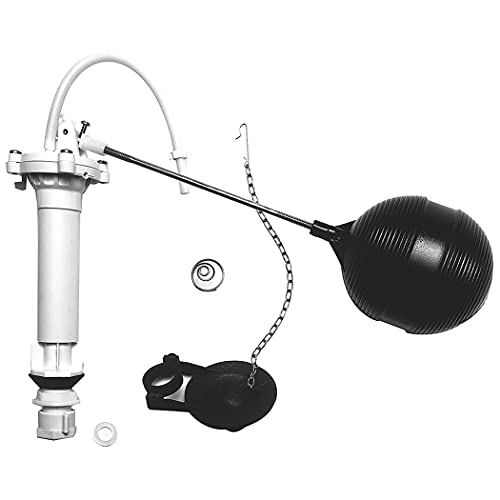

Quality components make a significant difference. When replacing the internal “guts” of the tank, look for high-performance kits that feature “universal” fitment. These kits often include a more durable, chlorine-resistant flapper and a height-adjustable fill valve that can accommodate various tank depths. Furthermore, if you live in an area with hard water, mineral deposits can build up inside the rim jets (the small holes under the bowl’s rim). Using a small mirror and a piece of wire to clear these can restore a powerful flush without needing to replace any major parts.
Finally, consider the environmental impact of your fixture. If your diagram shows an older 3.5-gallon-per-flush model, you might save significant money on your water bill by upgrading to a High-Efficiency Toilet (HET) that uses 1.28 gallons or less. Many local municipalities offer rebates for these upgrades, making the transition even more cost-effective.
Keep a spare flapper on hand. It is the most common part to fail and usually costs less than five dollars. Having one ready can turn a late-night plumbing emergency into a two-minute fix.
In summary, mastering the parts of a toilet diagram empowers you to take control of your home maintenance. By understanding the relationship between the tank, the bowl, and the external drainage and venting systems, you can diagnose problems with surgical precision. From the simple adjustment of a float cup to the complete replacement of a wax ring and closet bolts, the knowledge contained in this guide serves as your roadmap to a more efficient and reliable bathroom. Remember, plumbing doesn’t have to be intimidating; once you understand the components, it’s simply a matter of logic and the right tools.
Frequently Asked Questions
Where is the P-trap located?
The P-trap in a toilet is integrated directly into the ceramic base. It is the S-shaped curved channel visible from the side of the bowl. Its primary function is to hold a small amount of water, creating a seal that prevents sewer gases from entering your bathroom.
What does a parts of a toilet diagram show?
This diagram provides a transparent view of the tank and bowl. It highlights the fill valve, flapper, and handle inside the tank, while also illustrating the floor flange, wax ring, and the connection to the drain assembly and main vent pipe system for proper airflow.
How many connections does a standard toilet have?
A standard toilet features two primary connections. The first is the water supply line, which connects to the tailpiece of the fill valve. The second is the waste outlet at the base, which secures to the drain assembly via a wax ring and floor flange for disposal.
What are the symptoms of a bad drain assembly?
Symptoms of a failing drain assembly or wax ring include water leaking from the base of the toilet, persistent sewage smells, or visible damage to the subfloor. If the toilet rocks when you sit on it, the flange connection may be loose or improperly installed.
Can I replace toilet components myself?
Yes, most internal tank parts like the flapper, handle, and fill valve are beginner-friendly DIY tasks. Replacing the wax ring or the entire drain assembly is more advanced, as it requires lifting the heavy ceramic bowl and ensuring a completely airtight seal during the reinstallation process.
What tools do I need for toilet maintenance?
Basic maintenance requires an adjustable wrench, channel locks, and a screwdriver. For drainage issues, a plunger or toilet auger is necessary. If you are working on a shared plumbing line that includes a kitchen sink, you might also need hex keys for the garbage disposal unit.
