Hydraulic Dump Trailer Wiring Diagram: Installation Guide
A hydraulic dump trailer wiring diagram illustrates the electrical connections between the battery, pump motor, solenoid, and remote control. It identifies how the hot wire provides power from the battery while the ground wire completes the circuit, ensuring the hydraulic system raises and lowers the trailer bed safely and efficiently.
📌 Key Takeaways
- Provides a visual map for connecting the 12V battery to the hydraulic pump motor
- The solenoid is the most critical component to identify for switching power
- Ensure all ground wire connections are clean and metal-to-metal to avoid voltage drops
- Use a high-quality traveler wire for the remote control to prevent signal loss during operation
- Use this diagram when installing a new pump or troubleshooting a bed that won’t lift
Navigating the electrical system of a heavy-duty hauler can be daunting without a clear map. Whether you are building a custom rig from scratch or repairing a faulty lift mechanism on an existing unit, a precise hydraulic dump trailer wiring diagram is your essential blueprint for safety and functionality. This guide breaks down the complex network of connections between your battery, pump, solenoid, and controller. You will learn how to identify wire functions, select the correct gauge for high-current loads, and ensure your trailer operates reliably under heavy loads without electrical failure.
The electrical heart of a hydraulic dump trailer consists of several high-current and low-current circuits working in tandem to move heavy loads. At the center of the hydraulic dump trailer wiring diagram is the solenoid, which acts as a heavy-duty relay between the battery and the pump motor. The primary hot wire—usually a thick 2 or 4-gauge cable—connects the positive terminal of the deep-cycle battery directly to the solenoid’s input post. From there, a dedicated ground wire must create a solid return path to the battery or the trailer frame to ensure consistent voltage across the entire system.
The control circuit typically utilizes smaller 14 or 16-gauge wires. These wires connect the hand-held remote to the solenoid. You will notice a common terminal on the solenoid where the trigger signal is received. Color-coding is standard but can vary by manufacturer; often, green represents “up,” white or yellow is “down,” and a red wire provides the fused power supply to the switch. Understanding the brass screw connections on the solenoid is vital, as these are the specific points where the control signal initiates the motor.
Depending on whether your trailer uses a power-up/gravity-down or a power-up/power-down system, the diagram will show either one or two solenoids. Single-acting systems are simpler, involving a single solenoid to lift the bed while a valve releases it. Double-acting systems, however, require more complex routing for the traveler wire sequences to manage fluid direction in both directions.

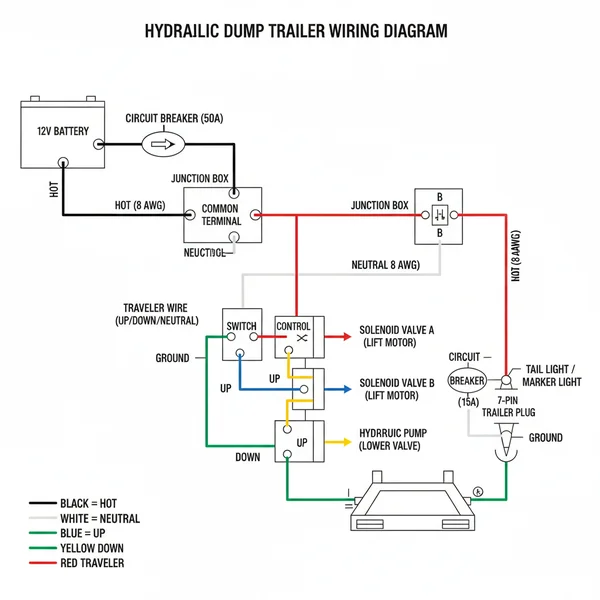

(Visual representation of Battery, Solenoid, Remote Control, and Motor connections using standard color codes)
Always use a deep-cycle battery for hydraulic dump trailers. Unlike starting batteries, deep-cycle units are designed to handle the repetitive, high-amp draws required to lift a fully loaded trailer bed multiple times a day.
Reading and implementing a hydraulic dump trailer wiring diagram requires a methodical approach to ensure the high-amperage system does not overheat or short circuit. Follow these steps to install or rewire your system successfully.
Required Tools and Materials:
- ✓ Heavy-duty wire crimpers and strippers
- ✓ Digital multimeter (to check voltage and continuity)
- ✓ Heat shrink tubing and electrical tape
- ✓ 2-gauge or 4-gauge battery cables (hot wire and ground)
- ✓ 14-gauge multi-conductor wire for the remote control
Step 1: Mount the Battery and Pump Box
Secure your battery box and hydraulic pump unit to the trailer tongue. Ensure the pump is mounted in a weather-resistant housing. Before starting any wiring, disconnect the negative terminal of the battery to prevent accidental sparks.
Step 2: Connect the Main Ground Wire
Run a heavy-gauge ground wire from the negative terminal of the battery to a clean, unpainted spot on the trailer frame. You should also run a ground wire directly to the pump motor’s grounding post. Poor grounding is the leading cause of hydraulic failure.
Step 3: Install the Solenoid and Hot Wire
Mount the solenoid near the pump motor. Connect the positive battery terminal to the large input stud on the solenoid using your 2 or 4-gauge hot wire. Install a high-amperage circuit breaker (typically 150-200 amps) in-line near the battery to protect the system from surges.
Step 4: Wire the Remote Control
Identify the wires coming from your hand-held remote. In most DC systems, there is no true neutral wire like in household AC, but the “common” wire serves a similar purpose by providing power to the switches. Connect the power lead of the remote to a fused 12V source. Then, connect the “up” traveler wire and the “down” traveler wire to the corresponding small brass screw terminals on the solenoid.
Step 5: Connect the Motor Leads
Connect the output stud of the solenoid to the power terminal on the hydraulic motor. If you have a double-acting pump, you will have two solenoids—one for the “up” stroke and one for the “down” stroke. Ensure the traveler wire from the remote triggers the correct solenoid for the desired action.
Step 6: Final Terminal Inspection
Ensure all connections at the brass screw terminals and battery posts are tight. Loose connections create resistance, which generates heat and drops the voltage, potentially damaging the motor. Use heat shrink on all crimped connectors to prevent corrosion.
Step 7: System Testing
Reconnect the battery and use a multimeter to verify that you have 12V at the solenoid input. Press the remote button and check that the voltage transfers to the motor. If the motor hums but doesn’t turn, check your battery charge level and ground connections.
Hydraulic systems operate under extreme pressure. Ensure all hydraulic hoses are securely tightened and free of leaks before testing the electrical system. Never work under a raised trailer bed without mechanical safety stands in place.
Even with a perfect hydraulic dump trailer wiring diagram, issues can arise due to the harsh environments these trailers inhabit. One of the most common issues is the “rapid clicking” sound when the remote is pressed. This usually indicates that the battery has enough voltage to click the solenoid but not enough amperage to turn the motor, or there is a significant voltage drop due to a thin wire gauge.
If the system is completely unresponsive, check the common terminal on the solenoid to ensure it is receiving a signal from the remote. Corrosion on the brass screw terminals is a frequent culprit, especially if the trailer is stored outdoors. Use your diagram to trace the path from the remote back to the power source. If you find that the wires are hot to the touch after use, your wire gauge is likely too small for the load, and you should upgrade to a thicker cable immediately to prevent a fire. If troubleshooting these basics does not resolve the issue, the internal motor windings or the solenoid itself may have failed, requiring professional replacement.
Apply a thin layer of dielectric grease to all terminal connections, including the brass screws and battery posts. This creates a moisture-proof barrier that prevents corrosion and ensures long-term electrical conductivity.
To keep your hydraulic dump trailer operating at peak performance, regular maintenance is essential. Always inspect the hot wire and ground wire for signs of fraying or cracked insulation. Because trailers vibrate significantly during transport, connections can loosen over time; a quick monthly check with a wrench can save you from a breakdown at the job site.
When purchasing replacement parts, prioritize quality components. A high-quality solenoid with heavy-duty internal contacts will last significantly longer than “bargain” versions. Furthermore, ensure your battery is kept on a tender during the off-season. A lead-acid battery that sits discharged for months will lose its ability to provide the high voltage necessary to trigger the solenoid efficiently.
Finally, always keep a copy of your hydraulic dump trailer wiring diagram laminated and tucked inside the pump box. This allows for quick field repairs and ensures that anyone servicing the trailer understands the specific routing of your traveler wire and power leads. By following these best practices and using the correct diagram, you ensure that your trailer remains a reliable tool for years to come.
Step-by-Step Guide to Understanding the Hydraulic Dump Trailer Wiring Diagram: Installation Guide
Identify the battery, solenoid, and hydraulic motor positions on the trailer frame.
Locate the common terminal on the solenoid to establish the central control point.
Understand how the traveler wire connects the remote control to the solenoid coils.
Connect the hot wire from the positive battery terminal to the main solenoid stud.
Verify that the ground wire is securely fastened to a clean, unpainted spot on the frame.
Complete the process by testing the remote functions to ensure the bed raises and lowers.
Frequently Asked Questions
What is a hydraulic dump trailer wiring diagram?
A hydraulic dump trailer wiring diagram is a technical schematic that shows the electrical path from the power source to the hydraulic pump. It details the connection points for the battery, solenoid, motor, and hand controller, ensuring that the user can safely manage the flow of electricity to lift or lower the trailer bed.
How do you read a hydraulic dump trailer wiring diagram?
To read the diagram, start at the power source and follow the hot wire through the circuit breakers to the solenoid. Identify the common terminal where control wires converge and trace the path to the pump motor. Standardized symbols represent switches, grounds, and fuses, allowing for quick identification of each electrical component.
What are the parts of a hydraulic dump trailer?
The main electrical parts include a 12V deep-cycle battery, a high-amperage starter solenoid, a DC motor coupled to a hydraulic pump, and a remote pendant. The system also relies on a traveler wire to send signals from the remote, a circuit breaker for safety, and heavy-duty cables for ground and power.
Why is the common terminal important?
The common terminal acts as the central junction for electrical distribution within the hydraulic system. It typically connects the main power source to the control switches. By correctly identifying this terminal on your solenoid or switch, you ensure that the remote control can effectively toggle between the ‘up’ and ‘down’ valve functions.
What is the difference between a hot wire and a neutral wire?
In a DC dump trailer system, the hot wire carries 12V positive current to the motor. While a neutral wire is traditionally an AC term, the DC equivalent is the ground wire, which returns current to the battery. Understanding these paths is vital for preventing short circuits and ensuring the solenoid engages the motor.
How do I use a hydraulic dump trailer wiring diagram?
Use the diagram as a roadmap during initial installation or for diagnosing electrical failures. If the pump fails to engage, use the diagram to check continuity between the traveler wire and the solenoid. It helps verify that every ground wire is secure and that power is reaching the pump motor’s main terminals.
