Husqvarna Z246 Drive Belt Diagram: Routing & Layout

Finding an accurate husqvarna z246 drive belt diagram is the first step toward maintaining the performance and longevity of your zero-turn mower. The drive belt, often referred to as the transmission belt, is the critical link between the engine’s power and the hydrostatic transaxles that allow for precise movement. Because this belt is tucked away beneath the frame and seat, understanding its path through the various pulleys can be challenging without a visual guide. This article provides a comprehensive look at the drive system’s configuration, detailing every component and offering a clear layout to ensure your maintenance tasks are handled with professional precision.

Understanding the Drive Belt System Configuration

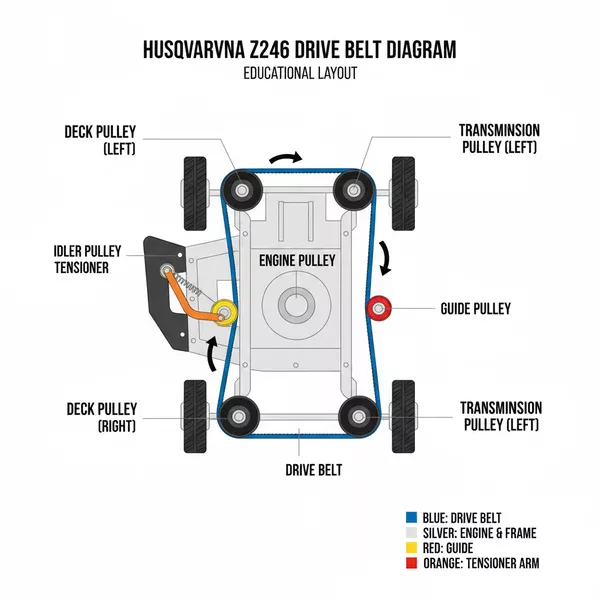

The husqvarna z246 drive belt diagram illustrates a sophisticated loop that travels from the engine’s crankshaft to the two independent hydrostatic transmissions located at the rear of the machine. Unlike the mower deck belt, which is responsible for spinning the blades, the drive belt stays under constant tension to provide immediate throttle response. The system structure is built around four primary types of pulleys: the drive pulley (engine), the transmission pulleys (left and right), the stationary idler pulleys, and the tensioner idler pulley.

In a standard Z246 layout, the belt originates at the electric clutch/stack pulley assembly attached to the bottom of the engine. From there, it extends backward toward the rear wheels. The belt must pass through a series of “guides” or “fingers” designed to keep the belt from jumping off during high-torque maneuvers. The configuration uses a “V” and “Flat” side logic; the V-side of the belt always sits within the grooves of the drive and transmission pulleys, while the flat backside of the belt typically runs against the flat idler pulleys.

One of the most important aspects of the diagram is the tensioner arm. This component is spring-loaded and maintains the necessary friction to prevent slippage. When you look at the system from above (with the seat and floor pan removed), you will notice the belt forms a distinctive “Y” or “T” shape as it splits from the single engine pulley to reach the two separate hydro pumps. Understanding this specific geometry is essential because routing the belt on the wrong side of an idler can lead to immediate belt failure or even damage to the transmission cooling fans.

How to Use the Husqvarna Z246 Drive Belt Diagram for Installation

Reading a husqvarna z246 drive belt diagram requires a systematic approach to ensure every component is aligned correctly. If you are replacing a snapped belt or installing a new one for seasonal maintenance, follow these detailed steps to navigate the mower’s internal structure.

• 1. Preparation and Safety: Park the mower on a level surface, engage the parking brake, and remove the ignition key. Most importantly, disconnect the spark plug wires to prevent accidental engine starts while your hands are near the pulleys.
• 2. Accessing the System: To see the belt path clearly, you should remove the mower deck entirely. While it is possible to “fish” the belt through with the deck in the lowest position, removing the deck provides the visibility needed to ensure the belt is inside all belt keepers.
• 3. Releasing Tension: Locate the idler arm pulley. Using a long-handled socket wrench or a breaker bar on the center bolt of the idler pulley, rotate the arm against the spring pressure. This creates the slack necessary to remove the old belt or loop the new one.
• 4. Routing the Rear Section: Start at the rear of the machine. Loop the belt around the two transmission pulleys located on top of the Hydro-Gear units. Ensure the “V” side of the belt is seated deep in the pulley grooves. Be careful not to damage the plastic cooling fans located on top of these units.
• 5. Navigating the Idlers: Referencing your diagram, thread the belt through the central idler pulleys. One will be a flat pulley (pressing against the back of the belt), and the other may be a V-idler. Ensure the belt stays inside the metal “fingers” or belt guides that are bolted to the chassis.
• 6. Connecting to the Engine: Finally, wrap the belt around the top groove of the engine pulley (the stack pulley). This is usually the hardest part as the belt is at its tightest here. Once seated, slowly release the tensioner arm to take up the slack.
• 7. Final Inspection: Before starting the engine, rotate the belt by hand (if possible) or visually trace the path one more time against the diagram. Check that the belt is not pinched between a guide and a pulley.

Common Issues & Troubleshooting

Even with a perfect husqvarna z246 drive belt diagram, issues can arise due to wear and tear or environmental factors. One frequent problem is belt slippage, which often manifests as a loss of power when climbing hills or a delay when moving the control levers. This is usually caused by a stretched belt or a weakened tensioner spring. If you notice the belt frequently jumping off the pulleys, check the alignment of the idler pulleys; a bent mounting bracket can throw the belt out of the required plane.

Another warning sign is a high-pitched squealing noise. While this can indicate a glazed belt, it often points to a seized bearing in one of the idler pulleys. Use your diagram to locate each idler and spin them by hand while the belt is off; they should spin freely and silently. If a pulley feels “crunchy” or wobbles, it must be replaced to prevent it from melting the belt through friction heat.

Tips & Best Practices for Drive Belt Longevity

To get the most out of your mower’s drive system, follow these pro-level maintenance recommendations. Prevention is always more cost-effective than emergency repairs in the middle of a mowing session.

First, always opt for high-quality, OEM (Original Equipment Manufacturer) belts. While generic belts of the same length are available, they often lack the aramid cord reinforcement required to handle the specific torque curves of the Husqvarna Z246. A genuine belt is designed to withstand the heat generated by the enclosed engine compartment.

Second, inspect your pulleys for “cupping.” Over hundreds of hours, the metal pulleys can wear into a concave shape, which pinches the belt and causes it to fray prematurely. If the edges of your pulleys feel sharp or the center of the groove is significantly deeper than the edges, it is time for a component refresh.

Finally, keep your husqvarna z246 drive belt diagram handy by printing it out and taping it to the underside of the seat or inside your shed. Having the layout immediately available during a breakdown can save you hours of frustration. Regular inspection—roughly every 25 operating hours—will help you spot cracks or fraying before the belt snaps, allowing you to perform a controlled replacement on your own schedule. By maintaining the integrity of this system, you ensure your Z246 remains the efficient, powerful machine it was designed to be.
