Husqvarna 450 Rancher Parts Diagram: Repair Guide
A Husqvarna 450 Rancher parts diagram provides a visual breakdown of the chainsaw’s internal structure and system configuration. It helps owners identify specific components like the carburetor, clutch assembly, and piston layout, ensuring accurate part replacement and efficient maintenance for optimal engine performance and safety during repair or operation.
📌 Key Takeaways
- Visually maps the entire chainsaw assembly for easy repair.
- Identify the carburetor and ignition system layout quickly.
- Always cross-reference part numbers with your serial number.
- Use the diagram to organize fasteners during disassembly.
- Consult this guide during scheduled maintenance or engine overhauls.
When you are tasked with maintaining or repairing a high-performance chainsaw, having a reliable reference point is the difference between a successful fix and a pile of unusable metal. The husqvarna 450 rancher parts diagram is an indispensable tool for homeowners and professionals alike, providing a visual roadmap of the machine’s intricate internal workings. Whether you are replacing a worn-out sprocket or rebuilding the carburetor, understanding the specific layout of your saw ensures that every screw, spring, and gasket returns to its rightful place. In this comprehensive guide, we will explore the various systems within the saw, how to interpret technical schematics, and the best practices for sourcing replacement components to keep your equipment running at peak efficiency.
Understanding the 450 Rancher Component Layout
The husqvarna 450 rancher parts diagram is typically presented as an “exploded view.” This means the saw is visually disassembled in the drawing, with lines indicating how individual parts relate to one another within a specific system. The overall structure of the saw is divided into several primary groups: the engine (cylinder and crankcase), the fuel and air intake system, the ignition system, the cooling system, and the cutting equipment. By studying the configuration, you can see how the X-Torq engine technology is integrated into the chassis to reduce emissions and improve fuel economy.
Each component in the diagram is assigned a reference number that corresponds to a master parts list. This list provides the official manufacturer part number, which is vital for ensuring compatibility. For instance, the air filter system is a critical sub-assembly shown in the diagram; it illustrates the relationship between the filter cover, the felt or nylon filter element, and the air intake manifold. Similarly, the clutch and oil pump layout shows how the centrifugal clutch engages the sprocket to drive the chain, while simultaneously powering the automatic oiler. Understanding this mechanical relationship helps you identify which parts may be failing when the chain stops spinning or the bar runs dry.
Most diagrams for this model are organized by “plates.” You will find separate pages for the ‘Crankcase,’ ‘Crankshaft,’ ‘Muffler,’ and ‘Handle Frame.’ Always ensure you are looking at the plate that matches the specific area of the saw you are servicing to avoid confusion between similar-looking screws or fasteners.
Step-by-Step Guide to Using the Diagram for Repairs
Navigating a technical drawing can be daunting for beginners. However, by following a systematic approach, you can use the husqvarna 450 rancher parts diagram to perform complex repairs with confidence. Before you begin, gather the necessary tools: a T27 Torx wrench (the standard for most Husqvarna fasteners), a flat-head screwdriver, a spark plug wrench, and a clean workspace with small containers to hold your hardware.
- ✓ Step 1: Identify the Symptom and System – Determine which part of the saw is malfunctioning. If the saw won’t start, focus on the ‘Ignition’ or ‘Fuel System’ plates. If it cuts poorly, look at the ‘Clutch’ and ‘Chain Brake’ diagrams.
- ✓ Step 2: Locate the Part Number – Find the component on the exploded view. Trace the line from the part to its reference number. Look up that number in the legend to find the 9-digit Husqvarna part number.
- ✓ Step 3: Verify the Serial Number – Check the metal tag on your saw’s crankcase. Manufacturers sometimes update the internal configuration during a production run. Ensure the diagram version matches your saw’s build date or serial range.
- ✓ Step 4: Prepare the Disassembly Path – Use the diagram to see what must be removed first. For example, to reach the carburetor, the diagram will show that the top cylinder cover and the air filter must be removed in sequence.
- ✓ Step 5: Document the Process – As you remove components, lay them out in the order they appear in the diagram. This “physical schematic” helps during reassembly.
- ✓ Step 6: Inspect Related Components – While the saw is open, use the diagram to identify gaskets or O-rings that are adjacent to your repair area. If they appear flattened or brittle, replace them now to prevent future leaks.
- ✓ Step 7: Reassemble and Test – Reverse your steps. Ensure all fasteners are tightened to the specifications if you have a torque wrench available. Refer back to the diagram to ensure no “leftover” parts remain.
Never attempt to service the ignition system or the engine while the spark plug wire is connected. Always remove the boot from the spark plug to prevent accidental starting during your inspection or repair process.
Common Troubleshooting with the Parts Diagram
When your 450 Rancher begins to lose power or stalls, the parts diagram acts as a diagnostic aid. One of the most common issues involves the fuel delivery system. By looking at the ‘Carburetor’ and ‘Fuel Tank’ layouts, you can identify the location of the fuel filter, the venting hose, and the primer bulb. If the saw is “starving” for fuel, the diagram shows the path from the tank, through the fuel line, and into the carburetor, allowing you to check each junction for cracks or blockages.
Another frequent problem is a failure in the chain oiling system. The diagram illustrates the drive gear located behind the clutch drum. If this plastic gear is stripped, the oil pump will not engage. By referencing the ‘Oil Pump’ configuration, you can see how the gear interfaces with the pump piston. This visual clarity prevents you from mistakenly replacing the entire pump when only a small plastic gear is at fault. Additionally, the diagram identifies the location of the spark arrestor screen within the muffler—a part that frequently clogs with carbon and causes the engine to bog down.
If you find your saw is leaking bar oil during storage, use the diagram to locate the oil tank vent. A clogged vent can cause pressure build-up, forcing oil out through the pump even when the saw is not in use.
Best Practices for Maintenance and Component Longevity
To maximize the lifespan of your Husqvarna 450 Rancher, regular maintenance is mandatory. Using the husqvarna 450 rancher parts diagram to identify wear items allows you to perform “predictive maintenance.” Items such as the sprocket, air filter, and spark plug are considered consumables and should be inspected every ten hours of operation.
When sourcing parts, always prioritize Original Equipment Manufacturer (OEM) components. While aftermarket parts may be cheaper, the precision-engineered structure of the 450 Rancher relies on exact tolerances. For example, an OEM piston ring is designed to work perfectly with the cylinder’s Nikasil coating; a substandard aftermarket ring may cause premature cylinder scoring. Using the diagram to find the exact part number ensures that the replacement you buy fits the specific system requirements of your saw.
Keep your saw clean. Dirt and sawdust can build up in the cooling fins of the cylinder, leading to overheating. Use the ‘Starter Cover’ diagram to see how to remove the housing and access the flywheel. The fins on the flywheel act as a fan, and if they are clogged, the engine cannot dissipate heat. Periodic cleaning of these areas, guided by the diagram’s layout, will prevent catastrophic engine failure. Finally, always use fresh, high-quality fuel with a stabilizer to prevent the small passages in the carburetor (shown in the fuel system diagram) from becoming gummed up with ethanol deposits. By treating the parts diagram as a constant companion in your workshop, you ensure that your 450 Rancher remains a powerful and reliable partner for all your land-clearing and wood-cutting needs.
Frequently Asked Questions
What is Husqvarna 450 Rancher parts diagram?
A Husqvarna 450 Rancher parts diagram is a detailed schematic that illustrates the internal structure and configuration of the chainsaw. It serves as a visual guide for every component, from the engine cylinder to the chain brake mechanism, allowing users to identify part names and their exact positions.
How do you read Husqvarna 450 Rancher parts diagram?
To read the diagram, look for the exploded view showing the layout of interconnected parts. Each component is typically labeled with a reference number that corresponds to a part list. Follow the lines to see how the system fits together, ensuring you understand the assembly sequence for repairs.
What are the parts of Husqvarna 450 Rancher?
The main parts include the X-Torq engine, carburetor, air filter, spark plug, and flywheel. External components consist of the guide bar, saw chain, front handle, and throttle trigger. The diagram also details the fuel system, oil pump, and the complex clutch and drive sprocket assembly.

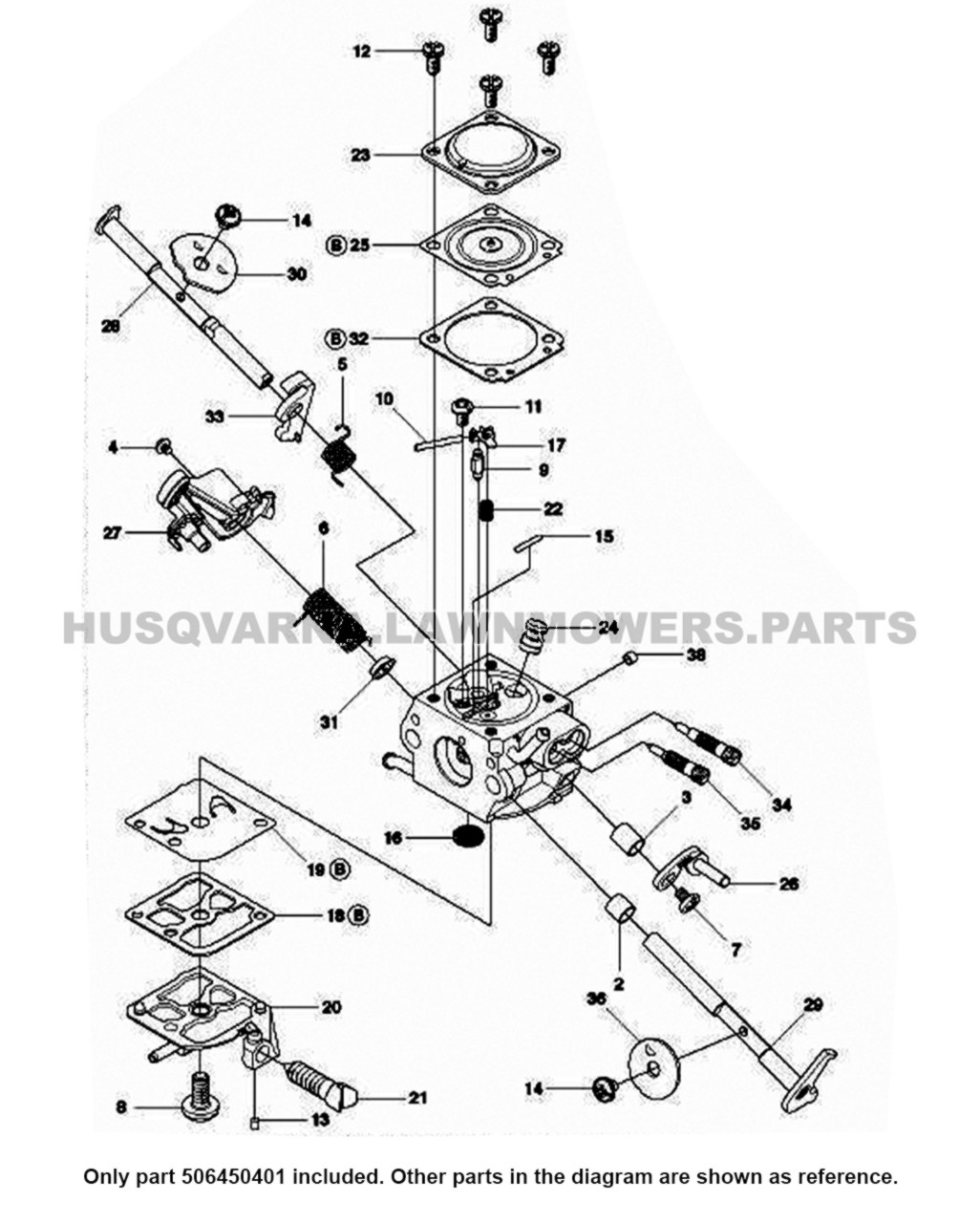

Why is the carburetor component important?
The carburetor is a critical component because it manages the air-fuel mixture required for combustion. In the Husqvarna 450 Rancher system, proper configuration ensures the engine starts easily and runs smoothly. Referencing the diagram helps in locating adjustment screws and internal gaskets for cleaning or rebuilding the unit.
What is the difference between the 450 and 450 Rancher?
While both share a similar structure, the Rancher model often features slight variations in the configuration of the handles, fuel tank size, or chain tensioning system. Using the specific parts diagram ensures you buy components that match the Rancher designation, as some internal engine parts may differ significantly.
How do I use Husqvarna 450 Rancher parts diagram?
Use the diagram by identifying the specific system you are working on, such as the ignition or fuel delivery. Locate the broken component in the visual layout, find its reference number, and look up the official part number in the legend to ensure a correct and compatible replacement purchase.
