How to Read a Ladder Diagram: Electrical Logic Guide

If you are venturing into the world of industrial automation, HVAC systems, or electrical engineering, learning how to read a ladder diagram is an essential skill. These diagrams serve as the universal language for control circuits, allowing you to visualize how power flows through a system to trigger specific actions. Whether you are troubleshooting a malfunctioning motor or designing a new control panel, having the correct diagram is the difference between a quick fix and hours of frustration. This article will guide you through the fundamental components, the logic of the layout, and the systematic approach needed to interpret these electrical blueprints with confidence.

Understanding the Structure and Layout of a Ladder Diagram

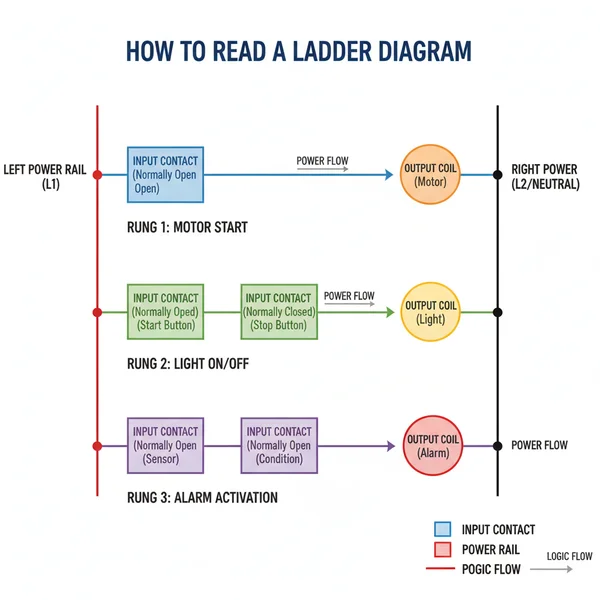

A ladder diagram is named for its distinctive appearance, which resembles a traditional ladder. It is a schematic used to represent the logic of an electrical control system. The structure is defined by two vertical lines, known as rails, and several horizontal lines, known as rungs. The vertical rails represent the power source—typically the “Hot” or L1 line on the left and the “Neutral” or L2 line on the right. In a standard configuration, electricity is visualized as flowing from the left rail, through various components on the rung, to the right rail.

Every component within the system is placed on these horizontal rungs. The layout is designed so that each rung represents a specific operation or logic statement. The left side of the rung usually contains the input devices, such as switches, sensors, or buttons. The right side of the rung is reserved for the output device, which is the load being controlled, such as a motor starter, a light, or a solenoid valve.

The configuration of these elements is crucial. If multiple components are placed in a row (series), it creates an “AND” logic gate, meaning all components must be closed for the circuit to complete. If components are placed in parallel branches, it creates an “OR” logic gate, where closing any one of the paths will activate the output. Understanding this visual shorthand allows you to quickly assess the operational requirements of the entire system.

Step-By-Step Guide: How to Read a Ladder Diagram

Interpreting a ladder diagram requires a disciplined, step-by-step approach. Unlike a standard wiring diagram that shows the physical location of wires, a ladder diagram focuses strictly on the logical sequence of operation. Follow these steps to master the process:

Step 1: Identify the Power Rails

Begin by locating the two vertical lines on the far left and right. Confirm the voltage specifications usually noted at the top of these rails. This tells you the “potential” available to the circuit. Remember that the left rail is your source of power, and the right rail is your return path.

Step 2: Read from Top to Bottom

Ladder diagrams are designed to be read sequentially. The first rung at the top of the page represents the first logical step in the system’s operation. As you move down the page, you are moving through the chronological or logical steps of the machine’s process. Always start at the top-left and work your way down.

Step 3: Trace from Left to Right

Within each individual rung, trace the path from the left rail toward the right. Look for any breaks in the line. These breaks represent “contacts” or switches. If a contact is open, power cannot pass. If the contact is closed, the “electrical current” (logically speaking) continues to the next component.

Step 4: Distinguish Between NO and NC Contacts

You must identify the state of each component. A Normally Open (NO) contact is shown as two parallel lines with a gap; it only allows power through when it is activated. A Normally Closed (NC) contact is shown with a diagonal line through the parallel lines; it allows power through by default and stops power only when it is activated.

Step 5: Identify the Load or Output

Every rung must end with a load before reaching the right rail. Look for symbols like circles or rectangles on the far right of the rung. These represent the “work” being done, such as turning on a relay coil or an indicator lamp. A rung without a load is a short circuit and is an error in the diagram.

Step 6: Look for Cross-References

In complex systems, a relay coil on one rung might control contacts on several other rungs. Check the labels (e.g., CR1, M1, R1). If you see a coil labeled “CR1” on rung 5, look for contacts labeled “CR1” on other rungs. This helps you understand how different parts of the system interact with each other.

Common Issues and Troubleshooting with Ladder Diagrams

One of the most frequent problems beginners face when learning how to read a ladder diagram is the “ghost voltage” or “feedback” issue. This occurs when power reaches a component through an unexpected parallel path. By using the diagram, you can identify all possible paths to a load and systematically isolate them to find the fault.

Another common issue is the failure of interlocking logic. In many systems, one rung is designed to prevent another rung from activating (for example, preventing a motor from running forward and backward at the same time). If a system is behaving erratically, look for NC contacts from one circuit placed in series with the other circuit. If these contacts fail or are welded shut, the safety logic collapses.

Warning signs to look for include burnt-out coils on the right side of the diagram or sensors that are “stuck” in the active position on the left. The diagram helps you solve these issues by providing a roadmap for your multimeter. You can check for voltage at each “node” or junction point shown on the rung to see exactly where the signal is being lost. If you find voltage on the left side of a closed switch but not on the right, you have found your broken component.

Tips and Best Practices for Implementation

To become proficient in interpreting these systems, consistency is key. Always keep a printed or digital copy of the ladder diagram near the control cabinet. Having a clean, legible version of the diagram prevents errors caused by misreading smudged symbols or faded lines.

For maintenance and long-term reliability, follow these best practices:

• ✓ Verify Wire Numbers: Most professional ladder diagrams include wire numbers at every junction. Ensure the numbers on the physical wires match the numbers on the diagram exactly.
• ✓ Document Changes: If you modify a circuit, immediately update the ladder diagram. An outdated diagram is more dangerous than no diagram at all.
• ✓ Check Symbol Standards: Different industries may use slightly different symbols (NEMA vs. IEC). Always check the legend at the beginning of the documentation to confirm what each component symbol represents.
• ✓ Quality Components: When replacing parts identified through the diagram, use high-quality, rated components that match the specifications (voltage and amperage) noted on the layout.

In summary, mastering how to read a ladder diagram is about understanding the relationship between inputs on the left and outputs on the right. By following the top-to-bottom, left-to-right flow, you can deconstruct even the most complex industrial systems into manageable logical steps. This skill not only makes you a better technician but also ensures the safety and efficiency of the electrical systems you maintain. With practice, the configuration of rungs and rails will become second nature, allowing you to “see” the electricity moving through the system before you even open the control panel.
