Ford Ranger Starter Wiring Diagram: Troubleshooting Guide
The Ford Ranger starter wiring diagram illustrates the circuit connecting the battery, ignition switch, and starter solenoid. A heavy-gauge hot wire runs from the battery to the common terminal, while a traveler wire delivers the ignition signal. Proper grounding via the ground wire ensures the circuit completes for reliable engine cranking.
📌 Key Takeaways
- Identifies the connection between the ignition switch and the solenoid
- Highlights the importance of the high-current battery cable path
- Ensures the neutral safety switch is correctly integrated into the circuit
- Helps locate the specific fuse and relay points for the starting system
- Used for diagnosing no-click or slow-crank conditions in the engine
Understanding the electrical architecture of your vehicle is the first step toward master-level DIY maintenance. If you are staring at a truck that refuses to turn over, a ford ranger starter wiring diagram is the most valuable tool in your arsenal. This comprehensive guide is designed to take the mystery out of the Ford Ranger’s starting system, providing you with a clear roadmap of how electricity moves from your battery to the starter motor. You will learn to identify key components, understand the relationship between high-current and low-current circuits, and discover how to troubleshoot common points of failure. Whether you are dealing with a faulty solenoid or a degraded ground wire, this article provides the technical depth and practical steps needed to get your engine roaring back to life.
Understanding the Ford Ranger Starter Wiring Diagram Components
The ford ranger starter wiring diagram is a schematic representation of a DC series circuit designed to handle massive amounts of current. At its core, the system is split into two distinct sections: the control circuit and the power circuit. The power circuit is characterized by heavy-gauge cables capable of carrying the high amperage required to physically rotate the engine’s flywheel. This starts with the hot wire, a thick red cable usually of 4-gauge or 2-gauge thickness, which connects the positive battery terminal directly to the common terminal on the starter solenoid.
The control circuit, on the other hand, operates with much lower current. This part of the diagram includes the ignition switch and the neutral wire circuit, which involves the Neutral Safety Switch (for automatics) or the Clutch Pedal Position sensor (for manuals). A critical component here is what we can refer to as the traveler wire—the signal wire that “travels” from the ignition relay to the “S” terminal on the starter solenoid. When you turn your key to the “Start” position, voltage is sent through this traveler wire to energize the solenoid’s internal electromagnetic coil.
On many Ford Ranger models, the starter solenoid is mounted directly on top of the starter motor. However, on older versions, you may find a separate starter relay mounted on the fender well. Always check your specific model year’s layout, as the “common terminal” locations can shift between the fender and the motor itself.
The diagram also highlights the ground wire system. Unlike the hot wire, which is insulated and protected, the ground path often relies on the physical connection between the starter motor housing and the engine block. A secondary ground wire typically runs from the engine block back to the negative battery terminal to complete the loop. Visually, the diagram will show these connections using specific symbols: a zig-zag line for fuses, a circle for the motor, and a T-shaped symbol for ground points. Identifying the brass screw or threaded stud on the solenoid is essential, as this is where the signal wire attaches to initiate the starting sequence.

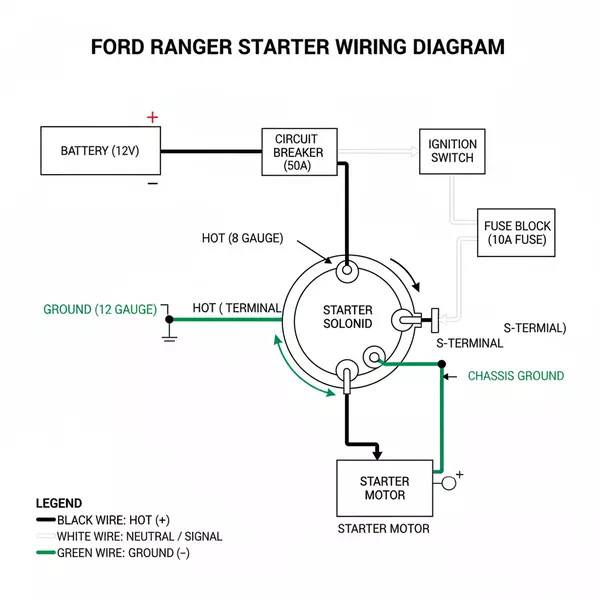

[AI-GENERATED DIAGRAM: A high-resolution wiring schematic showing a 12V Battery connected via a thick red ‘Hot Wire’ to a Starter Solenoid. The Solenoid shows a ‘Common Terminal’ for battery input and a ‘Brass Screw’ S-terminal for the ‘Traveler Wire’ coming from the Ignition Switch. A ‘Neutral Wire’ path is shown through a Neutral Safety Switch. A thick black ‘Ground Wire’ connects the Starter Body to the Battery Negative.]
Step-by-Step Guide to Interpreting and Using the Diagram
Reading a ford ranger starter wiring diagram might seem intimidating at first, but it becomes simple when you break it down into logical steps. Follow this guide to interpret the schematic and apply it to your vehicle’s physical hardware.
1. Identify the Power Source and Gauge
Start at the battery symbol on your diagram. Note the “hot wire” (positive cable). In your truck, this is the thickest cable in the engine bay. The diagram will often specify the gauge of the wire. A lower gauge number means a thicker wire. If your diagram specifies 4-gauge but you see a thin 10-gauge wire has been substituted by a previous owner, you have found a potential cause for slow cranking.
2. Trace the Signal Path (The Traveler Wire)
Locate the ignition switch on the schematic. Follow the line extending from the “Start” position. This traveler wire usually passes through a fuse (often in the interior fuse box) and then moves toward the Neutral Safety Switch. The diagram shows that if this switch is open (meaning the truck is in Drive or the clutch is out), the voltage will never reach the starter. Ensure your gear shifter is firmly in Park or Neutral when testing this path.
3. Locate the Solenoid Junctions
On the diagram, the starter solenoid will have at least three connection points. The large “common terminal” receives the main battery cable. The smaller terminal, often a brass screw or a spade connector, receives the traveler wire signal. Finally, there is an output strap that goes into the starter motor itself. Use your multimeter to check for 12V at the common terminal constantly, and 12V at the signal terminal only when the key is turned.
Always disconnect the negative battery cable before working directly on the starter terminals. The “hot wire” is unfused and connected directly to the battery; if your wrench touches both the brass screw and the frame simultaneously, it will create a massive short circuit and potentially cause a fire or battery explosion.
4. Verify the Ground Path
Look for the ground symbol on the diagram. In a Ford Ranger, the starter is grounded through its mounting bolts. If there is oil, rust, or debris between the starter motor and the engine block, the circuit will be “high resistance.” This means even if you have perfect voltage on the hot wire, the starter won’t have the “push” to turn the engine.
5. Test the Neutral Wire Circuit
If your diagram shows a neutral wire or safety switch, this is a common point of failure. Use a jumper wire (for testing only) to bypass this switch as shown in the diagram. If the truck starts when the switch is bypassed, you know the switch needs adjustment or replacement.
- ✓ Multimeter (Digital is preferred for accuracy)
- ✓ Wire brush for cleaning terminals
- ✓ Socket set (standard and metric for Ford models)
- ✓ Safety glasses and work gloves
Common Issues & Troubleshooting
When a Ford Ranger fails to start, the ford ranger starter wiring diagram helps you isolate the problem through a process of elimination. One of the most frequent issues is the “single click” or “rapid clicking” sound. A single click usually indicates that the traveler wire has successfully delivered voltage to the solenoid, and the solenoid has engaged, but there isn’t enough voltage at the common terminal to turn the motor. This points to a weak battery or a corroded hot wire.
Rapid clicking, conversely, often suggests a bad ground wire connection. The solenoid engages, but the massive draw of the motor causes the system voltage to drop instantly, causing the solenoid to disengage, only for the cycle to repeat.
If there is no sound at all, the diagram points you toward the control circuit. You should check the neutral wire connections and the ignition fuse. Use your multimeter to check for voltage at the brass screw on the solenoid while a helper turns the key. If you see 12V there but the starter is silent, the solenoid itself has failed internally. If you see 0V, the break in the circuit is further “upstream” in the traveler wire or the neutral safety switch.
Tips & Best Practices for Starter Maintenance
To ensure your Ford Ranger remains reliable, preventative maintenance of the wiring system is essential. High heat and vibration are the primary enemies of automotive electrical systems. Over time, the constant heating and cooling of the engine bay can cause the insulation on the hot wire to become brittle and crack, leading to parasitic draws or shorts.
Apply a thin layer of dielectric grease to the solenoid terminals and the brass screw after cleaning them. This prevents moisture from causing oxidation, which is the leading cause of “ghost” starting issues in damp climates.
When replacing components, always match the original wire gauge. If you are upgrading to a high-torque starter, you may even want to increase the gauge size of the hot wire and ground wire to accommodate the higher current demand. Always ensure that the common terminal nut is torqued to specification; a loose nut can create an arc, which will melt the solenoid cap and leave you stranded.
Finally, keep an eye on your battery terminals. A ford ranger starter wiring diagram assumes a healthy 12.6V source. If your battery terminals are covered in white or green powder, the voltage drop across that resistance can be significant. Regular cleaning with a mixture of baking soda and water can prevent these issues. By following the ford ranger starter wiring diagram and maintaining these connections, you ensure that your truck starts reliably every time you turn the key. Using quality components and paying attention to the details of the ground wire path will save you time and money on professional repairs in the long run.
Frequently Asked Questions
What is Ford Ranger starter wiring diagram?
A Ford Ranger starter wiring diagram is a visual schematic showing how electricity flows from the battery to the starter motor. It details the connection between the ignition switch, starter relay, and solenoid. Understanding this layout is essential for diagnosing why a vehicle won’t crank or identifying failed electrical components.
How do you read Ford Ranger starter wiring diagram?
To read the diagram, start at the battery and follow the thick hot wire to the starter’s common terminal. Look for the smaller traveler wire that triggers the solenoid when the key is turned. Identify ground wire symbols to ensure the return path to the chassis is clearly established.
What are the parts of Ford Ranger starter wiring?
The primary parts include the battery, the starter motor, and the solenoid. The circuit also features an ignition switch, a starter relay, and a neutral safety switch. Wiring includes a heavy-duty hot wire for power, a ground wire for the return, and a traveler wire for the start signal.
Why is the common terminal important?
The common terminal on the starter solenoid is the primary junction where the high-voltage battery cable connects. It serves as the main power entry point. If this terminal is corroded or loose, the starter won’t receive enough amperage to turn the engine, even if the other wires work.
What is the difference between the hot wire and traveler wire?
The hot wire is a thick cable providing constant high-amperage battery power directly to the starter. The traveler wire is a smaller gauge wire that only carries a signal when the ignition key is turned to ‘start.’ This signal tells the solenoid to engage the starter motor and crank.
How do I use Ford Ranger starter wiring diagram?
Use the diagram to perform continuity tests with a multimeter. Check for voltage at the traveler wire when the key is turned. If power exists there but the starter doesn’t engage, the diagram helps you verify that the ground wire and main hot wire connections are making contact.
