Electric Fuel Pump Wiring Diagram: Installation Guide
An electric fuel pump wiring diagram illustrates the electrical path from the battery to the pump motor. It details how the hot wire provides power through a relay and fuse, while the ground wire completes the circuit. This schematic is vital for troubleshooting power loss or installing aftermarket fuel systems.
📌 Key Takeaways
- Provides a visual roadmap of the fuel system’s electrical circuit
- Identify the relay to understand how power is switched to the pump
- Always ensure a dedicated fuse is present to prevent electrical fires
- Use thick gauge wire for the power feed to avoid voltage drops
- Essential for diagnosing why a pump fails to prime during ignition
Finding an accurate and easy-to-follow electric fuel pump wiring diagram is the most critical step in ensuring your vehicle’s fuel system operates safely and efficiently. Whether you are upgrading to a high-performance aftermarket pump or replacing a faulty factory unit, understanding how electricity flows from your battery to the pump is essential for preventing common issues like voltage drops or electrical fires. This guide provides a comprehensive breakdown of the wiring process, explaining how to interpret the diagram, choose the correct wire gauge, and establish secure connections. By the end of this article, you will have a professional-grade understanding of how to wire an electric fuel pump using a relay system for maximum reliability.
Understanding the Electric Fuel Pump Wiring Diagram
An electric fuel pump wiring diagram serves as a blueprint for the electrical current’s journey. At its core, the diagram illustrates a circuit that includes a power source (battery), a protection device (fuse), a switching mechanism (relay), and the load (the fuel pump). Unlike simple accessories, a fuel pump requires a consistent flow of high-amperage current, which is why a direct connection to a toggle switch is rarely recommended. Instead, the diagram focuses on a relay-driven circuit.
The central component of the diagram is the 4-pin or 5-pin automotive relay. This device allows a low-current signal—often from your ignition switch or ECU—to trigger a high-current path directly from the battery to the pump. In the diagram, you will notice specific terminal numbers, typically following the Bosch standard: 30, 85, 86, and 87.
Most fuel pump failures are not caused by the pump itself, but by poor wiring. Using a relay ensures that the pump receives the full 12V to 14V required for optimal fuel pressure.
The visual breakdown of a standard diagram usually includes:
- ✓ The Hot Wire (Pin 30): This is the constant 12V feed from the battery. It must be protected by an inline fuse placed as close to the battery as possible.
- ✓ The Switch/Trigger Wire (Pin 86): This wire “travels” from the ignition source to the relay. When you turn the key, it energizes the internal coil.
- ✓ The Ground Wire (Pin 85 and Pump Ground): These complete the circuit. A poor ground is the leading cause of pump noise and overheating.
- ✓ The Output Wire (Pin 87): This sends the high-current power directly to the positive terminal of the fuel pump.
While variations exist—such as dual-pump setups or systems utilizing an oil pressure safety switch—the fundamental logic remains the same. Modern diagrams also emphasize wire color-coding, often using red for hot wires and black for ground wires to simplify installation and future maintenance.

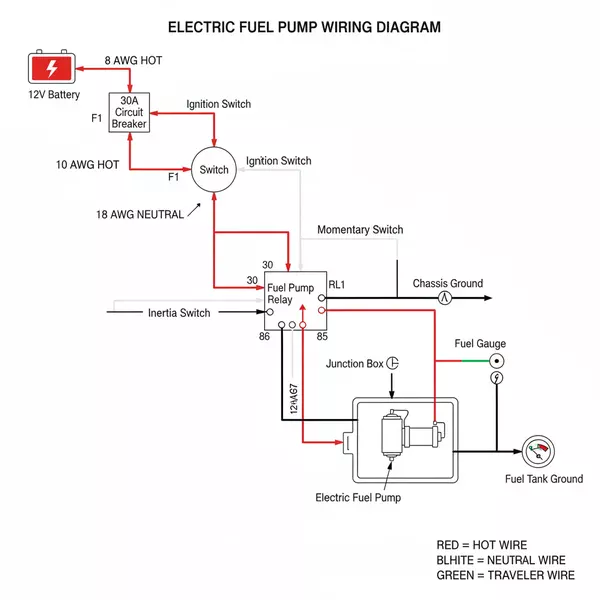

[DIAGRAM_PLACEHOLDER: A professional wiring schematic showing a 12V Battery connected to an inline fuse, leading to Pin 30 of a 4-pin relay. Pin 86 is connected to the ignition switch. Pin 85 is grounded to the chassis. Pin 87 connects to the positive terminal of the Electric Fuel Pump. The pump’s negative terminal is grounded to the chassis.]
Step-By-Step Installation Guide
Properly executing an electric fuel pump wiring diagram requires patience and the right tools. Follow these steps to ensure a safe and long-lasting installation.
Required Tools and Materials
Before beginning, gather a high-quality wire stripper, a terminal crimping tool, a digital multimeter, and heat-shrink tubing. You will need a 30-amp or 40-amp automotive relay and a matching socket. Pay close attention to the wire gauge; for most high-flow pumps, 10-gauge or 12-gauge wire is necessary for the main power lines to prevent voltage drops over long distances. For the trigger and ground wires for the relay coil, 16-gauge or 18-gauge wire is usually sufficient.
Step 1: Mount the Relay and Fuse
Select a dry location, preferably in the engine bay or under the dashboard, to mount your relay. It should be easily accessible for troubleshooting. Mount the inline fuse holder within 12 inches of the battery’s positive terminal. This protects the entire length of the hot wire from a potential short circuit.
Step 2: Connect the Constant Power (Hot Wire)
Run a 10-gauge red wire from the battery to the fuse, and then from the fuse to the common terminal (Pin 30) on your relay. Use a ring terminal for the battery connection. If your relay uses a screw-type terminal block, ensure the wire is wrapped securely around the brass screw before tightening.
Step 3: Establish the Relay Ground
Connect Pin 85 of the relay to a clean, unpainted spot on the vehicle chassis. This acts as the return path for the small amount of current needed to click the relay shut. While automotive systems don’t use a “neutral wire” in the traditional AC sense, the ground wire fulfills this role by providing the necessary return path to the battery’s negative terminal.
Step 4: Connect the Trigger (Traveler Wire)
Identify a wire that only receives power when the ignition is in the “On” or “Start” position. Connect this to Pin 86. This wire functions like a traveler wire in a multi-way switch setup, carrying the signal to the relay to activate the pump. If you are using a manual override switch, this is where that switch would be integrated.
Never wire a fuel pump to a “constant on” source. In the event of an accident where the engine stalls, the pump must stop to prevent spraying fuel. Use an ignition-switched source or an ECU-controlled trigger.
Step 5: Connect the Pump Power
Run a wire from Pin 87 of the relay to the positive (+) terminal of the electric fuel pump. Ensure this wire is routed away from hot exhaust components or moving suspension parts. Use protective plastic looming to prevent the insulation from chafing against metal edges.
Step 6: Ground the Fuel Pump
The pump requires a heavy-duty ground to handle the amperage load. Connect the negative (-) terminal of the pump to the frame or chassis using a short length of 10-gauge wire. Scrape away any paint or rust to ensure a metal-on-metal connection. A poor ground here will significantly reduce the pump’s lifespan and output.
Step 7: Testing the Circuit
Before starting the engine, use your multimeter to check the voltage at the pump. With the ignition on, you should see approximately the same voltage as your battery (around 12.6V to 13.5V). If you see a significant drop, check the quality of your crimps and the gauge of your wires.
Common Issues & Troubleshooting
Even with a perfect electric fuel pump wiring diagram, issues can arise during the installation or after years of use. One of the most common problems is a “no-start” condition caused by a blown fuse or a failed relay. If you hear the relay clicking but the pump isn’t running, the problem is likely on the high-current side of the circuit (Pin 30 or Pin 87).
If the pump runs but sounds strained or changes pitch, you are likely experiencing a voltage drop. This often happens when the wire gauge is too thin for the length of the run. For example, if your pump is in the rear of a long truck and you used 16-gauge wire for the power feed, the resistance will lower the voltage reaching the pump, causing it to run slow and hot.
Always use a multimeter to check for continuity between the pump’s ground wire and the battery’s negative terminal. A resistance reading higher than 0.2 ohms indicates a weak ground that needs to be cleaned or relocated.
Another frequent issue is heat soak in the relay. If the pump stops working after the car has been running for a while, the relay might be overheating. Ensure the relay is mounted in a well-ventilated area and is rated for at least 10 amps more than the pump’s maximum draw.
Tips & Best Practices for Wiring Success
To achieve a professional-level result, focus on the details of the assembly. When making connections, avoid using cheap “T-taps” or “scotch locks.” These connectors are notorious for failing in automotive environments due to vibration and moisture. Instead, use heat-shrink butt connectors or solder your joints and cover them with dual-wall heat shrink.
Maintenance is also a key factor. Every year, inspect your wiring for signs of heat. If the plastic housing around the relay pins looks melted or discolored, it indicates a high-resistance connection that needs to be replaced. Ensure the brass screw terminals on any switches remain tight, as vibration can loosen them over time.
For those looking to save costs without sacrificing quality, consider sourcing your relay and fuse holders from reputable automotive electrical suppliers rather than “universal” kits found in big-box stores. High-quality components have better internal contact materials which reduce electrical resistance.
Finally, always document your specific changes. If you deviated from the standard electric fuel pump wiring diagram to add a security kill-switch or a second pump, draw a small sketch and keep it in your glovebox. This will be invaluable for you or a mechanic in the future if a repair is needed on the side of the road. By following these structured steps and maintaining high standards for your components, your electric fuel pump will provide reliable service for years to come.
