Drive Shaft CV Joint Diagram: Component Layout and Function

When you are faced with a vibrating steering wheel or a persistent clicking sound while cornering, your vehicle is likely signaling an issue within its drivetrain. Understanding a drive shaft cv joint diagram is the first step toward a successful diagnosis and repair. This technical illustration provides a blueprint of the components that transfer power from your engine to your wheels, allowing for both suspension movement and steering angles. In this comprehensive guide, we will break down the intricate structure of the Constant Velocity (CV) system, explaining how each part functions within the overall configuration. You will learn how to interpret these diagrams for maintenance and replacement, ensuring your vehicle remains safe and efficient on the road.

The Layout and Structure of the Drive Shaft CV Joint

A comprehensive drive shaft cv joint diagram typically illustrates a dual-joint system connected by a central axle shaft. To understand the layout, one must first distinguish between the two primary types of joints found in most front-wheel-drive and all-wheel-drive vehicles: the inboard joint and the outboard joint. The inboard joint, often a tripod-style configuration, connects the drive shaft to the transmission or differential. Its primary role is to allow for the “plunging” motion required as the suspension moves up and down.

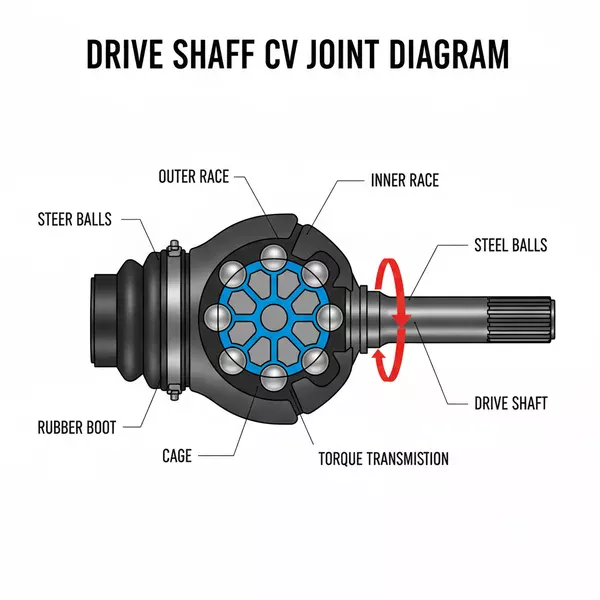

In contrast, the outboard joint—usually a Rzeppa-type fixed joint—connects the shaft to the wheel hub. This component is much more complex because it must maintain a constant velocity while the wheels are turned at sharp angles for steering. The diagram reveals a sophisticated internal structure consisting of an inner race, a cage, and high-precision steel ball bearings. These balls sit within tracks in the outer housing (or bell), held in place by the cage to ensure they bisect the angle between the input and output shafts.

The entire assembly is encased in a flexible rubber or thermoplastic “boot.” This boot is perhaps the most critical external component shown in the layout, as it holds the specialized molybdenum disulfide grease required for lubrication while keeping out contaminants like water, salt, and dirt. Retaining clamps at both ends of the boot ensure a vacuum-tight seal. When viewing a diagram, you will also notice the splined ends of the shaft, which are designed to mate perfectly with the transmission gears and the wheel hub assembly.

[DIAGRAM_PLACEHOLDER: A detailed exploded view of a CV axle assembly. On the left, the Inboard Tripod Joint showing the three rollers and the tulip housing. In the center, the long steel Drive Shaft with splines at both ends. On the right, the Outboard Rzeppa Joint showing the bell housing, ball bearings, cage, and inner race. Both ends feature rubber dust boots with large and small retaining clamps.]

Interpreting the Drive Shaft CV Joint Diagram: A Step-by-Step Guide

Reading a drive shaft cv joint diagram requires a systematic approach to ensure you understand how the system assembles and functions. Use the following steps to navigate the technical layout and apply it to your repair or inspection process.

• ✓ Step 1: Identify the Vehicle Orientation – Determine which end of the diagram represents the wheel hub (outboard) and which represents the transaxle (inboard). Look for the threaded spindle and nut at the outboard end, which is a clear indicator of the wheel side.
• ✓ Step 2: Locate the Retention Hardware – Find the snap rings, circlips, and specialized washers. These small components are often lost during disassembly but are critical for keeping the joint from sliding off the shaft under torque.
• ✓ Step 3: Analyze the Boot Configuration – Note the number of “pleats” in the boot. High-angle outboard joints usually have more pleats to allow for steering, while inboard boots might be more rigid.
• ✓ Step 4: Map the Spline Count – Many diagrams will specify the number of teeth on the splined ends. This is crucial when ordering replacement parts, as variations in spline count can exist even within the same vehicle model.
• ✓ Step 5: Review the Internal Bearing Layout – If you are rebuilding the joint, use the diagram to see how the cage and race align. The “windows” in the cage must be oriented correctly to allow the balls to move freely through their full range of motion.
• ✓ Step 6: Check Lubrication Points – The diagram will often indicate where the grease should be packed. It is not just about filling the boot; the grease must be worked into the bearing races and the cage before the boot is sealed.
• ✓ Step 7: Identify Anti-Lock Brake (ABS) Components – Look for a “tone ring” or “reluctor ring” near the outboard joint. If your vehicle has ABS, the drive shaft must include this notched ring so the wheel speed sensor can function.

To perform a proper inspection or replacement using your diagram, you will need several specialized tools. A torque wrench is non-negotiable for tightening the axle nut to the manufacturer’s exact specification. You will also likely need a CV boot clamp tool (crimping pliers), a large socket (often 30mm to 36mm) for the hub nut, and a pry bar to pop the inboard joint out of the transmission housing.

Common Issues & Troubleshooting

When a CV system begins to fail, the symptoms are usually distinct. By referencing your drive shaft cv joint diagram, you can narrow down which component is the culprit. The most frequent issue is a torn boot. Once the boot is compromised, the high-speed centrifugal force flings the grease out, allowing grit and moisture to enter the precision bearing area. This leads to accelerated wear of the cage and race.

If you hear a rhythmic “click-click-click” while making a sharp turn, the outboard joint is likely worn. The diagram shows how the balls travel through the tracks; when these tracks become pitted or grooved, the balls jump or stick, creating that signature sound. Conversely, if you feel a heavy vibration or shudder during acceleration, the inboard joint is usually the problem. This occurs when the tripod rollers wear into the “tulip” housing, creating a gap that allows the shaft to wobble under load.

A diagram helps in troubleshooting by showing you where to look for physical damage. For instance, if you see grease sprayed in a straight line across the underside of the chassis, you can trace it back to the exact location of the boot failure shown on the layout. If the vehicle feels “unbalanced” at highway speeds, inspecting the balance weights often welded to the center of the drive shaft (as seen in many diagrams) is a necessary step.

Tips & Best Practices for Maintenance

Maintaining the integrity of your drive shaft and CV joints can save you thousands of dollars in drivetrain repairs. The most effective maintenance tip is the “visual sweep.” Every time you change your oil, take a moment to inspect the boots shown on your drive shaft cv joint diagram. Look for cracks in the rubber or signs of grease leakage. Catching a small tear early allows you to perform a “boot-only” replacement, which is significantly cheaper than replacing the entire axle assembly.

When it comes to component selection, quality is paramount. While aftermarket “new” axles are popular, many professional mechanics prefer high-quality remanufactured OEM shafts. These often feature the original forged steel housing, which can be stronger than the cast versions found in budget aftermarket parts. Always ensure that the replacement kit includes new high-temperature molybdenum grease and heavy-duty stainless steel clamps.

Lastly, keep your vehicle’s ride height within factory specifications. Extreme suspension lifts or lowering kits change the operating angles of the CV joints significantly. As the diagram suggests, these joints are designed to operate within a specific range. Operating at extreme angles increases friction and heat, which will lead to premature failure of even the highest quality components. By following the visual layout of a drive shaft cv joint diagram and sticking to a regular inspection schedule, you can ensure that your vehicle’s power delivery remains smooth and reliable for years to come.
