Diagram Secondary Air Injection System: Setup and Function
A diagram secondary air injection system illustrates the mechanical layout of parts used to reduce emissions. It shows how the air pump directs fresh air through hoses and check valves into the exhaust manifold. This specific system configuration helps oxidize unburned hydrocarbons and carbon monoxide during cold engine starts.
📌 Key Takeaways
- Visually map the flow of supplemental oxygen into the exhaust stream
- Identify the secondary air pump as the central driving component
- Ensure check valves are oriented correctly to prevent exhaust backflow
- Use the layout to trace vacuum lines for potential leaks
- Consult this diagram when diagnosing P0410 or related emission codes
When you are faced with a recurring check engine light or a failed emissions test, understanding the layout of your vehicle’s emission controls becomes a top priority. Searching for a diagram secondary air injection system is the first step in demystifying one of the most misunderstood parts of modern engine management. This diagram provides a visual map of how ambient air is pressurized and routed into the exhaust stream to neutralize pollutants during the critical warm-up phase. In this guide, you will learn the precise configuration of the system, how each component interacts within the structure, and how to use a visual layout to diagnose and repair common faults.
Understanding the Main Diagram and System Structure
The diagram secondary air injection system illustrates a sophisticated pathway designed to lean out the exhaust mixture during a cold start. At the heart of the layout is the electric air pump, which serves as the primary pressure source. In a standard configuration, air is drawn from the atmospheric intake—often shared with the engine’s air filter box—and forced into a high-pressure hose. The structure of the diagram typically shows this air traveling toward one or more secondary air injection (SAI) valves. These valves act as the gatekeepers of the system, ensuring that air only flows in one direction: toward the exhaust manifold.
Most modern diagrams use a specific color-coding scheme. Blue or light gray lines represent fresh, pressurized air, while red or orange sections indicate the high-heat environment of the exhaust manifold. Electrical trigger wires from the Engine Control Module (ECM) are usually represented by thin black or dotted lines, showing the command signals that activate the pump and solenoids.
A crucial component highlighted in the diagram secondary air injection system is the check valve. This part is vital because it protects the rest of the system from the intense heat and corrosive gases of the exhaust. On V-type engines (V6 or V8), the layout will often split into two distinct banks, each with its own check valve and delivery pipe. By studying the structure, you can see that if one check valve fails, it can allow moisture and carbon to backflow into the air pump, leading to a total system failure. Identifying these variations in configuration based on your specific engine model is essential for accurate troubleshooting.

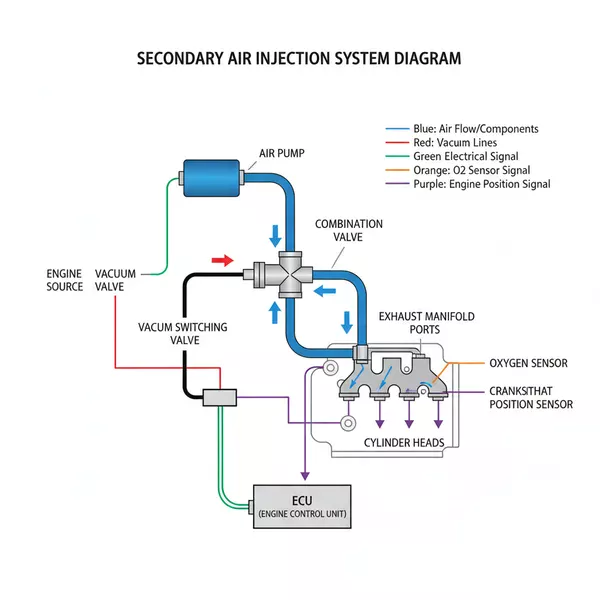

Figure 1: Generalized layout of a standard secondary air injection system configuration.
Step-by-Step Guide: How to Interpret and Use the Diagram
Using a diagram secondary air injection system effectively requires a methodical approach. Whether you are performing a routine inspection or replacing a faulty component, following these steps will ensure you understand the layout and function of each part within the system.
-
Step 1: Locate the Primary Air Source
Start by identifying the air pump on your vehicle and matching its position to the diagram secondary air injection system. The pump is typically located near the front of the engine bay, often low down or tucked behind a fender liner. Verify that the intake hose is clear of debris, as a clogged intake can starve the system of air.
-
Step 2: Trace the Delivery Hoses
Follow the hoses from the pump to the control valves. In the layout, these hoses are often thick and reinforced to handle pressure. Inspect every inch for cracks, heat damage, or loose clamps. Even a pinhole leak can trigger a “low flow” error code in the vehicle’s computer.
-
Step 3: Test the Control Solenoid
The structure of the system includes an electronic solenoid that uses vacuum or direct electric current to open the air path. Locate this component using the diagram. You can use a handheld vacuum pump or a multimeter to verify that the solenoid is receiving a signal from the ECM and responding mechanically.
-
Step 4: Inspect the One-Way Check Valves
According to the configuration, these valves sit right before the exhaust manifold. Remove them and attempt to blow air through them in both directions. Air should flow toward the exhaust but should be completely blocked in the opposite direction. If you see black carbon soot inside the hose leading to the pump, the check valve has failed.
-
Step 5: Verify Electrical Ground and Power
The diagram secondary air injection system usually includes a fuse and a relay. Locate these in your vehicle’s fuse box. A blown fuse often indicates that the air pump motor is drawing too much current, likely due to internal moisture or physical wear.
-
Step 6: Confirm Integration with Oxygen Sensors
The layout shows that the final monitoring of the system is done by the O2 sensors. When the pump turns on, the O2 sensor should read a “lean” condition (low voltage). If the sensor doesn’t see this change, the ECM assumes the system is malfunctioning.
Never attempt to test the air injection system while the engine is hot. The exhaust manifold and the metal delivery pipes can reach temperatures exceeding 400 degrees Fahrenheit. Always wait for a complete cold soak (at least 6-8 hours) before performing a physical inspection or diagnostic test.
To perform these steps, you will generally need a basic socket set, a flat-head screwdriver for hose clamps, a multimeter for electrical testing, and an OBD-II scanner to clear codes and monitor live data. Having the diagram secondary air injection system open on a tablet or printed out while you work is highly recommended.
Common Issues and Troubleshooting
When the layout of your system fails, it usually manifests as a P0410 or P0411 trouble code. These codes indicate a general malfunction or “incorrect flow” detected. By using the diagram secondary air injection system, you can pinpoint the most likely failure points.
One frequent issue is moisture accumulation. Because the configuration draws in ambient air, condensation can build up inside the pump. Over time, this water freezes in winter or corrodes the motor, causing the pump to seize. If you hear a high-pitched whining sound—similar to a jet engine—on a cold start, the pump bearings are failing.
Another common problem highlighted by the structure of the system is carbon blockage. The small ports where the air enters the exhaust manifold can become choked with carbon deposits. In this scenario, the pump and valves may work perfectly, but the air simply cannot reach the exhaust stream. The diagram helps you locate these entry points so you can clean them with a wire brush or carbon-dissolving solvent.
Tips and Best Practices for System Longevity
To keep your diagram secondary air injection system functioning efficiently, regular maintenance is key. While many mechanics suggest simply replacing every component when a code appears, a targeted approach can save significant costs.
Whenever you replace an air pump, always replace the check valves as well. A failed check valve is almost always the “root cause” that killed the pump. By replacing both, you prevent exhaust moisture from destroying your new, expensive air pump within a few months.
- ✓ Use High-Quality Components: When replacing hoses, opt for high-temp silicone versions if available. They resist the heat-cycling of the engine bay better than standard rubber.
- ✓ Check the Pump Filter: Some layout designs feature a small foam filter on the pump inlet. Clean or replace this annually to ensure maximum airflow.
- ✓ Listen for the Pump: Get into the habit of listening for the 30-to-60-second “hum” when you first start your car in the morning. If the sound disappears or changes tone, investigate immediately before it triggers a check engine light.
- ✓ Dielectric Grease: Use dielectric grease on the electrical connectors for the pump and solenoid to prevent corrosion, especially if you live in a salt-belt or high-humidity region.
The configuration of the secondary air injection system is vital for environmental compliance and smooth engine operation. By using a detailed diagram secondary air injection system to understand the structure and layout, you empower yourself to handle repairs with confidence. Whether you are identifying a faulty component or performing preventative maintenance, this visual guide ensures your vehicle stays on the road and runs cleaner for years to come.
Frequently Asked Questions
What is diagram secondary air injection system?
A diagram secondary air injection system is a visual representation of the components that pump fresh air into the exhaust. It details the physical layout and structure of the air pump, control valves, and plumbing, showing how oxygen is introduced to help burn off excess pollutants during engine startup.
How do you read diagram secondary air injection system?
To read a diagram secondary air injection system, start by identifying the air source, usually an electric or belt-driven pump. Follow the flow lines through the various valves and hoses until they reach the exhaust manifold. Pay close attention to the symbols indicating electrical connectors and vacuum line routing.
What are the parts of secondary air injection system?
The primary parts in this system configuration include the secondary air pump, air injection pipes, and one-way check valves. Additionally, the layout includes a switching valve, vacuum hoses, and electrical relays that allow the engine control module to manage the airflow timing and volume during specific engine operations.
Why is air pump component important?
The air pump component is critical because it provides the pressurized air necessary to catalyze chemical reactions in the exhaust stream. Without this component functioning correctly within the system structure, the vehicle will fail to oxidize hydrocarbons effectively, leading to increased tailpipe emissions and a persistent check engine light.
What is the difference between pump-driven and vacuum-driven?
A pump-driven system uses an electric motor to force air, while vacuum-driven configurations rely on engine vacuum to toggle control valves. Modern system structures typically use electric pumps for precise control, whereas older layouts might use belt-driven pumps or purely mechanical vacuum signals to manage the secondary air flow.
