Finding a reliable delco chevy 4 wire alternator wiring diagram is essential for anyone upgrading their classic vehicle’s charging system or maintaining a modern GM powerhouse. Whether you are performing a conversion from an older 10SI model or repairing a factory CS130 setup, understanding how these four connections interact ensures your battery stays charged and your electronics remain stable. This guide provides a comprehensive breakdown of the wiring pinouts, the role of each terminal, and the necessary steps to integrate this high-output component into your vehicle. By the end of this article, you will have a clear understanding of the delco chevy 4 wire alternator wiring diagram and the technical confidence to execute a professional installation.
The delco chevy 4 wire alternator wiring diagram typically centers around the CS (Charging System) series of alternators, most notably the CS130 and CS144 models. Unlike older three-wire systems, the four-wire configuration utilizes a specialized plug often labeled with the letters “P, L, I, S” or “S, F, L, P.” Each of these terminals serves a distinct purpose in monitoring and regulating electrical flow. The most prominent feature of the diagram is the large “B” terminal, which acts as the primary hot wire connecting the alternator directly to the battery or the starter solenoid. This terminal is usually a large brass screw or threaded post designed to handle the full amperage output of the unit.
The four pins on a Delco CS series alternator are: S (Sense), I/F (Ignition/Field), L (Lamp), and P (Phase). While not all applications use all four pins, the ‘S’ and ‘L’ pins are critical for standard vehicle operations.
In the visual layout of the diagram, the S-terminal (Sense) is often connected to a remote location, such as the main power distribution block, via a heavy-gauge wire. This allows the internal regulator to detect the actual voltage being delivered to the vehicle’s accessories, rather than just what is at the alternator post. The L-terminal (Lamp) acts as the exciter, traveling through the dashboard’s warning light to provide the initial current needed to start the charging process. The I-terminal (Ignition) can be used as a secondary turn-on source, while the P-terminal (Phase) is typically reserved for tachometer signals or external computer monitoring in specialized or heavy-duty applications.

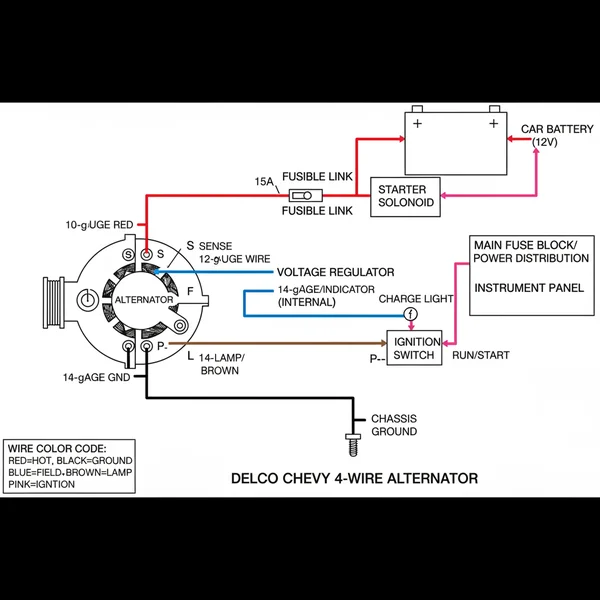

(Visual Description: A schematic showing the Delco Remy CS130 Alternator. The large rear post is labeled ‘BAT’ and connects via a 4-gauge red wire to the battery. A 4-pin weather-pack connector is shown with four wires: 1. Red (Sense) going to the junction block; 2. Brown (Lamp) going to the dash bulb; 3. White (Ignition) optional; 4. Gray (Phase) optional. The alternator housing is shown connected to the engine block as the primary ground path.)
Installing and interpreting a delco chevy 4 wire alternator wiring diagram requires a methodical approach to ensure the safety of your vehicle’s electrical system. Before beginning, ensure you have a high-quality multimeter, wire crimpers, and the correct gauge of automotive-grade wire.
- ✓ 10-gauge or 8-gauge red wire for the main battery connection
- ✓ 14-gauge brown wire for the lamp/exciter circuit
- ✓ 12-gauge wire for the remote sense terminal
- ✓ Heat-shrink tubing and insulated ring terminals
Always disconnect the negative battery terminal before working on the alternator. A direct short from the hot wire to the chassis can cause immediate battery explosion or severe electrical fires.
Step 1: Mount the Alternator
Secure the Delco alternator into the mounting brackets. Ensure that the metal-to-metal contact between the alternator housing and the engine block is clean and free of paint. This contact serves as the primary ground wire path. If your brackets are painted or powder-coated, run a dedicated ground strap from the alternator case to the frame.
Step 2: Connect the Main Battery (B) Terminal
Run a heavy-gauge hot wire from the large brass screw on the back of the alternator to the positive terminal of the battery or the starter solenoid. Using an appropriate gauge is critical; for 100-130 amp alternators, an 8-gauge wire is the minimum recommendation to prevent voltage drops and overheating.
Step 3: Wire the S-Terminal (Remote Sense)
The S-terminal is the largest wire in the 4-pin plug. Instead of looping it directly to the B-terminal, run this wire to the main power junction box or the “common terminal” where your vehicle’s fuses are located. This allows the alternator to maintain a steady 14.2 to 14.4 voltage across the entire system, compensating for any resistance in the wiring.
Step 4: Wire the L-Terminal (Exciter/Lamp)
This wire travels from the dashboard indicator light to the L-pin on the alternator plug. This is a “traveler wire” of sorts, carrying a small amount of current to “wake up” the voltage regulator. If your vehicle does not have a dashboard light, you must install a 35-ohm to 500-ohm resistor in this line to prevent burning out the regulator while still providing enough resistance to signal the unit to start charging.
Step 5: Addressing the I and P Terminals
For most standard Chevy applications, the I and P terminals remain unused. If your vehicle uses an electronic tachometer that reads from the alternator, connect the tachometer lead to the P-terminal. The I-terminal can be connected to a switched ignition source if the L-terminal is not being used to trigger the charging cycle.
Step 6: Final Testing
Reconnect the battery and start the engine. Use a multimeter to check the voltage at the battery terminals. It should read between 13.8 and 14.6 volts. If the voltage remains at the battery’s resting state (approx. 12.6V), the L-terminal is likely not receiving the “exciter” signal.
Even with a perfect delco chevy 4 wire alternator wiring diagram, issues can arise during the installation or over years of service. One of the most common problems is a “no-charge” condition caused by a blown dashboard indicator bulb. Because the L-terminal requires the resistance of that bulb to trigger the alternator, a dead bulb breaks the circuit, leaving your battery to drain while driving.
Another frequent issue is electromagnetic interference or “radio whine.” This often occurs if the ground wire connection is weak or if the wires are routed too close to spark plug leads. Ensure all connections are tight and that the alternator is properly grounded to the engine block. If you notice the lights flickering at idle, check the S-terminal connection. If the sense wire is loose or connected to a “dirty” power source, the regulator will constantly hunt for the correct voltage, causing the output to oscillate.
If you are converting from a 10SI to a CS130, use a pre-made adapter harness. These often include the necessary internal resistor for the L-terminal, saving you the hassle of soldering resistors into your factory wiring.
Warning signs of a failing 4-wire system include a glowing “Gen” or “Batt” light on the dash, a sulfuric smell (indicating overcharging), or a dimming of the headlights when the cooling fans kick on. If troubleshooting the wiring does not solve the issue, the internal voltage regulator or the diode bridge may have failed, requiring a professional bench test or unit replacement.
To get the most out of your delco chevy 4 wire alternator wiring diagram, focus on the quality of your infrastructure. Maintenance and smart component choices can prevent 90% of charging failures.
1. Use Proper Wire Gauges: Never undersize the main charging wire. While a 10-gauge wire might work for a 60-amp alternator, the high-output CS144 units can pull enough current to melt thin insulation. Always err on the side of a thicker gauge.
2. Secure Your Connections: Automotive environments are high-vibration areas. Use nylon-insert lock nuts on the brass screw of the B-terminal and ensure the 4-pin plug “clicks” firmly into place. Loose connections create heat, which increases resistance and lowers charging efficiency.
3. Remote Sensing is Key: While it is tempting to jump the S-terminal directly to the B-post to save time, you lose the primary benefit of the 4-wire system. Routing the S-terminal to the main fuse block ensures your headlights and EFI system receive consistent voltage regardless of the load.
4. Heat Management: Alternators generate significant heat, especially when charging a depleted battery. Ensure the cooling fans on the front of the pulley are clear of debris. Avoid mounting the alternator too close to exhaust headers without a heat shield.
5. Use Quality Pigtails: When wiring the 4-pin connector, use a heavy-duty pigtail with weather-proof seals. Corroded pins inside the connector are a leading cause of intermittent charging issues.
Following these best practices ensures that your delco chevy 4 wire alternator wiring diagram translates into a robust, long-lasting charging system. By correctly identifying the hot wire, managing the ground wire paths, and properly utilizing the sense and lamp terminals, you provide your vehicle with the electrical stability needed for modern driving demands. Whether you are cruising in a classic muscle car or a modified truck, this wiring configuration is the gold standard for reliable power.
