Delco 4 Wire Alternator Wiring Diagram: Easy Install Guide
A Delco 4 wire alternator wiring diagram identifies the battery output, sense, and excitation terminals. It shows where the hot wire connects to the battery and how the ground wire completes the path. Unlike residential circuits using a traveler wire or neutral wire, this system relies on a common terminal for output and case grounding.
📌 Key Takeaways
- Identifies the precise routing for battery, sense, and ignition wires
- The sense wire (Terminal 2) is the most critical for voltage regulation
- Ensure a clean ground wire connection to the alternator case to prevent failure
- Always use a fused hot wire for the excitation circuit to protect the system
- Essential for converting older vehicles to modern high-output charging systems
Navigating the complexities of an automotive charging system requires precision, and having access to an accurate delco 4 wire alternator wiring diagram is the first step toward a successful installation. Whether you are upgrading a classic muscle car, maintaining agricultural equipment, or working on a custom hot rod, understanding the flow of current within a Delco-Remy style system is essential. The diagram illustrates how the alternator interacts with the battery, the ignition switch, and the vehicle’s electrical load. By studying this layout, you will learn how to properly excite the alternator, sense system voltage accurately, and prevent common issues like parasitic battery drain or overcharging. This comprehensive guide ensures that even those new to automotive electrical work can achieve professional-grade results.
A 4-wire Delco setup typically consists of the main battery output, the remote voltage sensing wire, the ignition excitation wire, and a dedicated ground. This configuration allows for much more stable voltage regulation than simpler 1-wire alternatives.
The main diagram for a Delco 4-wire alternator, such as the popular 10SI or 12SI series, centers around the back and side of the alternator housing. Unlike modern “plug-and-play” systems, the 4-wire configuration relies on specific connections to manage the internal voltage regulator’s behavior. The most prominent component is the BAT terminal, often referred to as the common terminal for power distribution. This is usually a large threaded stud where the main hot wire connects to deliver the charging current back to the battery. In many diagrams, this is represented by a thick red line to indicate high-amperage capacity.
Adjacent to the main stud is a two-terminal plug labeled “1” and “2.” Terminal 1 is the excite circuit, which serves as the “traveler wire” from the ignition switch to the alternator’s internal field windings. Without this initial pulse of current, the alternator will not begin charging at low RPMs. Terminal 2 is the remote sensing wire, which monitors the voltage levels at a distant point in the electrical system, such as the junction block or the positive battery terminal. This ensures the alternator compensates for voltage drops caused by long wire runs. The fourth connection is the ground wire, which is frequently a dedicated bolt on the alternator case, often marked by a brass screw or a zinc-plated stud to ensure a low-resistance path to the engine block or chassis.

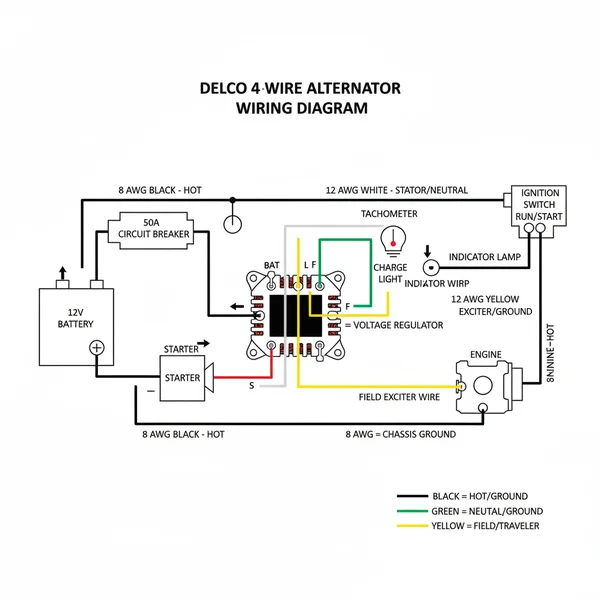

[DIAGRAM_PLACEHOLDER: A detailed technical illustration showing a Delco alternator with four labeled connections: 1. Main Output (BAT) to Battery Positive; 2. Sense Wire to Junction Block; 3. Excite Wire through an Indicator Lamp to Ignition Switch; 4. Ground Case to Engine Block. Labels include wire gauge recommendations and terminal identifiers.]
While some people refer to the ground as a neutral wire in a loose sense, it is important to remember that automotive systems operate on Direct Current (DC), where the ground serves as the return path. In the diagram, color-coding is vital: Red typically indicates the main hot wire, Brown or White is used for the excite wire, and Black or Green is reserved for the ground. Understanding these variations by model is key, as some industrial Delco units might use different terminal locations, though the functional logic of the four wires remains consistent across most SI-series designs.
Reading the delco 4 wire alternator wiring diagram is one thing, but translating that into a physical installation requires a methodical approach. To begin, you must gather the appropriate tools and materials. You will need a high-quality wire crimping tool, heat shrink tubing, a multimeter for testing voltage, and the correct gauge of automotive-grade wire. For the main BAT terminal, a 10-gauge or 8-gauge wire is usually necessary to handle the high current output, whereas the excitation and sensing wires can typically be 14-gauge or 16-gauge.
- ✓ 10-Gauge or 8-Gauge primary wire (Red)
- ✓ 14-Gauge secondary wire (Brown/White/Blue)
- ✓ High-quality ring terminals and a 2-pin Delco plug
- ✓ Inline fuse or fusible link
Step 1: Safety and Preparation
Before starting any work, disconnect the negative battery cable. This is a non-negotiable safety step to prevent accidental shorts that could damage the new alternator or the vehicle’s existing wiring harness. Ensure the alternator is securely mounted to its bracket, as the mounting bolts often serve as part of the grounding circuit.
Step 2: Connecting the Main Output (BAT Terminal)
Attach a heavy-gauge hot wire to the large threaded stud on the back of the alternator. This stud is usually the common terminal where all generated power exits the unit. Ensure the connection is tight and protected by a rubber boot. It is highly recommended to install an inline fuse or a fusible link between this terminal and the battery to protect against catastrophic surges.
Step 3: Routing the Sense Wire (Terminal 2)
Terminal 2 is the voltage sensing input. To get the most accurate regulation, run this wire to the main power distribution point in your vehicle (like the starter solenoid or a junction block). By doing this, the alternator “sees” the actual voltage available to your accessories and adjusts its output to compensate for any resistance in the main power line. If you are looking for a simpler setup, some users jumper this wire directly to the BAT stud, though this is less efficient for maintaining consistent voltage throughout the car.
Step 4: Wiring the Excite Circuit (Terminal 1)
Terminal 1 requires switched power from the ignition. This traveler wire should only be “hot” when the key is in the “on” position. It is crucial to install an indicator lamp (the “ALT” or “CHG” light) or a 10-ohm, 5-watt resistor in series with this wire. Without this resistance, the alternator may not shut off properly when you turn the key, leading to “engine run-on” where the alternator continues to power the ignition system.
Never connect Terminal 1 directly to a constant 12V source. Doing so will cause the internal regulator to stay active at all times, which will drain your battery completely in just a few days.
Step 5: Establishing a Solid Ground
While many alternators ground through their mounting brackets, a dedicated ground wire is the best practice for high-performance or fiberglass-bodied vehicles. Run a thick wire from the brass screw or dedicated ground stud on the alternator case directly to the engine block or the negative battery terminal. This ensures that the circuit is completed with minimal resistance.
Step 6: Final Inspection and Testing
Double-check all connections against your delco 4 wire alternator wiring diagram. Reconnect the battery and start the engine. Use a multimeter to check the voltage at the battery terminals. You should see a reading between 13.8V and 14.5V while the engine is running. If the voltage remains at 12.6V or lower, the alternator is not exciting or charging correctly.
Even with a perfect diagram, issues can arise during or after installation. One of the most common problems is the “no-charge” condition, where the alternator fails to produce voltage. This is often traced back to the Terminal 1 excite wire. If the indicator bulb is burnt out, the circuit is broken, and the alternator will not wake up. Another frequent issue is a “run-on” engine, where the car refuses to turn off; this happens if the excite wire is back-feeding current to the ignition coil without a diode or resistor in place.
You should also be wary of excessive heat at the BAT terminal. If the brass screw or stud feels hot to the touch or shows discoloration, it usually indicates a loose connection or a wire gauge that is too thin for the alternator’s amperage output. If you notice the lights flickering or the voltage gauge oscillating wildly, it may mean the sense wire (Terminal 2) has a poor connection or is picking up electromagnetic interference from being routed too close to spark plug wires. If troubleshooting these basic points doesn’t resolve the issue, the internal regulator or diodes may be faulty, requiring professional testing or replacement of the unit.
When crimping your terminals, always use adhesive-lined heat shrink. This prevents moisture from entering the wire strands, which causes corrosion and hidden resistance that can slowly kill your charging efficiency over time.
To ensure the longevity of your Delco 4-wire system, maintenance and component quality are paramount. Always choose high-temperature GXL or TXL cross-linked polyethylene wire for automotive engine bays. Standard primary wire from a hardware store may melt when exposed to the high heat levels near the exhaust manifolds. Furthermore, ensure that your belt tension is correct. A slipping belt won’t just squeal; it will prevent the alternator from reaching the necessary RPM to maintain proper voltage under load.
Periodic maintenance should include checking the tightness of the main common terminal nut and inspecting the 2-pin plug for signs of melting or brittle plastic. If you are building a system for a high-amperage application, such as one with powerful electric fans or a massive audio system, consider upgrading to a 12SI or CS130 series Delco alternator, which offers better cooling and higher idle output. By following the delco 4 wire alternator wiring diagram and adhering to these best practices, you create a robust electrical foundation for your vehicle. Investing in quality components and taking the time to route your wires cleanly will save you significant time and money on future repairs, ensuring your battery stays charged and your electrical system remains reliable for years to come.
Step-by-Step Guide to Understanding the Delco 4 Wire Alternator Wiring Diagram: Easy Install Guide
Identify the main B+ output stud on the back of the alternator for the hot wire connection.
Locate the two-terminal plug-in connector, usually labeled Terminal 1 and Terminal 2.
Understand how the sense wire routes from Terminal 2 to the battery or common terminal.
Connect the excitation wire from Terminal 1 to the ignition switch via an indicator lamp.
Verify that the ground wire or engine block contact is clean and free of paint.
Complete the installation by checking all connections against the diagram before starting the engine.
Frequently Asked Questions
What is a Delco 4 wire alternator wiring diagram?
This diagram is a visual schematic used to identify the connection points on Delco-Remy alternators. It illustrates the paths for the main battery output, the remote voltage sense line, the ignition excitation wire, and the ground wire. It ensures the internal regulator receives the correct signals to maintain a steady charge.
How do you read a Delco 4 wire alternator wiring diagram?
To read the diagram, start by locating the large output stud, often labeled ‘BAT’. Next, identify the two-wire plug terminals labeled 1 and 2. The diagram shows Terminal 1 connecting to the ignition switch and Terminal 2 connecting to the battery or a common terminal to sense system voltage levels.
What are the parts of a Delco 4 wire alternator?
The main parts include the rotor, stator, rectifier bridge, and the internal voltage regulator. Externally, it features a main battery post (hot wire), a ground wire connection point on the housing, and a dual-terminal plug. These components work together to convert mechanical energy into regulated DC power for your vehicle.
Why is the ground wire important?
The ground wire is vital because DC electrical systems require a complete return path to the battery. In a Delco setup, the alternator case usually acts as the ground. If this path is restricted, the alternator cannot output current effectively, regardless of how well the hot wire is connected.
What is the difference between a hot wire and a sense wire?
The hot wire is the heavy-gauge cable that carries the high-amperage charging current to the battery. The sense wire is a smaller gauge wire that tells the regulator how much voltage is actually at the battery. Unlike a traveler wire in home lighting, the sense wire provides constant feedback for regulation.
How do I use a Delco 4 wire alternator wiring diagram?
Use the diagram as a roadmap during installation or troubleshooting. Match the wire colors and terminal numbers on your vehicle’s harness to the symbols on the schematic. This prevents accidental shorts and ensures that the excitation circuit correctly ‘wakes up’ the alternator when you turn the ignition key to start.
