A control arm is a suspension component in an automobile. It connects the wheel hub and steering knuckle to the frame of the car. The control arm allows the suspension to move up and down while keeping the wheel in place.
There are typically two control arms per wheel, one on each side of the car. Each control arm has a ball joint at each end that allows it to pivot. The upper control arm also has a bushing that helps dampen vibrations from the road.

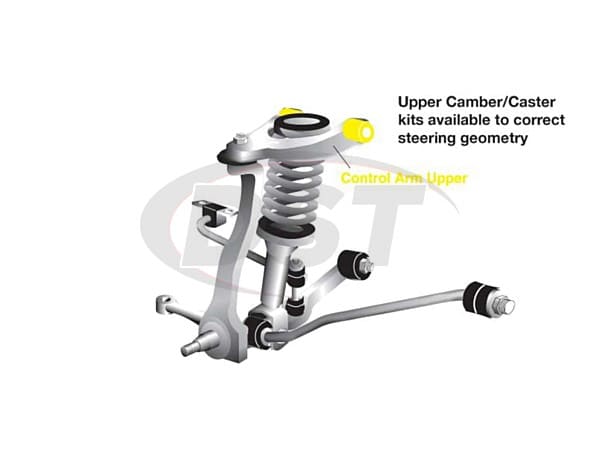

If you’re a car lover, then you know all about control arms. But for those of us who don’t know much about cars, a control arm diagram can be very helpful. A control arm is a suspension component that helps support the weight of the vehicle and keep the wheels in alignment.
It’s made up of two parts: the upper control arm and the lower control arm. The upper control arm is attached to the frame of the vehicle, while the lower control arm is attached to the wheel hub. Together, these two parts work to keep your car’s wheels in line as you drive down the road.
If you’re ever having trouble with your car’s alignment, take a look at your control arms. If they’re worn out or damaged, they may be causing your problem. Replacing them is usually pretty simple and can help get your car back on track!
Credit: www.researchgate.net
Can You Drive With a Broken Control Arm?
If you have a broken control arm, you may be able to drive your vehicle if the break is not severe and if you can still maneuver the car. However, it is best to consult with a mechanic or tow truck company to get an estimate of the repairs needed before attempting to drive.
What are the Components of a Control Arm?
A control arm is a suspension component that helps support the vehicle’s weight and connect the wheel to the frame. The control arm allows the wheels to move up and down as the suspension absorbs bumps in the road. There are two types of control arms: upper and lower.
The upper control arm connects to the frame at a pivot point, while the lower control arm connects to the steering knuckle. Both arms have bushings that help reduce vibration and noise from the road. The upper arm also has a ball joint that allows for movement in all directions.
Control arms play an important role in keeping your ride smooth and comfortable. If you hit a pothole or bump in the road, it’s your control arms that help absorb some of that impact so it doesn’t jolt through your entire vehicle. Over time, however, these components can wear out or become damaged, which can affect how smoothly your car rides.
What Does a Control Arm Do?
A control arm is a suspension component that helps keep the wheels of a vehicle in contact with the ground. The control arm consists of two parts: the upper control arm and the lower control arm. The upper control arm connects to the frame of the vehicle at one end, and to the steering knuckle at the other end.
The lower control arm also connects to the frame of the vehicle, but at its lower end it connects to a ball joint.
The function of a control arm is to allow up-and-down movement of the suspension, while keeping the wheels in contact with the ground. Control arms are an important part of any suspension system, and they work together with other components such as shocks and springs to provide a comfortable ride.
What are 2 Types of Control Arms?
There are two types of control arms: upper and lower. The upper control arm connects the steering knuckle to the frame of the vehicle, while the lower control arm connects the suspension strut or shock absorber to the body of the vehicle. Each type of control arm has a different function, but both work together to keep your car stable and provide a smooth ride.
Suspension System Components
Control Arm Bushing
A control arm bushing is a rubber or polyurethane cushion that sits between the control arm and the chassis of your vehicle. Its purpose is to provide a smooth, cushioned ride by absorbing vibrations from the road. Over time, these bushings can wear out, causing your ride to be rougher than it once was.
In some cases, worn control arm bushings can also cause noise or rattling from the suspension. If you think your control arm bushings may be worn, have them inspected by a professional mechanic.
Control Arm Replacement
If you’re a car owner, you may have heard of the term “control arm” before. But what is a control arm? And why might it need to be replaced?
A control arm is a suspension component that connects the wheel hub to the vehicle body. It allows the wheel to move up and down as the suspension absorbs bumps in the road. Over time, however, control arms can wear out or become damaged, causing problems with the suspension.
One symptom of a worn-out control arm is uneven tire wear. If your tires are wearing unevenly, it’s possible that one of your control arms needs to be replaced. Other signs that a control arm may need to be replaced include rattling noises from the suspension, difficulty steering, and excessive play in the wheels.
If you suspect that your car’s control arms need to be replaced, it’s best to take it to a mechanic or dealership for an inspection. They’ll be able to tell for sure if the problem is with the control arms and can then replace them if necessary. Replacingcontrol arms isn’t a difficult job, but it’s best left to professionals since it does require some disassembly of the suspension system.
So if you’re noticing any issues with your car’s steering orsuspension, don’t ignore them! It could be something as simple as needing newcontrol arms.
Control Arm Symptoms
If you own a car, it’s likely that you have control arms. Control arms are an important part of your suspension system, and they help to keep your wheels in alignment. Unfortunately, control arms can wear out over time and start to show symptoms of wear.
If you’re experiencing any of the following symptoms, it’s time to have your control arms checked by a professional:
1. Your car is pulling to one side
If your car starts to pull to one side while driving, it’s likely that your control arm bushings are worn out.
Bushings are designed to absorb shocks and protect the metal components of your suspension from friction. When they wear out, they can no longer do their job properly, which can cause your car to pull to one side.
2. You hear strange noises coming from your suspension
If you start hearing strange noises coming from your suspension, it’s another sign that something is wrong with your control arm bushings. The noise is usually caused by the metal components of the suspension rubbing together because the bushings are no longer there to cushion them. In some cases, you may also hear a knocking noise when going over bumps in the road.
This is caused by the loose connection between the control arm and the rest of the suspension system.
Control Arm Ball Joint
A control arm ball joint is a suspension component found on virtually all modern vehicles. Its primary function is to allow the control arm to pivot at the point where it attaches to the chassis. This permits the suspension to absorb bumps and keep the wheels in contact with the ground for traction.
The ball joint also allows the wheel to turn left and right.
Over time, however, ball joints can wear out. When this happens, they can no longer effectively do their job and must be replaced.
Symptoms of a failing ball joint include clunking noises when turning or going over bumps, uneven tire wear, and excessive play in the steering (if it’s a front-end joint). If you suspect your vehicle may have a problem with its ball joints, have it inspected by a qualified mechanic as soon as possible.
Conclusion
If you’re having trouble understanding your car’s control arm diagram, don’t worry—you’re not alone. A control arm is a suspension component in an automobile that carries the weight of the vehicle and helps keep the wheels in contact with the ground. The control arm consists of two parts: the upper control arm and the lower control arm.
The upper control arm is attached to the frame of the car, while the lower control arm is attached to the wheel hub. The ball joint connects these two parts together and allows them to move independently of each other.
The purpose of a control arm is to allow the suspension to absorb bumps and shocks from driving over uneven surfaces.
Without this important component, your ride would be very harsh and uncomfortable. When one wheel hits a bump, for example, the force is transferred through thecontrol arms to the other wheels—absorbing some of that force so it doesn’t jostle passengers as much.
If you take a look at your car’scontrol arms, you’ll notice that they’re not perfectly straight.
This design feature gives them additional strength and flexibility so they can do their job properly. Over time, however, wear and tear can cause damage to these components—resulting in less effective suspension performance.
