Chrysler 3.6 Belt Diagram: Routing and Installation

Navigating the engine bay of a modern vehicle can be a daunting task, especially when you are faced with the intricate routing of a serpentine belt. If you are a vehicle owner or a DIY mechanic, having access to an accurate 2011 chrysler 3.6 belt diagram is the single most important factor in ensuring your engine accessories function correctly. This specific belt system, which powers everything from your alternator to your air conditioning, relies on a precise configuration to maintain tension and prevent mechanical failure. In this comprehensive guide, you will learn how to interpret the serpentine belt layout, identify every critical component within the system, and execute a flawless belt replacement that ensures your Pentastar engine remains reliable for years to come.

Understanding the 2011 Chrysler 3.6 Belt System Layout

The 3.6-liter Pentastar V6 engine, widely used across the Chrysler lineup in 2011, utilizes a single serpentine belt to drive all auxiliary components. Understanding the structure and configuration of this system is essential before attempting any repairs. The diagram for this engine is characterized by a “winding” path that maximizes the surface area contact between the belt and the various pulleys. This ensures that high-load components, such as the alternator and the A/C compressor, do not experience slippage during operation.

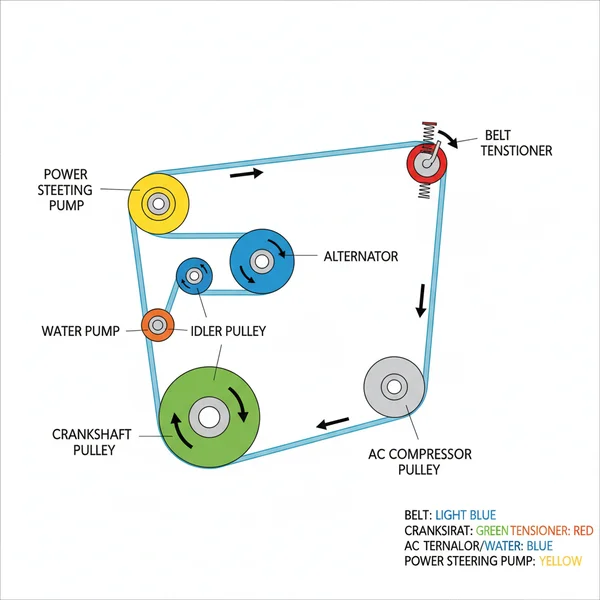

The primary components included in the 2011 chrysler 3.6 belt diagram are:

• ✓ Crankshaft Pulley: Located at the bottom of the engine, this is the drive pulley that provides power to the rest of the system.
• ✓ Alternator: Usually positioned at the top of the engine layout for easy access and cooling.
• ✓ Water Pump: Centrally located to facilitate coolant circulation throughout the block.
• ✓ A/C Compressor: Positioned lower in the bay, responsible for the climate control system.
• ✓ Idler Pulley: A stationary pulley used to guide the belt and maintain the correct wrap angle.
• ✓ Tensioner Pulley: A movable pulley that allows for belt installation and maintains operating tension.

In most 2011 Chrysler configurations, the belt follows a path that starts at the crankshaft, moves upward toward the alternator, wraps around the water pump and idler, and finally loops through the A/C compressor and tensioner. While there may be slight variations depending on whether the vehicle is a Town & Country, a 200, or a 300, the core Pentastar 3.6L architecture remains consistent across the platform.

Step-By-Step Installation and Interpretation Guide

Reading the 2011 chrysler 3.6 belt diagram is only the first half of the task; the second half is the physical application of that layout. This engine bay can be tight, particularly in front-wheel-drive models like the Chrysler 200 or Town & Country, so following a methodical approach is vital.

Required Tools and Materials:
– 13mm or 15mm socket (depending on specific model year variations)
– Long-handled breaker bar or a dedicated serpentine belt tool
– New high-quality serpentine belt
– Work light for visibility in deep engine pockets

Step 1: Locate the Existing Diagram
Before removing the old belt, look for a factory-applied sticker on the radiator shroud or the underside of the hood. If this sticker is missing, use the 2011 chrysler 3.6 belt diagram provided in this guide. It is helpful to take a digital photo of the current belt routing for personal reference.

Step 2: Release the Tension
Locate the automatic tensioner pulley. It usually has a hex bolt head in the center. Place your breaker bar or belt tool on this bolt and rotate it (usually clockwise) to compress the internal spring. This will create slack in the belt.

Step 3: Remove the Old Belt
While holding the tensioner in the compressed position, use your other hand to slide the belt off one of the upper, accessible pulleys (like the alternator). Once the belt is off one pulley, you can slowly release the tensioner and remove the belt entirely from the engine bay.

Step 4: Component Inspection
With the belt removed, spin each pulley by hand. They should spin smoothly without any grinding noises or lateral “wobble.” If the idler pulley or tensioner pulley feels gritty or makes a noise, they must be replaced alongside the belt.

Step 5: Routing the New Belt
Starting from the bottom, loop the new belt around the crankshaft pulley. Follow your 2011 chrysler 3.6 belt diagram carefully, threading the belt around the A/C compressor and water pump. The “ribbed” side of the belt must always face the “ribbed” pulleys, while the “smooth” back of the belt usually contacts the idler or tensioner.

Step 6: Final Seating
Leave the tensioner pulley for last. Compress the tensioner again using your tool and slide the belt into its final position. Before releasing the tool, double-check that the belt is perfectly centered in the grooves of every pulley. Even a slight misalignment can cause the belt to shred within minutes of starting the engine.

Common Issues & Troubleshooting

Even with a perfect diagram, issues can arise within the 3.6L system. Recognizing the warning signs of belt and pulley failure can save you from a breakdown.

1. Squealing or Chirping Noises:
A high-pitched squeal often indicates a loose belt or a failing tensioner that can no longer provide sufficient pressure. A rhythmic “chirp” usually suggests a pulley misalignment or a small rock/debris embedded in the belt grooves.

2. Visual Wear Patterns:
Inspect your belt for “glazing” (a shiny, burnt appearance) which indicates overheating due to slipping. If you see more than three cracks per inch on the ribbed side, the belt is nearing the end of its structural life and requires immediate replacement.

3. Fluid Contamination:
The 3.6 Pentastar engine is known for occasional oil filter housing leaks. If oil or coolant leaks onto the serpentine belt, it will cause the rubber to swell and deteriorate rapidly. If you notice your belt is “wet” or greasy, you must fix the fluid leak before installing a new belt, or the new one will fail prematurely.

Tips & Best Practices for Maintenance

Maintaining the belt system on your 2011 Chrysler is a matter of proactive observation rather than reactive repair. Following these best practices will extend the life of your engine’s internal components.

Choose Quality Components:
When purchasing a replacement, avoid “budget” belts. The 3.6L engine operates at high temperatures and requires a belt with high EPDM (Ethylene Propylene Diene Monomer) content. Brands like Gates, Continental, and Mopar (OEM) are recommended for their durability and resistance to heat-related stretching.

Replace the Tensioner and Belt Together:
Mechanics often recommend replacing the tensioner assembly at the same time as the belt. The internal spring in the tensioner loses its “memory” and strength at roughly the same rate the belt wears out. A new belt on an old, weak tensioner will often result in annoying vibrations or premature wear.

The Water Test:
If you have a mystery noise coming from the belt area, spray a tiny amount of water on the ribbed side of the belt while the engine is idling. If the noise disappears momentarily, the belt is likely the culprit. If the noise remains or gets louder, the problem is likely a bearing inside one of the pulleys (alternator, water pump, or idler).

By utilizing the 2011 chrysler 3.6 belt diagram and following the structured steps outlined in this article, you can maintain the vital systems of your vehicle with confidence. Whether you are performing a routine check or a full system overhaul, understanding the layout and configuration of your engine’s drive system is the best way to ensure a safe and successful repair. Accurate routing not only prevents immediate mechanical damage but also optimizes the efficiency of your alternator and cooling system, keeping your Chrysler on the road for the long haul.
