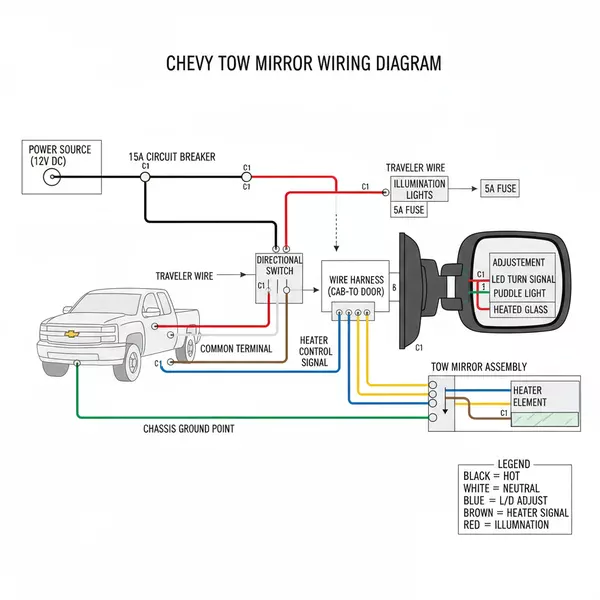

Chevy Tow Mirror Wiring Diagram: Complete Connection Guide

Upgrading your vehicle with towing mirrors is one of the most practical modifications for any truck owner, but the success of the installation hinges entirely on your understanding of the chevy tow mirror wiring diagram. Whether you are replacing basic manual mirrors with powered versions or adding advanced features like integrated turn signals, heating elements, and puddle lights, having a clear roadmap of the electrical system is vital. A proper diagram prevents costly electrical shorts and ensures that every feature functions exactly as intended. In this guide, you will learn how to decode the complex harness configurations found in modern trucks, identify specific wire functions, and gain the confidence to complete a professional-grade installation that improves both safety and visibility.

Understanding the chevy tow mirror wiring diagram requires a fundamental grasp of how automotive DC circuits differ from standard residential wiring. While a household outlet might use a brass screw to identify the connection point for a hot wire, automotive mirrors utilize multi-pin connectors—typically ranging from 8-pin to 22-pin configurations depending on the trim level. The diagram serves as a map for these pins, showing where the voltage enters the system and how it returns through the ground wire to complete the circuit.

In a standard diagram, you will encounter several key color-coded elements. The power adjustment motors usually involve three wires: a common terminal that handles the shared return and two signal wires that dictate the up/down and left/right movement. The heating element is generally represented by a heavier gauge wire to handle the increased current draw required to defrost the glass. Turn signals and marker lights often utilize a traveler wire concept, where the signal originates from the body control module and travels through the door harness to the mirror’s LED strip.

The visual breakdown of the harness often reveals that the ground wire is shared across multiple functions to save space within the loom. However, high-draw components like the integrated cargo or “ditch” lights may have their own dedicated circuit. It is also important to note that wire colors can shift slightly between production years; for instance, a hot wire that provides constant 12V power might be red in one version but orange in another. Always verify the pin location on the diagram rather than relying solely on the plastic insulation color.

To successfully implement the chevy tow mirror wiring diagram, follow these structured steps for a clean and functional installation:

• ✓ Step 1: Preparation and Door Panel Removal. Begin by disconnecting the negative battery terminal to prevent accidental shorts. Use plastic trim tools to remove the door handle covers and window switch panels. Unscrew the mounting bolts (usually 7mm or 10mm) and gently lift the door panel upward to clear the lock pin, then disconnect the existing mirror harness.
• ✓ Step 2: Identify the Connector Type. Compare your truck’s factory plug to the plug on your new tow mirrors. If you are upgrading from an 8-pin to a 22-pin system, identify which features are missing. You may need to run “fly-leads” or extra lengths of wire from the fuse box or BCM to the door boot to enable features like turn signals or puddle lights that weren’t originally equipped.
• ✓ Step 3: Map the Wires. Using your diagram, locate the ground wire (usually black or black/white) and the primary hot wire for power adjustments. In automotive terms, the hot wire is the 12V source. While AC systems use a neutral wire for the return, in your truck, the ground wire connected to the metal chassis serves this purpose. Ensure the gauge of any extension wires matches the factory specifications to prevent overheating.
• ✓ Step 4: Connect the Harness. If using an adapter, simply click the connectors together. If you are hard-wiring, use heat-shrink butt connectors or solder. Avoid using “T-taps,” as they can vibrate loose over time and cut into the delicate copper strands. Focus on the common terminal connections first, as these often provide the reference point for the mirror’s logic.
• ✓ Step 5: Route the Traveler Wires. For mirrors with advanced lighting, you must route the traveler wire through the rubber door boot. This is often the most tedious part of the job. Use a wire puller or a lubricated coat hanger to slide the wire through the accordion-style boot into the cabin area, where it will tap into the signal or cargo light circuits.
• ✓ Step 6: Final Testing. Before reassembling the door panel, temporarily reconnect the battery. Test the power glass movement in all four directions. Turn on the hazards to check the signal LEDs and activate the rear defrost to ensure the heater circuit is pulling the correct voltage. If everything checks out, secure the wiring with electrical tape or loom and finish the mechanical installation.

Even with a perfect chevy tow mirror wiring diagram, you may encounter obstacles during the installation. One of the most common issues is “reversed logic,” where pressing “up” on the switch moves the mirror glass down. This usually indicates that the two signal wires for that specific motor are swapped at the connector. Another frequent problem is a non-functioning heater. Unlike a simple light bulb, the heating element requires significant amperage; if the ground wire connection is weak or the wire gauge is too thin, the resistance will prevent the glass from warming up.

If you notice flickering in your turn signals after installation, it may be due to the vehicle’s computer detecting a change in resistance, especially if moving from incandescent bulbs to LEDs. In some cases, a resistor might be needed, though most modern tow mirror kits are designed to be “plug and play” with the factory BCM. If you find that the power adjustment works but the puddle lights stay on indefinitely, check the “common” wire connection, as a short to power in this circuit can bypass the switch logic entirely. When troubleshooting, always start at the fuse box. If a fuse is blown, it is a clear indicator of a hot wire touching a ground point somewhere in the door frame.

To ensure the longevity of your new equipment, follow these best practices. First, always use automotive-grade wire with the correct gauge. Standard household wire is not designed to withstand the vibrations, moisture, and temperature fluctuations found inside a vehicle door. Second, invest in a quality set of wire strippers and a crimping tool. Proper mechanical connections prevent the high-resistance heat build-up that can melt plastic connectors.

When it comes to cost-saving, purchasing an aftermarket chevy tow mirror wiring diagram harness is often cheaper and safer than trying to “depin” and reorganize a factory connector yourself. These harnesses are engineered to handle the specific voltage requirements of the mirror’s motors and lights. For maintenance, periodically check the wire loom where it passes through the door hinge area. This is a common point of failure where wires can become brittle and snap after years of the door opening and closing.

Finally, if you are tapping into existing circuits, use a fuse tap in the internal fuse block rather than stripping back main power lines. This provides a dedicated, fused path for your new mirror features, protecting the rest of your truck’s electronics from an isolated failure. By following the chevy tow mirror wiring diagram accurately and taking your time with the physical installation, you will significantly improve your towing experience, providing better blind-spot coverage and enhanced safety for every haul. Proper wiring is the difference between a frustrating electrical gremlin and a high-performance upgrade that lasts for the life of your truck.
