Bobcat 743 Hydraulic Hose Diagram: Maintenance Guide

Maintaining a vintage skid steer requires more than just mechanical intuition; it demands a precise understanding of its internal plumbing. When you are faced with a tangled web of lines under the cab, a bobcat 743 hydraulic hose diagram becomes your most valuable tool. This diagram acts as a vital roadmap, illustrating the complex network that transfers power from the engine to the lift arms, bucket, and drive motors. Whether you are dealing with a sudden burst line on the job site or performing a full system restoration in your shop, knowing how these hoses are routed is the difference between a quick fix and hours of frustration. In this guide, you will learn how to interpret the hydraulic layout, identify specific components, and follow a structured approach to hose replacement that ensures your machine remains pressurized and leak-free.

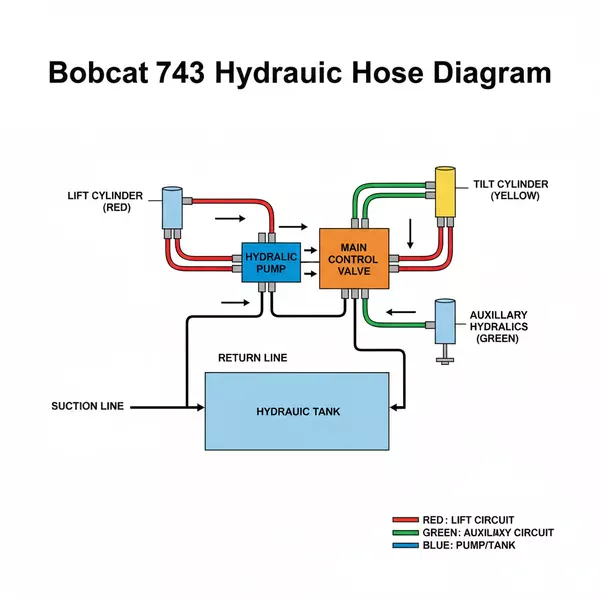

The internal structure of the Bobcat 743 hydraulic system is divided into several distinct circuits, each represented clearly in a comprehensive diagram. At the heart of the layout is the main control valve, typically located beneath the operator’s seat or floor pan. From this central hub, hoses radiate out to the lift cylinders (which raise the boom) and the tilt cylinders (which move the bucket). The diagram uses a specific configuration of lines to show the flow of hydraulic oil from the reservoir, through the filters, into the pump, and finally out to the actuators.

When viewing a professional bobcat 743 hydraulic hose diagram, you will notice that the lines are often color-coded or labeled with specific numbers. High-pressure supply lines, which carry the force needed to lift heavy loads, are typically thicker and reinforced with wire braiding. Return lines, which carry oil back to the hydraulic tank and through the oil cooler, are often larger in diameter but designed for lower pressure. The hydrostatic portion of the diagram shows a closed-loop system connecting the variable displacement pumps to the drive motors on each side of the machine. This specific layout is crucial because crossing a supply and return line on a drive motor can result in immediate component failure or erratic machine behavior.

Variations in the diagram may exist depending on whether your machine is equipped with auxiliary hydraulics for attachments like augers or grapples. These auxiliary lines run along the lift arms and terminate at quick-connect couplers near the bucket. A standard diagram will detail the “T-junctions” and relief valves that prevent the system from over-pressurizing when an attachment is not in use.

To effectively use the bobcat 743 hydraulic hose diagram for repairs or maintenance, follow this structured step-by-step guide to ensure accuracy and safety.

1. Relieve System Pressure: Before you even look at the hoses, you must neutralize the system. Lower the lift arms until the bucket is flat on the ground. Turn off the engine and cycle the hydraulic control pedals or levers back and forth several times. This releases the “trapped” pressure in the lines. If the arms are raised, you must use the official Bobcat lift arm support device.

2. Clean the Work Area: Hydraulic systems are extremely sensitive to contamination. Use a pressure washer or degreaser to clean the area around the hose you are replacing. This prevents dirt from falling into the open ports of the control valve or cylinders once the hose is removed.

3. Identify and Trace the Hose: Use your diagram to trace the faulty hose from its origin (usually the control valve) to its destination (a cylinder or motor). Note the routing path. On the 743, hoses are often routed through tight “portals” in the frame. If you do not follow the original path exactly, the hose may rub against the frame and fail prematurely.

4. Label the Connections: Use colored tape or metal tags to mark both the hose and the port it connects to. Even with a diagram, it is easy to get confused when you have four identical ports on a control valve. Marking the “A” and “B” ports for the tilt circuit ensures your bucket controls don’t end up reversed.

5. Select the Right Tools: You will typically need a set of JIC (Joint Industry Council) wrenches, also known as flare nut wrenches. These provide more contact points on the hydraulic fittings than a standard open-end wrench, preventing the rounding of the soft metal nuts. Have a catch pan ready to collect the residual oil that will inevitably leak out.

6. Inspect the Replacement Hose: Before installation, compare the new hose to the old one. Ensure the length is identical and that the fittings have the same thread pitch and angle. A hose that is too short will pull tight when the boom is extended, leading to a blowout. A hose that is too long will kink or get pinched in the machine’s pivot points.

7. Install and Torque: Hand-thread the fittings first to avoid cross-threading. Once snug, use your wrenches to tighten the fitting. For JIC fittings, the “flats from finger tight” method is often used—usually 1.5 to 2 full flats past hand-tight. Do not over-torque, as this can crack the flared end of the fitting.

8. Bleed the System: Once the hose is replaced and the fluid levels are topped off, start the engine at low RPM. Slowly cycle the hydraulic functions. The air in the new hose will be pushed back to the reservoir. Repeat the movement several times until the operation is smooth and no longer “spongy.”

Even with a perfect bobcat 743 hydraulic hose diagram, you may encounter system issues. One of the most common problems is hose chafing. Because the 743 is a compact machine, the internal structure is very crowded. Hoses that are not secured with the proper clamps will rub against one another, eventually wearing through the outer rubber and the wire reinforcement. If you see “wet” spots on a hose or tiny pinhole leaks, replace the hose immediately.

Another frequent issue is sluggish performance or “creeping” drive motors. This often points to a configuration problem or a blockage in the return lines. By consulting the diagram, you can identify the location of the inline filters and the case drain filters. If these filters are clogged, pressure builds up where it shouldn’t, causing the seals in the drive motors to fail. If you notice the machine pulling to one side, use the diagram to locate the high-pressure test ports. Connecting a pressure gauge here will tell you if the pump is failing or if the issue is simply a restricted hose.

• ✓ Check for weeping: Inspect the crimped ends of the hoses for oily residue, which indicates an imminent failure.
• ✓ Verify O-rings: Many 743 fittings use O-ring Face Seals (ORFS). Always replace the O-ring when a hose is removed.
• ✓ Listen for cavitation: A high-pitched whine often means air is entering the system through a loose suction-side hose.

To keep your Bobcat 743 running efficiently, adopt a proactive maintenance strategy. High-quality hoses are a non-negotiable investment. While it might be tempting to use cheap, generic hoses, the Bobcat 743 operates at high pressures that require specific SAE ratings. Look for hoses rated for at least 3,000 PSI for the main lift circuits and even higher for the hydrostatic drive lines.

Regularly inspect the “structure” of your hose routing. Over time, heat and vibration can cause hoses to stiffen and shift. If you notice a hose has moved from its original configuration shown in the diagram, use heavy-duty zip ties or rubber-lined P-clamps to secure it back into place. This prevents the hose from contacting moving parts like the cooling fan or the drive belt.

Cost-saving can be achieved by purchasing bulk hydraulic hose and a crimping tool if you own a fleet, but for most owners, taking the old hose to a local hydraulic shop is the best route. They can use the old hose as a template to ensure the length and fitting orientation (the “clocking”) are perfect. Always keep a copy of the bobcat 743 hydraulic hose diagram in a plastic sleeve inside the cab or your toolbox. Having it readily available during a field failure can save hours of downtime and prevent costly errors in reconnection. By following these best practices and respecting the complexity of the hydraulic system, you ensure that your Bobcat 743 remains a powerful and productive tool for years to come.
