Bathtub Drain Rough In Plumbing Diagram: Setup Guide
A bathtub drain rough in requires positioning the drain opening approximately 10 to 12 inches from the wall studs. The setup involves connecting the tub’s tailpiece to a P-trap, which must then lead to a dedicated vent pipe to ensure proper drainage and prevent siphoning of the water seal.
📌 Key Takeaways
- Visualizes the essential connection between the tub and the home’s main waste line.
- The P-trap is the most critical component for blocking sewer gases.
- Ensure the slope of horizontal pipes maintains 1/4 inch per foot for drainage.
- Unlike a kitchen sink with a garbage disposal, tub drains rely on gravity and hair strainers.
- Use this diagram during the framing stage before the subfloor or walls are closed.
Starting a bathroom renovation or adding a new tub requires a solid grasp of how waste water exits your home. This guide provides a detailed bathtub drain rough in plumbing diagram to help you visualize the complex network hidden beneath your subfloor and behind your walls. Whether you are a dedicated DIY enthusiast or a homeowner looking to verify a contractor’s work, understanding the spatial relationship between the P-trap, vent pipe, and tailpiece is essential for a leak-free, code-compliant installation. In the following sections, you will learn how to identify every critical component, interpret technical measurements, and execute a rough-in that ensures your bathroom remains a dry, functional sanctuary for years to come.
Decoding the Bathtub Drain Rough In Plumbing Diagram
When you first look at a bathtub drain rough in plumbing diagram, the array of pipes and fittings can seem overwhelming. However, this schematic is essentially a map of gravity-fed water management. The primary goal of the rough-in is to position the “drain shoe” and the “overflow” in the exact location where the bathtub’s physical drains will eventually sit.
The most prominent feature of the diagram is the drain assembly, which typically consists of a vertical overflow pipe and a horizontal drain arm that meet at a sanitary tee. From this tee, the water travels downward into the P-trap. The P-trap is a U-shaped pipe that holds a small amount of water to create a seal, preventing sewer gases from entering your bathroom. In most residential layouts, these components are constructed using 1.5-inch or 2-inch PVC (polyvinyl chloride) piping, known for its durability and ease of installation through solvent welding.
Another critical element visualized in the diagram is the connection to the vent pipe. Every drain requires a vent to equalize pressure and allow water to flow smoothly without glugging. If your home’s architecture makes it difficult to run a traditional vent through the roof, the diagram might include an AAV valve (Air Admittance Valve), which is a one-way mechanical valve that allows air into the system while keeping gases trapped.
The standard “rough-in” distance for a bathtub drain is usually 12 inches from the back wall (the wall the tub sits against) and centered within the width of the tub alcove, though you must always check your specific bathtub’s specification sheet for exact manufacturer requirements.

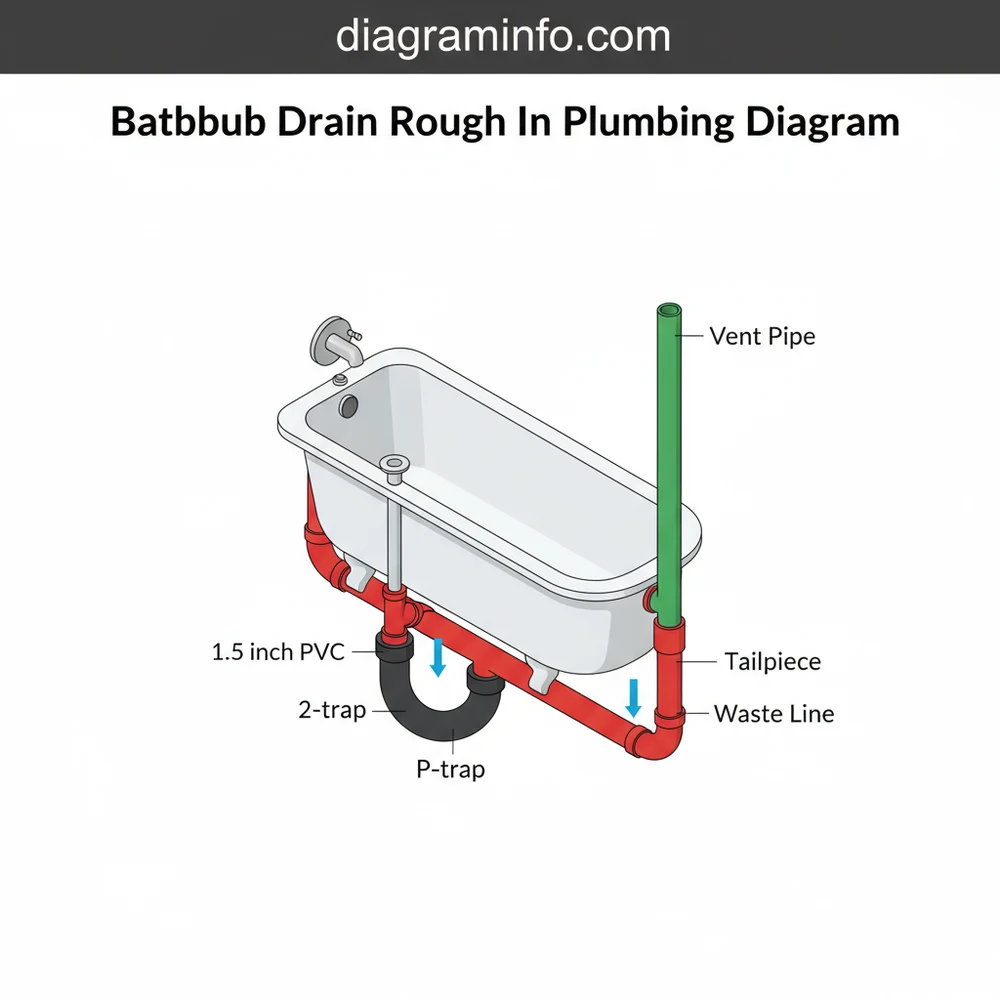

[DIAGRAM_PLACEHOLDER: A detailed 3D plumbing schematic showing a standard alcove bathtub rough-in. Labels include: 1.5″ PVC Vent Stack, Sanitary Tee, Overflow Pipe, Drain Shoe, P-trap, and Main Waste Line. Color-coding: Blue for vent lines, Gray for waste lines.]
Understanding the Components: From P-Trap to Tailpiece
To successfully implement a bathtub drain rough in plumbing diagram, you must be able to identify and understand the function of each fitting. Unlike a kitchen setup that might incorporate a garbage disposal to handle solids, a bathtub system is designed for high-volume liquid flow and hair filtration.
- ✓ The P-Trap: This is the most vital safety component. It must be installed level and at the correct depth to ensure the water seal remains intact even when the tub is not in use.
- ✓ The Tailpiece: This is the straight section of pipe that connects the bathtub’s drain fitting to the trap. It often uses a slip joint for easy adjustment during the final installation phase.
- ✓ The Sanitary Tee: This fitting joins the overflow pipe and the drain shoe pipe into a single vertical waste line. Its swept curve ensures that water flows downward toward the trap without splashing back up the overflow.
- ✓ PVC Solvent Cement: While not a “part” in the diagram, the chemical bond created by PVC primer and cement is what makes the rough-in a permanent, leak-proof structure.
When mapping your rough-in, always account for the thickness of the finished wall. If you measure from the bare studs but forget to add 1/2 inch for drywall and another 1/4 inch for tile, your drain shoe will be misaligned with the bathtub’s actual drain hole.
Step-By-Step Guide to Executing the Rough-In
Executing a bathtub drain rough in plumbing diagram requires precision and a strict adherence to local building codes. Follow these steps to ensure your installation is solid before you close up the floors and walls.
Step 1: Consult the Manufacturer’s Specification Sheet
Before you cut a single piece of PVC, look at the spec sheet for your specific bathtub model. It will list the “rough-in dimensions,” which tell you exactly where the center of the drain hole will sit relative to the framed walls. Mark these points on your subfloor.
Step 2: Prepare the Subfloor Opening
You will need to cut a hole in the subfloor to accommodate the drain and the P-trap. Usually, an 8×12 inch or 12×12 inch “access box” is cut around the drain location. This provides enough room to reach the fittings and ensure the P-trap has adequate clearance from floor joists.
Step 3: Install the P-Trap and Waste Line
Position the P-trap directly under the marked drain location. Connect the trap to the main waste line using PVC pipe. Ensure the waste line has a downward slope of at least 1/4 inch per foot. This slope is non-negotiable; without it, gravity will not be able to clear the pipe, leading to chronic clogs.
Step 4: Integrate the Vent Stack
Locate the point on the waste line where the vent will branch off. This is usually within a few feet of the P-trap. If you are using a traditional vent, run a pipe vertically through the wall studs and up to the roof. If using an AAV valve, ensure it is installed at least 4 inches above the highest water level in the tub and remains accessible through an access panel.
Step 5: Dry-Fit the Drain Assembly
Assemble the overflow pipe, drain shoe, and sanitary tee without glue. Place the assembly into the P-trap. Use a level to ensure the vertical overflow pipe is perfectly plumb and the horizontal drain shoe is level. This is the time to make adjustments to your pipe lengths.
Step 6: Solvent Weld the Connections
Once you are confident in the fit, disassemble the pieces. Apply PVC primer to the outside of the pipes and the inside of the fittings, followed by PVC cement. Push the pieces together with a slight twist and hold for 30 seconds.
Step 7: Support and Secure
Use plastic pipe hangers or strapping to secure the pipes to the floor joists or wall studs. Movement in the pipes can lead to stress on the joints and eventually cause leaks.
Never use “S-traps” in modern plumbing. They are prone to siphoning, which empties the water seal and allows toxic sewer gas into your home. Modern bathtub drain rough in plumbing diagrams will always specify a P-trap connected to a vented line.
Comparing Bathtub Plumbing to Other Fixtures
It is helpful to understand how a bathtub rough-in differs from other household plumbing to avoid common mistakes. For instance, while a kitchen sink utilizes a garbage disposal and often uses 1.5-inch piping, a bathtub requires a more robust approach to venting because of the high volume of water being released at once.
Kitchen sinks often have “slip joint” connections under the sink that are easily accessible for repairs. However, in a bathtub rough-in, most of the connections are behind a wall or under a floor. This is why solvent welding (gluing) the PVC is preferred over slip joints for the primary waste and overflow assembly—you want those connections to be permanent and maintenance-free.
Common Issues and Troubleshooting
Even with a perfect bathtub drain rough in plumbing diagram, issues can arise during the installation or shortly after. Recognizing these early can save you from expensive water damage repairs.
- ✓ Gurgling Noises: If you hear gurgling in the sink or toilet when the tub drains, it usually indicates a venting issue. The vent pipe might be blocked, or the distance between the trap and the vent stack might exceed local code limits.
- ✓ Slow Draining: This is often caused by an improper slope in the waste line. If the pipe is too flat, water sits and collects sediment. If it is too steep, the water moves too fast and leaves solids behind.
- ✓ Sewer Odors: This is a sign that the P-trap has lost its seal. This can happen if the tub isn’t used for months (evaporation) or if poor venting is causing the water to be siphoned out of the trap.
- ✓ Leaking at the Shoe: If the rough-in wasn’t perfectly aligned with the tub, the rubber gasket on the drain shoe may not sit flush, causing a slow leak under the tub.
If you encounter persistent leaks that solvent welding cannot fix, or if your home’s existing main stack is made of cast iron or lead, it is highly recommended to seek professional help. Transitioning between modern PVC and older materials requires specialized shielded couplings.
Best Practices and Pro Tips for Success
To ensure your plumbing lasts as long as your home, follow these professional best practices during the rough-in phase.
1. Pressure Test Before Closing
Before you install the bathtub and certainly before you put up drywall, perform a leak test. Plug the drain and fill the waste lines with water. Let it sit for 24 hours. If the water level drops or you see moisture on the joints, you have a leak that needs addressing now, not later.
2. Use High-Quality Schedule 40 PVC
Not all PVC is created equal. Ensure you are using Schedule 40 PVC, which is the standard for residential drain, waste, and vent (DWV) systems. It has thicker walls and can withstand the temperature fluctuations of hot bathwater better than thinner alternatives.
3. Account for “Dead Space”
When following your bathtub drain rough in plumbing diagram, ensure the P-trap is not resting directly on the subfloor or touching a joist. Vibrations from water flow can cause the pipe to rub against wood, eventually wearing a hole in the plastic. Leave a small gap and use felt padding if necessary.
4. Maintain Accessibility
If your bathtub is located on a second floor, try to position the rough-in so that it is accessible from a closet or hallway on the other side of the wall. Installing a small, decorative access panel can save you from tearing down a ceiling if you ever need to replace the drain assembly in the future.
Plumbing is as much about physics as it is about hardware. By following a structured bathtub drain rough in plumbing diagram and respecting the rules of venting and slope, you can complete a professional-grade installation that enhances your home’s value and your daily comfort.
By meticulously planning your layout using a bathtub drain rough in plumbing diagram, you eliminate the guesswork that leads to costly mistakes. From the initial measurements of the alcove to the final solvent weld of the P-trap, every step is a building block toward a high-performing bathroom. Remember to prioritize proper venting through a stack or an AAV valve, maintain the critical 1/4-inch per foot slope, and always choose high-quality PVC components. With this comprehensive knowledge, your rough-in plumbing will be a solid foundation for your new bathtub.
Step-by-Step Guide to Understanding the Bathtub Drain Rough In Plumbing Diagram: Setup Guide
Identify – Start with identifying the specific drain location based on your bathtub’s manufacturer specifications and the subfloor layout.
Locate – Locate the main waste line and determine the best path for the vent pipe to ensure air pressure remains balanced.
Understand – Understand how the tailpiece will drop from the tub to meet the P-trap, ensuring there is enough clearance below the floor.
Connect – Connect the P-trap to the waste line using PVC solvent, maintaining a 1/4 inch per foot downward slope for drainage.
Verify – Verify that the drain assembly and overflow pipe align vertically with the rough-in hole before securing any permanent fittings.
Complete – Complete the rough-in by capping the pipes and performing a leak test to ensure all joints are airtight and watertight.
Frequently Asked Questions
Where is the drain assembly located?
The drain assembly is located directly beneath the bathtub’s floor outlet. In a rough-in, the center of the drain pipe is typically positioned 10 to 12 inches away from the long wall framing and centered within the width of the tub alcove to align with the fixture’s exit.
What does a bathtub drain rough in plumbing diagram show?
This diagram illustrates the spatial relationship between the tub overflow, the vertical tailpiece, the P-trap, and the connection to the vent pipe. It provides the necessary measurements and standard clearances required to ensure the plumbing lines align perfectly with the finished bathtub unit during installation.
How many connections does the bathtub drain system have?
The system features three primary connections: the drain flange at the tub floor, the overflow pipe on the tub wall, and the P-trap connection to the waste line. These components merge into a single line that must be vented through a dedicated vent pipe to ensure consistent atmospheric pressure.
What are the symptoms of a bad bathtub drain setup?
Common symptoms include slow drainage, a gurgling sound in the pipes, or a persistent sewer smell in the bathroom. These issues often stem from an improperly installed P-trap, a clogged vent pipe, or an incorrect slope in the waste line that prevents water from clearing the tailpiece efficiently.
Can I install this bathtub plumbing myself?
Yes, a DIYer with basic plumbing knowledge can perform a rough-in using this diagram. While less complex than installing a kitchen garbage disposal, it requires precision with PVC solvent welding and an understanding of local building codes regarding vent distances and pipe diameters to ensure a leak-free result.
What tools do I need for this plumbing task?
You will need a tape measure for precise layout, a hacksaw or PVC cutter for the pipes, and PVC primer and cement for joints. Additionally, a level is essential to verify the slope of the waste lines and ensure the P-trap is positioned correctly relative to the vent pipe.
