Air Brake Dash Valve Diagram: Troubleshooting and Routing

Navigating the complexities of a heavy-duty pneumatic system requires precision, and having a reliable air brake dash valve diagram is the first step toward successful maintenance or repair. Whether you are a professional technician or a dedicated DIYer, understanding how air flows through the dashboard control manifold is critical for ensuring vehicle safety and operational integrity. This article provides a comprehensive breakdown of the dash valve’s internal logic, port configurations, and installation procedures. By the end of this guide, you will be able to identify every connection point, troubleshoot common leaks, and understand how this mechanical component integrates with the broader vehicle architecture, ensuring your braking system remains responsive under all hauling conditions.

Understanding the Air Brake Dash Valve Diagram

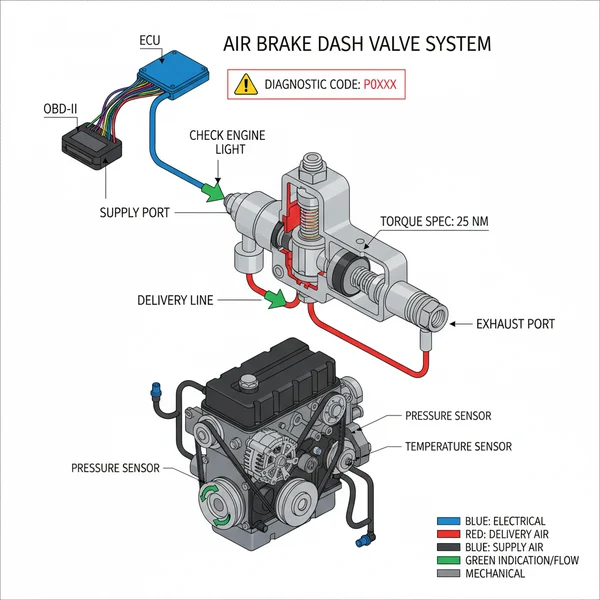

The air brake dash valve diagram typically illustrates a manifold-style valve, most commonly the MV-3 or PP-1 models. These units are characterized by two prominent control knobs: the yellow diamond-shaped knob for the tractor parking brakes and the red octagonal knob for the trailer air supply. In a standard diagram, you will observe several numbered ports that dictate the flow of compressed air. Port 1 is usually the “Supply” port, receiving air directly from the primary and secondary reservoirs. Port 2 is the “Delivery” port, which sends air to the tractor spring brake chambers to release the brakes. Port 3 is the “Exhaust” port, which allows air to escape to the atmosphere when you pull the yellow knob to park.

Visual diagrams often use color-coding to clarify these pneumatic circuits. Red lines usually denote the trailer supply circuit, while yellow or orange lines represent the tractor’s parking system. If the diagram shows a manifold assembly, you will also notice internal “check valves.” These are crucial because they allow the valve to draw air from whichever reservoir (primary or secondary) has the highest pressure. This redundancy ensures that even if one tank fails, you can still manage the parking brakes. Understanding these variations is vital because port locations can shift slightly between different manufacturers, though the functional logic remains standardized across the industry.

Step-By-Step Guide to Interpreting and Installing Dash Valves

Reading an air brake dash valve diagram is only half the battle; applying that knowledge to the vehicle is where the real work begins. Follow these steps to ensure a correct installation or diagnostic process:

• ✓ Identify the Port Markings: Before removing an old valve, look for embossed numbers on the plastic or metal body. Compare these numbers to your diagram to ensure the supply and delivery lines match exactly.
• ✓ Drain the Air System: Never disconnect a line with pressure in the tanks. Pull the drain lanyards on all reservoirs until the gauges read zero PSI.
• ✓ Label Your Lines: Use colored tape or a permanent marker to label each nylon air line (e.g., “Tractor Delivery,” “Trailer Supply”). This prevents cross-connection, which could lead to dangerous braking behavior.
• ✓ Inspect Fittings and Threads: Most modern valves use “Push-to-Connect” (PTC) fittings. Ensure the ends of the nylon lines are cut perfectly square with a dedicated tubing cutter to prevent leaks.
• ✓ Mount the New Valve: Secure the valve to the dash panel. Adhere strictly to the manufacturer’s torque spec for the mounting screws—usually between 10 to 15 inch-pounds—to avoid cracking the plastic housing.
• ✓ System Integration Check: While the dash valve is a mechanical pneumatic component, it often works in tandem with the vehicle’s ECU to manage the Anti-lock Braking System (ABS). After installation, ensure no new diagnostic code appears on the dashboard.
• ✓ Leak Testing: Re-pressurize the system and use a soapy water solution on all connections. Small bubbles indicate a slow leak that must be addressed immediately.

Common Issues and Troubleshooting

The most frequent problem drivers encounter is a persistent hissing sound coming from behind the dash. An air brake dash valve diagram helps you determine if the leak is coming from a specific delivery line or the exhaust port. If air is leaking from the exhaust port while the knobs are pushed in, it often indicates a failed O-ring inside the valve or back-feeding from a faulty spring brake chamber further down the line.

Another common issue is when the parking brake knob “pops out” prematurely or fails to stay in. This usually suggests a supply pressure issue. If your air compressor is struggling due to a slipping accessory belt, the system may not maintain the 120 PSI required to keep the valve seated. In rare cases, electronic interference or a faulty sensor might trigger a check engine light or an ABS-related diagnostic code via the OBD-II port if the pneumatic failure affects the vehicle’s electronic stability control. Using the diagram allows you to isolate the mechanical valve from these electronic components, ensuring you aren’t replacing expensive sensors when a simple $2 fitting is the culprit.

Tips and Best Practices for Maintenance

To keep your air brake system in peak condition, maintenance should extend beyond just the dash valve. Because the air compressor is driven by the engine, the health of your timing chain or gears and the accessory belt is paramount. If the compressor isn’t spinning at the correct RPM, your dash valve will not receive the consistent pressure needed for safe operation.

Always use high-quality, OEM-spec nylon tubing when replacing lines identified in your air brake dash valve diagram. Low-grade tubing can kink or melt if it runs too close to heat sources. Furthermore, always keep your OBD-II scanner handy during a full system service; while it won’t “read” the air pressure in the valve, it will tell you if the pressure switches connected to the manifold are sending the correct signals to the ECU. Proper lubrication of the knob stems with a silicone-based grease can also extend the life of the internal seals, preventing the “stickiness” that often leads to driver frustration. By following these best practices and keeping a printed copy of the valve schematic in your glovebox, you ensure that you are prepared for any pneumatic challenge the road throws your way.
