73-87 Chevy Truck Wiring Harness Diagram: Restoration Guide
This wiring harness diagram maps the electrical layout of classic Chevy pickups, identifying the hot wire for power distribution, the ground wire for circuit completion, and the neutral wire for return paths. It provides a visual guide for tracing circuits from the fuse block to lights, ignition, and auxiliary components.
📌 Key Takeaways
- Provides a comprehensive map of the Square Body pickup electrical system
- Helps identify the main fuse block and bulkhead connectors
- Crucial for preventing electrical fires by ensuring proper grounding
- Allows for the addition of modern accessories into vintage looms
- Used primarily for diagnosing lighting, starting, and charging issues
Restoring or maintaining a classic Square Body pickup requires a deep dive into the electrical system, where a reliable 73-87 chevy truck wiring harness diagram becomes your most valuable asset. These vehicles are legendary for their durability, but after decades of service, original wiring often suffers from brittle insulation, corrosion, and previous “hack” repairs. Understanding how the factory routed power from the battery to the fuse block and out to the various accessories is essential for both safety and functionality. In this guide, you will learn how to decode the complex schematics of the 1973 to 1987 generation, identifying critical components and learning the best practices for troubleshooting and modernizing your truck’s electrical grid.
The 73-87 Chevy truck utilizes a “Bulkhead Connector” located on the driver-side firewall. This serves as the central junction where the engine bay harness meets the interior dashboard harness. Most electrical failures occur at this specific interface due to moisture intrusion.

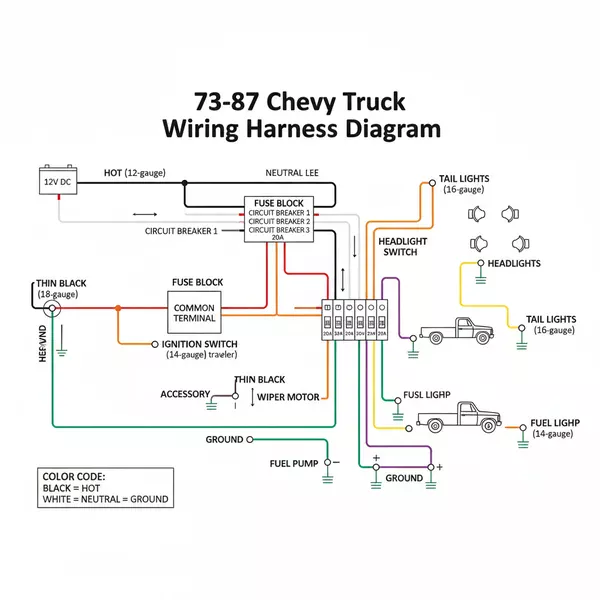

Decoding the 73-87 Chevy Truck Wiring Harness Diagram
The electrical architecture of the 73-87 Chevy truck is divided into several distinct sub-harnesses: the engine harness, the front lighting harness, the dashboard harness, and the rear tail-light harness. When you look at a professional wiring diagram, you will notice that General Motors utilized a standardized color-coding system that remained remarkably consistent throughout this fourteen-year production run. For instance, a heavy-gauge red wire almost always indicates a hot wire with constant 12V voltage directly from the battery or the starter solenoid. Conversely, pink wires typically signify “switched” ignition power, which only carries voltage when the key is in the ‘On’ or ‘Start’ position.
A comprehensive diagram will also illustrate the common terminal locations on the ignition switch and the fuse block. The fuse block in these trucks transitioned from glass tubes in the early 70s to the more modern blade-style fuses in the early 80s, but the routing logic remained similar. You will find that the “neutral wire” equivalent in these DC systems is the black ground wire, which must be securely fastened to the chassis to complete any circuit. In specialized lighting setups, such as those involving a two-way switch for dome lights or auxiliary cargo lamps, you may encounter a traveler wire that carries the signal between two different switch points.

The diagram also highlights the importance of wire gauge. High-draw components like the starter motor or the alternator use thick, low-gauge wires (usually 8 or 10 gauge) to handle the intense current without overheating. Smaller accessories like dash illumination bulbs use much thinner 18-gauge wires. When using the diagram to install aftermarket parts, always ensure your terminal connections are secure. If you are using high-quality toggle switches, look for a brass screw connection, as brass offers superior conductivity and corrosion resistance compared to standard steel fasteners.
Step-by-Step Guide to Interpreting and Installing Wiring

Navigating a 73-87 chevy truck wiring harness diagram can feel overwhelming at first glance, but by following a systematic approach, you can master the system. Use the following steps to diagnose an issue or install a new harness section.
- ✓ Step 1: Disconnect the Power: Before touching any part of the harness, disconnect the negative battery cable. This prevents accidental shorts that could melt thin-gauge wires or damage the alternator.
- ✓ Step 2: Identify Your Circuit: Determine which system you are working on (e.g., headlights, wipers, or ignition). Locate that specific section on your diagram and note the wire colors and the fuse rating associated with it.
- ✓ Step 3: Locate the Hot Wire: Use the diagram to find where the circuit receives its 12V voltage. This usually starts at the fuse block. Verify if it is a constant hot wire or a switched ignition source.
- ✓ Step 4: Check the Ground Path: In automotive wiring, the “neutral wire” is the frame itself. Trace the black ground wire from your component back to its grounding point on the engine block, frame, or firewall.
- ✓ Step 5: Inspect the Bulkhead: If multiple systems are failing simultaneously, check the bulkhead connector. Pull the connector apart and look for green corrosion or melted plastic, which indicates a high-resistance connection.
- ✓ Step 6: Test Voltage and Continuity: Using a multimeter, test for 12V at the component. If voltage is present but the part doesn’t work, test the continuity of the ground wire to ensure it has a clear path to the negative battery terminal.
- ✓ Step 7: Secure the Connections: When making repairs, use heat-shrink butt connectors. If you are attaching wires to a terminal block, wrap the wire clockwise around the brass screw before tightening to ensure the wire is pulled into the screw rather than pushed out.
Never replace a blown fuse with one of a higher amperage. If a 10-amp fuse blows, it is protecting the circuit from melting. Inserting a 20-amp fuse can cause the wiring harness to catch fire before the fuse ever breaks.
To perform these tasks effectively, you will need a basic electrical toolkit. This should include a high-quality digital multimeter, wire strippers, a crimping tool, and a test light. For more complex troubleshooting, a Power Probe can help you inject 12V directly into a circuit to test components like horn relays or blower motors without needing to toggle the dash switches.
Common Issues and Troubleshooting Techniques

The most frequent problem owners encounter with the 73-87 Chevy truck electrical system is poor grounding. Because these trucks use a body-on-frame design, the connection between the cab, the bed, and the engine must be bridged with grounding straps. If you notice your headlights dimming when you use the turn signals, or your fuel gauge jumping when the heater is on, you likely have a “floating” ground. This occurs when the neutral wire path is restricted, forcing the voltage to find an alternative, unintended route through other gauges or bulbs.

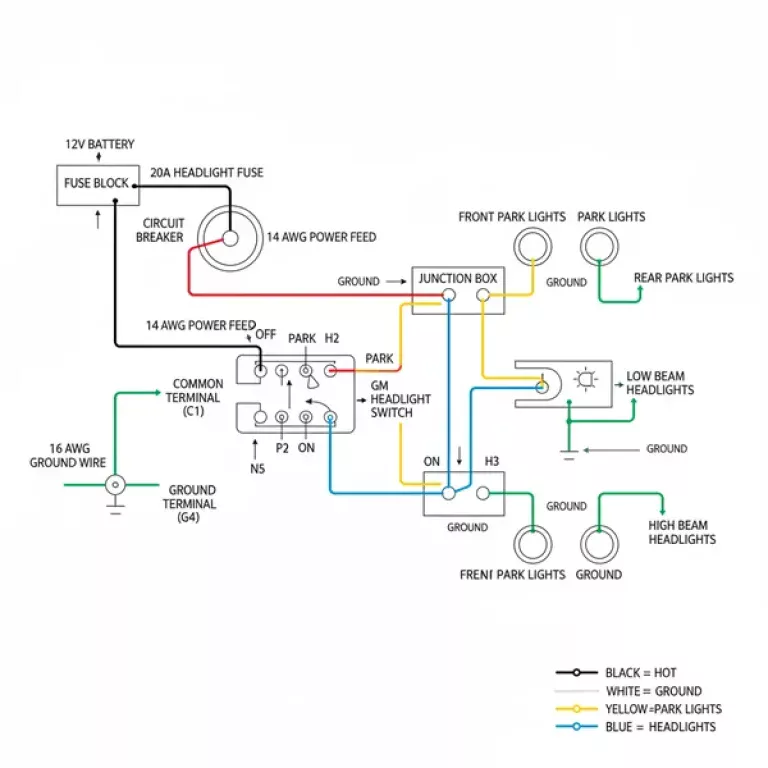

Another common issue involves the traveler wire logic in the headlight dimmer switch. Located on the floor (in early models) or the steering column (in later models), this switch toggles voltage between the high-beam and low-beam filaments. If your headlights won’t turn on at all, or only work on one setting, the common terminal on the dimmer switch is likely corroded or burnt out. Always check for physical signs of heat at the connector plugs, as 40 years of resistance can create enough heat to char the plastic housings.
Tips and Best Practices for Wiring Success
When working with your 73-87 chevy truck wiring harness diagram, organization is your best friend. Before removing any part of an old harness, use masking tape and a permanent marker to label every lead. Even if the wire colors seem obvious, fading over time can make a dark blue wire look remarkably like a black wire.
When running new wires for high-draw accessories like electric fans or upgraded stereos, always use a relay. This allows you to use a small-gauge signal wire at the dash while the heavy-gauge hot wire carries the actual load directly from the battery to the component.
For maintenance, periodically apply dielectric grease to your bulkhead connector and tail light sockets. This non-conductive grease seals out moisture and prevents the “green crust” of oxidation that leads to voltage drops. If you are replacing large sections of the harness, invest in cross-linked polyethylene (TXL) wire rather than standard PVC-insulated wire found at most hardware stores. TXL wire is thinner, tougher, and rated for much higher temperatures, making it ideal for the cramped and hot environment of a Chevy engine bay.
Lastly, if your original harness is beyond repair, consider a complete replacement from reputable brands like American Autowire or Painless Performance. These kits often come with a modernized 73-87 chevy truck wiring harness diagram that mirrors the factory routing but includes extra circuits for modern upgrades like fuel injection or power windows. By maintaining a clean, well-documented electrical system, you ensure that your classic truck remains a reliable driver for decades to come. Understanding the relationship between the hot wire, the ground, and the various terminals will give you the confidence to tackle any electrical project with ease.
Frequently Asked Questions
What is 73-87 Chevy truck wiring harness diagram?
It is a detailed visual schematic representing the electrical system of 1973 to 1987 Chevrolet pickups. The diagram illustrates how power flows from the battery to the fuse block and then to individual components like headlights, the ignition switch, and sensors, ensuring that every electrical circuit is correctly routed.
How do you read 73-87 Chevy truck wiring harness diagram?
To read the diagram, you must follow color-coded lines that represent specific circuits. Look for symbols indicating switches, grounds, and connectors. Start at the power source, identify the hot wire, and trace its path through the fuse and switch until it reaches the component and completes the circuit.
What are the parts of 73-87 Chevy truck wiring harness?
The harness consists of the engine loom, lighting loom, and dash harness. Major parts include the primary fuse block, bulkhead connector, ignition leads, and various pigtails. It also incorporates wire protection like loom tubing and tape to shield the conductors from heat and vibration under the hood.
Why is ground wire important?
A ground wire is essential because it provides the return path for electrical current to flow back to the battery. In these trucks, the chassis often acts as the return path. Without a secure, clean ground, circuits will fail, causing dim lights, erratic gauges, or complete component failure.
What is the difference between traveler wire and common terminal?
In specialized switching circuits, a traveler wire carries current between two different switches to control a single load. A common terminal is the specific point on a switch where the main power enters or the load exits, connecting to either of the traveler wires depending on the switch position.
How do I use 73-87 Chevy truck wiring harness diagram?
Use the diagram as a reference to troubleshoot non-functional electronics by tracing the hot wire to find breaks or shorts. It is also used during restoration to ensure that new wiring follows the factory layout, maintaining the integrity of the vehicle’s original electrical design and safety standards.
