36v Trolling Motor Wiring Diagram: Battery Series Guide
Connecting a 36v trolling motor requires wiring three 12V batteries in series. This is achieved by connecting the positive terminal of the first battery to the negative of the second, and continuing until a single positive and negative lead remain to power your motor efficiently and safely.
📌 Key Takeaways
- The primary purpose is to combine three 12V batteries into a single 36V power source.
- The 60-amp circuit breaker is the most critical component for motor protection.
- Avoid short circuits by ensuring jumpers only connect positive to negative terminals.
- Use 6-gauge marine-grade wire to handle high current without voltage drop.
- Refer to this diagram during initial rigging or when upgrading battery banks.
Setting up a high-performance marine vessel requires a deep understanding of your electrical system, especially when upgrading to a high-thrust propulsion unit. Navigating a 36v trolling motor wiring diagram can initially seem daunting, as it involves coordinating multiple power sources to create a single, high-voltage output. Whether you are a professional angler or a weekend DIY enthusiast, having the correct wiring schematic is vital for ensuring your motor runs efficiently without overheating or damaging your batteries. This guide will walk you through the complexities of series connections, wire selection, and safety protocols. You will learn how to properly link three 12-volt batteries, select the right hardware, and troubleshoot common electrical bottlenecks to keep your boat in peak condition.
A 36-volt system is achieved by connecting three 12-volt batteries in “series.” This increases the voltage while keeping the Amp-hour (Ah) capacity the same as a single battery in the chain.
Understanding the 36v Trolling Motor Wiring Diagram Components
A 36v trolling motor wiring diagram is a visual representation of a series circuit. Unlike a parallel circuit, which increases capacity (run time), a series circuit stacks the voltage of each battery to meet the high-demand requirements of 36V motors. The diagram typically features three 12V deep-cycle batteries, a series of jumper wires, a high-amperage circuit breaker, and the leads going to the trolling motor plug.
In this configuration, the “traveler wire” (or jumper wire) plays a critical role. These are the short cables that bridge the gap between individual batteries. The diagram will show the first battery’s positive terminal connecting to the second battery’s negative terminal, and the second battery’s positive terminal connecting to the third’s negative. This leaves a “common terminal” or main ground point at the start of the chain and a final “hot wire” (positive) terminal at the end of the chain.
The visual breakdown also emphasizes the importance of the trolling motor plug and receptacle. Most high-quality marine plugs use a brass screw or silver-plated terminal to ensure a corrosion-resistant connection. The diagram will clearly label the ground wire (negative) as black and the hot wire (positive) as red. In some advanced setups, you might see a third wire or a “neutral wire” reference if the boat uses a multi-voltage charging system, though for a dedicated 36V motor, a two-wire delivery system is standard.

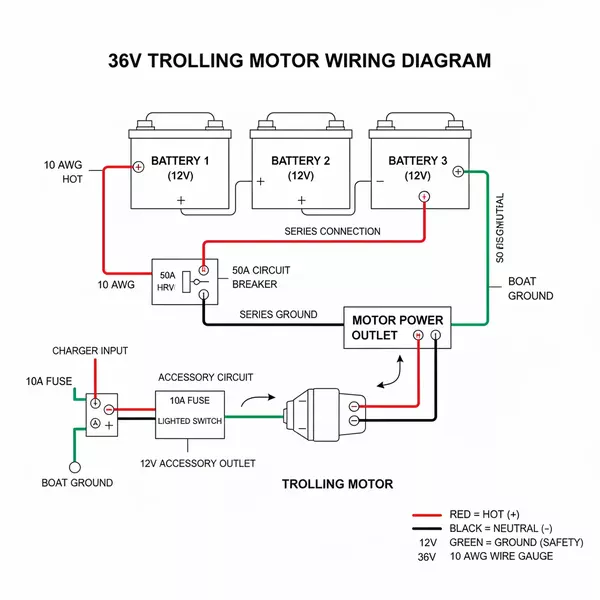

[DIAGRAM_PLACEHOLDER – 36V Series Battery Configuration]
Diagram showing 3 x 12V Batteries. Jumper 1: Bat 1(+) to Bat 2(-). Jumper 2: Bat 2(+) to Bat 3(-). Main Neg: Bat 1(-). Main Pos: Bat 3(+) via 60A Breaker.
Variations in these diagrams usually depend on the boat’s existing layout. For example, some diagrams include an on-board charging system that connects to each battery individually. However, the core 36V delivery path remains the same. It is crucial to use the correct gauge of wire, typically 6 AWG for most 36V systems, to prevent voltage drop over the length of the boat.
Step-by-Step Installation Guide
Properly interpreting and implementing a 36v trolling motor wiring diagram requires a methodical approach. Before you begin, ensure you have all the necessary components: three matching 12V deep-cycle batteries, two 6-gauge jumper wires, one 60-amp circuit breaker, and high-quality marine-grade heat shrink connectors.
- ✓ Step 1: Battery Placement and Security
- ✓ Step 2: Installing the Series Jumpers (Traveler Wires)
- ✓ Step 3: Integrating the Circuit Breaker
- ✓ Step 4: Connecting the Main Ground and Hot Wire
- ✓ Step 5: Wiring the Trolling Motor Plug
- ✓ Step 6: Testing System Voltage
Step 1: Battery Placement and Security
Position your three batteries in a stable, dry location, usually in the aft or center compartments. Use battery trays and heavy-duty straps to prevent movement. Batteries shifting during high-speed transit can strain the wiring and cause short circuits.
Step 2: Installing the Series Jumpers
This is where you create the 36V flow. Take your first jumper wire and connect the positive terminal of Battery 1 to the negative terminal of Battery 2. Take the second jumper and connect the positive terminal of Battery 2 to the negative terminal of Battery 3. These “traveler wires” must be the same gauge as your main power leads to ensure uniform resistance.
Never connect the positive and negative terminals of the same battery to each other. This will cause an immediate short circuit, potential fire, or battery explosion.
Step 3: Integrating the Circuit Breaker
Install a 60-amp waterproof circuit breaker within 12 inches of the final positive terminal (Battery 3). This device is non-negotiable. It protects your motor’s expensive control board from power surges and prevents electrical fires if the motor prop becomes jammed.
Step 4: Connecting the Main Ground and Hot Wire
Connect the main black ground wire from your trolling motor (or plug) to the negative terminal of Battery 1. This serves as your common terminal. Connect the main red hot wire to the “load” side of the circuit breaker. The “line” side of the breaker should then be connected to the positive terminal of Battery 3.
Step 5: Wiring the Trolling Motor Plug
If using a plug-and-socket system, strip the ends of your main leads. Open the plug housing and locate the brass screw terminals. Typically, the terminals are labeled “+” and “-“. Insert the hot wire into the positive terminal and the ground wire into the negative. Ensure no stray strands of copper are touching adjacent terminals.
Step 6: Testing System Voltage
Before plugging in your motor, use a multimeter set to DC voltage. Place the probes on the final positive and negative leads. The reading should be between 36V and 42V depending on the state of charge. If you see 12V, you have accidentally wired the system in parallel.
Common Issues & Troubleshooting
Even with a perfect 36v trolling motor wiring diagram, issues can arise due to the harsh marine environment. The most frequent problem is voltage drop. If your motor feels sluggish despite a full charge, check the gauge of your wire. If the wire is too thin (e.g., 10 AWG instead of 6 AWG), the resistance will cause the voltage to drop significantly by the time it reaches the bow.
Another common issue is corrosion at the terminals. Saltwater and humidity can create a layer of oxidation on the brass screw connections or battery posts. This oxidation acts as an insulator, blocking the flow of current. If you notice heat building up at the plug, it is a clear warning sign of a poor connection.
Apply a thin layer of dielectric grease to all terminal connections. This prevents oxygen and moisture from reaching the metal, virtually eliminating terminal corrosion.
If the motor won’t turn on at all, check the circuit breaker. Most breakers have a manual reset lever. If it has tripped, investigate why. Often, it’s due to heavy weeds or a fishing line tangled in the prop, which causes the motor to draw excess amperage. If the breaker trips immediately upon resetting, there is likely a direct short in the hot wire or ground wire path.
Tips & Best Practices for 36V Systems
Maintaining a 36V system requires more than just a one-time setup. To get the most life out of your batteries and motor, follow these industry best practices:
1. Match Your Batteries: Always use three batteries of the same age, brand, and capacity. If you mix an old battery with two new ones, the old battery will charge and discharge at a different rate, eventually “killing” the new batteries by forcing them to compensate for its inefficiency.
2. Optimize Wire Gauge: For runs longer than 15 feet, consider upgrading to 4 AWG wire. While 6 AWG is the standard for a 36v trolling motor wiring diagram, larger boats with bow-to-stern runs benefit from the reduced resistance of thicker copper.
3. Use Proper Connectors: Avoid “wire nuts” or simple electrical tape. In a boat, vibration is constant. Use tinned-copper lugs and marine-grade heat shrink tubing to create airtight, vibration-resistant seals. The tin coating on the copper prevents the “green rot” common in standard automotive wiring.
4. Frequent Inspections: At least once a month, tug on your connections to ensure they are tight. Vibration can loosen even the most secure brass screw terminals over time. A loose connection creates resistance, which creates heat, which can eventually melt your trolling motor plug.
5. Charging Considerations: While you can charge a 36V bank with a single 36V charger, it is often better to use a 3-bank “on-board” charger. This type of charger connects to each 12V battery individually, ensuring each one is balanced and topped off to the exact same level.
By following a detailed 36v trolling motor wiring diagram and adhering to these safety and maintenance standards, you ensure that your vessel remains reliable. A well-wired 36V system provides incredible torque and runtime, allowing you to navigate tough currents and heavy winds with ease. Proper installation is the foundation of your boat’s performance; take the time to do it right, and you will enjoy years of trouble-free operation on the water.
Frequently Asked Questions
What is 36v trolling motor wiring diagram?
A 36v trolling motor wiring diagram is a visual roadmap showing how to link three 12-volt batteries to achieve a combined 36-volt output. It details the specific placement of jumper wires and identifies the positive and negative output leads that connect directly to your marine motor for optimal performance.
How do you read 36v trolling motor wiring diagram?
To read this diagram, trace the path from the first battery’s positive terminal to the second’s negative. Look for the hot wire leading to the motor and the ground wire returning to the battery. Symbols usually represent the circuit breaker, battery terminals, and the series connections required for power.
What are the parts of 36v trolling motor wiring?
The primary parts include three deep-cycle 12V batteries, heavy-duty jumper wires acting as connectors, a 60-amp circuit breaker, and the trolling motor itself. You will also see terminal connectors, a common terminal for shared accessories, and insulated cabling designed to withstand harsh marine environments and high electrical loads.
Why is hot wire important?
The hot wire carries the positive current, while the neutral wire (commonly referred to as the negative lead in DC systems) completes the circuit. Both must be correctly sized to handle the 36V load, ensuring the trolling motor operates efficiently without overheating the electrical cables or terminal connections.
What is the difference between series and parallel?
In a series configuration, you connect the positive terminal to a negative terminal to increase voltage to 36V. Parallel wiring connects like-terminals to increase capacity (runtime) while keeping the voltage at 12V. For a 36V motor, a series circuit is mandatory to provide the required operating voltage.
How do I use 36v trolling motor wiring diagram?
Use this diagram to guide your physical installation. Start by placing your batteries in a secure tray. Follow the schematic to link the jumper cables between the batteries. Finally, connect the main system leads, ensuring the ground wire and hot wire are attached to the correct trolling motor inputs.
