Installing a submersible well pump requires precision, particularly when dealing with high-voltage systems. If you are looking for a clear 220v 3 wire well pump wiring diagram, you likely understand that this specific configuration involves more than just a simple power connection. Unlike 2-wire pumps that have the starting components built into the motor, a 3-wire pump relies on an external control box located above ground. This guide provides a comprehensive breakdown of the wiring sequence, terminal identification, and color-coding essential for a safe and functional water system. You will learn how to connect the pressure switch, the control box, and the pump motor while adhering to critical safety standards.
A “3-wire” pump actually uses four physical wires if you include the ground. The term “3-wire” refers to the three power leads (Black, Red, and Yellow) required to operate the motor’s start and run windings through an external control box.
Decoding the 220v 3 Wire Well Pump Wiring Diagram
The wiring diagram for a 220v 3-wire system serves as a roadmap for connecting three distinct stages of power: the main service panel, the pressure switch, and the pump control box. In a 220V (or 230V/240V) setup, the system does not utilize a neutral wire for the motor itself; instead, it uses two hot wires that provide the necessary voltage.
When viewing a 220v 3 wire well pump wiring diagram, the primary focus is on the control box terminals. These terminals are typically labeled with letters or colors to ensure the correct lead is attached to the corresponding motor winding. The three main wires descending into the well are usually colored Black, Red, and Yellow.
- ✓ The Yellow Wire: This is the common terminal connection. It provides the return path for both the start and run windings.
- ✓ The Black Wire: This connects to the “Main” terminal. It powers the run winding of the motor once it reaches operational speed.
- ✓ The Red Wire: This is the “Start” wire. It is connected to the start capacitor inside the control box to provide the high torque needed to get the pump moving from a dead stop.
- ✓ The Ground Wire: Usually green or bare copper, this is connected to the green ground screw to prevent electrical shock.
In most diagrams, the sequence begins at the double-pole breaker in your service panel. From there, two hot wires (usually black and red, or black and white marked with tape) run to the pressure switch. The pressure switch acts as the “brain” of the operation, closing the circuit when water pressure drops and opening it when the desired pressure is reached. From the pressure switch, the power continues to the control box, where the 3-wire pump leads are finally attached.

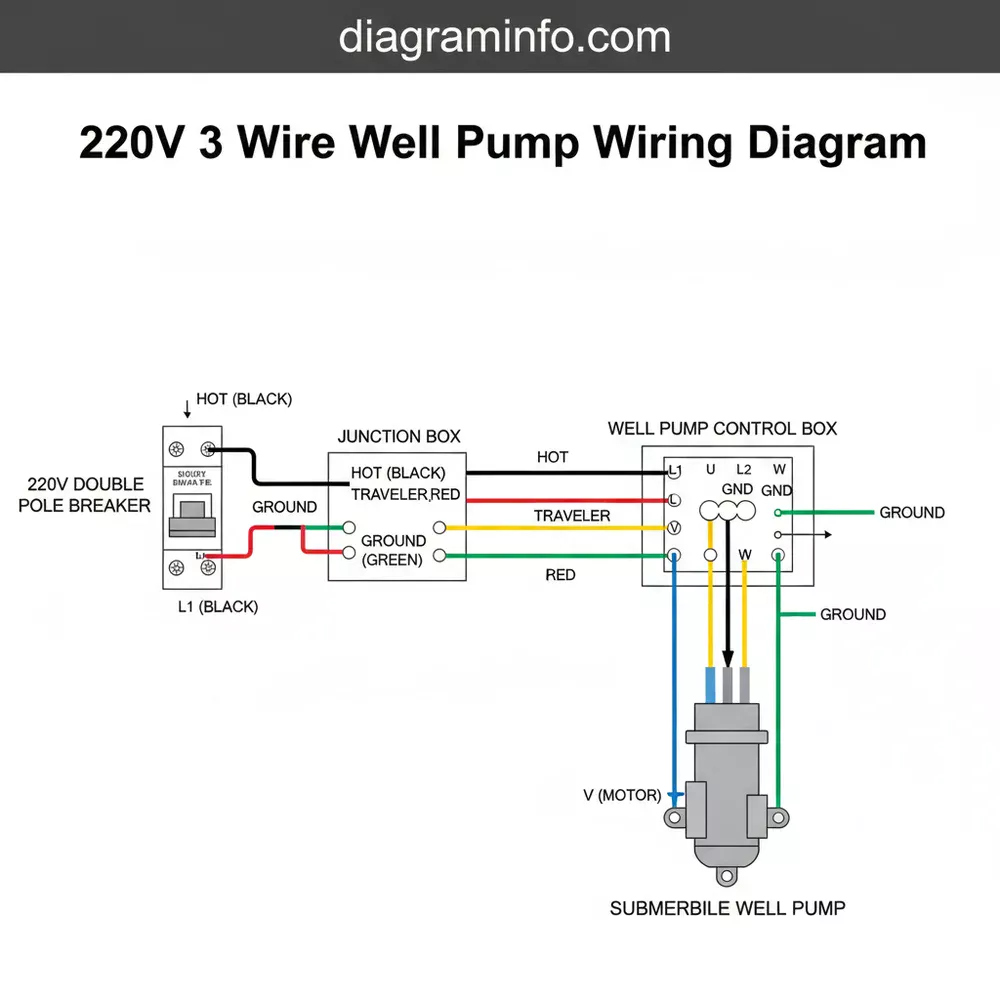

[DIAGRAM_PLACEHOLDER: A technical wiring schematic showing a 220V power source connecting to a Pressure Switch, then to a Control Box with terminals L1, L2, R, B, Y, and G, finally leading to the Submersible Pump motor.]
Visualizing the terminal block: L1 (Hot), L2 (Hot), Red (Start), Black (Main), Yellow (Common), Green (Ground).
Detailed Components of the Wiring System
To fully understand the 220v 3 wire well pump wiring diagram, you must be familiar with the individual components that make up the circuit. Each part has a specific role in managing the high voltage and current required to lift water from hundreds of feet below the surface.
The Control Box: This is the most critical element of a 3-wire system. It contains the start capacitor, the run capacitor (on some models), and a relay. The relay’s job is to disconnect the Red (start) wire once the motor has reached approximately 75% of its full speed. Without this box, a 3-wire motor cannot start.
The Pressure Switch: This device monitors the water pressure in your tank. Inside the switch, you will find two sets of terminals. The “Line” terminals receive power from the breaker panel, and the “Load” terminals send power to the control box. The switch is usually grounded via a green ground wire attached to a brass screw.
The Submersible Motor: Located at the bottom of the well, the motor is hermetically sealed. Because it is a 3-wire design, it is more serviceable than a 2-wire model because the components that most frequently fail (capacitors and relays) are located in the control box above ground, rather than inside the motor underwater.
Always turn off the power at the main breaker before touching any wires. 220V electricity is lethal. Use a multimeter to verify that the voltage is zero at the pressure switch before beginning work.
Step-by-Step Installation Guide
Reading a 220v 3 wire well pump wiring diagram is one thing; physical installation is another. Follow these steps to ensure a secure and code-compliant connection.
Step 1: Preparation and Tools
Before you begin, gather the necessary tools: a wire stripper, a screwdriver set (flathead and Phillips), a voltmeter, and waterproof heat-shrink tubing. Ensure your wire gauge is appropriate for the depth of your well and the horsepower of your pump. Generally, 10 or 12 AWG wire is standard for residential wells, but longer runs require thicker gauge wire to prevent voltage drop.
Step 2: Wiring the Pressure Switch
Bring your two hot wires from the 220V breaker into the pressure switch through the conduit openings. Connect these to the two “Line” terminals (usually the outside terminals). Attach the ground wire to the green brass screw. Then, connect another set of wires to the “Load” terminals (usually the inside terminals) which will carry the current to the control box.
Step 3: Mounting the Control Box
Mount the control box on a wall near the pressure tank. Ensure it is in a dry location but accessible for future maintenance. Open the cover to reveal the terminal block. You will see labels such as L1, L2, Y, B, and R.
Step 4: Connecting Power to the Control Box
Take the wires coming from the “Load” side of the pressure switch and connect them to the L1 and L2 terminals in the control box. In a 220V system, it does not matter which hot wire goes to L1 or L2, as there is no neutral wire involved in this part of the circuit. Ensure the connections are tight under the brass screw plates.
Step 5: Connecting the Pump Leads
This is the most crucial part of the 220v 3 wire well pump wiring diagram implementation. Locate the three wires coming up from the well.
- Connect the Yellow wire to the “Y” or “Common” terminal.
- Connect the Black wire to the “B” or “Main” terminal.
- Connect the Red wire to the “R” or “Start” terminal.
Step 6: Grounding the System
Connect the green ground wire from the pump cable to the ground terminal in the control box. This creates a continuous path to the ground rod, protecting the system from surges and shorts.
Step 7: Waterproofing the Well Head Connections
While the connections at the control box are dry, the connections at the well head (where the pump cable meets the underground feeder) must be waterproof. Use a heat-shrink kit specifically designed for submersible pumps. Slide the tubes over the wires, crimp the connectors, and use a heat gun to seal the tubing until the adhesive sealant oozes out the ends.
Step 8: Testing the System
With all covers replaced and wires secured, turn the breaker back on. Observe the pressure gauge. The pump should start immediately. If you hear a clicking sound but the pump doesn’t start, or if the breaker trips, immediately disconnect power and re-check your wiring against the diagram.
When running wire through conduit, avoid using “traveler wire” meant for 3-way lighting. Instead, use UF-B (Underground Feeder) or THWN-2 wire rated for wet locations. This ensures the insulation doesn’t degrade over time inside the well casing.
Common Issues & Troubleshooting
Even with a perfect 220v 3 wire well pump wiring diagram, issues can arise during or after installation. Understanding how to troubleshoot these problems can save you hours of frustration.
The Pump Won’t Start: If you hear the relay in the control box click but the motor doesn’t turn, the issue is often a blown start capacitor. The capacitor is a black or silver cylinder inside the control box. If it appears bulged or has leaked fluid, it needs replacement.
Frequent Breaker Tripping: This usually indicates a short circuit. Check the ground wire to ensure it isn’t touching a hot terminal. Alternatively, the insulation on the wires inside the well may have rubbed against the casing, creating a “ground fault.” You can test this using a megohmmeter to check the resistance of the insulation.
Low Voltage: If the pump starts slowly or runs hot, check the voltage at the control box. It should be between 210V and 240V. If the voltage drops significantly when the pump kicks on, your wire gauge may be too thin for the distance (the “run”) from the house to the well.
The “Chattering” Switch: If the pressure switch clicks on and off rapidly, it is usually a sign of a waterlogged pressure tank, but it can also be caused by loose wiring at the common terminal. Ensure all screws are torqued properly.
Tips & Best Practices for Longevity
To ensure your well system lasts for decades, follow these professional recommendations:
Match the Control Box to the Motor: Never mix brands. If you have a Franklin Electric motor, use a Franklin Electric control box. The capacitors and relays are specifically tuned to the torque requirements and winding resistance of that specific motor.
Use Proper Wire Gauge: Voltage drop is the silent killer of submersible pumps. If your well is 300 feet deep and 100 feet from the house, that is a 400-foot run. Refer to a wire sizing chart to see if you need to jump from 12-gauge to 10-gauge or even 8-gauge wire.
Check Torque: Vibrations from the pump and the pressure switch can loosen connections over time. Every year, during a routine inspection, ensure that the wires under each brass screw are still tight. A loose wire creates heat, which can melt the terminal block.
Lightning Protection: Well pumps are essentially giant lightning rods buried in the earth. Installing a surge arrestor at the control box or the main service panel can protect the sensitive capacitors and the motor windings from high-voltage spikes during storms.
Label Everything: Use a permanent marker to label the wires inside the control box. While the colors Red, Black, and Yellow are standard, having clear labels can prevent mistakes during a stressful emergency repair in the future.
By following this 220v 3 wire well pump wiring diagram guide, you have the foundational knowledge to manage your well’s electrical system effectively. Proper terminal identification, respect for color codes, and attention to wire gauge will ensure that your home has a reliable and safe water supply for years to come. Remember, when in doubt, consult a licensed electrician to verify your work and ensure it meets local building codes.
Frequently Asked Questions
Where is the well pump control box located?
The control box is typically located indoors, such as in a basement or utility room near the pressure tank. It houses the starting capacitor and relay required for 3-wire pumps. Keeping it away from the well prevents moisture damage and makes servicing the electrical components much easier and safer.
What does a 220v 3 wire well pump wiring diagram show?
This diagram illustrates the electrical path from the double-pole circuit breaker to the pump control box and down to the submersible motor. It shows how the system uses a red start wire (often confused with a traveler wire) to briefly engage the motor windings before switching to the run circuit.
How many wires does a 220v 3 wire well pump have?
A 3-wire pump system actually uses four physical wires going down the well: three colored power leads (black, red, and yellow) and one green ground wire. The ‘3-wire’ name refers to the power conductors, as 220v systems utilize two hot legs and a start leg, but no neutral wire.
What are the symptoms of a bad well pump motor?
Common signs include the pump not starting, frequent circuit breaker tripping, or low water pressure. If the control box hums but the pump doesn’t turn, the start capacitor or the motor windings may be faulty. Checking resistance between the common terminal and start/run wires can confirm if the motor failed.
Can I wire a 220v well pump myself?
Yes, if you have experience with high-voltage electrical systems and follow local building codes. However, 220v systems carry significant risk of injury if miswired. You must ensure proper wire gauge for the depth of your well and create permanent waterproof seals for all connections before lowering the pump motor.
What tools do I need for well pump wiring?
You will need a digital multimeter to test voltage and resistance, wire strippers, and an insulated screwdriver set. For the down-hole connections, a heat gun and a professional-grade waterproof heat-shrink splice kit are essential to prevent electrical leakage and ensure a long-lasting, reliable connection for your water system.
